Introduction
This manual provides essential information for the safe and effective use of your llano LP-E6NH 2400mAh rechargeable battery. Designed for compatibility with various Canon EOS cameras, this battery features a convenient built-in USB-C charging port, offering flexibility and extended power for your photography needs. Please read these instructions carefully before use.

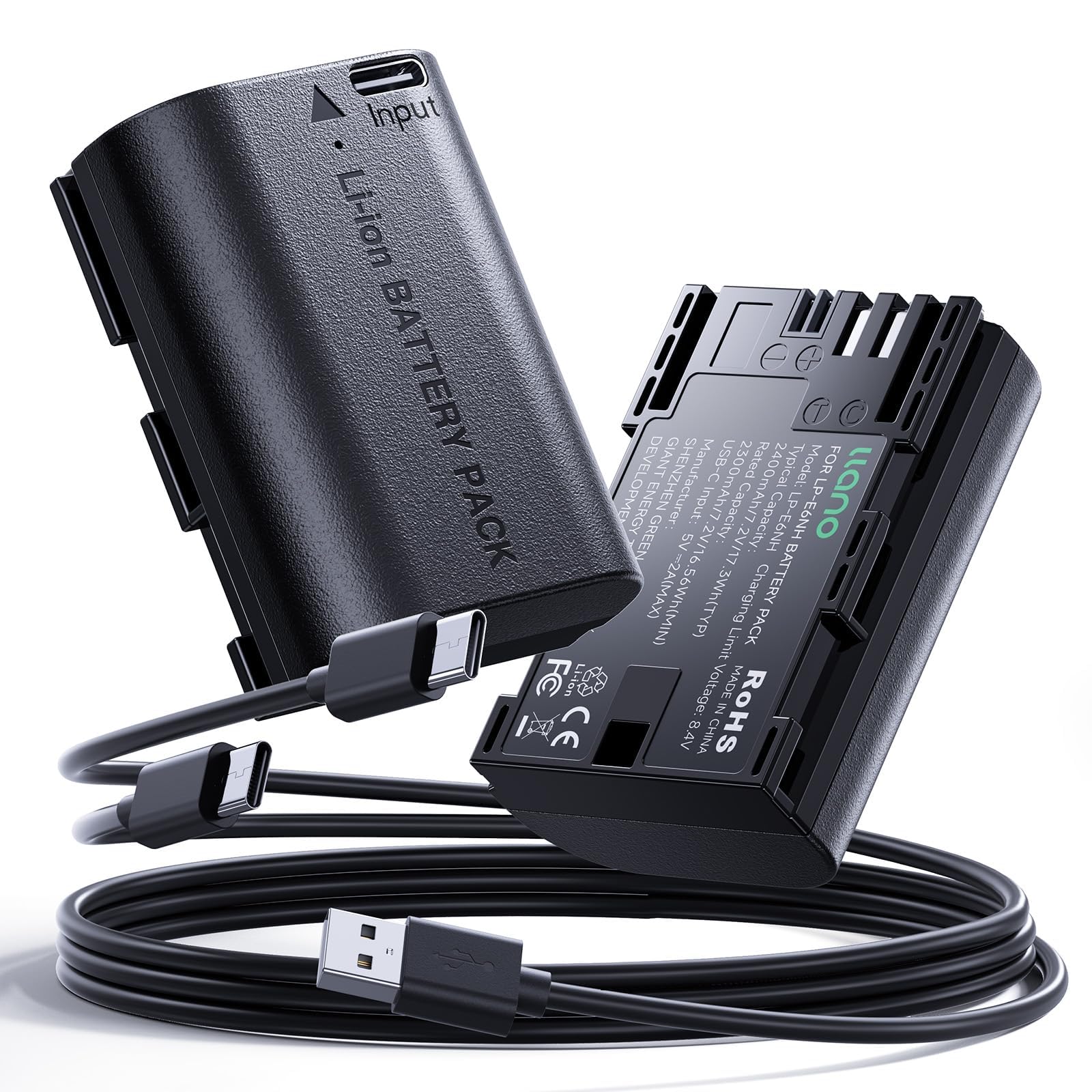

Image: The llano LP-E6NH 2400mAh rechargeable battery.
Product Features
- Wide Compatibility & Full Decoding: Fully compatible with Canon EOS R5, R6, R6 Mark II, R5 Mark II, R, 90D, 5D Mark IV, 6D Mark II, 80D, 70D, 7D Mark II, 5DS R, 5DS, 5D Mark III, 6D, 60D, 7D, 5D Mark II, XC15, XC10, C700, and more. Features full decoding for accurate power display without warning messages.
- 2400mAh Real Capacity: Provides 2400mAh capacity (7.2V/17.3Wh) for extended shooting sessions, designed to maintain performance over 500+ charge cycles.
- Built-in USB-C Port for Direct Fast Charging: Allows charging directly via a Type-C port using standard wall adapters, car chargers, or portable power banks, eliminating the need for an external charger.
- Reliable & Safe with 10-Layer Protection: Incorporates a 10-tier protection system against overcharging, overheating, short circuits, over-current, over-discharge, and overvoltage.
- Smart LED Indicators: Features an intelligent LED indicator: red for charging, green when fully charged.
Image: Key advantages of the llano LP-E6NH battery, including real capacity, no camera errors, USB-C charging, and safety features.
Compatibility
The llano LP-E6NH battery is designed for full compatibility with a wide range of Canon EOS cameras and other devices that use LP-E6NH, LP-E6, or LP-E6N batteries. Compatible models include:
- Canon EOS R5, EOS R6, EOS R6 Mark II, EOS R5 Mark II, EOS R
- Canon EOS 90D, EOS 5D Mark IV, EOS 6D Mark II, EOS 80D, EOS 70D, EOS 7D Mark II
- Canon EOS 5DS R, EOS 5DS, EOS 5D Mark III, EOS 6D, EOS 60D, EOS 7D, EOS 5D Mark II
- Canon XC15, XC10, C700
- Also supports battery grips BG-E6, E7, E9, E11, E13, E14.
Image: Visual representation of compatible Canon camera models.
Package Contents
Verify that all items are present in your package:
- 2 x llano LP-E6NH Battery
- 1 x USB-A to Dual USB-C Cable
- 1 x User Manual (this document)
Image: Contents included in the llano LP-E6NH battery 2-pack.
Setup
Initial Charging
- Using USB-C: Connect the provided USB-A to Dual USB-C cable to the USB-C port on the battery. Plug the USB-A end into a compatible USB power source (e.g., wall adapter, power bank, car charger). The LED indicator on the battery will glow red during charging.
- Using a Traditional Charger: Alternatively, you can charge the battery using any standard LP-E6 series battery charger. Insert the battery into the charger as per the charger's instructions.
- Full Charge Indication: The LED indicator on the battery will turn green when charging is complete. For optimal performance, fully charge the battery before its first use.
Image: Various methods for charging the battery via its USB-C port.
Battery Installation
- Ensure your camera is powered off.
- Open the battery compartment cover on your Canon EOS camera.
- Insert the llano LP-E6NH battery into the compartment, aligning it correctly with the contacts. Push until it clicks into place.
- Close the battery compartment cover securely.
Operating Instructions
Using the Battery in Your Camera
Once installed, power on your camera. The llano LP-E6NH battery is fully decoded, meaning your camera will display accurate battery level information on the screen, similar to an original Canon battery. You can use all camera functions, including continuous shooting and video recording, without interruption or warning messages related to battery compatibility.
Image: The llano LP-E6NH battery operating in a Canon camera without warning messages.
Charging the Battery
The battery can be charged using its integrated USB-C port or a traditional LP-E6 series charger.
- USB-C Charging: Connect a USB-C cable to the battery's port and a USB power source. The charging time via USB-C is approximately 2 hours.
- Traditional Charger: Use your existing Canon LP-E6 series charger for charging.
LED Indicator:
- Red Light: Battery is charging.
- Green Light: Battery is fully charged.
Image: LED indicators on the llano LP-E6NH battery during charging (red) and when fully charged (green).
Maintenance
- Storage: Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, it is recommended to charge the battery to about 50-60% capacity.
- Cleaning: Use a soft, dry cloth to clean the battery terminals if they become dirty. Do not use liquid cleaners.
- Temperature: The battery is engineered to operate reliably in temperatures from -20°C to 40°C. Avoid exposing the battery to temperatures outside this range for extended periods.
- Disposal: Dispose of depleted batteries according to local regulations. Do not dispose of batteries in general waste or by incineration.
Image: The llano LP-E6NH battery's wide temperature tolerance for reliable operation.
Troubleshooting
- Battery Not Charging:
- Ensure the USB-C cable is securely connected to both the battery and the power source.
- Verify that the USB power source is active and providing sufficient power.
- Check the LED indicator on the battery; if it's not red, charging may not be initiated.
- If using a traditional charger, ensure the battery is correctly seated and the charger is powered.
- Camera Displays Error Message:
- The llano LP-E6NH battery is designed for full decoding and should not trigger warning messages. If an error occurs, ensure the battery is fully inserted and the compartment door is closed.
- Power off the camera, remove the battery, wait a few seconds, and reinsert it.
- Confirm your camera model is listed in the compatibility section.
- Battery Drains Quickly:
- Battery life can vary significantly based on camera usage (e.g., video recording, live view, continuous shooting, cold environments).
- Ensure the battery is fully charged before use.
- Over time, all rechargeable batteries experience some degradation. If the battery's performance has significantly decreased, it may be nearing the end of its lifespan.
Specifications
| Feature | Detail |
|---|---|
| Brand | llano |
| Model | LP-E6NH (USB-C Input) |
| Battery Type | Lithium Ion |
| Battery Capacity | 2400 mAh |
| Nominal Voltage | 7.2V |
| Watt Hours | 17.3 Wh |
| Input Voltage (USB-C) | 8.4V |
| Charge Time (via USB-C) | Approx. 2 hours |
| Dimensions | Approx. 38.7 x 22.7 x 51.7 mm (1.51 x 0.83 x 2.24 inches) |
| Battery Weight | Approx. 0.36 Pounds (163g) |
| Reusability | Rechargeable |
| Manufacturer | SHENZHEN GREEN GIANT ENERGY TECHNOLOGY DEVELOPMENT CO.,LTD |

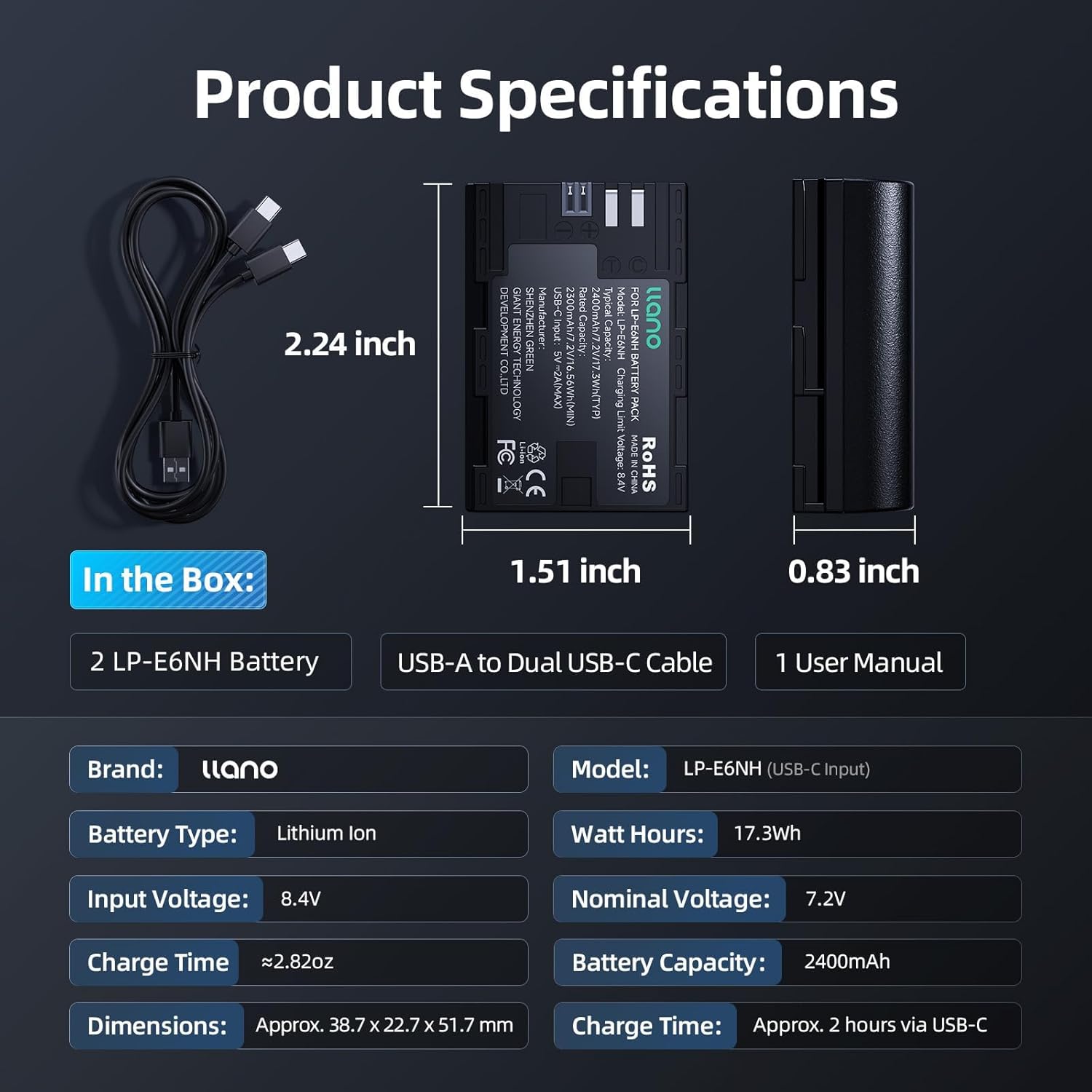

Image: Technical specifications and physical dimensions of the llano LP-E6NH battery.
Warranty and Support
Warranty Information
The product comes with a limited warranty. For specific details regarding the warranty period and coverage, please refer to the warranty card included in your package or visit the official llano website. Keep your proof of purchase for warranty claims.
Customer Support
If you encounter any issues or have questions regarding your llano LP-E6NH battery, please contact llano customer support through their official website or the retailer where the product was purchased. Provide your product model and purchase date for efficient assistance.
