Introduction
This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your FLEXISPOT 79 x 32 Inch Large Standing Desk. Please read this manual thoroughly before use to ensure proper function and safety. Keep this manual for future reference.
Image: The FLEXISPOT standing desk in an office setting, showcasing its large surface area with multiple monitors and accessories.
Safety Information
Always follow assembly instructions carefully. Do not exceed the maximum weight recommendation of 132 pounds to ensure stability and safety. Ensure all connections are secure before operating the desk. Keep children and pets away from the desk during operation.
Package Contents
Verify that all components are present before beginning assembly. Your FLEXISPOT standing desk package typically includes:
- Desktop (79 x 32 inches, may be a splice board design)
- Desk Frame (legs, crossbar, motor)
- Control Panel
- Power Adapter and Cable
- Cup Holder
- Headphone Hook
- Assembly Hardware (screws, tools)
- Instruction Manual
Note: Due to the size and weight, your desk may arrive in multiple packages that could ship and arrive separately.
Image: Illustration showing two separate boxes for the desktop and desk frame, indicating that components may arrive in multiple shipments.
Setup and Assembly
Assembly of the FLEXISPOT standing desk is designed to be straightforward. A power drill may be needed for some steps (not included). Follow the detailed instructions provided in the included assembly guide. Ensure all screws are tightened securely, but do not overtighten.
Assembly Tips:
- Lay out all parts and hardware before starting.
- Ensure the desktop halves (if applicable) are correctly aligned before securing.
- When installing the transmission rod, ensure it slides smoothly into the motor. Tolerances can be tight.
- It is recommended to have a second person assist when flipping the desk over after assembly.
Operating Instructions
Your FLEXISPOT standing desk features an electric height adjustment system with a multifunctional controller.
Height Adjustment:
- The desk height can be adjusted smoothly and quietly from 28.9 inches to 46.5 inches.
- Use the UP and DOWN buttons on the control panel to manually adjust the desk to your desired height.
Memory Presets:
The control panel includes 4 programmable memory presets, allowing you to save and recall your preferred sitting and standing heights with a single touch.
- Adjust the desk to your desired height using the UP/DOWN buttons.
- Press the M button (or similar memory set button) followed by one of the numbered preset buttons (1, 2, 3, or 4) to save the current height.
- To recall a saved height, simply press the corresponding numbered preset button.

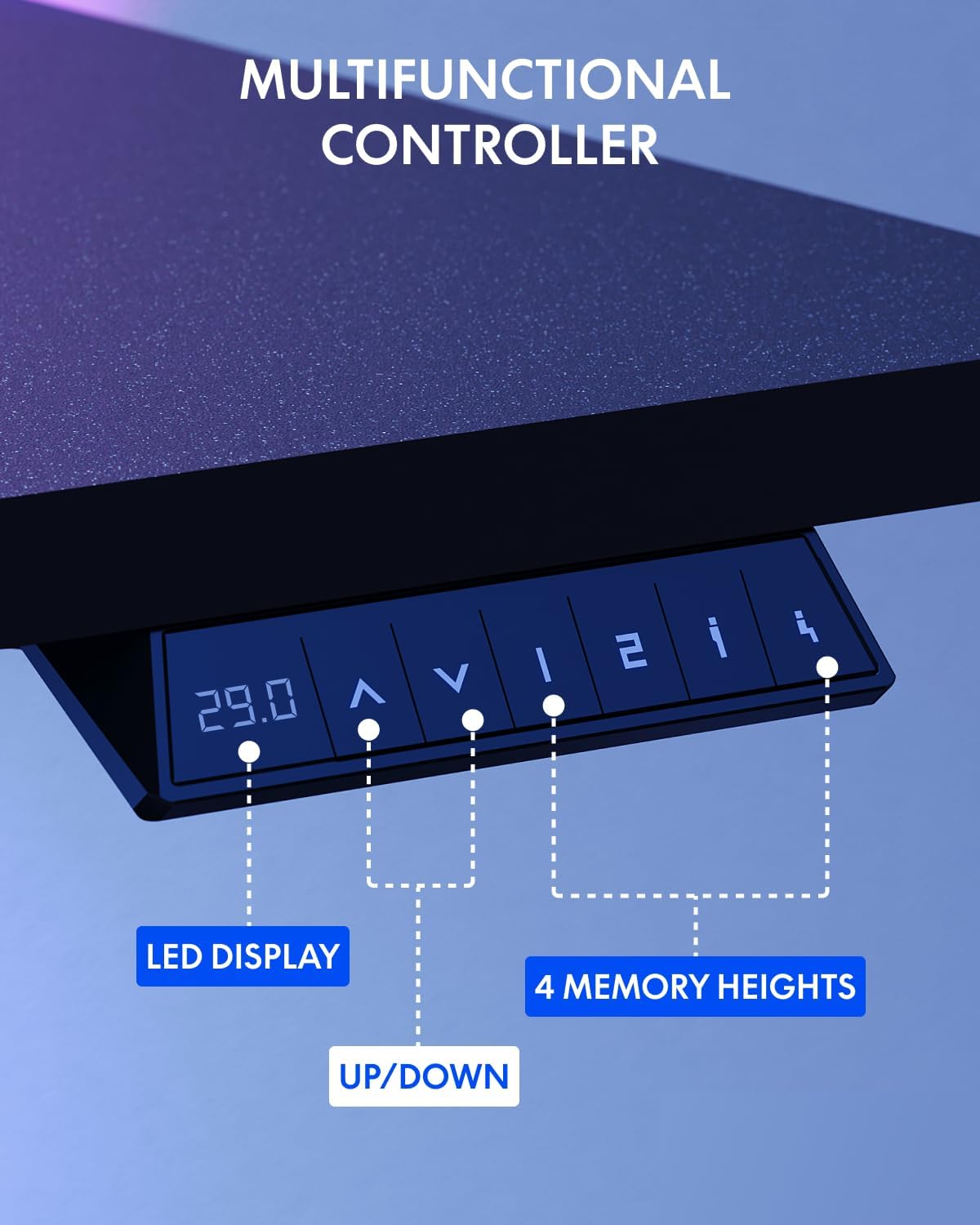

Image: The multifunctional control panel with an LED display and buttons for height adjustment and four memory presets.
Accessory Usage:
- The included cup holder can be attached to the side of the desk for convenient beverage access.
- The headphone hook provides a dedicated storage spot for your headphones, keeping your workspace tidy.
Image: Details of the integrated cup holder and headphone hook accessories.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your standing desk.
- Cleaning: Wipe the desktop and frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals.
- Check Connections: Periodically check all screws and bolts to ensure they remain tight. Retighten if necessary.
- Cable Management: Organize cables to prevent snagging during height adjustments.
Troubleshooting
If you encounter issues with your FLEXISPOT standing desk, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Desk does not move | Power cable disconnected, motor error | Check power connections. Unplug and replug the desk. If an error code is displayed, consult customer support. |
| Uneven height adjustment | Obstruction, uneven load | Ensure no obstructions are present. Distribute weight evenly on the desktop. Perform a reset if available (refer to specific controller instructions). |
| Desk wobbles | Loose connections, uneven floor | Tighten all assembly screws. Ensure the desk is on a level surface. Adjust foot pads if necessary. |
For persistent issues or error codes not listed, please contact FLEXISPOT customer support.
Specifications
Key specifications for the FLEXISPOT 79 x 32 Inch Large Standing Desk:
- Brand: FLEXISPOT
- Model: 79 x 32 Inch Large Standing Desk
- Product Dimensions: 32"D x 79"W x 29"H (at minimum height)
- Color: Black Frame + Black Top
- Style: Modern
- Base Material: Alloy Steel
- Top Material Type: Engineered Wood
- Finish Type: Powder Coated
- Height Range: 28.9" to 46.5"
- Maximum Weight Recommendation: 132 Pounds
- Special Features: 79" x 32" Large Tabletop, Splice Board, Cup Holder, Headphone Hook, Electric Height Adjustment, 4 Memory Presets
- Assembly: Required
- UPC: 810072869357
Image: Visual representation of the desk's dimensions and adjustable height range.
Warranty and Support
FLEXISPOT provides the following warranty for your standing desk:
- Frame and Mechanical Parts: 5-year limited warranty
- Electronics: 2-year limited warranty
For warranty claims, technical assistance, or any questions regarding your product, please contact FLEXISPOT customer support. You can find contact information on the official FLEXISPOT website or through your purchase platform.
