Introduction
Thank you for choosing the CUSCO Strut Bar Front TypeOS, model 1C8-540-A. This high-quality performance part is designed to enhance the structural rigidity of your vehicle's chassis, specifically for the Toyota GXPA16 GR Yaris (post-minor change models). By connecting the top of the suspension towers, the strut bar reduces chassis flex during cornering and aggressive driving, leading to improved handling, steering response, and overall driving stability. Please read this manual carefully before installation and use to ensure proper function and safety.
Installation Guide
Important Safety Notice: Installation of automotive performance parts should ideally be performed by a qualified professional. Improper installation can lead to vehicle damage or personal injury. Always ensure the vehicle is securely supported and the engine is off and cool before beginning any work.
Required Tools:
- Socket Wrench Set (appropriate sizes for strut tower bolts)
- Torque Wrench
- Gloves
- Safety Glasses
Installation Steps:
- Preparation: Park the vehicle on a level surface and engage the parking brake. Open the hood and locate the front strut towers.
- Clearance: Identify any components that may obstruct the installation of the strut bar (e.g., engine covers, hoses). Carefully move or temporarily remove them if necessary.
- Positioning: Carefully place the CUSCO Strut Bar over the top of the front strut towers, aligning the mounting holes on the bar's end plates with the existing bolts on the strut towers.
- Initial Fastening: Hand-tighten the nuts onto the strut tower bolts that pass through the strut bar's end plates. Ensure the bar is seated correctly and not binding on any components.
- Torqueing: Using a torque wrench, tighten the nuts to the vehicle manufacturer's specified torque settings for the strut tower bolts. Refer to your vehicle's service manual for exact torque values. Tighten in a cross-pattern if applicable to ensure even pressure.
- Final Check: Double-check all fasteners to ensure they are securely tightened. Verify that the strut bar does not interfere with any moving parts or other engine bay components.
- Reassembly: Reinstall any components that were temporarily removed or moved during the installation process.
Image Description: This image shows the CUSCO Strut Bar (silver bar with blue end plates) installed across the engine bay of a white Toyota GR Yaris. The bar connects the two front strut towers, visible on either side of the engine. The engine itself is black with red accents, and various hoses and components are visible around the strut bar. This illustrates the typical installed appearance of the product.

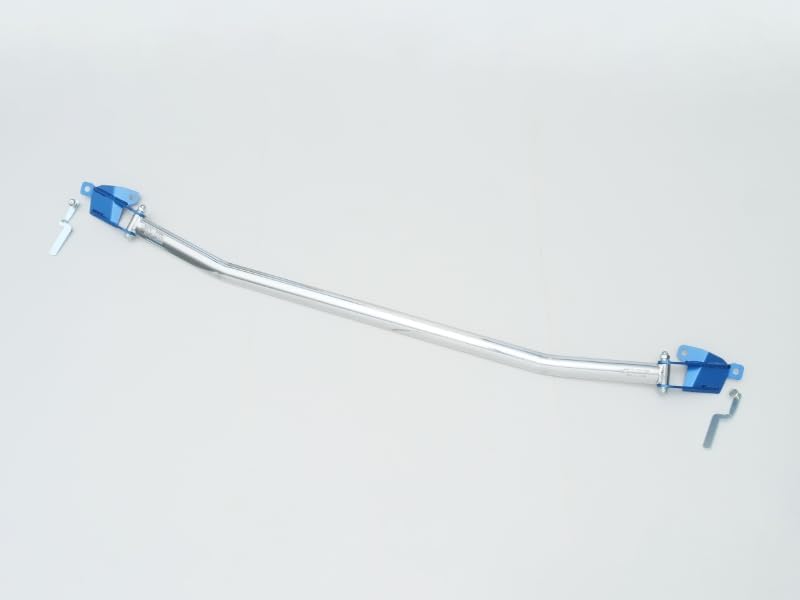

Image Description: This image displays the CUSCO Strut Bar 1C8-540-A as a standalone product. The bar is silver-colored, made of metal, and has blue-colored mounting brackets on each end. The brackets appear to be made of aluminum or a similar lightweight metal. The overall shape is slightly curved to accommodate engine bay components. This view shows the product before installation.
Operation and Performance
The CUSCO Strut Bar is a passive performance enhancement. Once installed, it operates continuously to improve your vehicle's handling characteristics. It works by bracing the top of the suspension towers, which are subjected to significant forces during cornering. Without a strut bar, these towers can flex, leading to subtle changes in suspension geometry and reduced tire contact patch.
By minimizing this flex, the strut bar helps maintain consistent suspension alignment, resulting in:
- Improved steering response and precision.
- Reduced body roll during aggressive cornering.
- Enhanced stability and control, especially at higher speeds or during spirited driving.
- More predictable handling characteristics.
The TypeOS design, featuring an oval shaft, provides excellent rigidity while maintaining a lightweight profile.
Care and Maintenance
The CUSCO Strut Bar is designed for durability and requires minimal maintenance. However, regular inspection is recommended to ensure optimal performance and safety.
- Regular Inspection: Periodically check all mounting bolts for tightness, especially after the first few hundred kilometers of driving post-installation. Vibrations can sometimes cause fasteners to loosen over time.
- Cleaning: Clean the strut bar with a soft cloth and mild automotive cleaner as needed to remove dirt, dust, and grime. Avoid abrasive cleaners or solvents that could damage the finish.
- Corrosion Check: Inspect the bar and its mounting points for any signs of corrosion or damage. While designed to resist corrosion, extreme conditions or impacts can affect its integrity.
- Damage Assessment: In the event of a collision or significant impact to the front of the vehicle, have the strut bar inspected by a professional for any bending, cracks, or damage that could compromise its structural integrity.
Troubleshooting
Most issues related to a strut bar are due to improper installation or pre-existing vehicle conditions.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Rattling or Clunking Noise | Loose mounting bolts; interference with other engine bay components. | Check and re-torque all mounting bolts. Inspect for contact points with hoses, wires, or engine covers and adjust if possible. |
| No noticeable improvement in handling | Incorrect installation; pre-existing suspension issues; expectations not aligned with product function. | Verify installation steps. Have a professional inspect your vehicle's suspension. A strut bar enhances existing handling, it does not fix underlying problems. |
| Difficulty installing | Misalignment; incorrect model application. | Ensure the strut bar is designed for your specific vehicle model and year (Toyota GXPA16 GR Yaris, post-minor change). Do not force installation; seek professional assistance. |
If you experience persistent issues not covered here, please contact CUSCO customer support or a certified automotive technician.
Product Specifications
| Feature | Detail |
|---|---|
| Brand | CUSCO |
| Model Number | 1C8-540-A |
| Type | Front Strut Bar, TypeOS (Oval Shaft) |
| Application | Toyota GXPA16 GR Yaris (Post-Minor Change) |
| ASIN | B0D9LFX1YL |
| First Available on Amazon.co.jp | July 17, 2024 |
Warranty and Support
CUSCO products are manufactured to high standards of quality and durability. For specific warranty information regarding your 1C8-540-A Strut Bar, please refer to the warranty card included with your purchase or visit the official CUSCO website.
For technical support, installation inquiries, or warranty claims, please contact CUSCO customer service directly. Contact details can typically be found on their official website or on the product packaging.
Disclaimer: This manual provides general guidance. CUSCO is not responsible for any damage or injury resulting from improper installation or misuse of this product. Always prioritize safety and consult with a professional if you are unsure about any installation steps.
