FCX RocHobby 1/12 1941 Willys MB Scaler RC Jeep

1. Introduction

This manual provides essential information for the setup, operation, and maintenance of your FCX RocHobby 1/12 1941 Willys MB Scaler RC Jeep. This highly detailed, ready-to-run (RTR) 4x4 model car replicates the iconic 1941 Willys MB, featuring an olive green paint finish and fine pad-printed logos. It includes a remote control, receiver, and battery, offering an authentic and engaging remote-controlled driving experience.

An overview of the FCX RocHobby 1/12 1941 Willys MB Scaler RC Jeep, showcasing its detailed design, along with the included remote control, battery, and charging cable.

2. Safety Information

Please read and understand all safety instructions before operating the RC Jeep to prevent injury or damage. This product is recommended for users 17 years and up.

• Battery Safety: Always use the provided battery and charging cable. Do not overcharge or short-circuit batteries.
• Operating Environment: Operate the RC Jeep in open areas, away from people, pets, and obstacles. Avoid operating near water or in wet conditions.
• Adult Supervision: Adult supervision is recommended, especially for younger operators.
• Transmitter Batteries: The remote control (transmitter) requires (4) AA batteries, which are not included in the package. Ensure these are installed correctly before use.
• Moving Parts: Keep fingers, hair, and loose clothing away from moving parts such as wheels and drive shafts.

3. Package Contents

Verify that all items listed below are present in your package:

• FCX RocHobby 1/12 1941 Willys MB Scaler RC Jeep
• 2.4GHz Remote Control Transmitter
• Rechargeable Battery for RC Jeep
• Charging Cable
• Instruction Manual

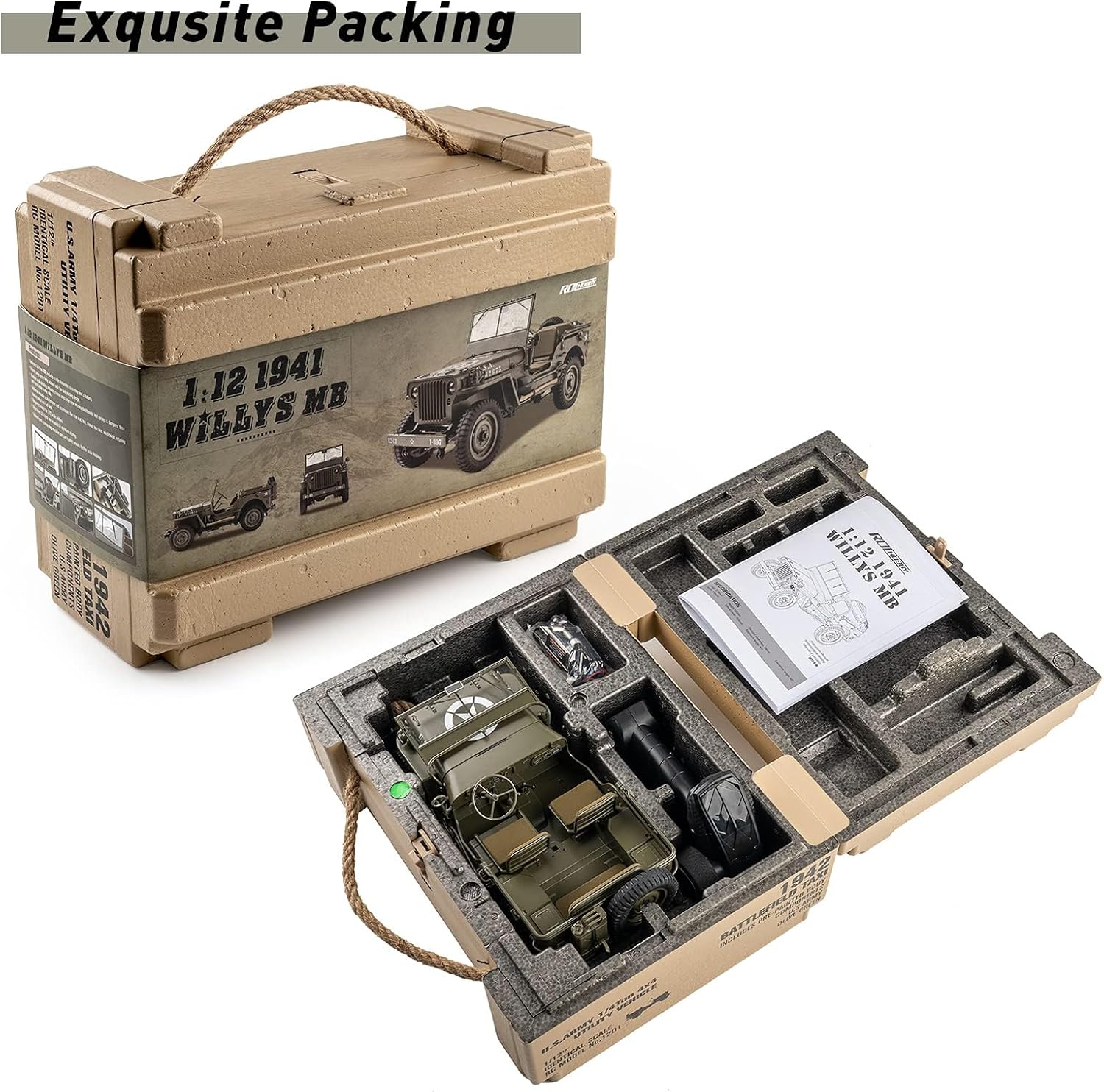

The product packaging, designed to resemble a military crate, with the RC Jeep and its components securely nestled inside, indicating careful presentation and protection during transport.

4. Product Overview

The 1941 Willys MB Scaler RC Jeep is designed for enthusiasts seeking a realistic and capable off-road experience. Key features include:

• Realistic Scale Design: Features a simulated hard shell, real glass mirrors, a miniature dashboard, and natural rubber tires.
• Movable Parts: Includes a movable rear gas tank, shovel, axe, hood, windshield, and canopy bracket for enhanced realism.
• Detailed Interior: Canvas-textured seats, foldable rear seats, and openable utility boxes.
• Advanced Chassis: Real-scale trapezoidal beams and steel plate springs with shock absorbers for authentic performance.
• Integrated LED Lighting: Control linkage lights, headlights, anti-aircraft lights, and brake lights via the remote.

Close-up view illustrating the realistic details of the RC Jeep, such as the functional LED lighting system, the movable engine cover, various scale accessories like a shovel and axe, and the high-traction rubber tires designed for off-road performance.

A close-up of the highly detailed interior of the RC Jeep, featuring canvas-textured seats, a miniature dashboard with gauges, and a realistic steering wheel, enhancing the scale model experience.

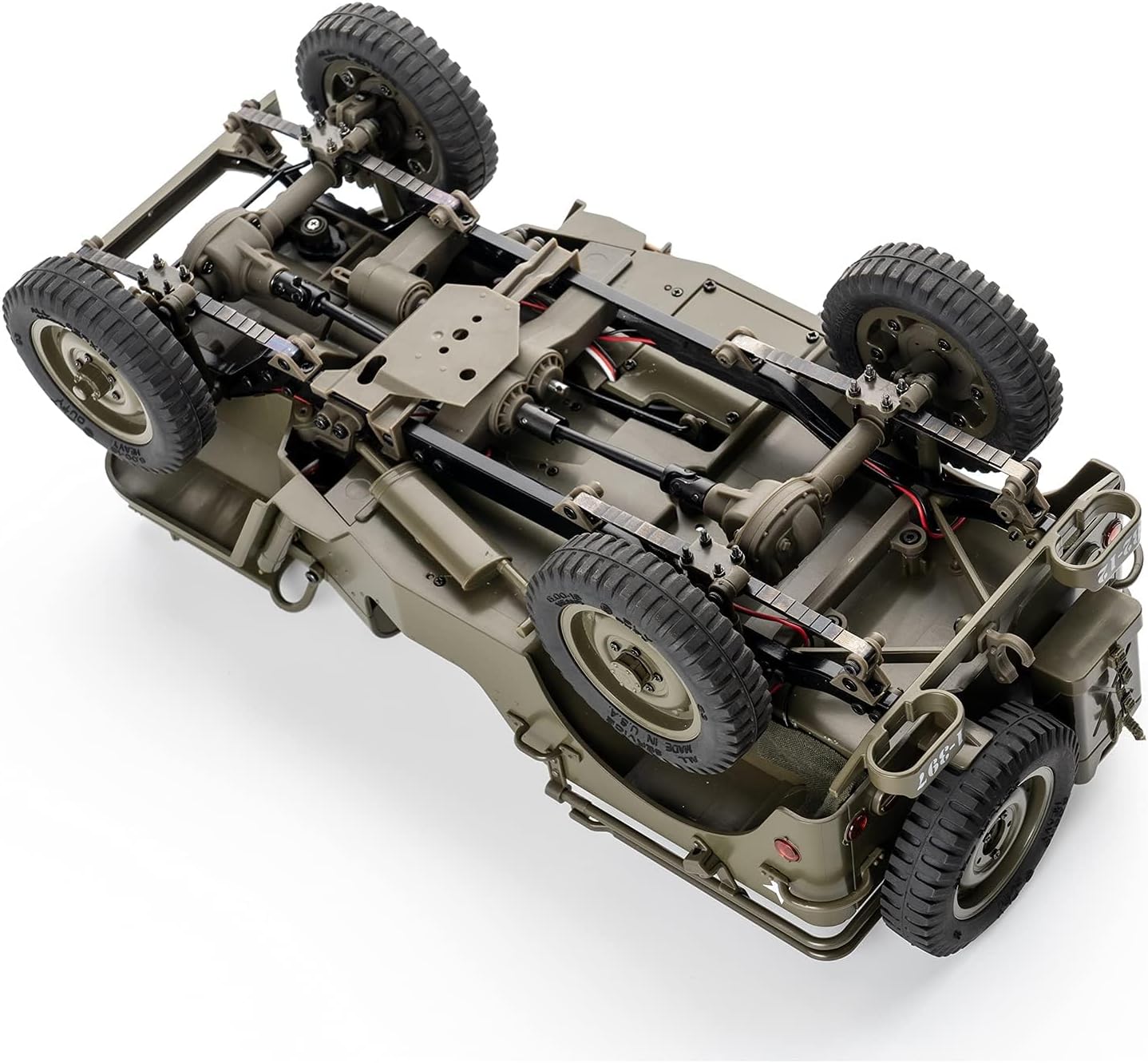

An inverted view of the RC Jeep, revealing the detailed chassis structure, including the drive shafts, differentials, leaf spring suspension with shock absorbers, and the overall robust undercarriage design.

5. Setup

5.1 Charging the Vehicle Battery

1. Connect the provided charging cable to the vehicle's battery.
2. Plug the charging cable into a suitable USB power source.
3. Allow the battery to charge fully. Refer to the battery's specific instructions for charging times.
4. Disconnect the battery once charging is complete.

5.2 Installing Transmitter Batteries

1. Open the battery compartment on the back of the remote control transmitter.
2. Insert four (4) AA batteries, ensuring correct polarity (+/-).
3. Close the battery compartment securely.

6. Operation

6.1 Powering On

1. Ensure the vehicle battery is fully charged and connected.
2. Turn on the power switch on the RC Jeep.
3. Turn on the power switch on the remote control transmitter. The transmitter and receiver should automatically bind.

6.2 Driving Controls

The 2.4GHz remote control provides precise command over the vehicle.

The 2.4GHz remote control unit alongside the RC Jeep, highlighting the two-speed transmission system (Driving Control and Beginner/Climbing modes) and various control functions for precise operation.

• Steering Wheel: Turn left or right to control the vehicle's direction.
• Throttle Trigger: Pull to move forward, push to brake or reverse.
• 2-Speed Transmission: The remote control allows switching between two driving modes: Model A (Driving Control System) for general driving and Model B (Smart LED System/Beginner/Climbing Mode) for enhanced control during crawling or for new users.
• Lighting Controls: Activate or deactivate the linkage lights, headlights, anti-aircraft lights, and brake lights using dedicated buttons on the transmitter.

6.3 Transmitter Features

• Forgetting Reminder: Alerts if the transmitter is left on without activity.
• Low Power Reminder: Indicates when transmitter batteries are low.
• Motor Overload Protection: Helps prevent damage to the vehicle's motor.

The 1941 Willys MB Scaler RC Jeep demonstrating its capability on uneven terrain, emphasizing its four-wheel drive system, 2.4 GHz radio control, 1:12 scale accuracy, and Ready-to-Run (RTR) configuration.

A series of images demonstrating the RC Jeep's advanced rock crawling abilities, illustrating its suspension articulation and traction on steep and uneven surfaces.

7. Maintenance

• Cleaning: After each use, especially in dusty or dirty conditions, clean the vehicle with a soft brush or cloth. Avoid using water directly on electronic components.
• Lubrication: Periodically check and lubricate moving parts such as gears and bearings as needed, using RC-specific lubricants.
• Battery Care: Store batteries in a cool, dry place. Do not leave batteries fully charged or fully discharged for extended periods.
• Inspection: Regularly inspect the vehicle for loose screws, damaged parts, or worn tires. Replace any damaged components promptly.

8. Troubleshooting

• Vehicle Not Responding:
  • Check if the vehicle's battery is charged and properly connected.
  • Ensure the transmitter has fresh AA batteries and is powered on.
  • Verify that both the vehicle and transmitter are powered on and bound.
• Poor Range or Interference:
  • Ensure no other 2.4GHz devices are operating nearby.
  • Check for physical obstructions between the transmitter and vehicle.
• Lights Not Working:
  • Confirm the vehicle battery is charged.
  • Check the lighting control buttons on the transmitter.

9. Specifications

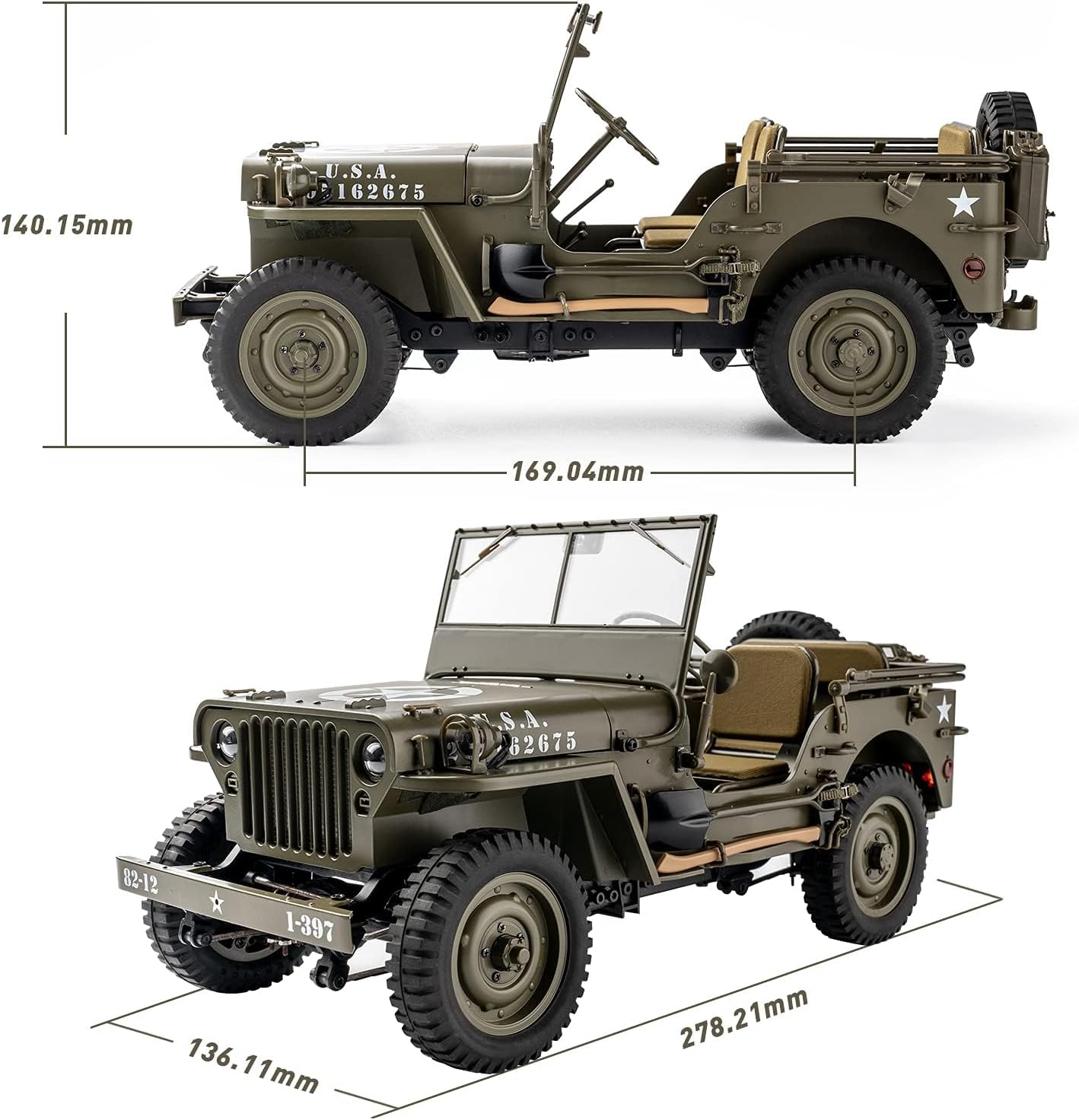

A technical diagram providing the precise dimensions of the 1941 Willys MB Scaler RC Jeep, including its length, width, and height, essential for understanding its physical footprint.

10. Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official RocHobby website. Keep your proof of purchase for any warranty claims.
