1. Product Overview
The Awoco 36-inch Under Cabinet Range Hood is designed for efficient ventilation in your kitchen. It features a sleek black stainless steel finish, 6-speed operation with up to 900 CFM airflow, gesture sensing touch controls, a remote control, and a 5W LED light bar.
Image: The Awoco 36-inch Under Cabinet Range Hood, showcasing its design and placement under kitchen cabinetry.
Key Features:
- Under Cabinet Design: 7-inch high profile for seamless integration.
- Powerful Ventilation: Up to 900 CFM with 6-speed settings.
- Intuitive Controls: Gesture sensing touch control panel and remote control.
- Efficient Lighting: 5W cold bright LED light bar with 2 levels of brightness.
- Easy Maintenance: Dishwasher-safe stainless steel baffle filters and external oil collector.
- Durable Construction: High-quality stainless steel with brush finishing.
- Ventilation Type: Ducted vent outside (ducts not included). Cannot be converted to ductless.
2. Setup and Installation
Proper installation is crucial for optimal performance and safety. This range hood is designed for under-cabinet mounting and requires external ducting.
2.1 Dimensions and Placement
The hood measures 35-3/4"W x 22"D x 7"H and weighs 40 lbs. The recommended installation height above the cooking surface is 27 inches, with a minimum of 24 inches and a maximum of 30 inches.

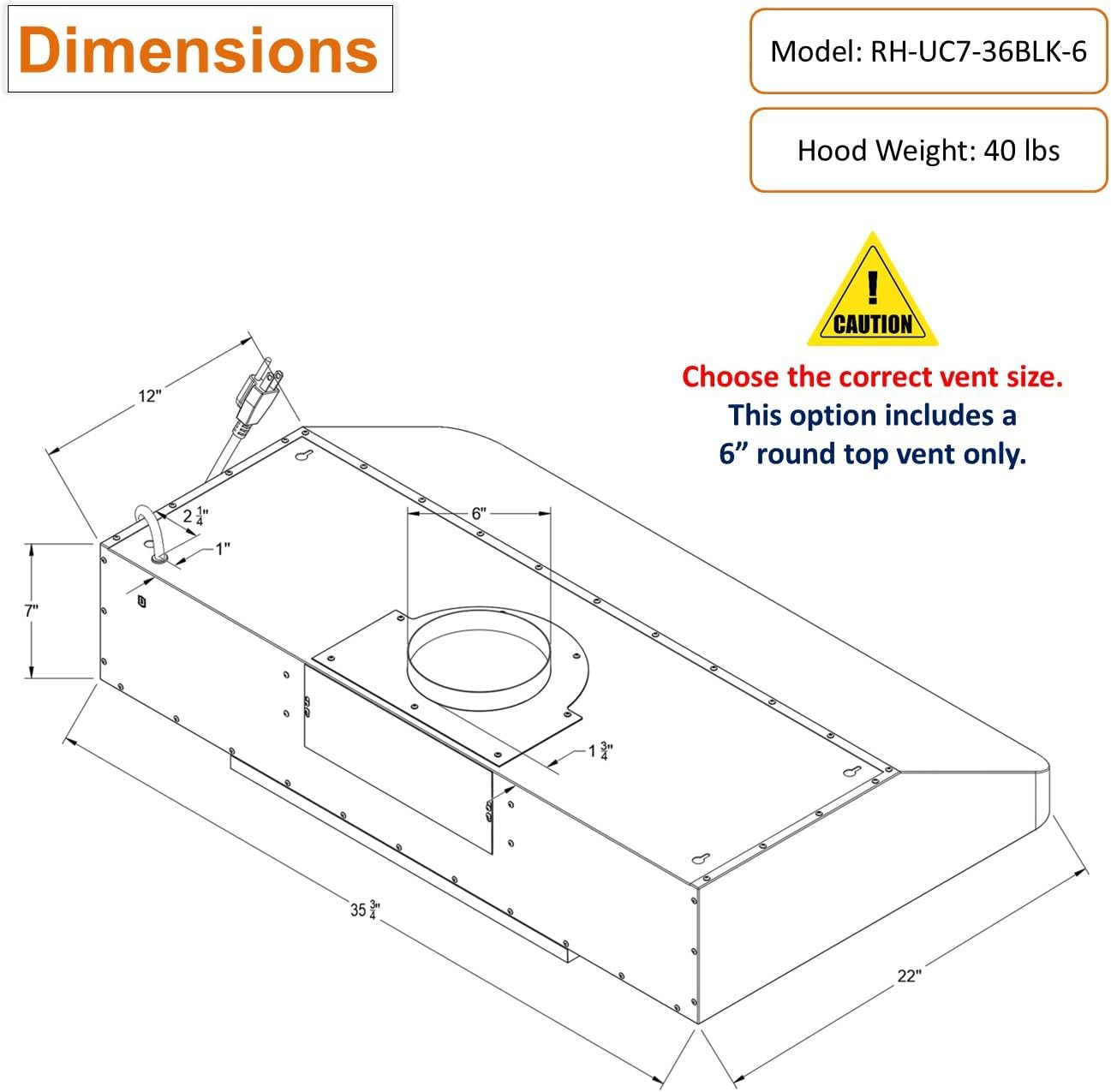

Image: Detailed dimensions of the range hood, including width, depth, and height, with a note about the 6-inch round top vent.
2.2 Venting Options
This model includes a 6-inch round top vent adapter. Other vent adapters (7-inch round, 8-inch round, 3-1/4" x 10" rectangular top, and 3-1/4" x 10" rectangular rear) are available for purchase separately to fit various installation needs. Ducts are not included.
Image: Illustration of different vent adapter types available for the range hood, including round and rectangular options.
2.3 Adapter Installation
To install a vent adapter, align it with the opening on the top or rear of the range hood and secure it with screws. If using a rear vent, first remove the back cover plate using a flat screwdriver, then install the rectangular rear vent adapter and cover the top opening with the provided top cover plate.
Video: This video demonstrates the installation of various vent adapters (round top, rectangular top, and rectangular rear) on the range hood. It also shows how to remove the back cover plate for rear venting.
3. Operating Instructions
The Awoco range hood offers multiple control methods for ease of use.
3.1 Gesture Sensing Touch Control Panel
The touch control panel allows for hands-free operation using gestures. Ensure the gesture sensor button on the panel is enabled to activate this feature.
- Swipe Right to Left: Decreases fan speed levels, turns off the motor, and shuts off the LED light.
- Swipe Left to Right: Turns on the hood at speed 1 and increases fan speed levels.

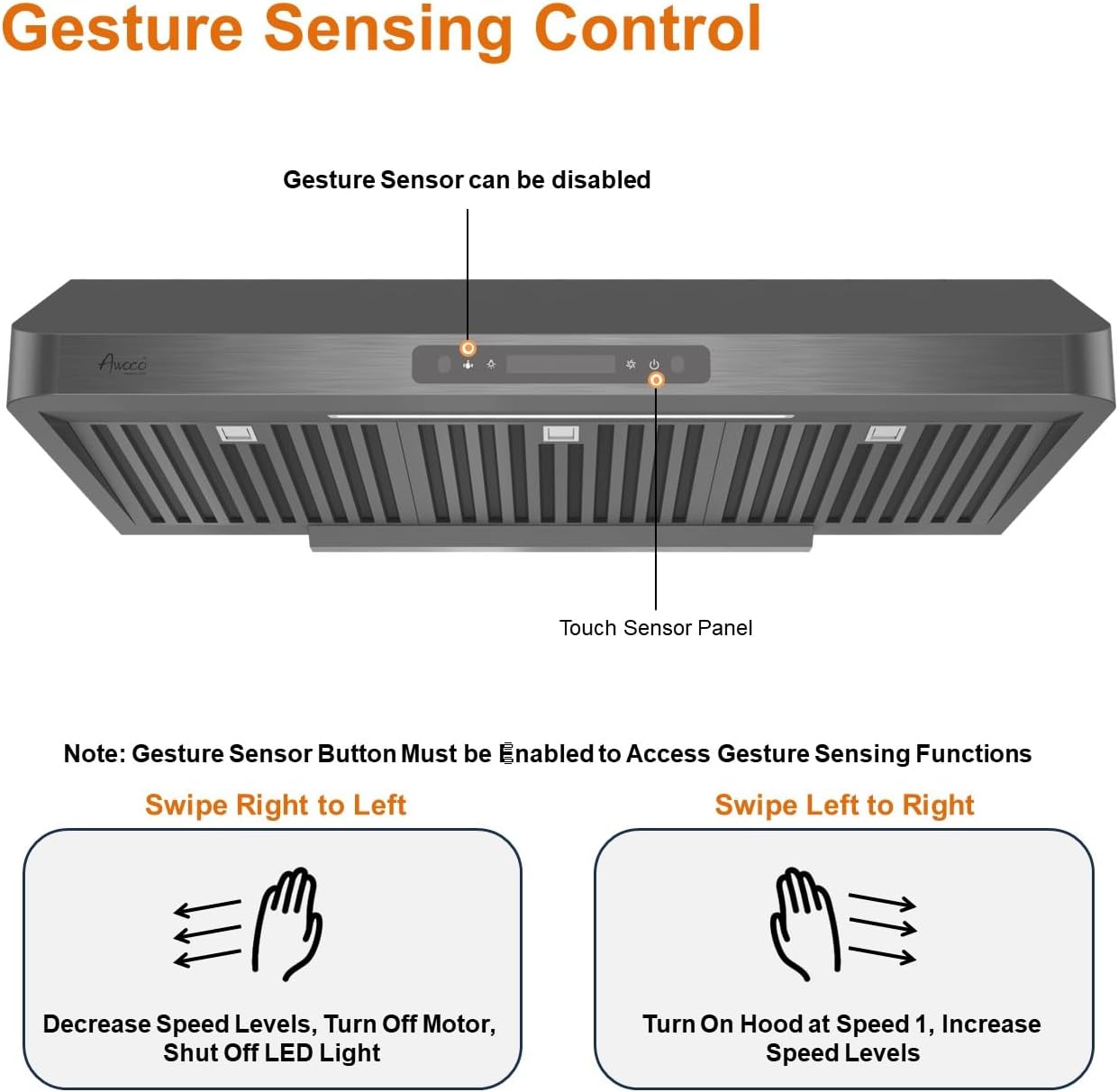

Image: Visual guide to the gesture sensing controls, showing hand movements for increasing and decreasing fan speeds, and controlling the light and motor.
3.2 Remote Control
A remote control is included for convenient operation from a distance. The touch control panel has a sensor to receive infrared signals from the remote.
Image: A hand using the remote control to operate the range hood, highlighting the convenience of remote access.
3.3 Fan Speed and Airflow
The range hood features 6 fan speeds, providing airflow from 150 CFM up to 900 CFM. Speeds 1 and 2 operate very quietly. Two powerful motors ensure effective smoke and odor removal.
3.4 LED Lighting
The elegant 5W cold bright LED light bar illuminates your cooking space. It offers 2 levels of brightness, controllable via the touch panel or remote.
Image: A detailed view of the elegant cold LED light bar, demonstrating its brightness for illuminating the cooking area.
3.5 Auto Shut-Off Timer
The hood includes an adjustable auto shut-off timer (1-30 minutes) with a default setting of 10 minutes. This feature allows the hood to continue venting leftover smoke after cooking and then automatically turn off.
4. Maintenance
Regular cleaning and maintenance will ensure the longevity and efficient performance of your range hood.
4.1 Baffle Filters
The commercial-style stainless steel baffle filters are easily removable and dishwasher safe. Clean them regularly to prevent grease buildup and maintain optimal airflow.
Image: Baffle filters being placed into a dishwasher, illustrating their dishwasher-safe design for easy cleaning.
4.2 External Oil Collector
The range hood includes a 20-inch dishwasher-safe external oil collector. This collector efficiently manages cooking oils and grease, making cleanup convenient. Remove and clean it as needed.
Image: A detailed view of the 20-inch slide-in external oil collector, designed for efficient grease management.
5. Troubleshooting
If you encounter issues with your Awoco range hood, please refer to the following common troubleshooting steps:
- No Power: Ensure the power cord is securely plugged into a functional outlet. Check your home's circuit breaker.
- Fan Not Operating: Verify that the power is on and the fan speed is selected. If using gesture control, ensure it is enabled.
- Poor Suction: Check if the baffle filters and oil collector are clean and properly installed. Ensure there are no obstructions in the ductwork.
- Lights Not Working: Check if the LED light is turned on via the control panel or remote. If individual LEDs are out, contact customer support for replacement.
- Gesture Control Unresponsive: Ensure the gesture control button is enabled on the touch panel. Clean the sensor area to remove any obstructions.
For persistent issues or problems not listed here, please contact Awoco customer support.
6. Specifications
| Feature | Specification |
|---|---|
| Model Number | AWC-RH-UC7-36BLK-6 |
| Dimensions (W x D x H) | 35.75" x 22" x 7" |
| Hood Weight | 40 lbs |
| Material | Stainless Steel (Black finish) |
| Air Flow Capacity | Up to 900 Cubic Feet Per Minute (CFM) |
| Number of Speeds | 6 |
| Noise Level (Low/High) | 46 dB (4.0 sones) / 62 dB (11.0 sones) |
| Controls Type | Gesture Sensing Touch Control Panel, Remote Control |
| Light Source Type | 5W LED Light Bar (2 levels of brightness) |
| Power Rating | 120V/60Hz, 95W Min. 200W Max. |
| Power Cord Length | 36 inches (with plug) |
| Filter Type | Dishwasher Safe Baffle Filters |
| Oil Collector | 20-inch Dishwasher Safe External Oil Collector |
| Ventilation Type | Ducted (6-inch Round Top Vent included) |
| Auto Shut-Off Timer | 1-30 minutes (default 10 minutes) |
| Certification | ETL Certified |
7. Warranty and Support
Awoco provides a 3-Year Limited Parts Warranty. This warranty covers free parts, repair, or exchange within three years from the date of purchase. For any warranty claims, technical assistance, or customer service inquiries, please contact Awoco directly.
Awoco is committed to providing high-quality products and supreme customer service.
