Mont Alpi MA805-AW Artwood 6-Burner Outdoor Kitchen Grill User Manual

1. Product Overview

The Mont Alpi MA805-AW Artwood Outdoor Kitchen Island is a comprehensive grilling solution designed for outdoor use. It features a 6-burner gas grill, a refrigerator cabinet, and durable construction suitable for various weather conditions. The island is crafted from recycled high-density polyethylene (HDPE) and marine-grade stainless steel, ensuring longevity and ease of maintenance.

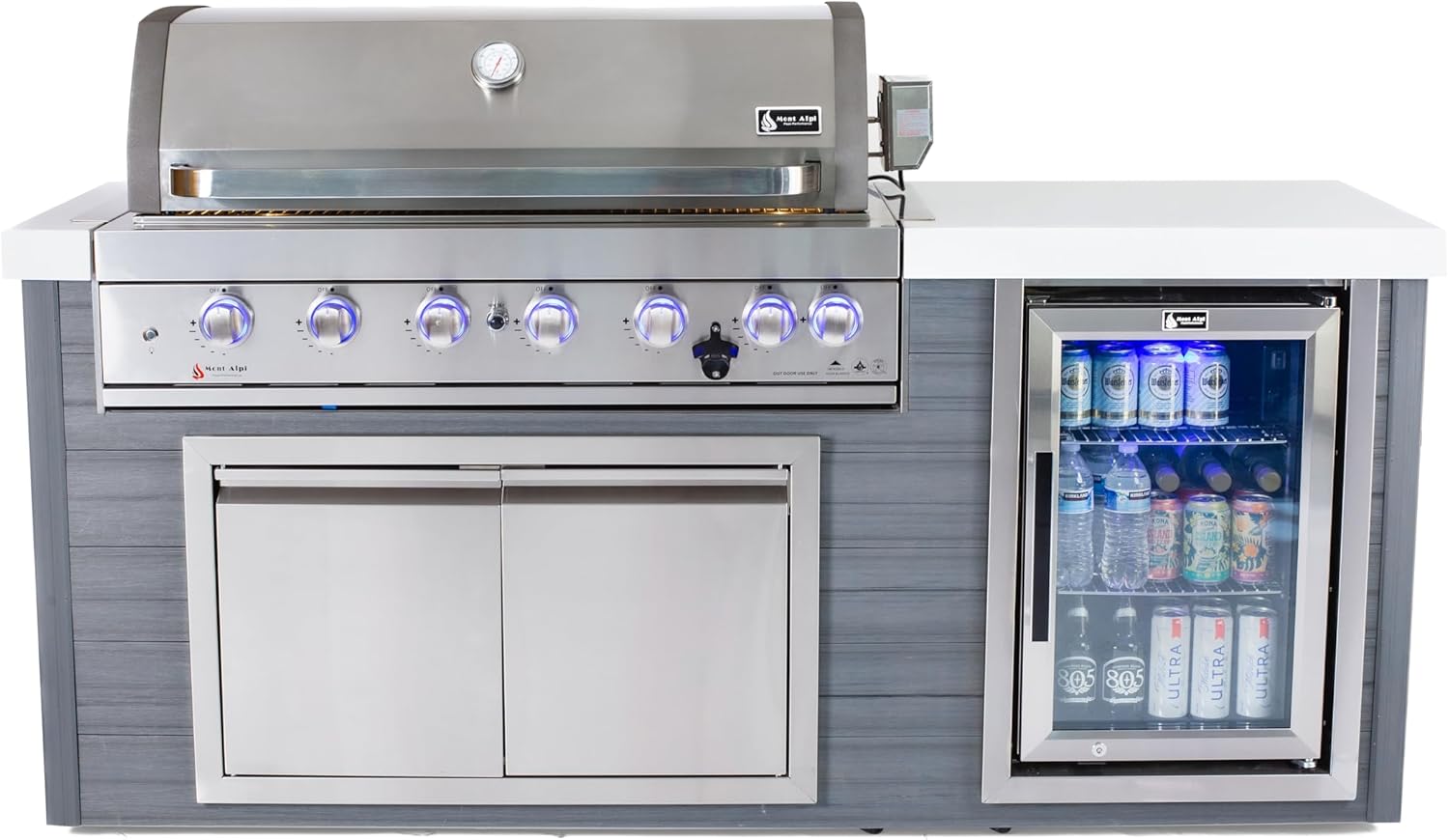

Figure 1: Front view of the Mont Alpi MA805-AW Outdoor Kitchen Island, showcasing the 6-burner grill and integrated refrigerator.

Key Features:

• HDPE Material: Constructed from recycled, UV-protected, and rust-resistant high-density polyethylene for durability and easy cleaning.
• All-Weather Design: Built to withstand outdoor elements, ensuring long-lasting performance.
• 6-Burner Gas Grill: Features 6 tubular stainless steel burners and a rear height-adjustable ceramic infrared burner, delivering 87,000 BTUs.
• Generous Cooking Area: 38-inch x 18-inch (990 square inches total) cooking surface with 8mm stainless steel grids and a warming rack.
• Natural Gas Convertible: Designed for propane use but can be converted to natural gas with a separately sold kit.
• Integrated Refrigerator: Outdoor-rated MAF refrigerator with 304 stainless steel construction, glass door, blue interior lighting, temperature control, adjustable shelves, and a lockable door.
• 304 Marine Grade Stainless Steel: Used for grill components, ensuring corrosion resistance and easy maintenance.

Figure 2: Detailed view of key grill features including the infrared rear burner, temperature gauge, sear plates, illuminated control knobs, and heavy-duty burners.

2. Setup and Assembly

The Mont Alpi MA805-AW Outdoor Kitchen Island is delivered fully assembled on wheels for convenient placement. While the main unit is pre-assembled, some minor setup steps are required before first use.

2.1 Unpacking and Placement

1. Carefully remove all packaging materials. Inspect the unit for any shipping damage.
2. Roll the island to its desired outdoor location. Ensure the surface is level and stable.
3. Lock the wheels to prevent unintended movement.
4. Ensure adequate clearance from combustible materials as per local regulations.

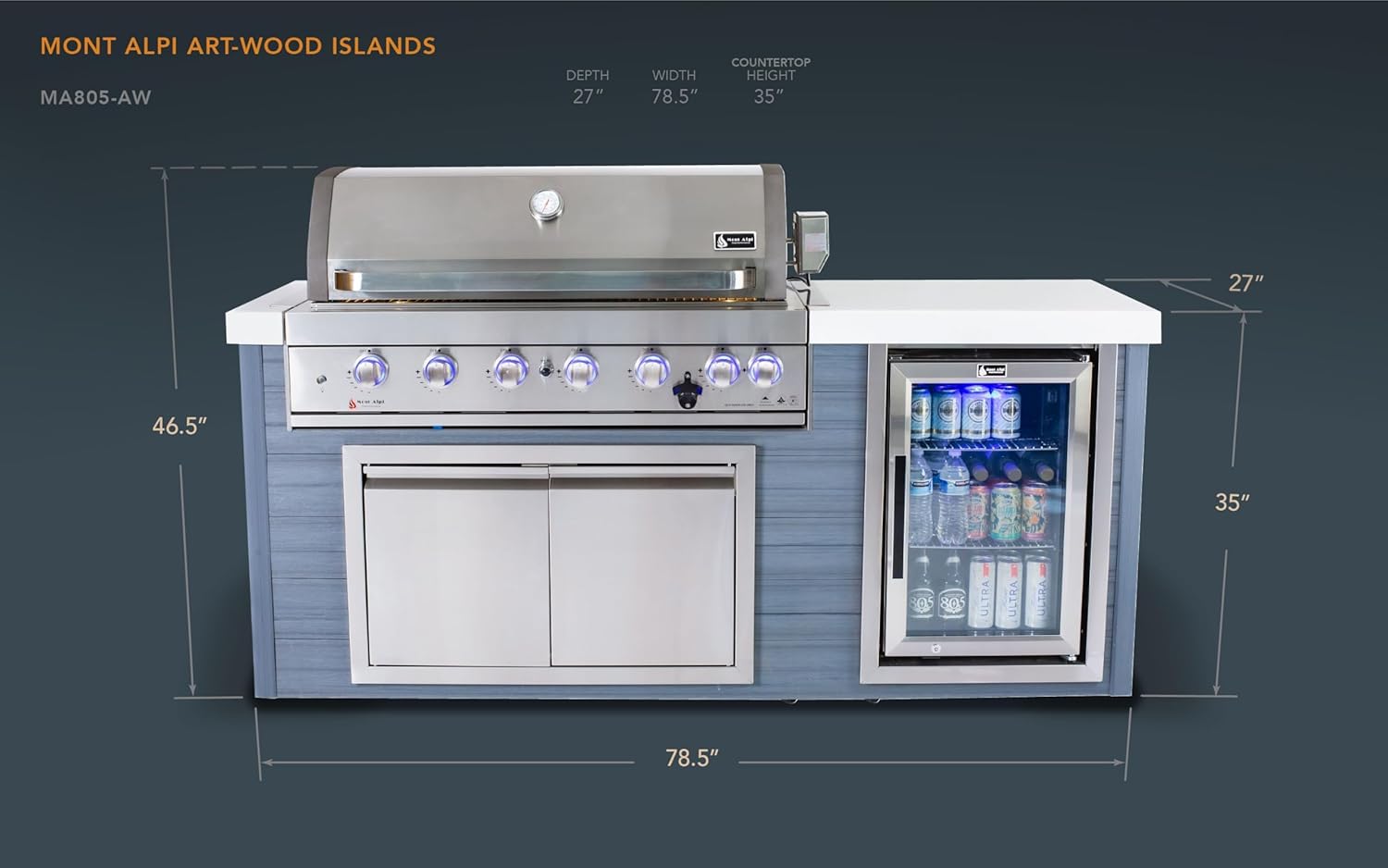

Figure 3: Dimensions of the Mont Alpi MA805-AW island, showing depth, width, and height measurements.

2.2 Gas Connection (Propane)

The grill comes ready for propane use and includes a propane hose and regulator.

1. Connect the regulator to a standard propane tank. Ensure a tight seal.
2. Perform a leak test using a soap and water solution on all connections. Bubbles indicate a leak. Do not use the grill if a leak is detected.

2.3 Natural Gas Conversion (Optional)

This grill can be converted to natural gas. A conversion kit is sold separately. It is recommended that natural gas conversion be performed by a qualified professional. Refer to the conversion kit instructions for detailed steps.

2.4 Refrigerator Setup

1. Plug the refrigerator into a grounded 110V outdoor-rated electrical outlet.
2. Allow the refrigerator to stand upright for at least 2 hours before plugging it in to allow refrigerants to settle.
3. Adjust the internal temperature settings as desired.
4. Install adjustable shelves as needed.

3. Operating Instructions

3.1 Grill Ignition

1. Ensure the propane tank valve is fully open.
2. Open the grill hood.
3. Push and turn a main burner control knob to the HIGH position. The knob will illuminate blue when off, and red when on.
4. Listen for the igniter click and observe the burner igniting. If it does not ignite within 5 seconds, turn the knob off, wait 5 minutes, and repeat the process.
5. Once ignited, adjust the flame to the desired cooking temperature.
6. To ignite additional burners, repeat steps 3 and 4 for each burner.

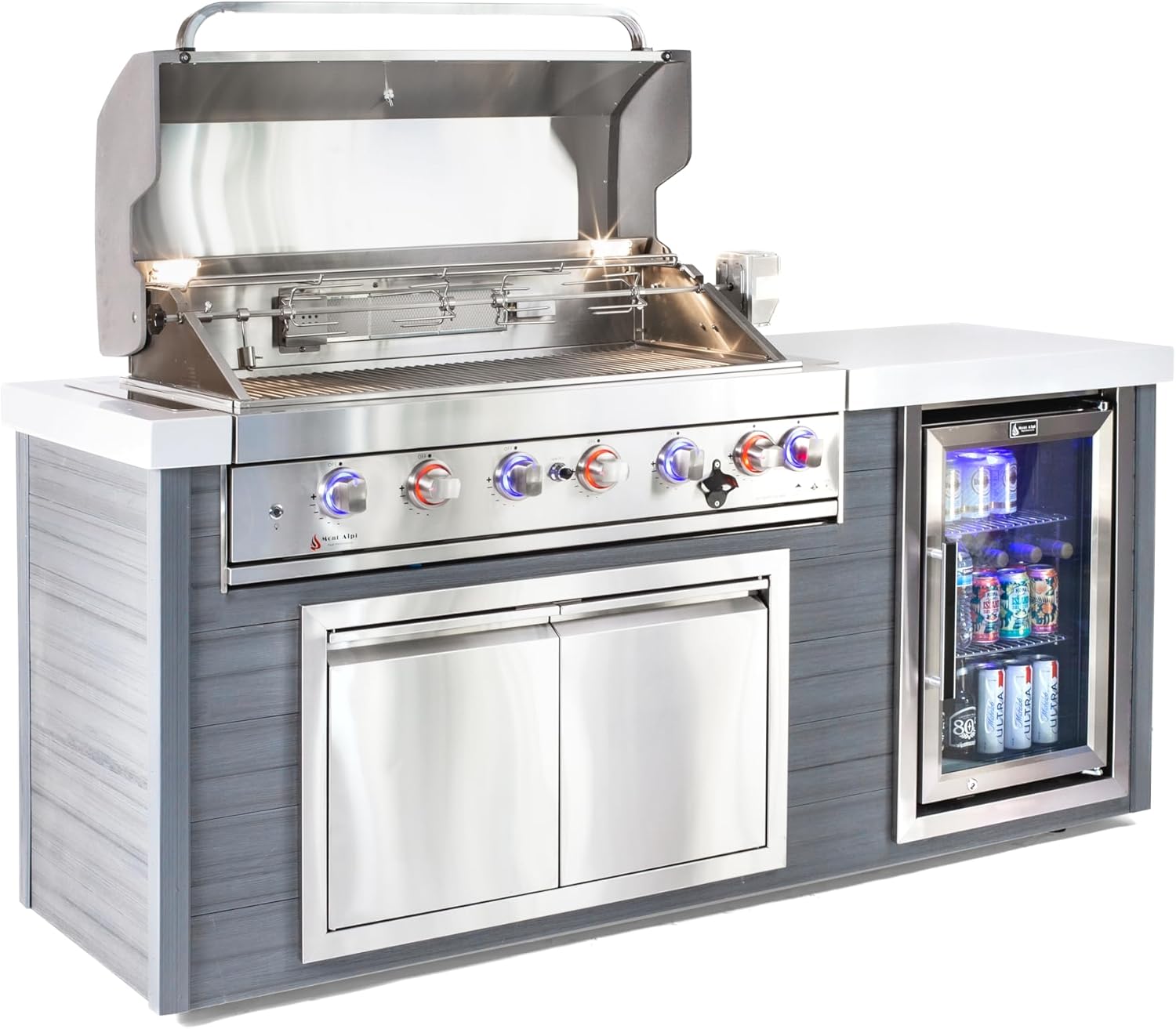

Figure 4: The grill with its hood open, revealing the cooking grates, burners, and the rotisserie assembly.

3.2 Using the Infrared Rear Burner

The infrared rear burner is ideal for rotisserie cooking.

1. Attach the rotisserie kit (included) as per its specific instructions.
2. Ignite the infrared burner by pushing and turning its control knob.
3. Monitor cooking progress using the integrated thermometer.

3.3 Refrigerator Operation

The integrated MAF refrigerator is designed for outdoor use.

• Use the temperature control to set the desired cooling level.
• The blue interior lighting can be toggled for visibility.
• The door is lockable for security.

4. Maintenance and Care

Regular maintenance ensures the longevity and optimal performance of your Mont Alpi Outdoor Kitchen Island.

4.1 Cleaning the Grill

• Cooking Grates: After each use, while the grill is still warm, brush the cooking grates with a grill brush to remove food residue.
• Grease Tray: The grill features a removable grease tray. Regularly clean the grease tray to prevent flare-ups and maintain hygiene.
• Stainless Steel Surfaces: Clean stainless steel components with a mild soap and water solution and a soft cloth. For stubborn stains, use a specialized stainless steel cleaner. Always wipe in the direction of the grain.
• Burners: Periodically inspect burner ports for blockages. Clean with a wire brush if necessary.

4.2 Cleaning Artwood (HDPE) Surfaces

The HDPE material is low-maintenance and easy to clean.

• Wipe down Artwood surfaces with soap and water using a soft cloth or sponge.
• Rinse thoroughly with clean water.
• Avoid abrasive cleaners or harsh chemicals that could damage the material.

Figure 5: Illustration of the Artwood material's properties, highlighting its durability, weather resistance, ease of cleaning, and recycled composition.

4.3 Refrigerator Maintenance

• Regularly clean the interior with a mild detergent and water.
• Ensure the condenser coils are free of dust and debris for efficient operation.
• Check the door seal for proper closure to maintain temperature.

4.4 Winterization

If storing the unit for extended periods or during winter, disconnect the gas supply, clean the grill thoroughly, and cover it with a suitable grill cover (included). Unplug and empty the refrigerator.

5. Troubleshooting

This section provides solutions to common issues you might encounter.

5.1 Grill Not Igniting

• No Gas Flow: Check if the propane tank valve is fully open. Ensure the tank is not empty.
• Loose Connections: Verify all gas connections are tight and free of leaks.
• Igniter Issue: Listen for the igniter click. If no click, check igniter electrode and wire connections.
• Blocked Burner Ports: Clean burner ports if clogged with debris.

5.2 Uneven Heating

• Burner Blockages: Clean burner tubes and ports.
• Grease Buildup: Excessive grease can affect heat distribution. Clean the grill interior and grease tray.

5.3 Refrigerator Not Cooling

• Power Supply: Ensure the refrigerator is plugged in and the outlet is functional. Check circuit breaker.
• Temperature Setting: Verify the temperature control is set correctly.
• Door Seal: Check if the door seal is intact and the door is closing properly.
• Ventilation: Ensure adequate airflow around the refrigerator's condenser coils.

6. Specifications

7. Warranty Information

Mont Alpi offers a 15-Year Limited Warranty on the MA805-AW Outdoor Kitchen Island. This warranty covers defects in materials and workmanship under normal use and service. Specific limitations and conditions apply. Please retain your proof of purchase for warranty claims.

For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Mont Alpi website.

8. Customer Support

Should you have any questions, concerns, or require assistance with your Mont Alpi MA805-AW Outdoor Kitchen Island, please do not hesitate to contact our customer support team.

• Manufacturer: Mont Alpi
• Seller: - ALPINE PRODUCTS -
• For support inquiries, please visit the seller's support page or the official Mont Alpi website.
