Introduction
Thank you for choosing the COMOWARE 1300W Professional Car Buffer Polisher. This powerful tool is designed for professional detailing tasks, including sanding, waxing, and polishing. With its robust motor and adjustable speed settings, it provides efficient and precise results for various surfaces. Please read this manual thoroughly before operation to ensure safe and effective use.
Image: The COMOWARE 1300W Professional Car Buffer Polisher shown with its various included accessories, such as backing plates, foam pads, and sanding discs.
Product Features
- Professional-Grade 1300W Buffer Polisher System: Equipped with a 1300W pure copper motor, maintaining stable 600-4000 RPM across 6 adjustable speeds. Features heat-resistant technology and dual carbon brushes for continuous operation.
- Precision Speed Control & Ergonomic Design: Intuitive 6-speed dial for various applications (Low RPM for wax, Medium for swirl removal, High for paint correction). Lightweight 5.5lbs design with dual handles (D-grip & side handle) and anti-slip texture for reduced fatigue.
- Complete Auto Detailing Kit: Includes 6"/7" backing plates, 8x 6" sanding discs, 3x foam pads (coarse/fine/ultra-fine), and a wool buffing pad. Suitable for automotive paint correction, boat detailing, and restoring metal/wood surfaces.
- Smart Safety Features: Dual protection system with a safety lock switch and soft-start technology. Reinforced 360° rotary head prevents wobbling. Quick-change spindle allows tool-free accessory swaps.
- Workshop-Ready Polishing Package: Comprehensive kit with rotary machine, backing plates, foam pads, wool disc, sandpapers, D-handle, side handle, hex wrench, and spare carbon brushes.

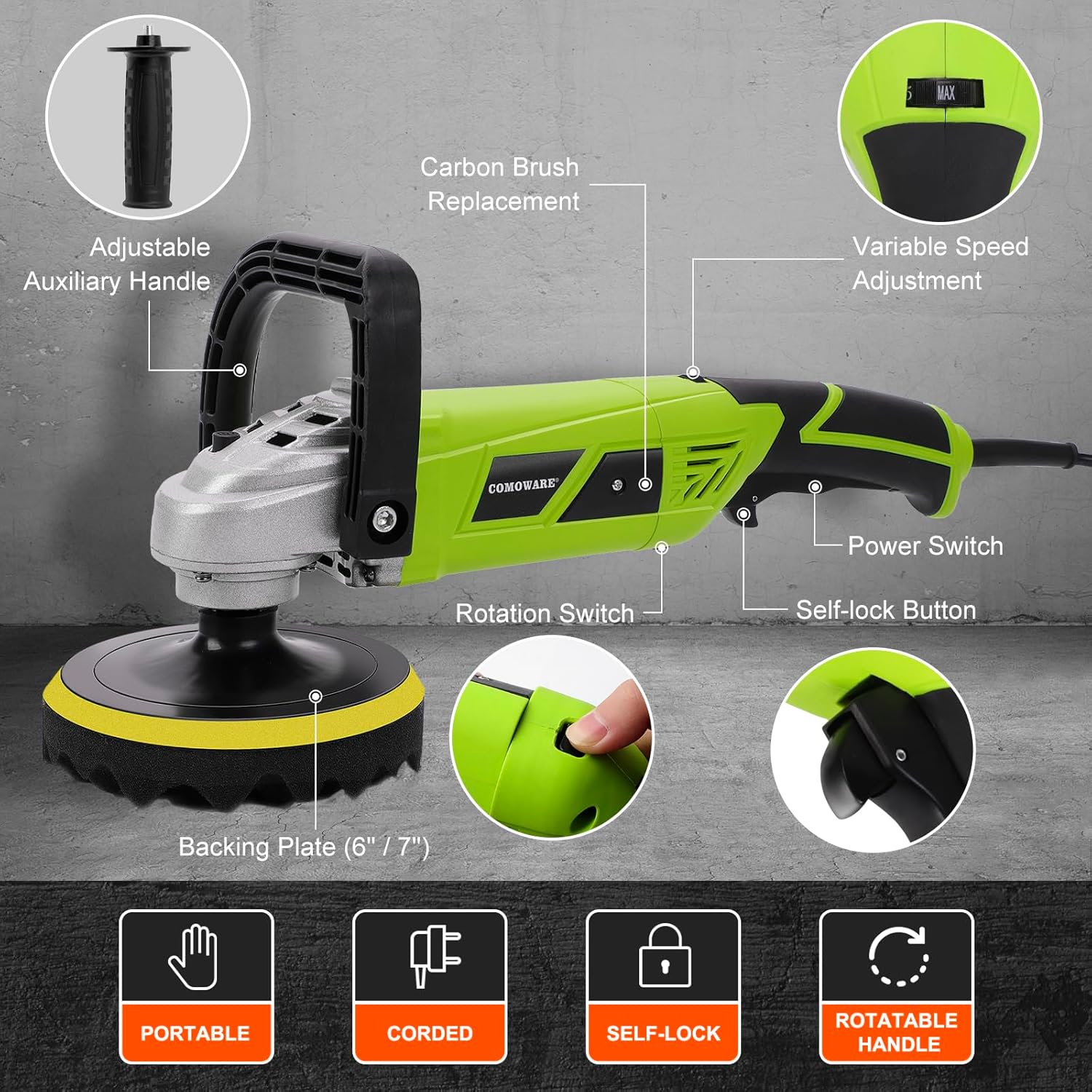

Image: Detailed diagram highlighting key components of the polisher, such as the adjustable auxiliary handle, carbon brush access, variable speed dial, power switch, rotation switch, self-lock button, and the 6"/7" backing plate.
Image: An X-ray view of the polisher showcasing the powerful 1300W motor, emphasizing its rotatable handle, fast speed range of 600-4000 RPM, and precise 6-speed adjustment capabilities.
Setup
Attaching the Handles:
The polisher comes with two handle options: a D-grip handle and a side handle. Choose the handle that provides the most comfortable and secure grip for your task. Attach the chosen handle firmly to the designated mounting points on the polisher body using the provided screws and hex wrench.
Attaching Backing Plates and Pads:
Select either the 6-inch or 7-inch backing plate based on your application. The backing plates attach to the spindle of the polisher. Once the backing plate is secured, attach the desired foam pad, sanding disc, or wool buffing pad to the hook-and-loop surface of the backing plate. Ensure it is centered and firmly attached before operation.
Image: Illustration of the easy change design, demonstrating the simple process of attaching and removing backing plates and various pads from the polisher.
Image: A visual guide to the four types of pads included: a wave pad for polishing, a flat pad for waxing, a pad for paint/rust removal, and a wool polishing pad, each designed for specific detailing needs.
Operating Instructions
Powering On and Speed Adjustment:
Connect the polisher to a 110V power outlet. To turn on the polisher, press the power switch. Use the 6-speed dial to select the desired RPM (600-4000 RPM) for your task. For continuous operation without holding the trigger, engage the self-lock button.
Recommended Speed Settings:
- Speeds 1-2 (600-1200 RPM): Ideal for delicate wax application and light buffing.
- Speeds 3-4 (1200-2400 RPM): Suitable for swirl removal and general polishing.
- Speeds 5-6 (2400-4000 RPM): Recommended for heavy paint correction and removing oxidation.
Polishing Techniques:
Apply a small amount of compound or polish directly to the pad or the surface. Start the polisher at a low speed and spread the product evenly. Gradually increase the speed as needed. Move the polisher in overlapping passes, maintaining even pressure. Avoid pressing too hard, as this can generate excessive heat and damage the surface.
Image: Demonstrates various comfortable holding positions for the polisher, including using it without an auxiliary handle, with the side handle, and with the D-shape handle, to suit different user preferences and tasks.
Image: Illustrates the polisher's versatility across different applications, showing recommended speed ranges for removing paint defects/oxidation (speeds 5-6), general polishing/clearing (speeds 3-4), and waxing/buffing (speeds 1-2).
Image: A close-up shot of the polisher in action on a car's surface, emphasizing its variable speed control (600-4000 RPM) and its effectiveness in removing swirls, scratches, and other paint flaws.
Video: An official product video demonstrating the COMOWARE Car Buffer Polisher in use, showing how to change pads, apply polish, and achieve a smooth, polished finish on a car surface. It highlights the variable speed and self-lock features.
Maintenance
Cleaning:
After each use, disconnect the polisher from power. Clean the pads thoroughly according to their material. Wipe down the polisher body with a damp cloth to remove any dust or polish residue. Ensure all vents are clear of debris to prevent overheating.
Carbon Brush Replacement:
The polisher is equipped with dual carbon brushes. Over time, these brushes will wear down and may need replacement. Refer to the diagram in the "Product Features" section for the location of the carbon brush access points. Use the provided tools to replace worn brushes with the spare set included in your kit. This ensures optimal motor performance and extends the life of your tool.
Storage:
Store the polisher and its accessories in a clean, dry place, away from direct sunlight and extreme temperatures. Use the provided carrying bag for organized storage and transport.
Troubleshooting
- Polisher does not turn on:
- Check if the power cord is securely plugged into a 110V outlet.
- Ensure the power switch is in the "ON" position.
- Verify that the outlet is functional by testing it with another device.
- Check the carbon brushes for wear; replace if necessary.
- Reduced power or inconsistent speed:
- Ensure the speed dial is set correctly for the task.
- Check for excessive pressure being applied during operation.
- Inspect carbon brushes for wear and replace if needed.
- Ensure the power cord is not damaged.
- Excessive vibration or noise:
- Ensure the backing plate and pad are securely attached and centered.
- Check for any foreign objects caught in the rotating parts.
- Verify that the reinforced 360° rotary head is not damaged.
- Overheating:
- Ensure proper ventilation and that air vents are not blocked.
- Avoid continuous operation beyond recommended durations without breaks.
- Reduce applied pressure during polishing.
Specifications
| Feature | Detail |
|---|---|
| Brand | COMOWARE |
| Model Number | CN-Buffer Polisher-New |
| Power Source | Corded Electric |
| Voltage | 110 Volts |
| Maximum Power | 1300 Watts |
| Speed | 600-4000 RPM (6-speed adjustable) |
| Item Weight | 7.28 pounds |
| Package Dimensions | 17 x 7 x 6 inches |
| Material | Metal |
| Included Components | Rotary machine, 6"/7" backing plates, 3x foam pads, wool disc, 8x sandpapers, D-handle, side handle, hex wrench, spare carbon brushes. |
Warranty and Support
The COMOWARE 1300W Professional Car Buffer Polisher is backed by a 24-month tool warranty. COMOWARE also provides lifetime technical support to ensure professional-grade reliability and assistance with any questions or issues you may encounter. For warranty claims or technical support, please refer to the contact information provided with your product packaging or visit the official COMOWARE website.
