STAALGUARD ST30-Pro DUAL Dog Training Collar User Manual

1. Introduction

Thank you for choosing the STAALGUARD ST30-Pro DUAL Dog Training Collar. This system is designed to assist in humane and effective dog training, offering beep, vibration, and boost modes without electric shock. It is compliant with the 2025 Animal Protection Law, ensuring the safety and well-being of your companion. Please read this manual thoroughly before use to ensure proper operation and to maximize the benefits of your new training system.

2. Safety Information

• This device is intended for dog training purposes only. Do not use on aggressive dogs or for any other purpose.
• The training collar is IP67 waterproof, but the remote control is not waterproof (IP42). Avoid exposing the remote to water.
• Do not leave the collar on your dog for more than 12 hours per day. Prolonged wear can lead to skin irritation.
• Regularly check your dog's neck for any signs of irritation or sores. If irritation occurs, discontinue use until the skin heals.
• Keep out of reach of children.
• Use only the provided charging cables.

3. Package Contents

Please check the package for the following items:

• 2 x STAALGUARD Training Collars
• 1 x Remote Control
• 2 x USB Type-C Charging Cables
• 1 x Wrist Strap
• 1 x User Manual (this document)

Image: The STAALGUARD ST30-Pro DUAL product box, displaying the remote control and two training collars.

4. Product Overview

Familiarize yourself with the components of your STAALGUARD training system.

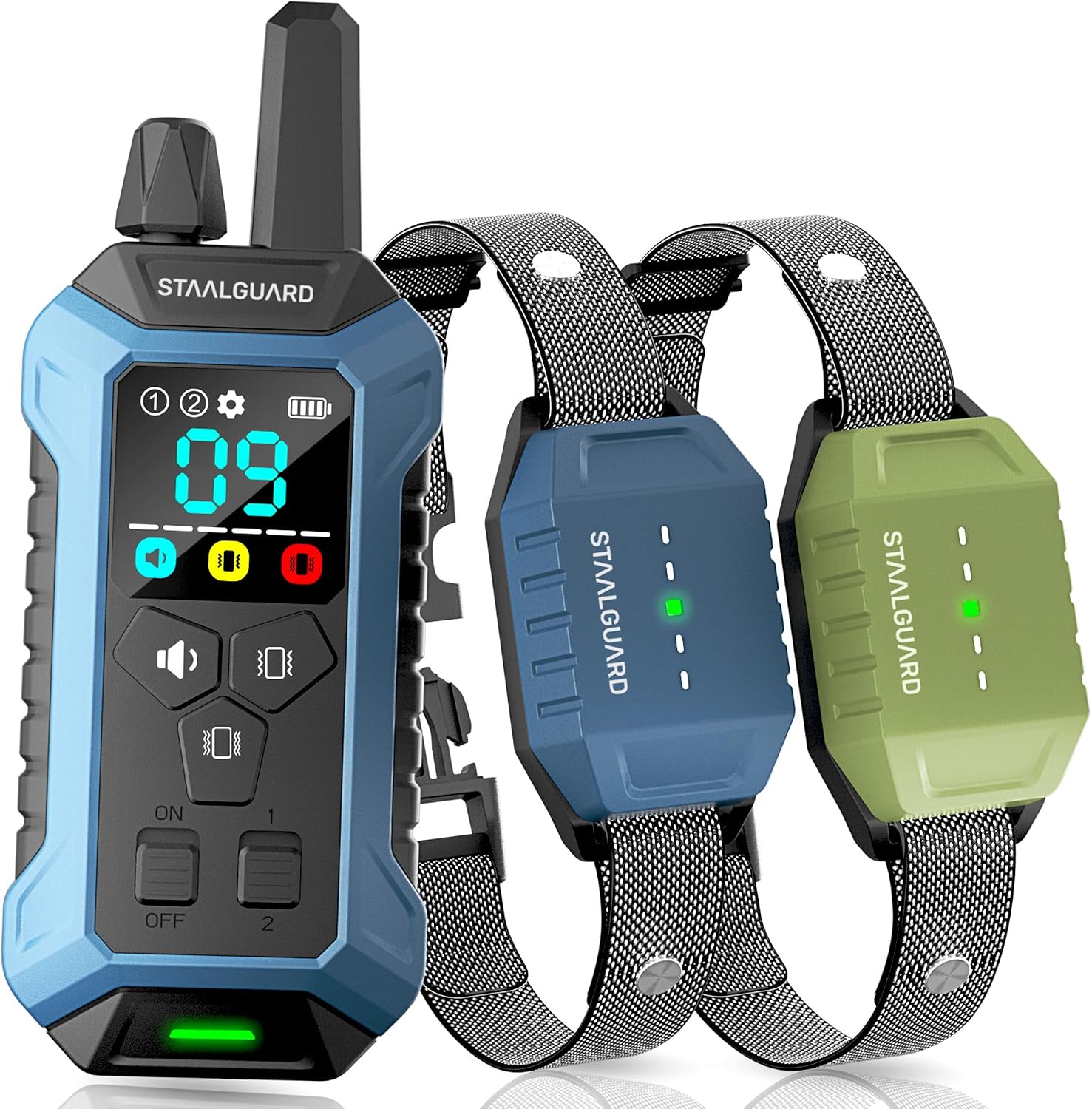

Image: The STAALGUARD remote control (blue) and two training collars (blue and green).

4.1 Remote Control

Image: Front view of the remote control, showing the LCD screen and control buttons.

• LCD Screen: Displays current mode, intensity level, battery status, and active collar channel.
• Sound Button: Activates the beep tone.
• Vibration Button: Activates the vibration mode.
• Boost Button: Activates the boost vibration mode (20% stronger).
• ON/OFF Switch: Powers the remote on or off.
• Channel Selector (1/2): Switches between controlling Collar 1 or Collar 2, or both simultaneously.
• Adjustment Dial: Used to adjust the intensity levels for vibration and boost modes.

Image: A close-up view of the remote control's buttons, including the sound, vibration, and boost buttons, and the ON/OFF and channel switches.

4.2 Training Collar

Image: Two STAALGUARD training collars, one blue and one green, showing their compact design.

• Receiver Unit: The main body of the collar containing the electronics.
• Contact Points: Two small nubs on the underside of the receiver that make contact with the dog's neck for vibration. Redesigned to eliminate irritation.
• Power Button: Turns the collar on/off and is used for pairing.
• USB Type-C Charging Port: For recharging the collar's battery.
• Adjustable Strap: Durable and easily adjustable to fit various dog sizes (10-65 cm).

Image: The underside of the training collar, highlighting the contact points and the USB Type-C charging port.

5. Setup

5.1 Charging the Devices

Before first use, fully charge both the remote control and the training collars.

• Connect the USB Type-C charging cable to the charging port on the remote and each collar.
• Plug the other end into a standard USB power adapter (not included).
• The indicator light on the devices will show charging status (refer to device specific indicators for full/low battery).
• A full charge typically takes 2-3 hours.

Image: A detailed view of the collar's USB Type-C charging port, indicating where to connect the charging cable.

5.2 Pairing the Remote and Collars

The devices are usually pre-paired from the factory. If re-pairing is needed:

1. Turn on the remote control.
2. Select the desired channel (1 or 2) on the remote.
3. With the collar turned off, press and hold the collar's power button until the indicator light flashes rapidly.
4. While the collar light is flashing, press any mode button (Sound, Vibration, or Boost) on the remote.
5. The collar's indicator light will stop flashing and remain solid, indicating successful pairing.
6. Repeat for the second collar on the other channel if applicable.

5.3 Fitting the Collar on Your Dog

Proper fit is crucial for effectiveness and comfort.

• Position the collar on your dog's neck so the contact points are underneath, making direct contact with the skin.
• The collar should be snug enough that two fingers can barely fit between the strap and your dog's neck.
• Ensure the collar is not too tight, which could cause discomfort or skin irritation.
• The strap is adjustable from 10 cm to 65 cm, suitable for small, medium, and large dog breeds.

Image: A visual guide demonstrating the correct fit of the collar on different dog sizes, from small (3-8 kg) to large (25 kg+), with an adjustable strap range of 10-65 cm.

6. Operating Instructions

6.1 Understanding the Training Modes

The STAALGUARD system offers three humane training modes:

• Beep Tone: A distinct audible sound used for warning or positive reinforcement.
• Vibration: A gentle vibration, adjustable in intensity, for correction or attention.
• Boost Vibration: A stronger vibration (20% more intense) for more stubborn behaviors.

Image: A dog wearing the training collar, with visual representations of the three adjustable training modes: Beep, Vibration (1-9 levels), and Boost Vibration (20% stronger).

6.2 Adjusting Intensity Levels

The vibration and boost modes have 9 adjustable intensity levels.

• Turn the adjustment dial on the remote control to increase or decrease the intensity.
• Start with the lowest effective level and gradually increase if necessary.

6.3 Using the Remote Control

The remote control allows for precise and simplified training.

• Single Collar Control: Use the channel selector to choose '1' or '2' to control a specific collar.
• Dual Collar Control: The remote can control both collars simultaneously. Refer to the remote's display for the dual-channel indicator.
• Press the corresponding mode button (Sound, Vibration, or Boost) to activate the desired correction.

Image: A hand holding the compact remote control, demonstrating its ease of use for simplified training, with a dog in the background. Insets show the adjustment dial and dual-channel control.

6.4 Range Information

The STAALGUARD training system boasts an XXL range of up to 3000 meters (3km) in open areas, providing freedom for outdoor activities.

Image: Two happy dogs running freely in a large open field, symbolizing the extensive 3000-meter range of the training system.

7. Maintenance

7.1 Cleaning

• Clean the collar and remote with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Regularly clean the contact points on the collar to ensure proper function and prevent skin irritation.
• The collar strap can be hand washed.

7.2 Battery Care

• The devices feature a 30-day battery life with energy-saving mode.
• Recharge the devices when the battery indicator shows low power.
• For long-term storage, charge the devices to about 50% and store in a cool, dry place. Recharge every few months to maintain battery health.

Image: A well-behaved dog sitting in a yard, with icons highlighting the 30-day battery life and the compact, lightweight design (42g) of the collar.

7.3 Water Resistance

The training collar is IP67 waterproof, meaning it can withstand immersion in water up to 1 meter for 30 minutes. This makes it suitable for dogs who enjoy swimming or playing in wet conditions.

Important: The remote control is not waterproof (IP42). Protect it from water exposure.

Image: A dog happily playing in water, showcasing the IP67 waterproof rating of the training collar. A warning icon indicates the remote is not waterproof.

8. Troubleshooting

9. Specifications

• Brand: Staalguard
• Model: ST30-Pro DUAL
• Collar Weight: 42g (approx.)
• Collar Dimensions: 54x36x25mm (approx.)
• Collar Strap Length: 10-65 cm (adjustable)
• Recommended Dog Size: Small, Medium, Large (3kg - 25kg+)
• Training Modes: Beep, Vibration (9 levels), Boost Vibration (9 levels, 20% stronger)
• Range: Up to 3000 meters (3km) in open areas
• Collar Water Resistance: IP67 (Waterproof)
• Remote Water Resistance: IP42 (Splash-proof, not waterproof)
• Battery Life: Up to 30 days (depending on usage)
• Charging Port: USB Type-C

10. Warranty and Support

STAALGUARD products are designed for durability and performance. For any questions, technical support, or warranty claims, please contact our customer service. Refer to your purchase documentation for specific warranty terms and contact information.

We are committed to providing high-quality products and excellent customer service to ensure a positive training experience for you and your dog.
