WinStellar 120 x 80 Sliding Closet Door User Manual

1. Product Overview

The WinStellar 120 x 80 Sliding Closet Door is designed to provide a stylish and functional solution for bedrooms and other interior spaces. Featuring 3-lite tempered frosted glass panels and a durable hardware kit, these pre-assembled doors offer easy installation and smooth operation. The frosted glass ensures privacy while allowing natural light to filter through.

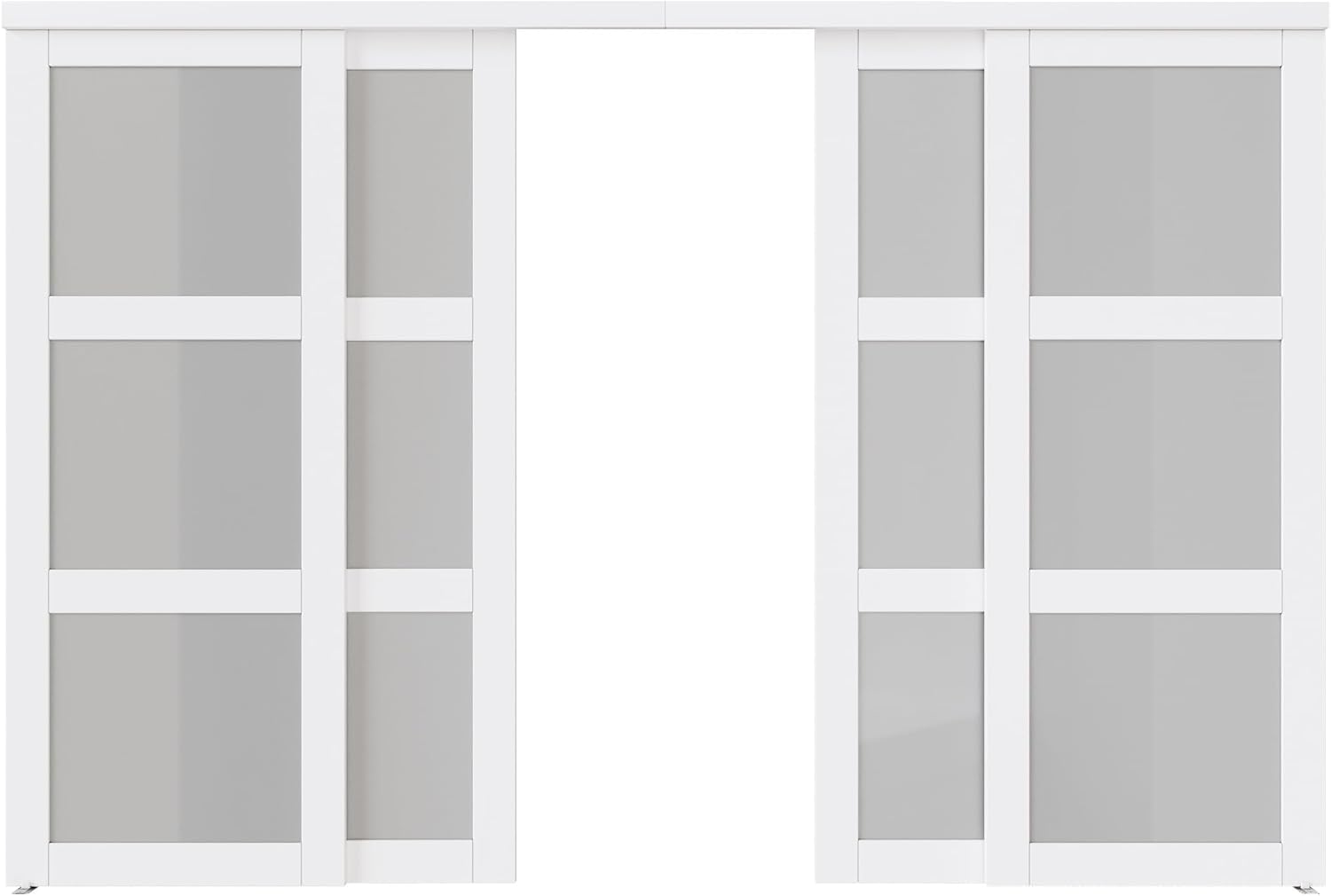

Figure 1.1: WinStellar Sliding Closet Door in a typical installation.

2. Important Safety Information

Please read all safety instructions carefully before installation and use.

• Always use caution when handling glass panels to prevent injury.
• Ensure the door is properly installed and securely fastened to the wall and floor before use.
• Keep the area around the door clear of obstructions to prevent accidents and ensure smooth operation.
• Do not attempt to install or repair the door without proper safety gear, tools, and knowledge. If unsure, seek professional assistance.
• Keep small children and pets away from the installation area during assembly.

3. Components and Parts List

Your WinStellar Sliding Closet Door package includes all necessary components for installation. Please verify that all parts are present and undamaged before beginning assembly.

Package Contents:

• 2 x Pre-assembled Door Panels (with 3-lite tempered frosted glass)
• 1 x Top Track
• 1 x Floor Guide
• Hardware Kit (includes rollers, brackets, screws, and other necessary fasteners)
• 1 x Fascia (to conceal sliding hardware)
• 1 x Detailed Instruction Manual

Figure 3.1: Included Hardware Kit.

Figure 3.2: Pre-assembled Door Panels.

4. Setup and Installation

The WinStellar Sliding Closet Door is designed for quick and straightforward installation, with door panels arriving pre-assembled to minimize setup time.

4.1 Pre-Installation Checklist:

1. Unpack all components and verify against the parts list.
2. Ensure the opening dimensions are compatible with your door size. Refer to the size guide below.
3. Gather necessary tools (e.g., drill, measuring tape, level, screwdriver).
4. Clear the installation area of any obstructions.

Figure 4.1: Pre-assembled panels reduce installation time.

4.2 Size Guide:

Refer to the following table and diagram to ensure proper fit for your opening.

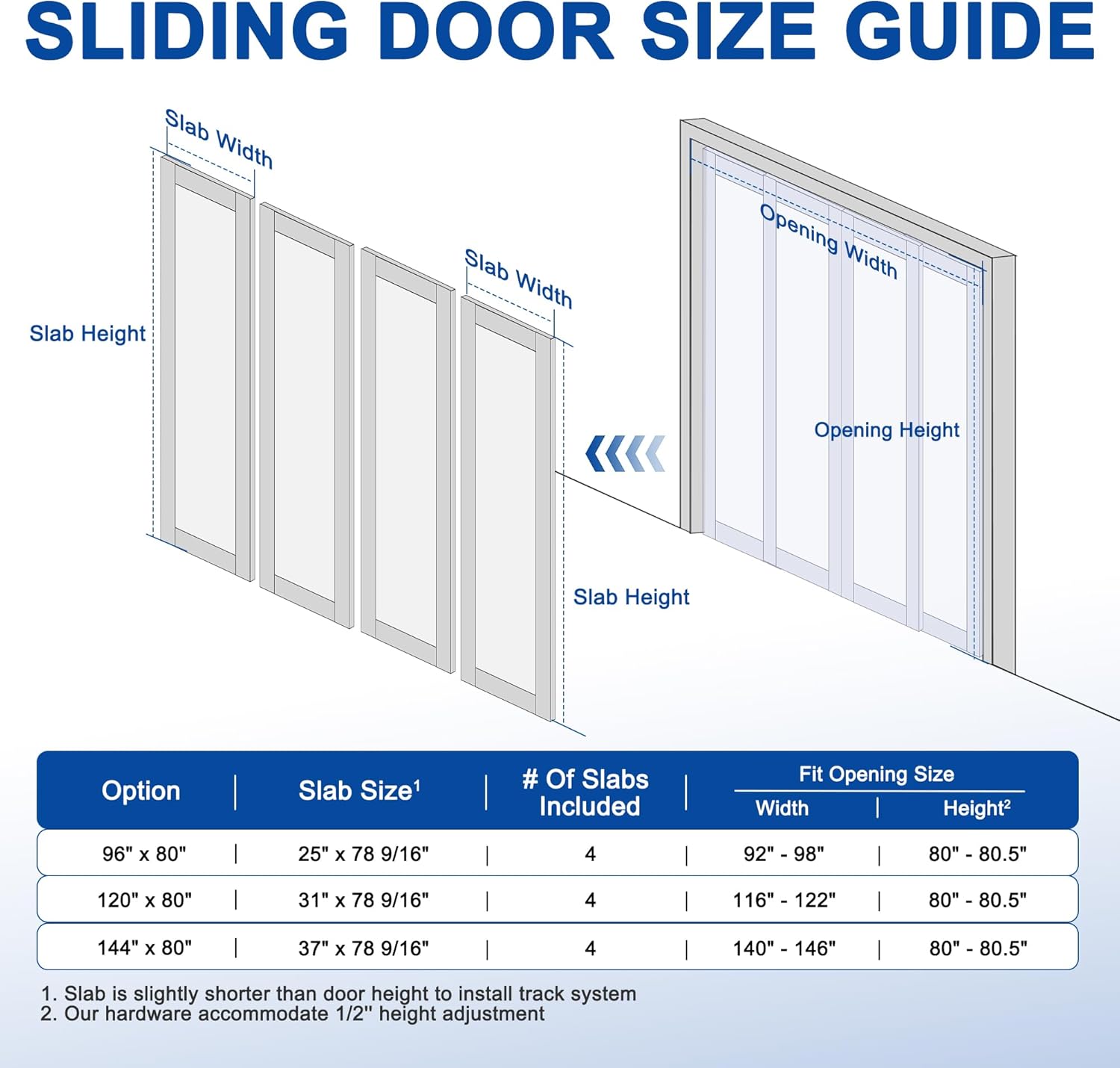

Figure 4.2: Sliding Door Size Guide.

4.3 Installation Steps:

1. Install Top Track: Secure the top track to the header of your opening. Ensure it is level and properly aligned.
2. Attach Rollers to Door Panels: The door panels come with pre-installed rollers. Ensure they are securely attached.
3. Hang Door Panels: Carefully lift and hang the door panels onto the top track.
4. Install Floor Guide: Position the floor guide at the bottom of the opening to ensure smooth and stable door movement. This design keeps your floor clear and prevents damage.
5. Install Fascia: Attach the fascia to conceal the top track and hardware for a clean finish.
6. Adjust and Test: Make any necessary adjustments to ensure the doors glide smoothly and do not rattle. Test the opening and closing mechanism multiple times.

Figure 4.3: Premium Double Track Hardware for smooth operation.

Figure 4.4: Top Track Only Design with Floor Guide.

5. Operating Instructions

The WinStellar Sliding Closet Door is designed for effortless and quiet operation. Once installed, the bypass doors will glide smoothly along the top track and floor guide.

• To open the door, gently push the panel in the desired direction.
• To close the door, pull the panel until it meets the frame or the other door panel.
• Avoid forcing the doors if they encounter resistance. Check for any obstructions in the track or guide.
• The tempered frosted glass provides privacy while allowing ambient light to pass through, enhancing the room's brightness.

Figure 5.1: Versatile applications of the sliding door.

6. Care and Maintenance

Proper care will ensure the longevity and continued smooth operation of your WinStellar Sliding Closet Door.

6.1 Cleaning:

• Glass Panels: The tempered frosted glass is easy to clean. Use a soft, lint-free cloth with a mild glass cleaner or a mixture of water and vinegar. Avoid abrasive cleaners or harsh chemicals that could damage the frosted finish.
• Door Frame: The solid wood frame with water-resistance surface can be wiped clean with a damp cloth. For tougher stains, use a mild, non-abrasive household cleaner.
• Tracks and Rollers: Periodically inspect and clean the top track and floor guide to remove dust, debris, or pet hair that could impede smooth operation. A vacuum cleaner with a brush attachment can be effective.

Figure 6.1: Easy-to-clean premium tempered frosted glass.

Figure 6.2: Benefits of Frosted & Tempered Glass.

6.2 General Maintenance:

• Regularly check all screws and fasteners to ensure they remain tight. Tighten if necessary.
• Avoid hanging heavy objects on the door panels.
• Do not apply excessive force when opening or closing the doors.

7. Troubleshooting Guide

This section addresses common issues you might encounter with your sliding closet door.

8. Product Specifications

9. Warranty and Customer Support

WIN STELLAR is committed to providing quality products and excellent customer service.

9.1 Warranty Information:

Please refer to the product packaging or contact WIN STELLAR customer service for specific warranty details regarding your sliding closet door.

9.2 Customer Support:

If you have any questions about your WinStellar Sliding Closet Door, require assistance with installation, or need to report a missing/damaged part, please do not hesitate to contact our dedicated customer service team. We are here to help resolve any issues you may encounter.

Contact Information:

• Visit the WIN STELLAR Store on Amazon for more information and contact options.
• For direct inquiries, please use the contact methods provided on your purchase receipt or the official WIN STELLAR website.
