BORUIT U6 Mini EDC Flashlight Instruction Manual

1. Introduction

The BORUIT U6 is a compact and powerful Everyday Carry (EDC) flashlight designed for versatility and durability. Constructed from hardened aluminum alloy, it features dual main lights with high-performance LED beads, providing exceptional brightness. The U6 also includes multi-functional sidelights, a magnetic tail, a two-way clip, and IP68 waterproof rating, making it suitable for various environments and tasks.

Figure 1: BORUIT U6 Mini EDC Flashlight, showcasing its compact design and dual main lights.

2. Package Contents

Verify that all items are present in the package:

• BORUIT U6 Flashlight (with built-in battery)
• USB-C Charging Cable
• Belt Clip (pre-installed or separate)
• Lanyard

3. Product Features

• High Brightness: Up to 1600 lumens with a beam distance of 260 meters.
• Durable Construction: Made from hardened aluminum alloy.
• Waterproof Rating: IP68 rated for dust and water resistance, suitable for all weather conditions.
• Multi-functional Sidelights: Offers white, warm, red, and red flash modes for various uses.
• Magnetic Tail: Strong magnetic base for attachment to metal surfaces.
• Two-way Clip: Allows attachment to pockets, hats, belts, or backpacks.
• Rechargeable Battery: Built-in 1100 mAh Lithium Polymer battery with USB-C charging.
• Memory Function: Remembers the last used mode for convenience.

Figure 2: Illustration of the BORUIT U6's super brightness and long-range illumination.

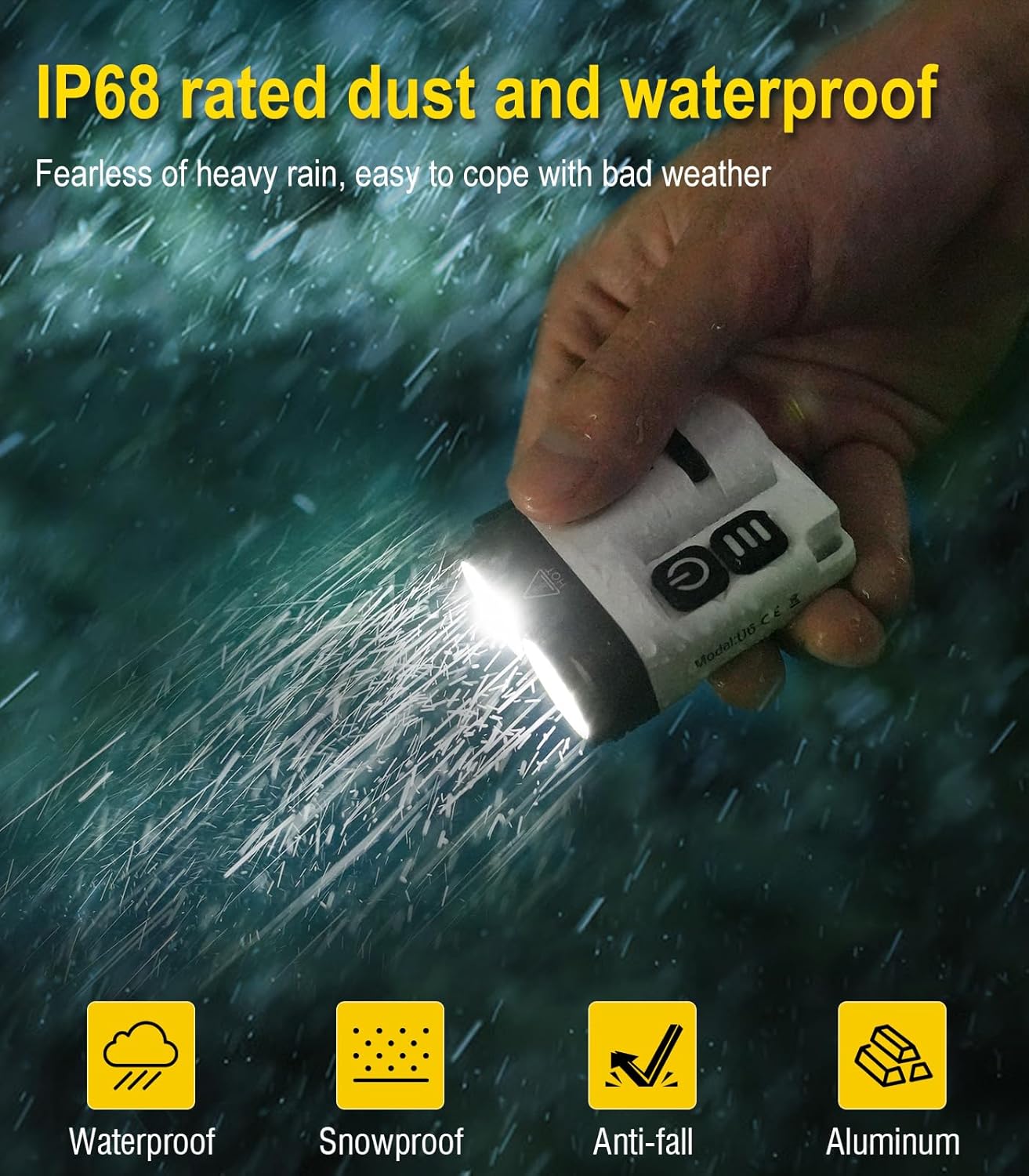

Figure 3: The BORUIT U6 demonstrating its IP68 waterproof capability in rainy conditions.

4. Setup

4.1 Initial Charging

Before first use, fully charge the BORUIT U6 flashlight. Connect the provided USB-C cable to the charging port on the flashlight and to a USB power source (e.g., wall adapter, computer, power bank). The charging indicator will show a red light flash during charging and turn green when fully charged. A full charge typically takes approximately 2.5 hours.

Figure 4: Diagram illustrating the USB-C charging process and indicator lights.

4.2 Attaching Lanyard and Clip

Attach the included lanyard to the designated loop on the flashlight for easy carrying. The two-way clip can be rotated 180 degrees and attached to pockets, belts, or hat brims for hands-free operation.

Figure 5: Examples of using the rotatable two-way clip for various carrying options.

Figure 6: The BORUIT U6 with its portable lanyard, demonstrating ease of carrying and hanging.

5. Operating Instructions

5.1 Main Light Operation

The main light features multiple brightness levels and a strobe mode.

• Turn On/Off: Long press the main light button (power symbol) to turn on or off.
• Switch Modes: Once on, click the main light button to cycle through Economic (10LM), Low (20LM), Medium (160LM), and High (800LM).
• Turbo Mode: Double-click the main light button for Turbo mode (1600LM).
• Strobe Mode: Triple-click the main light button for Strobe mode (800LM).

Figure 7: Visual guide for operating the main light modes and their respective brightness and runtime.

5.2 Sidelight Operation

The sidelights offer various colored and functional light options.

• Turn On/Off: Long press the sidelight button (three lines symbol) to turn on or off.
• Switch Modes: Once on, click the sidelight button to cycle through White Light (45LM), Warm Light (30LM), and Red Light (10LM).
• Red Flash: Double-click the sidelight button to activate the Red Flash mode (10LM).

Figure 8: Visual guide for operating the sidelight modes and their respective brightness and runtime.

5.3 Magnetic Attachment

Utilize the strong magnetic tail to attach the flashlight to ferrous metal surfaces, providing hands-free illumination for tasks such as vehicle maintenance or camping.

Figure 9: The BORUIT U6 attached magnetically to a metal surface, providing hands-free lighting.

6. Maintenance

• Cleaning: Wipe the flashlight with a soft, damp cloth. Avoid abrasive cleaners or solvents.
• Charging: Recharge the battery regularly, especially if the flashlight will not be used for an extended period, to maintain battery health.
• Storage: Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures.
• Water Exposure: While IP68 rated, ensure the USB-C port cover is securely closed after charging or if exposed to water.

7. Troubleshooting

8. Specifications

Figure 10: Detailed chart of battery capacity and estimated runtimes for various light modes.

9. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact BORUIT customer service through the retailer where the product was purchased. Keep your purchase receipt as proof of purchase.
