1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your LEDVANCE Endura Solar LED Outdoor Lamp. This product features a separate floodlight and external solar panel, connected by a 5-meter cable, offering flexible placement options. It includes a PIR motion detector, a daylight sensor, and a remote control for advanced settings. Designed for outdoor use, it is an energy-efficient and environmentally friendly lighting solution.
2. Safety Information
- Read all instructions carefully before installation and use.
- Ensure all components are securely mounted to prevent falling.
- Do not attempt to open or modify the product. This may void the warranty and pose a safety risk.
- Keep the solar panel and floodlight away from flammable materials.
- Dispose of batteries and electronic components according to local regulations.
- This product is designed for outdoor use (IP65 rated). Do not submerge in water.
3. Package Contents
Please check the package for the following items:
- 1 x LEDVANCE Endura Flood Split Solar Sensor 10W unit (comprising floodlight and solar panel)
- 1 x 5-meter connection cable (pre-attached)
- 1 x Remote control
- Complete mounting and connection accessories (screws, wall plugs)

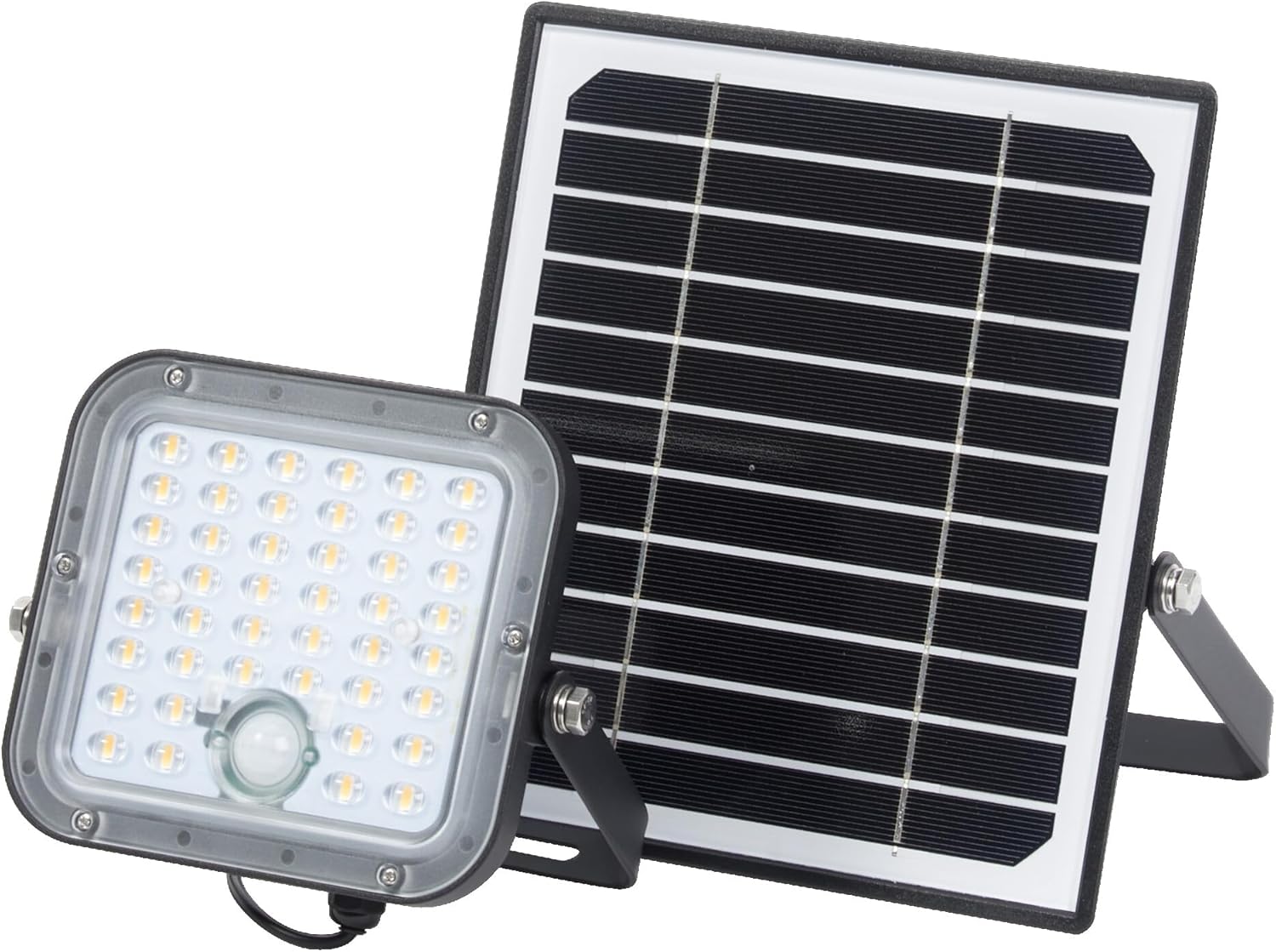

Image 3.1: Components of the LEDVANCE Endura Solar LED Outdoor Lamp, showing the floodlight and the solar panel.
4. Setup and Installation
The LEDVANCE Endura Solar LED Outdoor Lamp is designed for flexible installation, allowing the floodlight and solar panel to be mounted separately.
4.1 Choosing a Location
- Solar Panel: Select a location that receives direct sunlight for at least 6-8 hours daily to ensure optimal charging. Avoid shaded areas.
- Floodlight: Mount the floodlight in the desired area for illumination, such as garages, facades, or garden sheds. Ensure the PIR sensor has a clear line of sight to the detection area. The 5-meter cable allows for significant separation between the floodlight and the solar panel.
4.2 Mounting the Components
- Marking: Use the mounting brackets as templates to mark the drilling points on the desired surfaces for both the solar panel and the floodlight.
- Drilling: Drill holes at the marked points. Insert the provided wall plugs if mounting on masonry.
- Securing: Attach the mounting brackets using the provided screws. Securely fasten both the solar panel and the floodlight to their respective brackets. Adjust the angle of both components as needed for optimal light coverage and solar exposure.
- Connecting: The floodlight and solar panel are pre-connected with a 5-meter cable. Ensure the cable is routed safely and securely, avoiding any pinch points or areas where it could be damaged.
4.3 Initial Charging
Before first use, allow the solar panel to charge the internal battery for at least 24-48 hours in direct sunlight. This ensures the battery has sufficient charge for optimal performance.
5. Operating Instructions
The LEDVANCE Endura Solar LED Outdoor Lamp features automatic operation via its PIR motion detector and daylight sensor, with advanced control options available through the remote control.
5.1 Automatic Operation
- Daylight Sensor: The lamp will automatically detect ambient light levels. It will not activate during daylight hours, conserving battery power.
- PIR Motion Detector: When it is dark, the lamp will automatically turn on to full brightness when motion is detected within its range. After a set period of no motion, the light will dim or turn off according to the selected mode.
5.2 Remote Control Functions
The included remote control allows for advanced customization of the lamp's behavior.
Image 5.1: LEDVANCE Endura Solar LED Outdoor Lamp showing the remote control and its buttons.
- ON/OFF: Manually turn the lamp on or off.
- TEST: Activates a test mode for the motion sensor.
- MODE: Cycles through different operating modes (e.g., motion-activated, dim-to-bright, constant low light). Refer to the remote's specific icons for details.
- 3H / 5H / 8H: Sets the lamp to stay on for a fixed duration (3, 5, or 8 hours) regardless of motion, typically at a lower brightness.
- Brightness Adjustment (+/-): Increases or decreases the light intensity.
- Light Color Adjustment (Sun/Moon icons): Adjusts the color temperature (if applicable, this model is 4000K, so this might refer to a different setting or be a generic remote button).
Note: Specific remote control functions may vary slightly. Refer to the icons on your remote for precise operation.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your solar lamp.
- Cleaning the Solar Panel: Periodically wipe the solar panel surface with a soft, damp cloth to remove dust, dirt, leaves, or snow. A clean panel ensures maximum sunlight absorption and charging efficiency.
- Cleaning the Floodlight: Clean the floodlight lens and housing with a soft, damp cloth to maintain light output and sensor sensitivity.
- Battery Care: The internal battery is designed for long-term use. Avoid prolonged periods of storage without charging, as this can reduce battery life. If storing the lamp, ensure it receives occasional sunlight to maintain battery health.
- Inspection: Periodically check the mounting hardware and cable for any signs of wear, damage, or loosening. Tighten screws if necessary.
7. Troubleshooting
If you encounter issues with your LEDVANCE Endura Solar LED Outdoor Lamp, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on at night. | Insufficient solar panel charging. Daylight sensor still detecting light. Battery depleted. | Ensure solar panel is in direct sunlight for 6-8 hours daily. Relocate solar panel or floodlight away from other light sources. Allow 2-3 days of full sunlight charging. |
| Lamp stays on during the day. | Daylight sensor obstructed or faulty. | Clean the daylight sensor area on the floodlight. Ensure no obstructions are blocking it. |
| Motion sensor not detecting. | Sensor range obstructed. Incorrect sensitivity setting. Sensor dirty. | Clear obstructions in front of the sensor. Adjust the floodlight angle. Use the remote control to adjust sensor sensitivity (if available). Clean the sensor lens. |
| Remote control not working. | Remote battery depleted. Obstruction between remote and lamp. | Replace the remote control battery. Ensure clear line of sight to the floodlight's sensor. |
If the problem persists after trying these solutions, please contact customer support.
8. Specifications
- Model Number: 4099854276675
- Product Dimensions (L x W x H): 15.3 x 3.1 x 14.7 cm
- Weight: 985 grams
- Power Source: Solar-powered
- Light Output: 10 W, 1400 lm
- Color Temperature: 4000 K (Cool White)
- Ingress Protection (IP) Rating: IP65 (Dust tight and protected against water jets)
- Cable Length: 5 meters (between floodlight and solar panel)
- Special Features: PIR Motion Detector, Daylight Sensor, Remote Control, Energy-efficient
- Energy Efficiency Class: G
- Application Areas: Outdoor, Garages, Facades, Garden Sheds
9. Warranty and Support
For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official LEDVANCE website. Keep your proof of purchase for any warranty claims.
