Lucande LED Ceiling Fan with Light and Remote Control
Model: 10022103
Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Lucande LED Ceiling Fan, Model 10022103. Please read this manual thoroughly before installation and use, and keep it for future reference.
Safety Instructions
- Ensure the main power supply is disconnected before installation or maintenance.
- Installation must be performed by a qualified electrician in accordance with local wiring regulations.
- The mounting structure must be capable of supporting the fan's weight (approximately 5.05 kg).
- Do not connect the fan to a dimmer switch, as this may damage the motor.
- Keep hands and objects clear of the fan blades during operation.
- This appliance is for indoor use only.
Package Contents
Verify that all components are present before beginning installation:
- Ceiling Fan Motor Assembly
- Fan Blades (3x)
- LED Light Module
- Light Cover
- Remote Control (2x AAA NiCa batteries not included)
- Mounting Bracket
- Hardware Pack (screws, washers, wire nuts)
- User Manual
Setup and Installation
1. Mounting the Bracket
Secure the mounting bracket to a ceiling joist or a suitable electrical junction box capable of supporting the fan's weight. Ensure the bracket is firmly attached.
Image: The black metal mounting bracket with pre-attached wiring for ceiling installation.
2. Wiring Connection
Connect the fan's electrical wires to your household wiring according to local electrical codes. Typically, this involves connecting live, neutral, and ground wires. Refer to the wiring diagram provided in the separate installation guide or consult a qualified electrician.
3. Attaching Fan Blades
Carefully attach each fan blade to the motor housing using the provided screws. Ensure all screws are tightened securely to prevent wobbling during operation.
Image: Close-up view of a fan blade showing the holes for attachment to the motor.
4. Installing the LED Light Module and Cover
Connect the LED light module to the fan's internal wiring. Then, secure the light cover by twisting or snapping it into place. Ensure the light module is properly seated before attaching the cover.
Image: The circular LED light module with multiple individual LEDs and wiring connections.
Image: The white, translucent cover for the LED light module.
5. Remote Control Setup
Insert 2x AAA NiCa batteries (not included) into the remote control. The fan is typically pre-paired with the remote. If not, refer to the specific pairing instructions in the separate remote control manual.
Operating Instructions
Your Lucande LED Ceiling Fan is operated via the included remote control. Ensure the fan has power before attempting to operate it.
Fan Speed Control
The remote control allows you to select from 6 different fan speeds. Press the fan speed buttons to increase or decrease the airflow. The fan operates quietly, with a maximum noise level of 47 dB(A).
Light Control and Color Temperature (CCT)
The integrated LED light can be turned on/off and its color temperature adjusted. The CCT function allows you to switch between three light colors: Warm White (3000K), Neutral White (4000K), and Cool White (6500K).

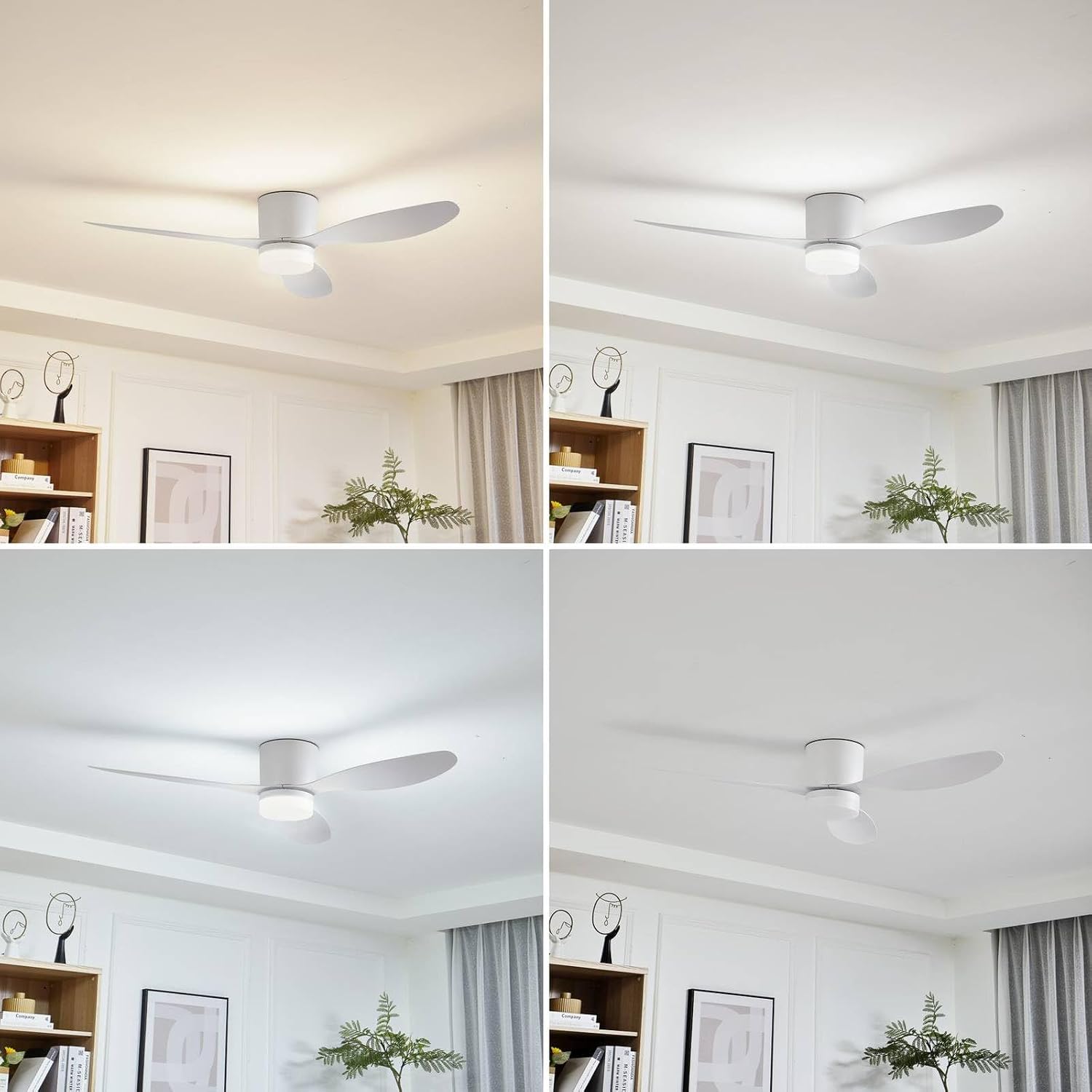

Image: Four panels illustrating the ceiling fan's light output at different color temperatures, from warm to cool white.
Summer and Winter Mode
The fan features a reversible motor for year-round comfort:
- Summer Mode (Downward Airflow): Blades rotate counter-clockwise, creating a downward breeze that provides a cooling effect.
- Winter Mode (Upward Airflow): Blades rotate clockwise, drawing cool air up and pushing warm air down from the ceiling, helping to distribute heat more evenly.
Switch between modes using the dedicated button on the remote control.
Timer Function
Set the fan to turn off automatically after a specified period using the timer function (1 hour - 8 hours). This is useful for nighttime operation.
Maintenance
- Cleaning: Regularly clean the fan blades and motor housing with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the power is off before cleaning.
- Blade Tightness: Periodically check that all blade screws are tight. Loose screws can cause wobbling and noise.
- Light Source: The integrated LED light module is designed for long life and is not user-replaceable. If the light fails, contact customer support.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power supply; Remote control batteries dead; Fan not paired with remote. | Check circuit breaker; Replace remote batteries; Refer to remote pairing instructions. |
| Fan wobbles | Loose blade screws; Unbalanced blades; Loose mounting bracket. | Tighten all blade screws; Check blade balance (balancing kit may be needed); Ensure mounting bracket is secure. |
| Light does not work | No power to light; Faulty LED module. | Check wiring connections; Contact customer support for LED module replacement. |
| Remote control not responding | Dead batteries; Obstruction between remote and receiver; Remote not paired. | Replace batteries; Remove obstructions; Re-pair remote control. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 10022103 |
| Brand | Lucande |
| Dimensions (Diameter x Height) | 132 cm x 25.5 cm |
| Weight | 5.05 kg |
| Material | Plastic, Iron, Acrylic, ABS |
| Color | White |
| Power Source | Corded Electric |
| Voltage | 230 V |
| Light Source | Integrated LED |
| LED Wattage | 18 W |
| Luminous Flux | 2000 Lumen (max) |
| Color Temperature (CCT) | 3000K (Warm White), 4000K (Neutral White), 6500K (Cool White) |
| Fan Speeds | 6 |
| Max Airflow | 170 m³/min |
| Max Air Speed | 2.75 m/sec |
| Noise Level | 47 dB(A) |
| Control Method | Remote Control |
| Timer Function | 1-8 hours |
| Special Features | Summer/Winter Mode, CCT Color Change |
| Protection Class | IP20 |
| Energy Efficiency | Energy-efficient (See energy label for details) |
Image: The EU energy label for the fan, indicating its energy efficiency class F and 18 kWh/1000h consumption.
For more details, visit the official EU EPREL database: https://eprel.ec.europa.eu/qr/748412
Image: A technical diagram illustrating the fan's dimensions: 132 cm diameter, 25.5 cm height, and 19 cm canopy diameter.
Warranty and Support
For warranty information or technical support, please contact your retailer or the manufacturer directly. Keep your proof of purchase for warranty claims.
