Lucande Vindur Ceiling Fan Instruction Manual

Introduction

Thank you for choosing the Lucande Vindur Ceiling Fan. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Please read these instructions thoroughly before installation and retain them for future reference.

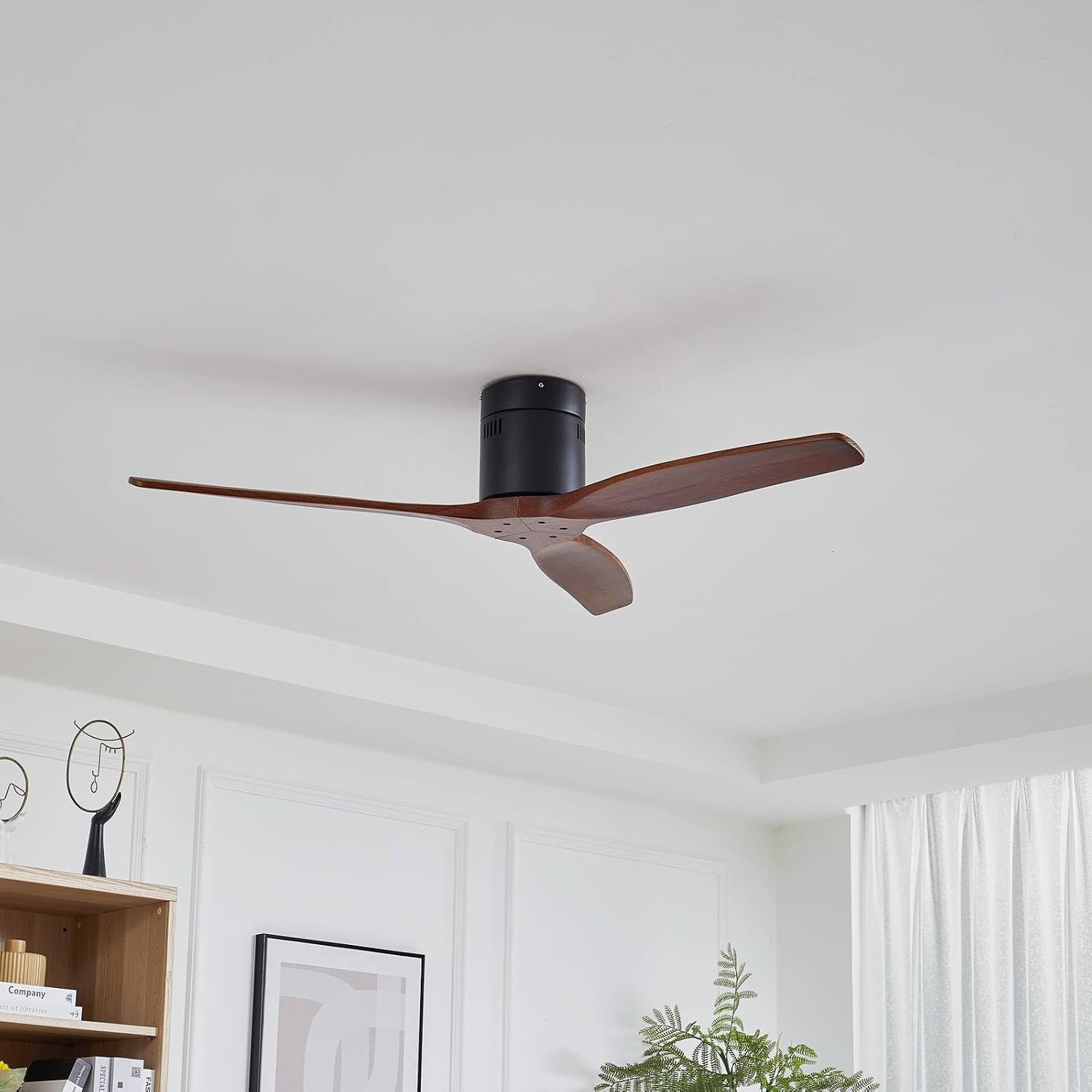

Image: The Lucande Vindur Ceiling Fan, featuring a black motor housing and three dark walnut-colored wooden blades, installed on a white ceiling in a modern living space.

Safety Instructions

WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow these safety guidelines:

• Ensure the main power supply is disconnected before installation or maintenance.
• Installation must be performed by a qualified electrician in accordance with local wiring regulations.
• The mounting structure must be capable of supporting the fan's weight (approximately 4.71 kg).
• Ensure the fan blades are at least 2.3 meters (7.5 feet) above the floor.
• Do not insert objects into the path of the rotating blades.
• This appliance is for indoor use only (IP20).
• Use only the remote control provided with the fan.

Package Contents

Verify that all components are present before beginning installation:

• Motor Housing (Black)
• Fan Blades (3x, Walnut Wood)
• Mounting Bracket
• Remote Control
• Hardware Pack (screws, washers, etc.)
• Instruction Manual

Image: An overhead view of all included components for the Lucande Vindur Ceiling Fan, including the motor, three wooden blades, mounting hardware, and remote control.

Setup and Installation

Note: Installation should be performed by a qualified electrician.

1. Prepare for Installation:
   • Turn off power at the circuit breaker.
   • Ensure the mounting location is structurally sound and can support the fan's weight.
2. Install Mounting Bracket:
   • Secure the mounting bracket to the ceiling junction box using appropriate screws and washers.
3. Assemble Fan Blades:
   • Attach the three wooden blades to the motor housing using the provided screws. Ensure they are securely fastened.


   Image: A detailed view of one of the dark walnut-colored wooden fan blades, showing its shape and mounting holes.
4. Wire the Fan:
   • Connect the fan's electrical wires to the household wiring according to the wiring diagram in the separate electrical guide (if provided) or standard electrical codes. Ensure all connections are secure.
   • The fan operates on 230V.
5. Mount the Fan:
   • Carefully lift the fan assembly and attach it to the mounting bracket. Secure it with the designated screws.


   Image: A close-up of the black motor housing, showing the internal DC motor and the attachment points for the blades and ceiling mount.
6. Install Remote Control Batteries:
   • Insert 2 x AAA NiCa batteries (not included) into the remote control.
7. Restore Power:
   • Turn on power at the circuit breaker.

Operating Instructions

The Lucande Vindur Ceiling Fan is operated using the included remote control.

Image: The white remote control for the ceiling fan, showing buttons for power, speed control (1-6), summer/winter mode, and timer functions.

Remote Control Functions:

• Power Button (⏻): Turns the fan ON or OFF.
• Speed Control (1-6): Adjusts the fan speed from 1 (lowest) to 6 (highest).
• Summer/Winter Mode (↻): Toggles between forward (summer) and reverse (winter) rotation.
  • Summer Mode (Forward): Blades rotate counter-clockwise, pushing air downwards to create a cooling effect.
  • Winter Mode (Reverse): Blades rotate clockwise, drawing air upwards to circulate warm air trapped near the ceiling.
• Timer Functions (1H, 2H, 4H, 8H): Sets the fan to operate for a specified duration before automatically turning off.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your fan.

• Cleaning:
  • Before cleaning, ensure the power is turned off at the circuit breaker.
  • Wipe the fan blades and motor housing with a soft, damp cloth. Do not use abrasive cleaners or solvents.
  • Avoid getting water into the motor housing.
• Blade Balance:
  • If the fan wobbles, check that all blade screws are tight.
  • Ensure blades are free from dust buildup, which can cause imbalance.
• Annual Check:
  • Periodically check all connections and screws for tightness.

Troubleshooting

Technical Specifications

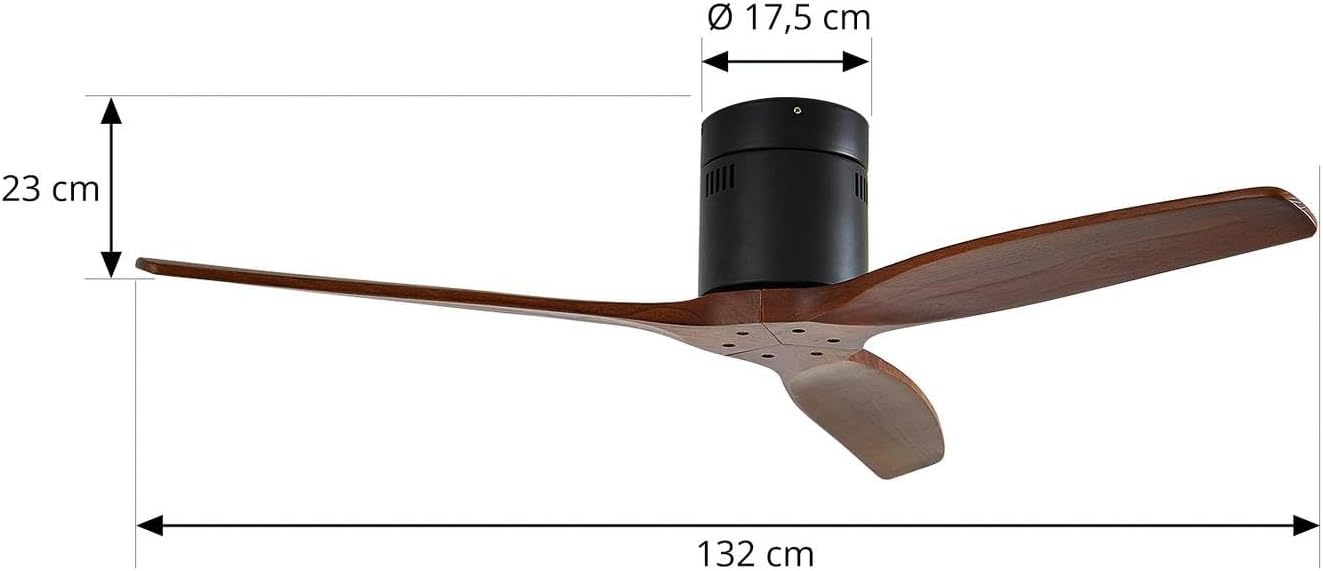

Image: A technical diagram illustrating the dimensions of the ceiling fan, showing a diameter of 132 cm and a height of 23 cm.

Warranty and Support

For warranty information or technical support, please contact your retailer or visit the official Lucande website. Keep your proof of purchase for warranty claims.

Manufacturer: Lucande
