1. Introduction
Thank you for choosing the FOHERE BCW-22A 8-Bottle Wine Cooler. This appliance is designed to store your wine at optimal temperatures, ensuring its quality and taste. This manual provides essential information for the safe and efficient operation of your wine cooler. Please read it thoroughly before use and retain it for future reference.
Key features of your FOHERE BCW-22A wine cooler include:
- Compact design with 22-liter capacity, holding up to 8 standard wine bottles.
- Digital LED display for precise temperature control (5-18°C).
- Double-layer tempered glass door for UV protection and stable internal temperature.
- Quiet and efficient air-cooling system.
- Adjustable feet for stable placement.
Image: The FOHERE BCW-22A wine cooler with its glass door open, revealing two shelves each holding four wine bottles, demonstrating its 8-bottle capacity.
Image: A visual representation highlighting the compact size and flexible storage options of the wine cooler, indicating 0.7 cubic feet capacity, a removable shelf, and space for 8 bottles.
2. Safety Instructions
To reduce the risk of fire, electric shock, or injury when using your appliance, follow these basic precautions:
- Read all instructions before using the appliance.
- Do not touch cold surfaces immediately after the unit has been plugged in.
- Ensure the appliance is properly grounded.
- Do not use the appliance if the power cord is damaged. Contact qualified service personnel.
- Unplug the appliance before cleaning or performing any maintenance.
- Keep ventilation openings clear of obstruction.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- This appliance is intended for household use only.
3. Package Contents
Upon unpacking, please ensure all items are present and undamaged:
- FOHERE BCW-22A Wine Cooler Unit
- Internal Wire Shelves (quantity may vary, typically two for 8 bottles)
- Instruction Manual
If any items are missing or damaged, please contact customer support immediately.
4. Setup and Installation
- Unpacking: Carefully remove all packaging materials, including foam and tape. Keep packaging for future transport if needed.
- Placement: Place the wine cooler on a flat, stable surface strong enough to support the unit when fully loaded. Ensure there is adequate ventilation around the unit (at least 10-15 cm on sides and back) to allow for proper heat dissipation. This unit is designed for freestanding or countertop use. Avoid direct sunlight or heat sources.
- Leveling: The wine cooler is equipped with adjustable feet. Rotate the feet to level the appliance, ensuring stability and proper door closure.
- Initial Cleaning: Before first use, clean the interior and exterior of the unit with a soft cloth and mild detergent. Rinse with clean water and dry thoroughly.
- Power Connection: Plug the appliance into a dedicated, properly grounded electrical outlet. Allow the unit to stand for at least 2-4 hours before plugging it in to allow refrigerating fluids to settle.
Image: A close-up of the wine cooler highlighting key details such as the circulation fan, adjustable leveling feet, and the wide 220-degree door opening angle for easy access.
5. Operating Instructions
Your FOHERE wine cooler features an intuitive control panel for easy temperature management and lighting.
Control Panel Functions:
Image: A detailed view of the control panel, showing the digital temperature display and the 'UP', 'DOWN', and 'LIGHT' buttons for adjusting settings.
- Digital Display: Shows the current internal temperature.
- UP Button (▲): Press to increase the desired temperature.
- DOWN Button (▼): Press to decrease the desired temperature.
- LIGHT Button: Press to turn the interior LED light on or off.
Setting the Temperature:
The wine cooler allows you to set the temperature between 5°C and 18°C (41°F - 64°F). To adjust the temperature:
- Press the UP or DOWN button once. The display will flash, indicating it's in setting mode.
- Use the UP or DOWN buttons to select your desired temperature.
- After a few seconds of inactivity, the display will stop flashing and show the new set temperature. The unit will then work to reach and maintain this temperature.
Image: The wine cooler's display showing the temperature control function, indicating a range of 8-18°C (46-64°F) suitable for various wine types.
Interior LED Light:
Press the LIGHT button to illuminate the interior of the wine cooler. This allows for easy viewing of your wine collection without opening the door, which helps maintain a stable internal temperature.
Quiet Operation:
The FOHERE BCW-22A is designed with a powerful and quiet air-cooling system, operating at a low noise level (typically below 38dB) to ensure minimal disturbance.
Image: A diagram showcasing the internal air circulating fan and the quiet, efficient cooling mechanism of the wine cooler.
Image: The wine cooler positioned in a relaxed home environment, emphasizing its low noise operation, rated at approximately 38dB, for a better user experience.
6. Maintenance
Cleaning Your Wine Cooler:
Regular cleaning helps maintain the appearance and efficiency of your appliance.
- Interior: Unplug the unit. Remove shelves and clean them with a mild detergent solution. Wipe the interior with a soft cloth dampened with a baking soda solution (2 tablespoons of baking soda to 1 liter of water). Rinse with clean water and dry thoroughly.
- Exterior: Clean the exterior surface with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Glass Door: The double-layer tempered glass door can be cleaned with a glass cleaner. Avoid spraying cleaner directly onto the control panel.

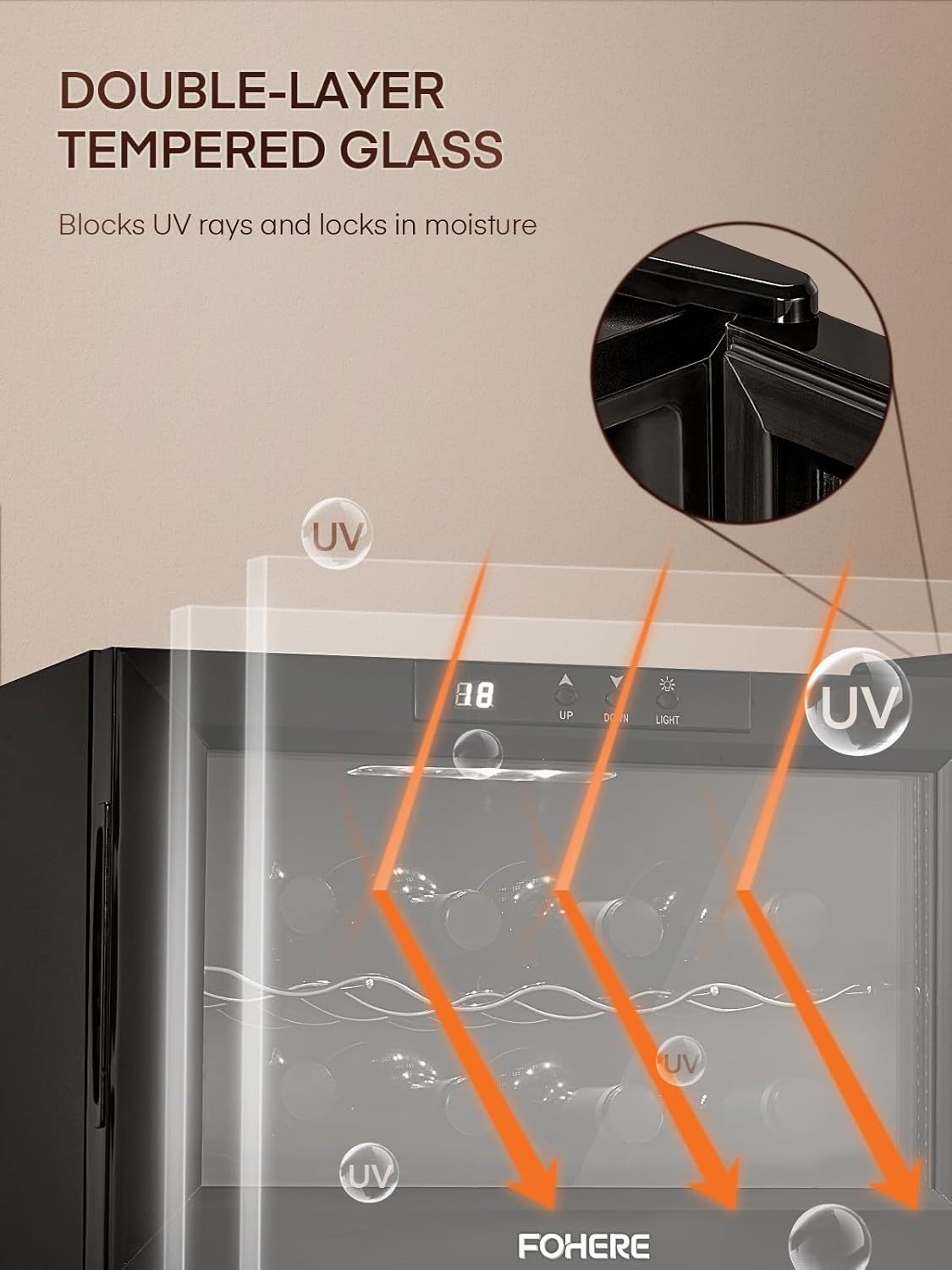

Image: A visual explanation of the double-layer tempered glass door, showing how it blocks harmful UV rays and helps maintain internal moisture, contributing to wine preservation.
Defrosting:
This appliance features manual defrosting. If ice accumulates on the interior back wall, unplug the unit and allow the ice to melt naturally. Place a towel at the bottom to absorb water. Once defrosted, clean and dry the interior before plugging the unit back in.
7. Troubleshooting
Review this section before calling for service. It may save you time and expense. This section includes common problems that are not a result of defective workmanship or materials.
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not operate. | Not plugged in; circuit breaker tripped; power outage. | Ensure plug is secure; check circuit breaker; verify power supply. |
| Temperature is not cold enough. | Door opened too frequently; door not closed properly; poor ventilation; ambient temperature too high. | Minimize door openings; ensure door seals tightly; provide adequate clearance around unit; move to a cooler location. |
| Appliance is too noisy. | Unit not leveled; loose parts; fan obstruction. | Adjust leveling feet; check for loose components; ensure fan is clear. |
| Vibration. | Unit not leveled. | Adjust leveling feet. |
| Moisture buildup on interior. | High humidity; door opened too frequently; door not sealed properly. | This is normal in humid conditions; minimize door openings; check door seal. |
8. Specifications
Technical details for the FOHERE BCW-22A Wine Cooler:
| Feature | Detail |
|---|---|
| Brand | FOHERE |
| Model Number | BCW-22A |
| Capacity | 22 Liters (8 standard wine bottles) |
| Temperature Range | 5°C - 18°C (41°F - 64°F) |
| Dimensions (D x W x H) | 51 cm x 30.5 cm x 43 cm (20.1 in x 12 in x 16.9 in) |
| Weight | 10.5 kg (23.1 lbs) |
| Color | Black |
| Installation Type | Portable / Freestanding |
| Defrost System | Manual |
| Voltage | 220 Volts |
| Special Features | Digital Temperature Control, LED Interior Light, Double-Layer Tempered Glass Door |
9. Warranty and Support
FOHERE products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.
For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact FOHERE customer support. Contact information can typically be found on the product packaging, warranty card, or the official FOHERE website.
