DYYMPFA Shifter Assembly Mounting

1. Introduction

This manual provides comprehensive instructions for the proper installation, operation, and maintenance of the DYYMPFA Shifter Assembly Mounting. This component is designed as a direct replacement part for specific Buyang Feishen 550cc ATVs. Adherence to these instructions will ensure correct function and longevity of the part.

Please read this manual thoroughly before attempting any installation or maintenance procedures. Keep this manual for future reference.

2. Product Overview

The DYYMPFA Shifter Assembly Mounting is a critical component for controlling the transmission gears of your ATV. It is engineered to match the original equipment specifications for a precise fit and reliable performance.

• Compatibility: Specifically designed for Buyang Feishen 550cc ATVs, including models such as Bandito 550, 550D, FA-K550, and FA-N550.
• Buyang Part Number: 4.6.14.0020
• DYYMPFA Model Number: DYYMPFA8866

Key Features:

• Constructed from durable, high-quality materials for extended service life.
• Designed for direct replacement, ensuring high compatibility with the original device.
• Engineered for reliable and consistent shifting performance.

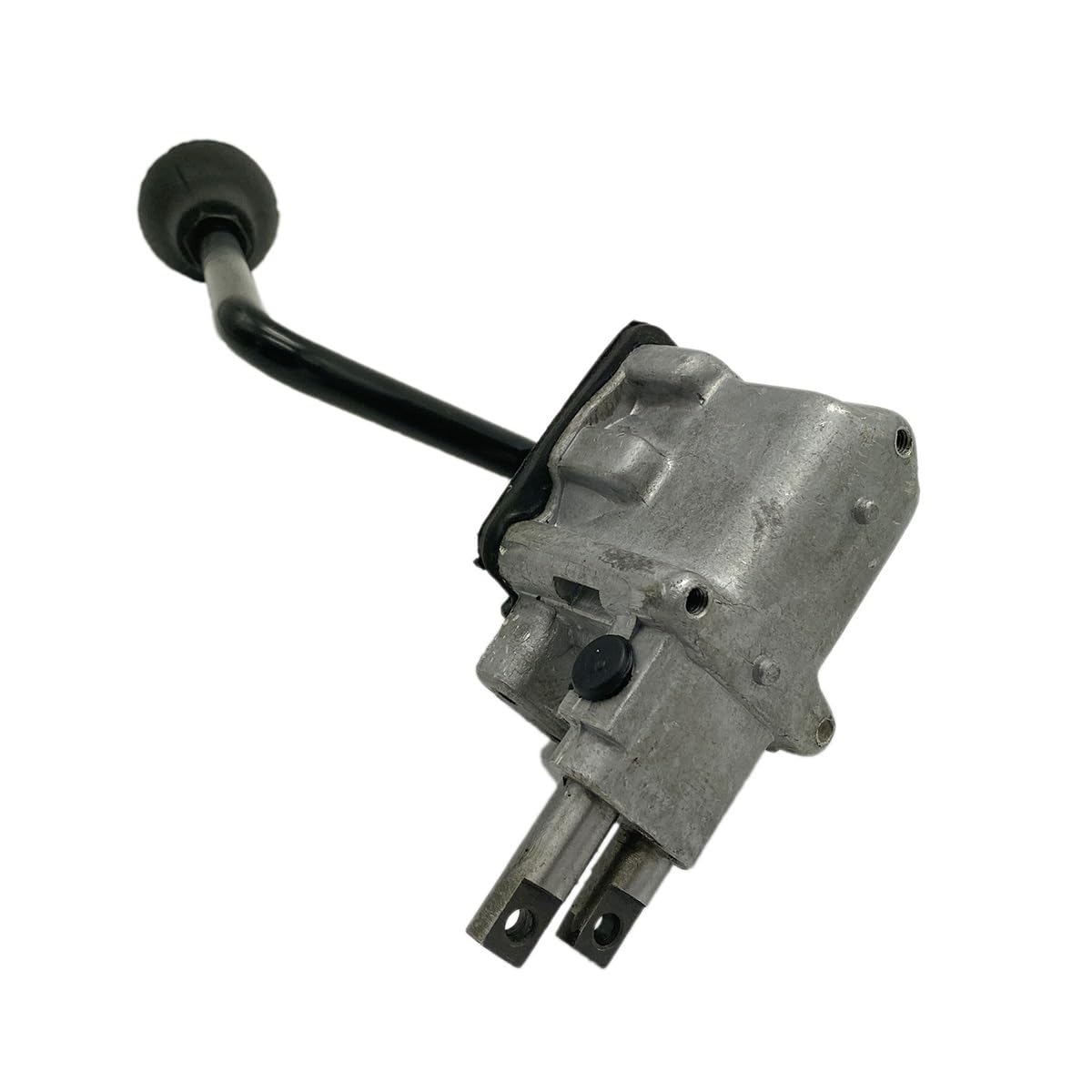

Figure 1: Front view of the DYYMPFA Shifter Assembly Mounting.

3. Safety Information

Always prioritize safety when working on your ATV. Failure to follow safety precautions can result in injury or damage to the vehicle.

• Ensure the ATV is turned off, the engine is cool, and the parking brake is engaged before beginning any work.
• Disconnect the battery's negative terminal to prevent accidental electrical discharge.
• Wear appropriate personal protective equipment (PPE), such as gloves and eye protection.
• If you are unsure about any step, consult a qualified ATV mechanic.
• Keep children and pets away from the work area.

4. Package Contents

Upon opening the package, verify that all components are present and undamaged.

• 1 x DYYMPFA Shifter Assembly Mounting (Part No. 4.6.14.0020)

If any parts are missing or damaged, contact your seller immediately.

5. Installation

This section outlines the general steps for replacing the shifter assembly. Specific procedures may vary slightly depending on your ATV model. Professional installation is recommended.

5.1. Tools Required (Typical)

• Socket wrench set
• Screwdriver set
• Pliers
• Shop rags
• Degreaser/cleaner

5.2. Preparation

1. Park the ATV on a level surface and engage the parking brake.
2. Turn off the engine and remove the ignition key.
3. Disconnect the negative (-) terminal from the ATV battery.
4. Locate the existing shifter assembly on your ATV.

5.3. Removal of Old Shifter Assembly

1. Carefully remove any surrounding body panels or covers that obstruct access to the shifter assembly.
2. Disconnect any electrical connectors or cables attached to the shifter assembly. Note their positions for reinstallation.
3. Unbolt the mounting hardware securing the old shifter assembly to the ATV frame.
4. Gently remove the old shifter assembly. Inspect the mounting area for any dirt or debris and clean as necessary.

5.4. Installation of New Shifter Assembly

1. Position the new DYYMPFA Shifter Assembly Mounting into the cleaned mounting location.
2. Secure the assembly using the appropriate mounting hardware. Ensure bolts are tightened to the manufacturer's specified torque (refer to your ATV service manual if available).
3. Reconnect all electrical connectors and cables that were previously detached. Ensure connections are secure.
4. Verify that the shifter mechanism moves freely and engages properly without obstruction.
5. Reinstall any body panels or covers removed earlier.

Figure 2: Side view of the shifter assembly, showing mounting points.

5.5. Post-Installation Check

1. Reconnect the negative (-) terminal to the ATV battery.
2. Start the ATV and test the shifter through all gear positions (H, L, N, R) while the ATV is stationary and the parking brake is engaged. Listen for any unusual noises or resistance.
3. Ensure all gears engage smoothly and correctly.

6. Operation

The shifter assembly allows you to select the desired gear for your ATV's transmission. The common gear positions are High (H), Low (L), Neutral (N), and Reverse (R).

• H (High): Used for normal riding conditions and higher speeds.
• L (Low): Provides increased torque for heavy loads, steep inclines, or challenging terrain at lower speeds.
• N (Neutral): Disengages the transmission, allowing the engine to run without power being transmitted to the wheels. Always engage the parking brake when in Neutral.
• R (Reverse): Used for moving the ATV backward.

To shift gears, firmly move the shifter lever to the desired position. Ensure the ATV is either stationary or moving at a very low speed when shifting between forward and reverse gears to prevent transmission damage.

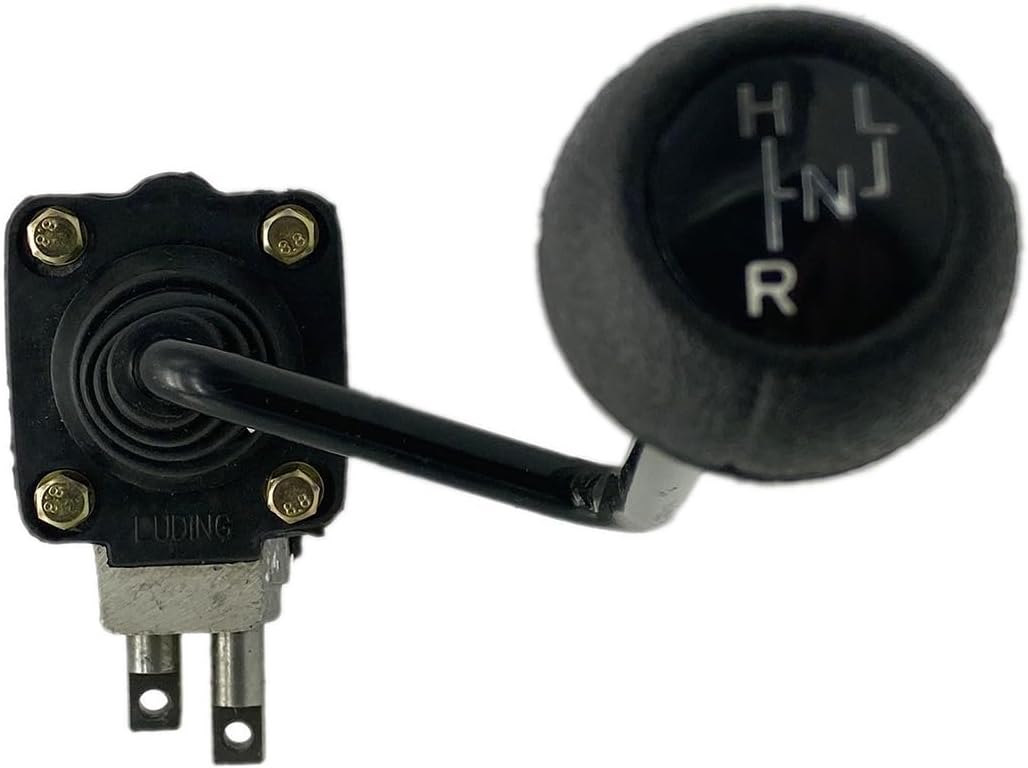

Figure 3: Top view of the shifter knob indicating gear positions (H, L, N, R).

7. Maintenance

Regular inspection and basic maintenance can help prolong the life of your shifter assembly.

• Periodic Inspection: Regularly check the shifter assembly for any signs of wear, damage, or looseness in the mounting hardware.
• Cleaning: Keep the shifter mechanism free from dirt, mud, and debris. Use a damp cloth to wipe down the exterior. Avoid using high-pressure washers directly on the assembly.
• Lubrication: If the shifter feels stiff, a small amount of appropriate lubricant (e.g., silicone spray or light grease) can be applied to the pivot points, ensuring it does not interfere with electrical contacts.
• Cable Check: If your ATV uses shifter cables, inspect them for fraying, kinks, or corrosion. Ensure they move freely.

8. Troubleshooting

If you encounter issues with your shifter assembly, consider the following common troubleshooting steps:

• Difficulty Shifting:
  • Check for obstructions around the shifter mechanism.
  • Inspect shifter cables (if applicable) for damage or improper adjustment.
  • Ensure the mounting bolts are secure but not overtightened, which could bind the mechanism.
  • Lubricate pivot points.
• Loose Shifter Lever:
  • Tighten any loose mounting bolts or fasteners on the shifter handle.
  • Inspect for worn bushings or internal components that may require replacement.
• Gears Not Engaging:
  • Verify that the shifter cables (if applicable) are correctly connected and adjusted.
  • Ensure the ATV is completely stationary when attempting to shift.
  • This could indicate an internal transmission issue; consult a professional mechanic.

If troubleshooting steps do not resolve the issue, it is recommended to seek assistance from a qualified ATV service technician.

9. Specifications

10. Warranty and Support

For warranty information or technical support regarding your DYYMPFA Shifter Assembly Mounting, please contact the seller or manufacturer directly through your purchase platform. Keep your purchase receipt or order number handy for faster service.
