Yaheetech 592424

Yaheetech Velvet Desk Chair User Manual

Model: 592424

Brand: Yaheetech

Product Overview

The Yaheetech Velvet Desk Chair is designed for comfort and style in home office, vanity, or bedroom settings. It features a unique shell-shaped backrest with elegant channel tufting and is upholstered in soft, skin-friendly velvet fabric. The chair is equipped with a wide, armless seat for unrestricted movement and a high-density foam cushion for prolonged comfort. Its compact design allows for easy storage under desks, and it includes smooth-rolling PU casters for effortless mobility without damaging floors. The chair also offers adjustable height and a comfortable rocking function.

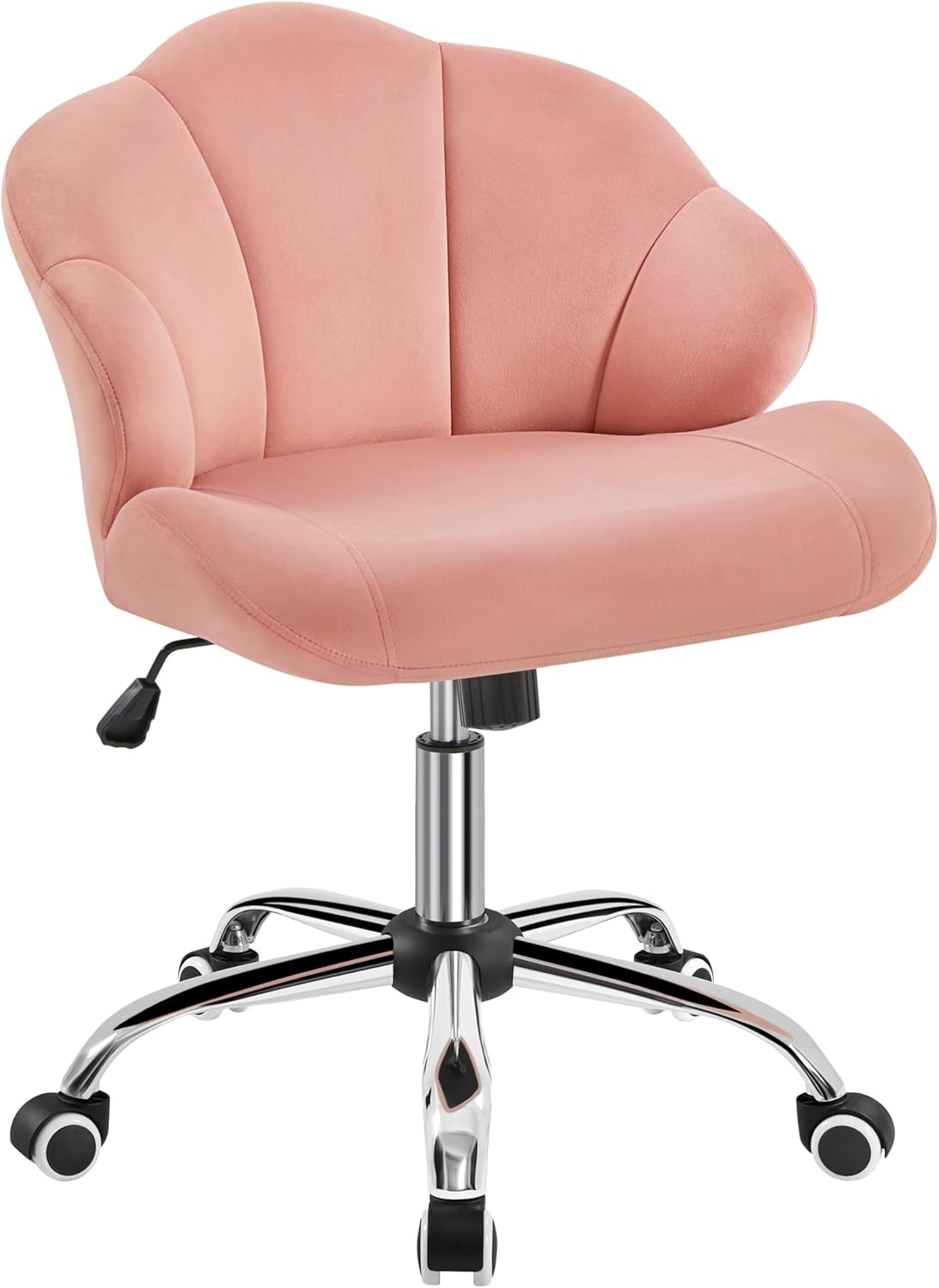

Yaheetech Pink Velvet Desk Chair

Figure 1: Yaheetech Pink Velvet Desk Chair

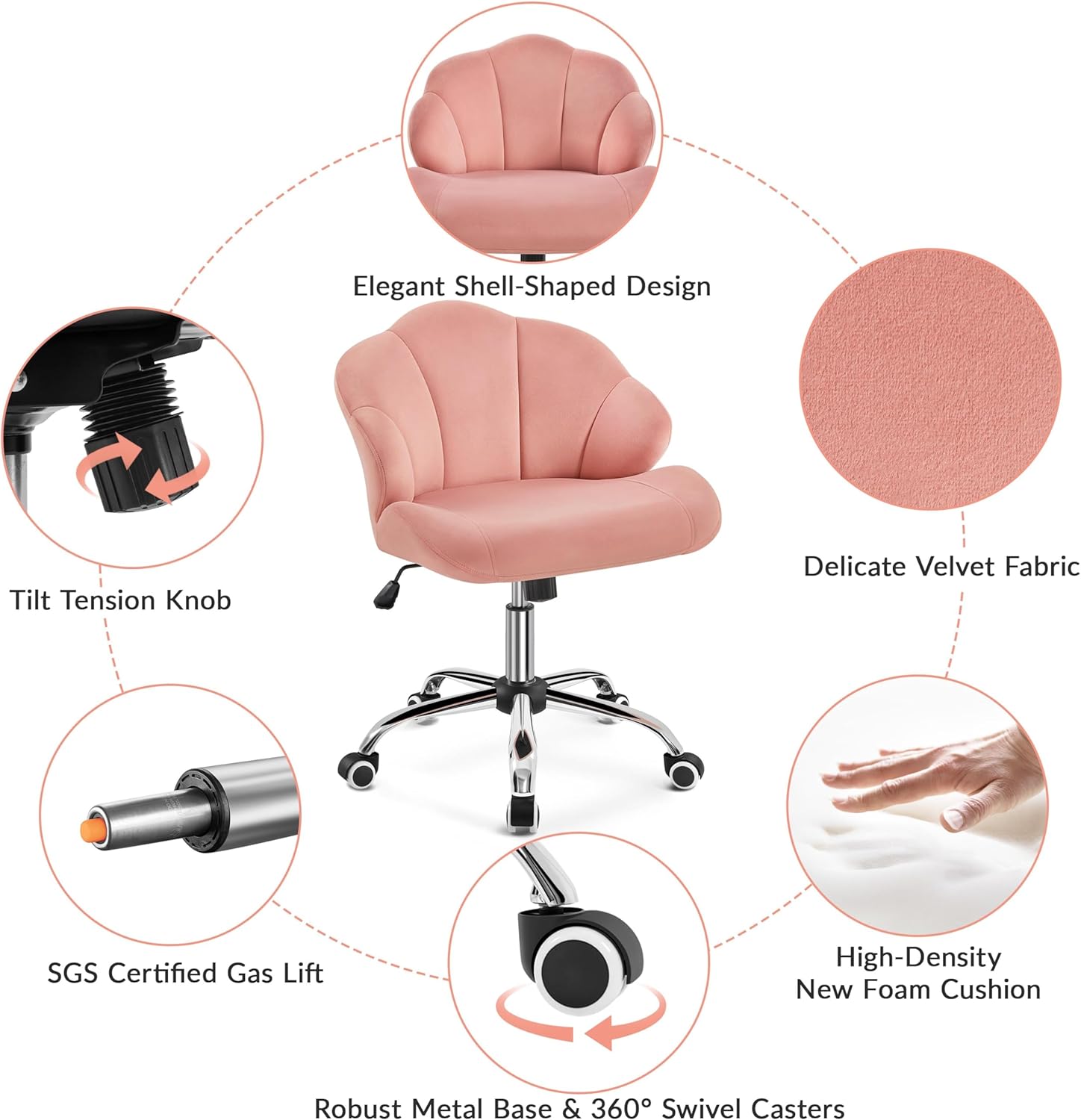

Key features of the Yaheetech Velvet Desk Chair

Figure 2: Key features including elegant shell-shaped design, delicate velvet fabric, tilt tension knob, SGS certified gas lift, high-density foam cushion, robust metal base, and 360° swivel casters.

Safety Information

  • Recommended maximum weight capacity: 300 lb (136 kg). Do not exceed this limit to prevent damage or injury.
  • Improper use or assembly may lead to injury. Always follow the assembly instructions carefully.
  • This product requires assembly. Ensure all components are securely fastened before use.
  • Keep small parts away from children during assembly.
  • Regularly inspect the chair for loose screws or damaged parts. Tighten or replace as necessary.

Setup and Assembly

The Yaheetech Velvet Desk Chair is designed for straightforward assembly. Please follow the steps below. For detailed visual instructions, refer to the official installation manual PDF linked in the Warranty & Support section.

  1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches. Verify all parts are present according to the packing list.
  2. Prepare Gas Lift: Before assembly, ensure you remove the black plastic cap from the top of the gas lift cylinder. This cap is for protection during shipping and must be removed for proper function.
    Remove black plastic cap from gas lift

    Figure 3: Important step - remove the black plastic cap from the gas lift before assembly.

  3. Attach Casters to Base: Insert the five quality PU casters into the holes at the ends of the chair's metal base. Push firmly until they click into place.
  4. Insert Gas Lift into Base: Place the wider end of the gas lift cylinder into the center hole of the assembled base.
  5. Attach Seat to Gas Lift: Carefully align the center mechanism of the seat with the top of the gas lift cylinder and press down firmly. The seat will secure onto the gas lift.
  6. Secure Backrest (if separate): If the backrest is a separate component, attach it to the seat base using the provided screws and tools. Ensure all bolts are tightened securely.

Assembly typically takes less than 15 minutes.

Operating Instructions

Your Yaheetech Velvet Desk Chair offers several features for enhanced comfort and functionality:

  • Adjustable Height: To adjust the seat height, pull the lever located under the seat upwards while taking your weight off the chair to raise it, or while sitting on it to lower it. Release the lever at your desired height. The seat height is adjustable from 18.3″ to 22″.
  • 360-Degree Swivel: The chair's design allows for full 360-degree rotation, providing flexibility and ease of movement in your workspace.
  • Smooth Rolling Casters: The 5 quality PU casters enable effortless and quiet movement across various floor types, including wooden floors and carpets, without causing scratches.
  • Comfortable Rocking Function: The chair features a rocking function for relaxation. To activate or deactivate the rocking function, use the tilt tension knob located under the seat. Turn the knob to adjust the tension for a firmer or softer recline.

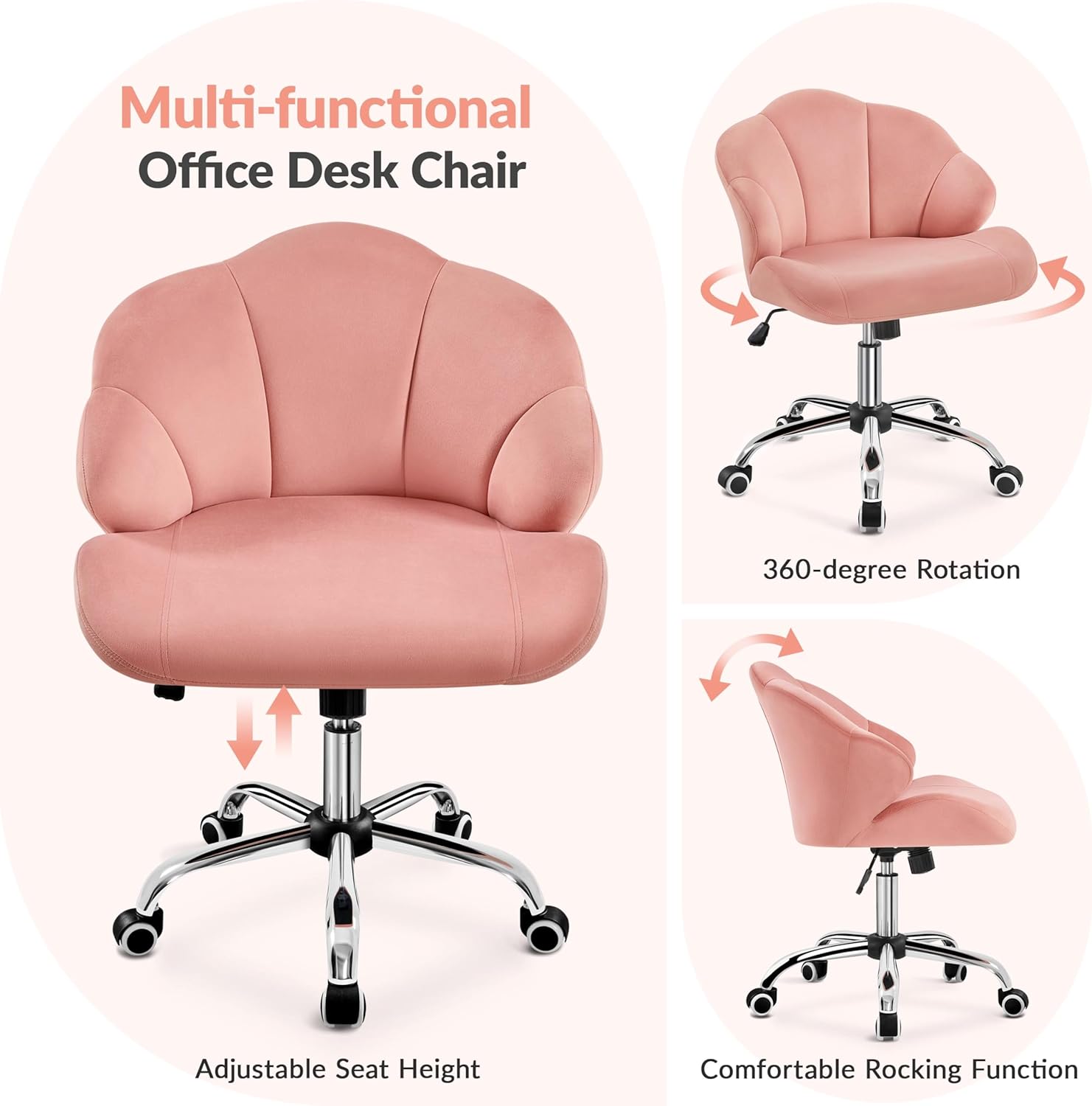

    Multi-functional features of the chair: 360-degree rotation, adjustable seat height, and rocking function.

    Figure 4: Multi-functional features including 360-degree swivel, adjustable height, and rocking function.

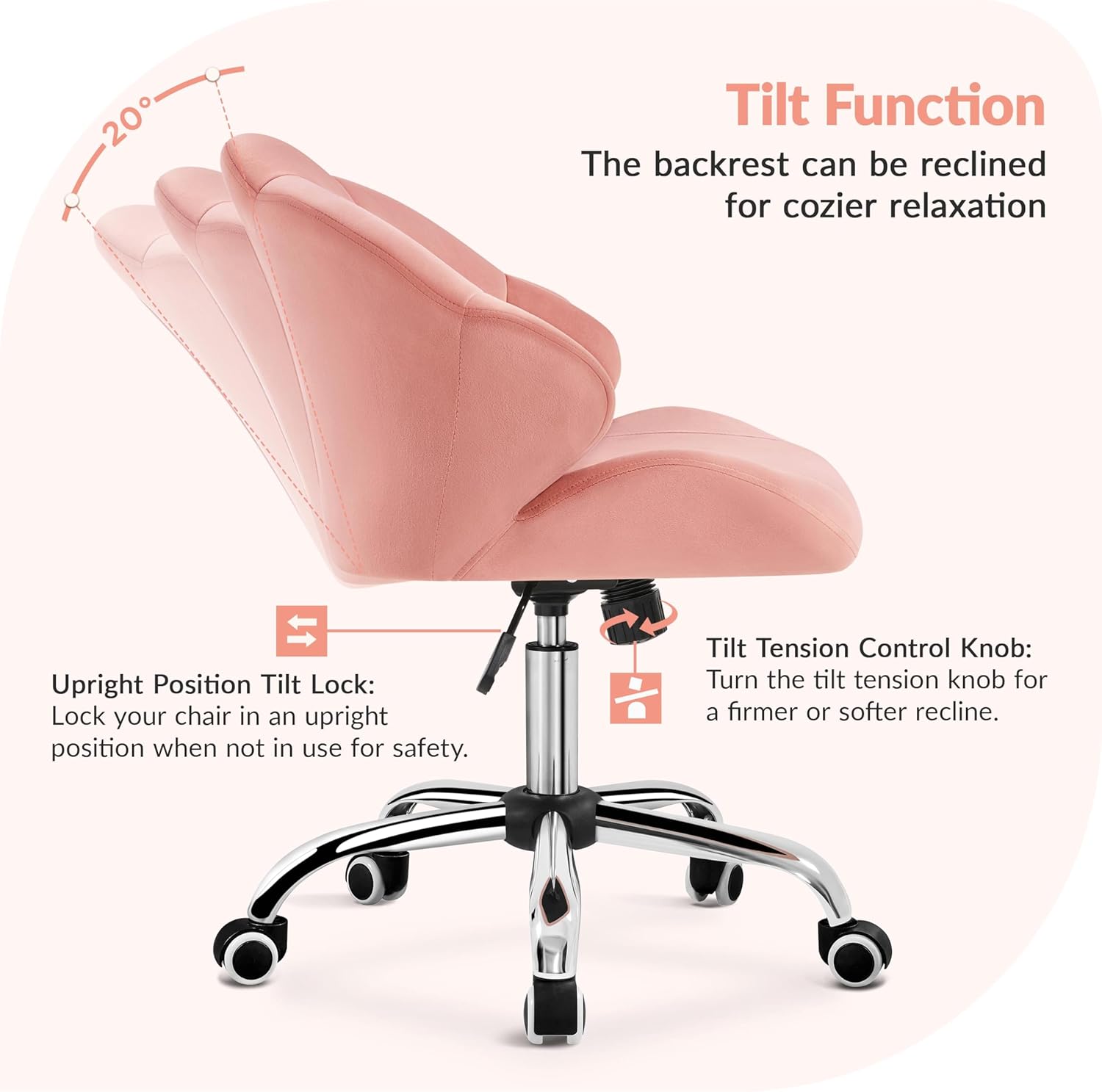

    Tilt function and tilt tension control knob

    Figure 5: Explanation of the tilt function and how to use the tilt tension control knob.

Maintenance

Proper maintenance will extend the life and appearance of your Yaheetech Velvet Desk Chair:

  • Cleaning: For general cleaning, gently wipe the velvet upholstery with a soft, damp cloth. For tougher spots, use a mild fabric cleaner and blot dry. Avoid harsh chemicals or abrasive cleaners.
  • Regular Inspection: Periodically check all screws and bolts to ensure they are tight. Re-tighten if necessary to maintain stability and safety.
  • Caster Care: Keep the casters free of hair, dust, and debris to ensure smooth rolling. You can use a small brush or vacuum cleaner to clean them.
  • Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause the velvet fabric to fade. Position the chair away from direct sunlight if possible.

Troubleshooting

If you encounter any issues with your chair, refer to the following common troubleshooting tips:

  • Chair Not Adjusting Height:
    • Ensure the black plastic cap on the gas lift cylinder was removed during assembly. This is a common oversight.
    • Check if the lever mechanism is properly connected to the gas lift.
  • Chair Wobbles or Feels Unstable:
    • Verify that all assembly screws are fully tightened.
    • Ensure the base and gas lift are correctly seated and not damaged.
  • Casters Not Rolling Smoothly:
    • Inspect casters for tangled hair, lint, or debris and clean them thoroughly.
    • Ensure casters are fully inserted into the base.
  • Rocking Function Not Working:
    • Adjust the tilt tension knob. Turning it counter-clockwise will loosen the tension, allowing for more rocking motion.
    • Ensure the tilt lock mechanism (if present) is disengaged.

Specifications

BrandYaheetech
Model NameOffice Chair
Item Model Number592424
ColorPink
Product Dimensions24"D x 24"W x 34"H (61cm D x 61cm W x 86cm H)
Seat Back Interior Height15 Inches (38cm)
Seat Depth16.3 inches (41.4cm)
Adjustable Seat Height Range18.3″ to 22″ (46.5cm to 55.9cm)
Maximum Weight Recommendation300 Pounds (136 kg)
MaterialVelvet, Foam, Chrome-plated Steel
Special FeaturesAdjustable Height, Space Saving, Rolling, Swivel, Tilting
Item Weight18.41 pounds (8.35 kg)
Country of OriginChina

Warranty & Support

For additional support, warranty information, or to purchase protection plans, please refer to the following resources:

  • Official User Manual (PDF): For a comprehensive guide and detailed diagrams, you can download the official PDF manual: Download PDF Manual
  • Protection Plans: Extended protection plans are available for purchase to cover your product beyond the standard warranty. Options include:
    • 2-Year Protection Plan: $13.99
    • 3-Year Protection Plan: $17.99
    • Complete Protect (monthly subscription): $16.99/month
  • Manufacturer Support: For direct assistance, please contact Yaheetech customer service. Visit the official Yaheetech store on Amazon for contact details and further product information: Visit Yaheetech Store
