MadeiraMadeira Soho Cabecasa Compact Kitchen User Manual

Introduction

This manual provides essential information for the assembly, operation, maintenance, and troubleshooting of your new MadeiraMadeira Soho Cabecasa Compact Kitchen. Please read these instructions carefully before beginning assembly or use to ensure proper installation and longevity of your product. This compact kitchen consists of two main pieces: a sink counter and a two-door counter, designed for functional and modern kitchen spaces.

Setup and Assembly

Assembly of the MadeiraMadeira Soho Cabecasa Compact Kitchen is required. The product includes a comprehensive hardware kit and a dedicated assembly manual. Please refer to the separate assembly manual for detailed, step-by-step instructions, diagrams, and safety warnings specific to the construction of this furniture.

Before You Begin:

• Verify all components are present by checking against the parts list in the assembly manual.
• Ensure you have the necessary tools as specified in the assembly manual.
• Assemble the kitchen on a clean, soft surface to prevent scratches.
• It is recommended to have at least two people for assembly.

Product Dimensions Overview:

Understanding the overall dimensions is crucial for planning your kitchen space. The compact kitchen measures 86 cm in height, 200 cm in width, and 50 cm in depth.

Image: Overall dimensions of the compact kitchen. The total width is 200 cm, with the sink counter being 120 cm and the two-door counter being 80 cm. The depth is 50 cm.

Image: Detailed dimensions of the kitchen counters, including internal shelf heights and overall height of 86 cm. Depths are 48 cm without doors and 50 cm with doors.

Operating Instructions

Your compact kitchen is designed for daily use, offering practical storage and a functional workspace. It features two drawers with telescopic metal slides for smooth operation and two shelves for organized storage.

Key Features:

• Drawers: Equipped with telescopic metal slides for smooth opening and closing, ensuring durability and ease of access.
• Doors: Feature reinforced metal hinges for stability. Some upper cabinets (if part of a larger Soho collection, not included in this 2-piece set) may include gas pistons for soft, controlled opening.
• Countertop: The included top is finished with UV paint, providing a durable and protective surface.
• Sink Area: The sink counter is designed to accommodate a sink with recommended dimensions of 120x50 cm. Please note: A sink is not included with this product.

Image: Details of the kitchen's construction, highlighting reinforced metal hinges, gas piston for smooth door opening (on compatible units), and the UV painted top for enhanced durability.

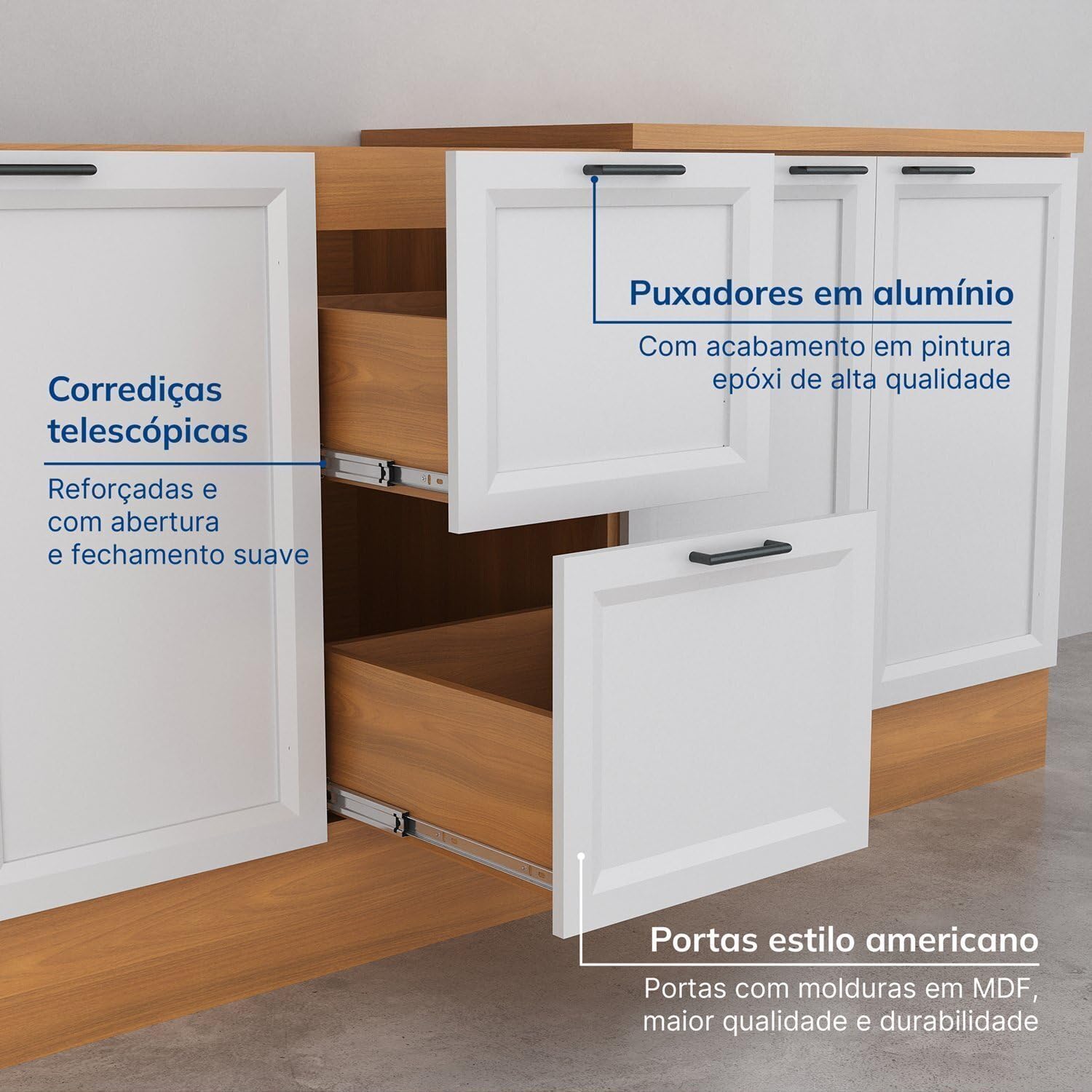

Image: Features such as telescopic drawer slides for smooth movement, modern aluminum handles, and American-style doors with MDF frames for quality and durability.

Maintenance and Care

Proper care will extend the life and maintain the appearance of your compact kitchen. Follow these guidelines for optimal maintenance:

• Cleaning: Use a soft, damp cloth with mild soap for general cleaning. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the glossy finish and wood material.
• Spills: Wipe up spills immediately to prevent staining or damage to the wood and UV painted surfaces.
• Heat and Moisture: Protect surfaces from excessive heat and moisture. Use trivets under hot dishes and coasters under glasses.
• Removable Plinth: The kitchen features removable plinths with a click-model fastening system, facilitating cleaning underneath the cabinets. Regularly remove and clean this area.
• Hardware: Periodically check and tighten any loose screws on hinges, drawer slides, and handles to ensure stability and smooth operation.

Image: Reinforced PVC feet with height adjustment for easy leveling on uneven floors, and removable plinths for convenient cleaning.

Troubleshooting

Should you encounter any issues with your compact kitchen, please refer to the following common solutions before contacting support:

• Doors or Drawers Not Closing Properly:
  • Check if hinges or drawer slides are loose. Tighten screws as needed.
  • Ensure the cabinet is level. Use the adjustable PVC feet to correct any unevenness.
  • Verify that nothing is obstructing the door or drawer path.
• Wobbly Cabinet:
  • Ensure all assembly screws are securely tightened.
  • Adjust the reinforced PVC feet to stabilize the cabinet on uneven flooring.
• Scratches or Minor Damage:
  • For minor scratches on the wood or UV painted surfaces, touch-up pens or furniture repair kits may be used. Consult a professional if unsure.

If the issue persists after attempting these solutions, please contact customer support.

Product Specifications

Warranty Information

Your MadeiraMadeira Soho Cabecasa Compact Kitchen comes with a standard 12-month warranty against manufacturing defects. This warranty covers defects in materials and workmanship under normal use and service.

For warranty claims, please retain your proof of purchase. The warranty does not cover damage resulting from improper assembly, misuse, neglect, accidents, or unauthorized modifications.

Extended warranty options may be available for purchase. Please refer to your retailer for details on extended protection plans.

Customer Support

For further assistance, questions regarding assembly, parts, or warranty claims, please contact MadeiraMadeira customer support.

• Online Support: Visit the official MadeiraMadeira store on Amazon: MadeiraMadeira Store
• Contact Information: Refer to your purchase documentation or the MadeiraMadeira website for the most current contact details (phone, email, or chat support).

When contacting support, please have your product model (Soho Cabecasa) and ASIN (B0D95PTPNL) readily available.
