Polti Smart 110 Eco Steam Cleaner User Manual

1. Introduction

Thank you for choosing the Polti Smart 110 Eco steam cleaner. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your appliance. Please read these instructions carefully before first use and keep them for future reference.

Figure 1: Polti Smart 110 Eco Steam Cleaner. This image shows the complete steam cleaner unit with its hose and floor brush attachment.

2. Safety Instructions

Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.

• Do not direct steam at people, animals, or electrical appliances. Steam is very hot and can cause burns.
• Ensure the power cord is not damaged and do not operate the appliance if the cord or plug is compromised.
• Never immerse the appliance in water or other liquids.
• Do not open the boiler cap while the appliance is under pressure or hot.
• Keep the appliance out of reach of children and supervise children to ensure they do not play with the appliance.
• Use only tap water. Do not add detergents, perfumes, or other chemicals to the water tank.
• Always unplug the appliance before filling, cleaning, or performing maintenance.

3. Product Overview

3.1 Components and Accessories

Your Polti Smart 110 Eco comes with the following components and accessories:

• Main Steam Cleaner Unit
• Flexible Steam Hose with Gun
• Extension Tubes (2)
• VaporForce Brush (rectangular floor brush)
• Brush Storage Insert
• Small Brush
• Concentrator Nozzle
• Window Tool
• Small Round Brushes (various sizes)
• Cloth for Floor Brush
• Funnel
• Measuring Jug

Figure 2: All included accessories for the Polti Smart 110 Eco. This image displays the steam cleaner unit alongside all its attachments, including various brushes, nozzles, and cloths.

3.2 Controls and Indicators

• Power Button: Turns the appliance on and off.
• Steam Adjustment Dial: Regulates the steam output (Min, Eco, Standard, Max).
• Steam Ready Indicator Light: Illuminates when the appliance has reached operating temperature.
• Water Tank Cap: For filling the water tank.

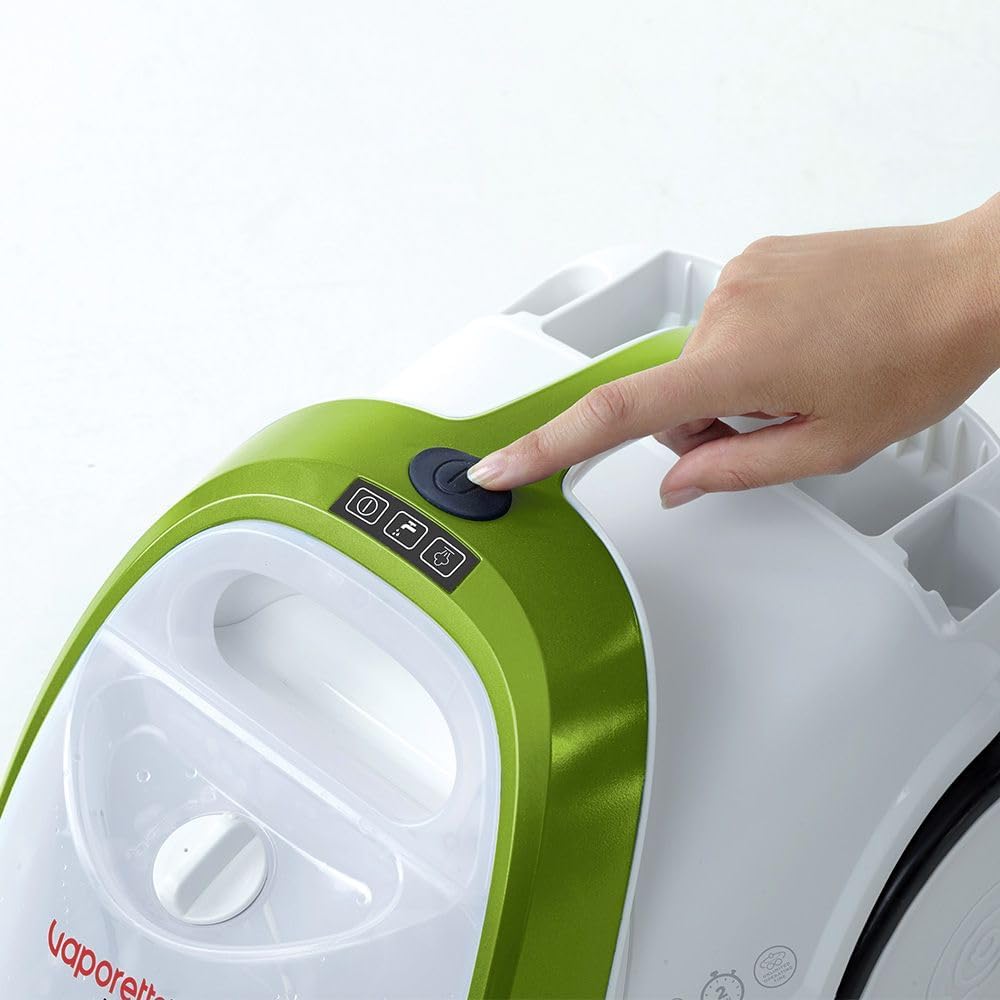

Figure 3: Power button location. A hand is shown pressing the main power button located on the top of the steam cleaner unit.

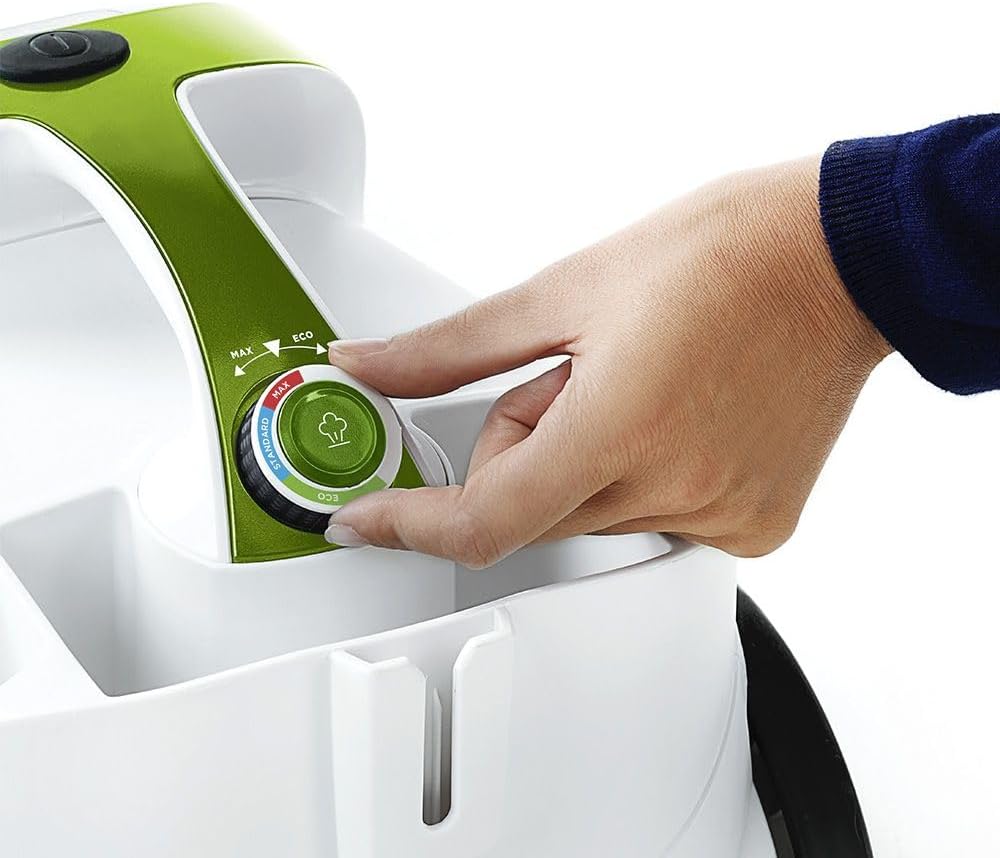

Figure 4: Steam adjustment dial. A hand is shown rotating the dial to select the desired steam intensity.

4. Setup

4.1 Unpacking

Carefully remove all components from the packaging. Retain the packaging for future storage or transport if needed. Ensure all accessories listed in Section 3.1 are present.

4.2 Filling the Water Tank

1. Ensure the appliance is unplugged and cool.
2. Unscrew the water tank cap.
3. Using the provided measuring jug and funnel, carefully pour up to 1.5 liters of tap water into the tank. Do not overfill.
4. Securely screw the water tank cap back on.

Figure 5: Filling the water tank. A hand is shown pouring water from a jug into the transparent water tank of the steam cleaner.

4.3 Attaching Accessories

Connect the flexible steam hose to the main unit by aligning the connectors and pushing firmly until it clicks into place. Attach desired accessories (e.g., extension tubes, VaporForce brush) to the steam gun or to each other as needed for your cleaning task. For the VaporForce brush, ensure the cloth is securely attached.

Figure 6: VaporForce brush attachment. A close-up view of the rectangular VaporForce brush connected to the steam cleaner's handle.

5. Operating Instructions

5.1 Powering On and Heating Up

1. Plug the appliance into a suitable electrical outlet.
2. Press the power button (refer to Figure 3). The indicator light will illuminate.
3. The appliance will begin to heat up. This process takes approximately 2 minutes. The steam ready indicator light will turn on when the optimal operating temperature is reached.

5.2 Adjusting Steam Output

Use the steam adjustment dial (refer to Figure 4) to select the appropriate steam intensity for your cleaning task:

• Min: For delicate surfaces or light cleaning.
• Eco: Energy-saving mode for general cleaning.
• Standard: For everyday cleaning tasks.
• Max: For stubborn dirt and heavily soiled surfaces.

5.3 Cleaning Different Surfaces

The Polti Smart 110 Eco is suitable for cleaning glass, hard floors, laminate, and tiles. Always test on a small, inconspicuous area first.

• Hard Floors/Tiles: Attach the extension tubes and VaporForce brush with a cloth. Move the brush slowly over the surface to allow the steam to work.
• Laminate: Use the Eco or Min steam setting and move the brush quickly to avoid excessive moisture.
• Glass/Mirrors: Use the window tool. Apply steam to loosen dirt, then use the squeegee to remove moisture and dirt.
• Grout/Small Areas: Use the concentrator nozzle or small round brushes for targeted cleaning.

6. Maintenance and Cleaning

6.1 After Each Use

1. Unplug the appliance and allow it to cool completely.
2. Carefully unscrew the water tank cap and empty any remaining water.
3. Clean accessories with water and mild soap if necessary. Allow them to dry completely before storing.
4. Store the appliance and accessories in a dry, safe place. The unit has an integrated accessory storage compartment.

Figure 7: Accessory storage. The steam cleaner is shown with its various small accessories neatly stored in the integrated compartment on the unit.

6.2 Descaling

Depending on the hardness of your water, descaling may be required periodically to maintain optimal performance. Refer to the specific descaling instructions provided in the full product manual or Polti's official website. Do not use harsh chemical descalers not approved for steam cleaners.

Figure 8: Anti-calc filter/cap. A hand is shown interacting with the cap on the side of the unit, likely for maintenance or descaling.

7. Troubleshooting

If you encounter problems not listed here or if the suggested solutions do not resolve the issue, please contact Polti customer support.

8. Specifications

• Model: PTEU0317
• Power: 1500 Watts
• Steam Pressure: 4 bar
• Heat-up Time: 2 minutes
• Boiler Material: Stainless Steel
• Product Dimensions (L x W x H): 40 x 27 x 29 cm
• Item Weight: 1 Kilogram
• Recommended Surfaces: Glass, hard floor, laminate, tile
• Color: Black, Green, White

9. Warranty and Support

For information regarding the product warranty, please refer to the warranty card included with your purchase or visit the official Polti website. For technical assistance, spare parts, or further inquiries, please contact Polti customer support through their official channels.

You can find more information and support on the Polti Brand Store.
