Introduction
Thank you for purchasing the FABATO 7-Drawer Dresser. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure safe and efficient use of your new furniture. Please read this manual thoroughly before assembly and retain it for future reference.
Product Dimensions: 11.81"D x 31.5"W x 37.4"H
Number of Drawers: 7
Material: Engineered Wood, Non-woven Fabric, Steel Frame
Color: Pink
Safety Information
Please observe the following safety precautions:
- Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or broken.
- Assemble the dresser on a soft, clean surface to prevent scratches.
- Do not overtighten screws during assembly to avoid damaging the material.
- Always use the anti-tip kit provided to secure the dresser to the wall, especially in households with children or pets, to prevent tipping hazards.
- Do not allow children to climb on or play with the dresser.
- Distribute weight evenly across drawers and shelves. Do not overload drawers.
Package Contents
Verify that all components listed below are included in your package. If any parts are missing or damaged, please contact customer support.
- Metal Frame Components
- Wooden Top Board
- Fabric Drawers (7 units: 3 small, 4 large)
- Wooden Handles
- Adjustable Feet
- Assembly Hardware (screws, Allen wrench)
- Anti-Tip Kit
- Instruction Manual
Setup and Assembly
Follow these steps carefully for proper assembly. It is recommended to have two people for assembly.
Step 1: Assemble the Metal Frame
Connect the metal frame components using the provided screws. Ensure all connections are secure but do not fully tighten until the entire frame is assembled.

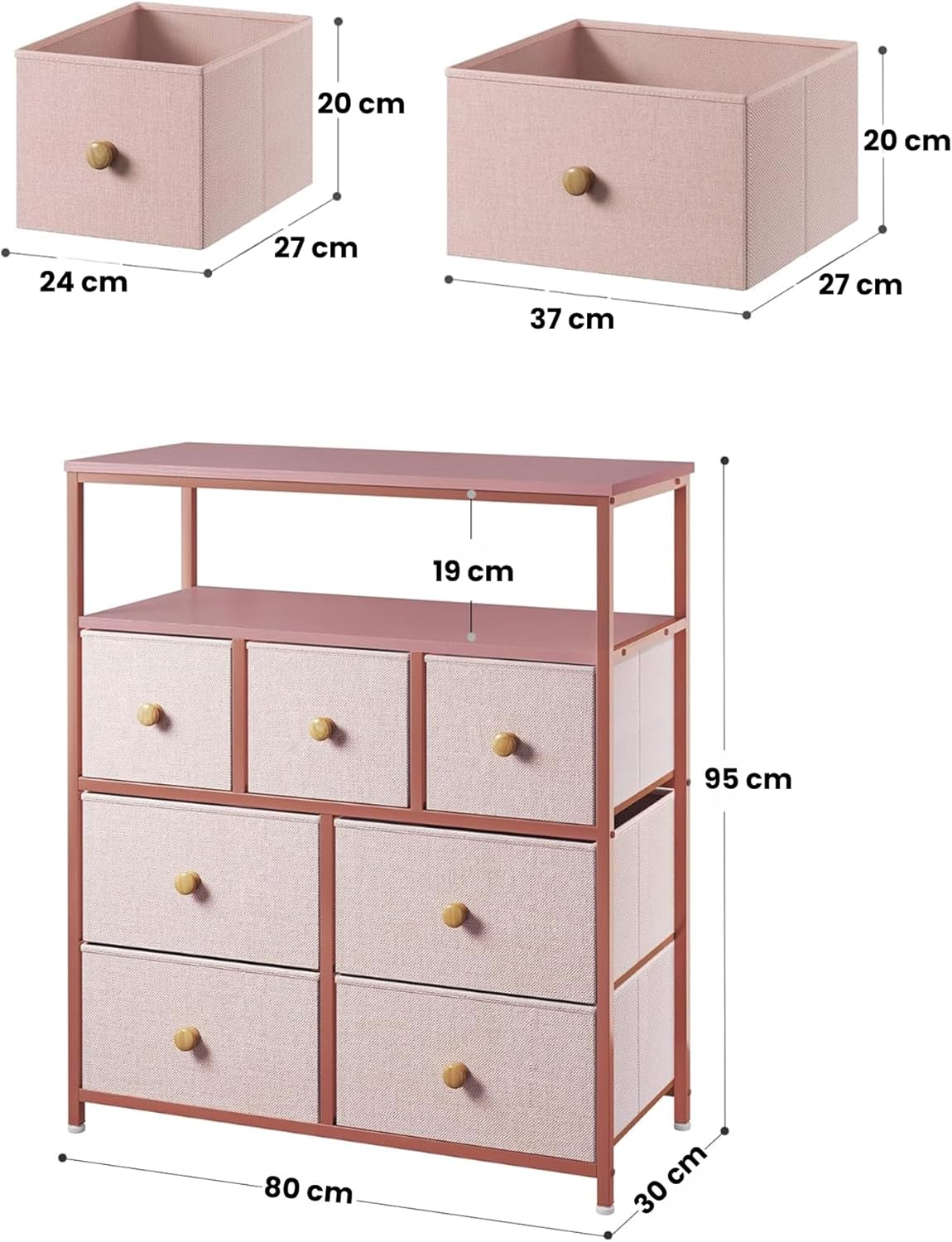

Image: Overall dimensions of the dresser and individual drawer sizes. The dresser measures 80 cm (W) x 30 cm (D) x 95 cm (H). Small drawers are 24 cm (W) x 27 cm (D) x 20 cm (H). Large drawers are 37 cm (W) x 27 cm (D) x 20 cm (H).
Step 2: Attach Wooden Top and Shelves
Place the wooden top board onto the top of the metal frame. Secure it with the designated screws. Insert the two internal wooden shelves into their respective slots within the frame.
Image: Detail of the wooden top and internal shelves. The top board is shown with a thickness of 1.5 cm. The vertical spacing between the top shelf and the next shelf is 19 cm.
Step 3: Insert Fabric Drawers
Unfold the fabric drawers. Insert the bottom panel into each drawer to create a rigid structure. Attach the wooden handles to the front of each drawer. Place the assembled drawers into their corresponding slots in the dresser frame.
Image: Visual guide for drawer capacity. Three small drawers are suitable for items like 50 pairs of socks, 15 underwear, 10 shirts, or 20 tank tops. Four large drawers can hold items such as 8 pairs of pants, 8 sweaters, 12 dresses, or 6 jackets.
Image: Cross-section view of the fabric drawer material, highlighting its three-layer construction for improved rigidity and durability compared to a single-layer fabric. The image also indicates the previous 'fragile and tearable' design versus the 'improved rigid and durable' updated design.
Step 4: Install Adjustable Feet and Anti-Tip Kit
Screw the adjustable feet into the bottom of the metal frame. Adjust them to ensure the dresser is level and stable on uneven surfaces. Attach the anti-tip kit to the back of the dresser and secure it to a wall stud according to the instructions provided with the kit.
Image: Detailed view of key components: the wooden top board, adjustable feet for leveling, the sturdy metal frame, and the wall-mounting anti-tip kit for safety.
Operating Instructions
The FABATO 7-Drawer Dresser is designed for organizing clothes, blankets, accessories, and other household items. To use:
- Pull the wooden handle to open a drawer.
- Place items neatly inside the drawer. Avoid overfilling to ensure smooth operation and prevent damage to the fabric.
- Gently push the drawer back into the frame until it is fully closed.
- Utilize the wooden top surface and internal shelves for displaying decor, books, or other lightweight items.
Maintenance and Care
To ensure the longevity and appearance of your dresser, follow these care guidelines:
- Cleaning: Wipe the metal frame and wooden top with a soft, damp cloth. For fabric drawers, spot clean with a mild detergent and allow to air dry. Do not machine wash or tumble dry the fabric drawers.
- Dusting: Regularly dust all surfaces with a dry, soft cloth.
- Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
- Placement: Avoid placing the dresser in direct sunlight or near heat sources to prevent material degradation or discoloration.
- Drawer Care: If a drawer becomes difficult to open or close, check for obstructions or uneven loading. The fabric drawers can be folded flat for storage when not in use.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Dresser is wobbly or unstable. | Uneven floor; loose connections. | Adjust the leveling feet at the bottom of the frame. Ensure all screws are tightened. Confirm the anti-tip kit is properly installed. |
| Drawers do not slide smoothly. | Overloaded drawer; items obstructing movement; drawer not fully assembled. | Reduce the load in the drawer. Check for items caught between the drawer and frame. Ensure the bottom panel is fully inserted into the fabric drawer. |
| Missing parts during assembly. | Packaging error. | Review the package contents list. Contact FABATO customer support with your purchase details. |
Specifications
- Brand: FABATO
- Model Name: FAEH-7CD-PNK
- Product Dimensions (Overall): 11.81"D x 31.5"W x 37.4"H (30cm D x 80cm W x 95cm H)
- Small Drawer Dimensions: 9.45"W x 10.63"D x 7.87"H (24cm W x 27cm D x 20cm H)
- Large Drawer Dimensions: 14.57"W x 10.63"D x 7.87"H (37cm W x 27cm D x 20cm H)
- Number of Drawers: 7 (3 small, 4 large)
- Material: Engineered Wood (top/shelves), Non-woven Fabric (drawers), Steel (frame)
- Color: Pink
- Item Weight: 10 Kilograms (approx. 22 lbs)
- Assembly Required: Yes
- Special Features: Adjustable Feet, Lightweight, Space Saving, Anti-tip Kit Included
Warranty and Support
FABATO provides a limited warranty for this product against manufacturing defects. Please retain your proof of purchase for warranty claims. For detailed warranty information, missing parts, or technical assistance, please contact FABATO customer support through the retailer where the product was purchased or visit the official FABATO website.
Customer Support: Refer to your purchase documentation for contact information.
