MINELAB EQX 11 Smart Search Coil Instruction Manual

Introduction and Overview

The MINELAB EQX 11 Double-D Waterproof 11-inch Smart Search Coil is designed to enhance your metal detecting experience with EQUINOX series detectors. This coil offers a balance of sensitivity, weight, and ground coverage, making it suitable for various terrains and target types.

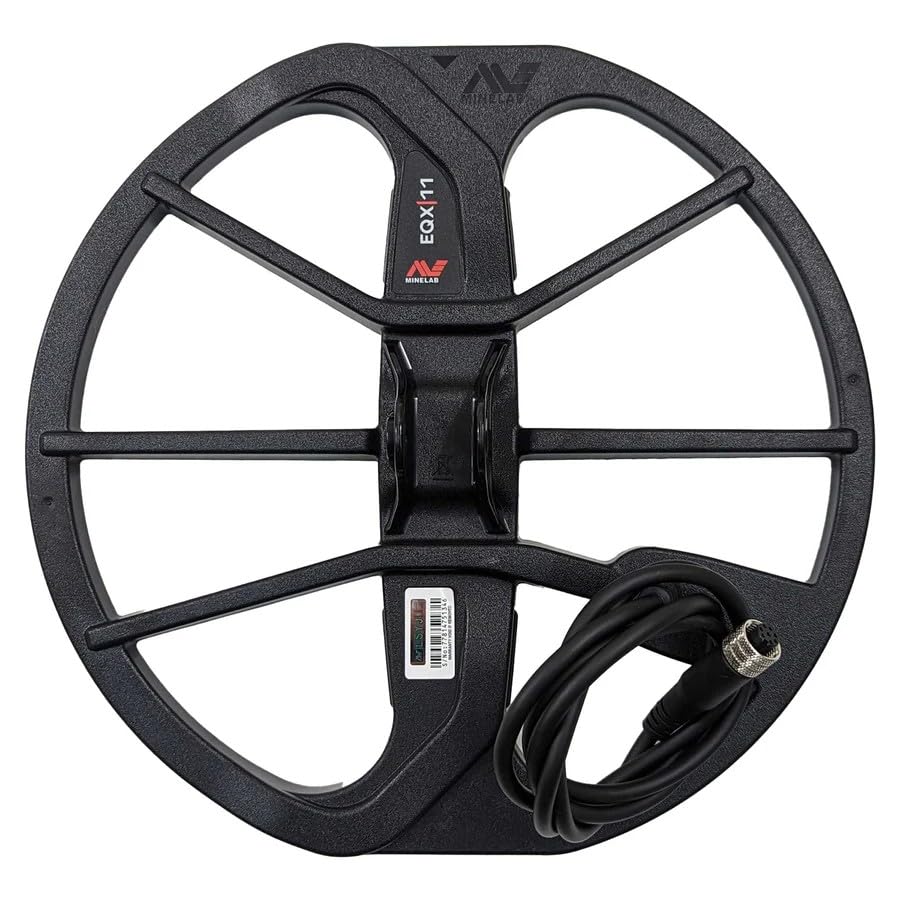

Image: The MINELAB EQX 11 Smart Search Coil, a black, round, 11-inch Double-D coil with a central mounting point and cable.

Key Features:

• Double-D Technology: Provides good all-round performance, balancing sensitivity, weight, and ground coverage for effective target detection.
• Multi-IQ Technology: Integrates multiple detector frequencies into one coil, automatically employing 5 frequencies simultaneously to detect all metals in various soil conditions.
• Waterproof Design: Fully submersible up to 10 feet (3.5 meters) with EQX 600 and 800 detectors, and up to 16 feet (4.9 meters) with EQX 700 and 900 detectors, allowing for underwater searching.
• High Performance: Includes a fitted skidplate and is designed for efficient detection in wide open spaces, covering more ground and locating deeper targets.
• Compatibility: Works with all MINELAB EQUINOX series detectors, including models 600, 700, 800, and 900.

Safety Information

Caution: This product is waterproof up to 16 feet (4.9 meters). However, prolonged or excessive underwater use may potentially damage the coil. Always adhere to proper handling and usage guidelines when operating this product with metal detectors to ensure longevity and safe operation.

Setup

To attach the EQX 11 Smart Search Coil to your compatible MINELAB EQUINOX series metal detector, follow these steps:

1. Ensure your metal detector is powered off before beginning installation.
2. Carefully align the mounting lugs of the EQX 11 coil with the lower shaft of your EQUINOX detector.
3. Insert the provided bolt through the mounting lugs and the shaft, securing it with the wing nut. Do not overtighten; ensure the coil can pivot smoothly but remains firm.
4. Route the coil cable along the lower and middle shafts, securing it with the supplied cable clips to prevent snagging or damage.
5. Connect the coil's waterproof connector to the corresponding port on your detector's control unit. Ensure the connection is clean and fully seated to maintain waterproofing.
6. Perform a functional check by powering on your detector and ensuring the coil is recognized and operating correctly.

Image: A person demonstrating the use of a metal detector equipped with a Double-D coil in a wooded area, highlighting the coil's design for balanced performance.

Operating Instructions

The EQX 11 coil leverages advanced technology to optimize your detecting sessions.

• Multi-IQ Operation: The coil automatically utilizes MINELAB's Multi-IQ technology, scanning across 5 frequencies simultaneously. This means you do not need to manually select frequencies for different targets or ground conditions; the coil adapts automatically.
• Ground Coverage: The 11-inch Double-D design provides excellent ground coverage, allowing you to sweep larger areas efficiently. Maintain a consistent sweep speed and height above the ground for optimal detection depth and target separation.
• Waterproof Use: When detecting in wet environments, such as beaches, shallow water, or submerged areas, ensure your EQUINOX detector is also rated for the depth you intend to explore. Always confirm the coil's connection is secure and free from debris before submerging.
• Skidplate Protection: The included skidplate protects the coil from abrasion and impact during use. Periodically check the skidplate for wear and replace if necessary to maintain coil integrity.

Image: A person using a metal detector with the EQX 11 coil in a rugged outdoor setting, illustrating the application of Multi-IQ technology for diverse terrain.

Image: A person using a metal detector with the waterproof EQX 11 coil on a sandy beach near the water, demonstrating its capability for wet environments.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your EQX 11 Smart Search Coil:

• Cleaning: After each use, especially in sandy, muddy, or saltwater environments, rinse the coil thoroughly with fresh water. Use a soft cloth to wipe away any dirt or debris. Avoid abrasive cleaners or solvents.
• Cable Inspection: Regularly inspect the coil cable for any signs of wear, cuts, or damage. Ensure the cable is securely fastened to the shaft to prevent strain on the connector.
• Connector Care: Keep the waterproof connector clean and free of sand or dirt. Apply a small amount of silicone grease to the O-rings of the connector periodically to maintain its seal.
• Skidplate: The skidplate is designed to protect the coil. Inspect it for cracks or excessive wear. Replace the skidplate if it shows significant damage to prevent wear on the coil itself.
• Storage: Store the coil in a clean, dry place, away from extreme temperatures and direct sunlight. Avoid placing heavy objects on the coil to prevent deformation.

Troubleshooting

If you encounter issues with your EQX 11 Smart Search Coil, consider the following common troubleshooting steps:

• No Detection or Intermittent Signals:
  • Check the coil cable connection to the detector. Ensure it is fully seated and secure.
  • Inspect the coil cable for any visible damage or cuts.
  • Ensure the detector's settings are appropriate for the ground conditions and target type.
  • Perform a ground balance procedure on your detector.
• Excessive Noise or False Signals:
  • Reduce the detector's sensitivity setting.
  • Ensure the coil cable is tightly wrapped around the shaft and secured with clips to prevent movement.
  • Move away from sources of electromagnetic interference (power lines, cell phones, other detectors).
  • Perform a noise cancel operation on your detector.
• Water Leakage (if applicable):
  • Immediately cease underwater use.
  • Inspect the coil connector for proper sealing and any debris.
  • Check the coil housing for cracks or damage.
  • Contact MINELAB support if a leak is suspected.

If these steps do not resolve the issue, refer to your metal detector's main instruction manual or contact MINELAB customer support.

Specifications

Warranty and Support

For warranty information, product registration, and technical support, please visit the official MINELAB website or contact their customer service department. Specific warranty terms and conditions may vary by region and purchase location.

MINELAB Official Website: www.minelab.com

When contacting support, please have your product model number (EQX 11) and proof of purchase readily available.
