MalTec MasterSpray 18L Cordless Pressure Sprayer User Manual

Introduction

This manual provides essential instructions for the safe and efficient use, setup, operation, and maintenance of your MalTec MasterSpray 18L Cordless Pressure Sprayer. Please read this manual thoroughly before first use and keep it for future reference.

Safety Information

Warning: Always follow safety guidelines when operating the sprayer. Failure to do so may result in injury or damage to the product.

• Read all instructions before use.
• Wear appropriate personal protective equipment (PPE) such as gloves, eye protection, and a mask, especially when handling chemicals.
• Do not spray flammable liquids or use the sprayer near open flames.
• Keep out of reach of children and pets.
• Ensure the battery is fully charged before use and disconnect it when not in use or during maintenance.
• Do not modify the sprayer or its components.
• Dispose of chemicals and the product according to local regulations.

Refer to the safety warnings provided with any chemicals used in the sprayer for specific handling and disposal instructions.

Product Components

The MalTec MasterSpray 18L Cordless Pressure Sprayer comes with the following components:

• 18-liter tank (PE+PP material)
• 12V-8Ah lead-acid battery
• Adjustable lance
• Comfortable, adjustable backpack harness
• Integrated dirt filter
• Set of additional nozzles and covers
• Charger (not explicitly listed but implied by "battery powered")

Image: Overview of the MalTec 18L Cordless Pressure Sprayer, showing its main body and dimensions (36cm width, 55cm height). The image also displays the adjustable lances with lengths of 54.5 cm and 48 cm.

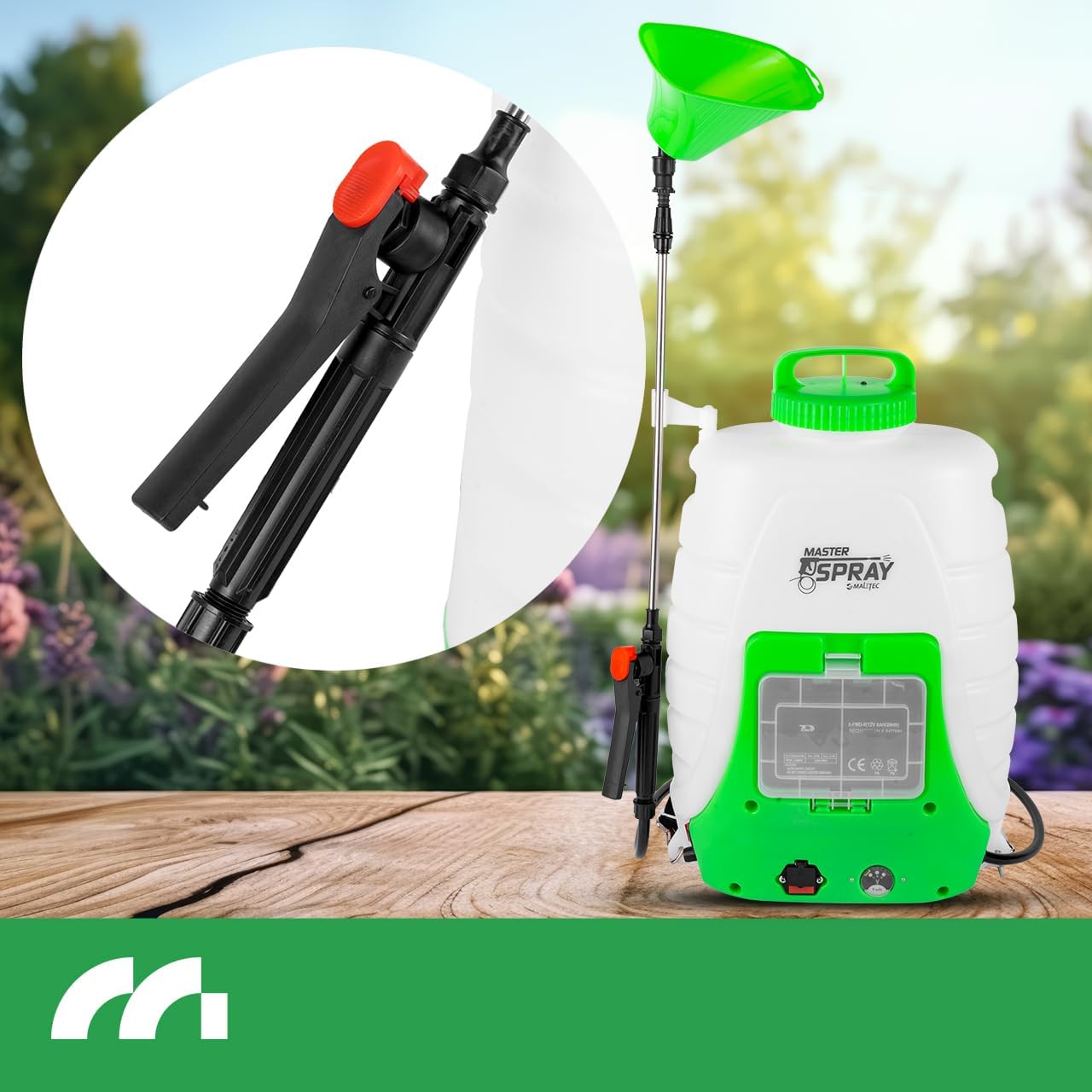

Image: Close-up view of the sprayer's lance and handle assembly, highlighting the trigger mechanism and connection points. The sprayer body is visible in the background.

Image: Detail of the comfortable, adjustable backpack harness and the funnel accessory for easy filling. The back of the sprayer is shown, emphasizing user comfort features.

Setup

1. Charge the Battery: Before first use, fully charge the 12V-8Ah lead-acid battery. Connect the charger to the sprayer's charging port and then to a power outlet. The charging indicator will show when charging is complete.
2. Assemble the Lance: Attach the desired lance section to the sprayer handle. Ensure it is securely tightened to prevent leaks.
3. Select Nozzle: Choose the appropriate nozzle from the provided set based on your spraying needs (e.g., fine mist for delicate plants, direct stream for weeds). Attach it to the end of the lance.
4. Fill the Tank: Unscrew the tank cap. Use the provided funnel to pour your chosen liquid (fertilizer, herbicide, water) into the 18-liter tank. Do not overfill. Ensure the integrated dirt filter is in place to prevent impurities from entering the pump system.
5. Secure the Tank Cap: Screw the tank cap back on tightly to prevent spills.
6. Adjust Harness: Adjust the comfortable backpack harness to fit your body securely. This ensures even weight distribution and comfort during use.

Image: Close-up view of the battery compartment, showing the 12V-8Ah lead-acid battery securely housed within the sprayer. This illustrates where the battery is located for charging and maintenance.

Operating Instructions

1. Power On: Locate the power switch on the sprayer and turn it to the "ON" position.
2. Adjust Pressure: The sprayer features adjustable power and working pressure (0.25-0.45 MPa). Use the control knob to set the desired pressure for your application.
3. Begin Spraying: Point the nozzle towards the target area and press the trigger on the lance handle to begin spraying. Release the trigger to stop.
4. Maintain Distance: Keep an appropriate distance from the target to ensure even coverage and prevent overspray.
5. Monitor Battery: Pay attention to the battery indicator (if available) to avoid running out of power during operation.
6. After Use: Once finished, turn off the power switch.

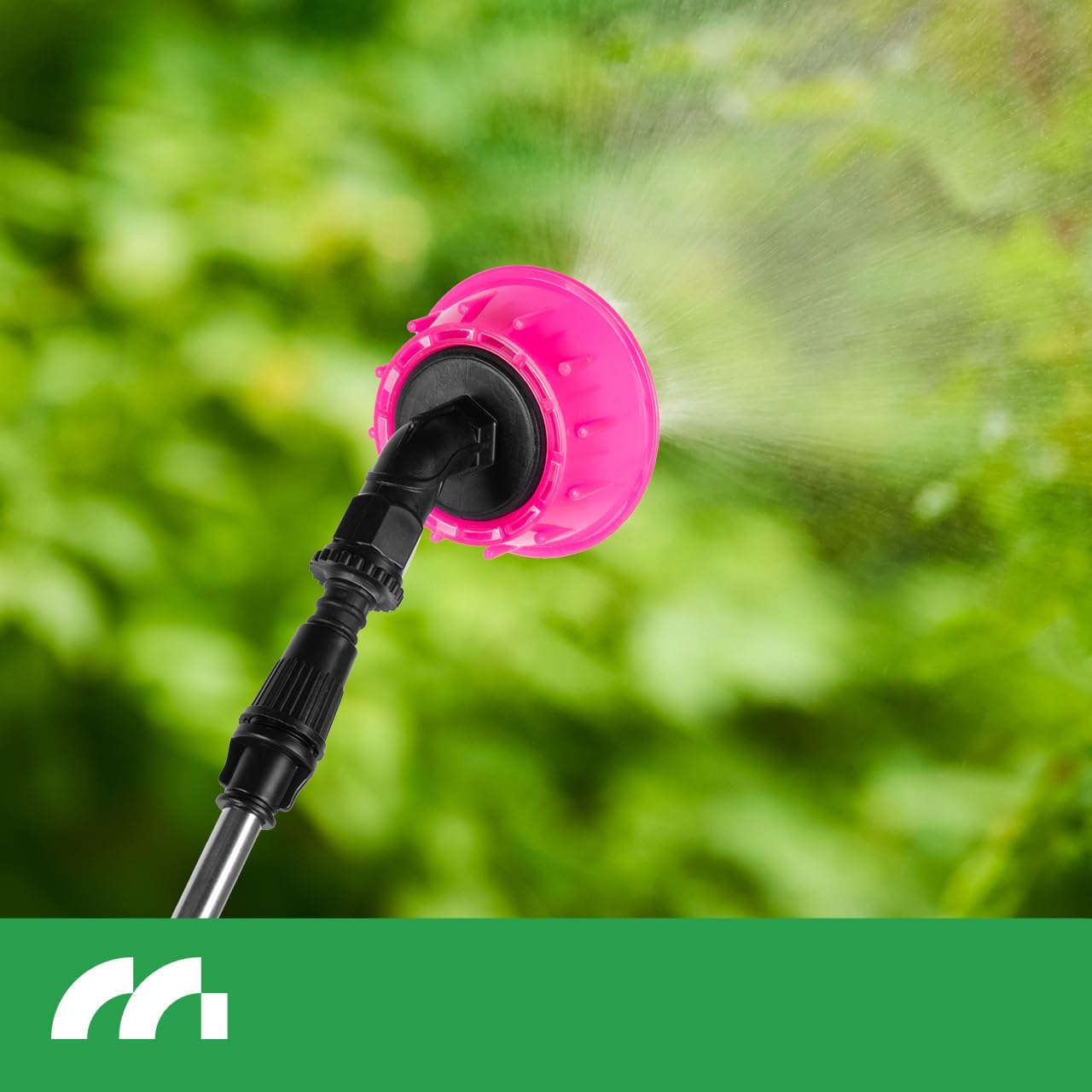

Image: A close-up of the sprayer nozzle in action, showing a fine mist spray pattern against a green foliage background. This demonstrates the sprayer's capability for even liquid distribution.

Image: A person wearing the MalTec 18L Cordless Pressure Sprayer as a backpack, actively spraying plants in a garden. This illustrates the ergonomic design and ease of use in a practical setting.

Maintenance

• Cleaning the Tank: After each use, empty any remaining liquid from the tank. Rinse the tank thoroughly with clean water. For chemical residues, follow the chemical manufacturer's cleaning recommendations.
• Cleaning the Nozzle and Lance: Flush the nozzle and lance with clean water to prevent clogging. If a nozzle becomes clogged, remove it and clean it with a soft brush or by rinsing under running water. Do not use metal objects to clear clogs.
• Filter Maintenance: Regularly check and clean the integrated dirt filter to ensure optimal performance and prevent pump damage.
• Battery Care: Store the battery in a cool, dry place. For long-term storage, ensure the battery is partially charged (around 50%) and recharge it every few months to maintain its lifespan.
• General Storage: Store the sprayer in a dry, protected area, away from direct sunlight and extreme temperatures.

Troubleshooting

Specifications

Warranty and Support

For warranty information and technical support, please refer to the documentation included with your purchase or contact MalTec customer service. Keep your proof of purchase for warranty claims.

No specific warranty period or contact information was provided in the product description. Please consult the manufacturer's official website or your retailer for detailed support options.
