Reference B550-GM2 Motherboard User Manual

1. Introduction

This manual provides comprehensive instructions for the installation, configuration, and maintenance of the Reference B550-GM2 Micro-ATX motherboard. This motherboard is designed to support AMD AM4 socket processors, offering a robust platform for various computing needs, from daily tasks to gaming and demanding applications. Please read this manual thoroughly before proceeding with installation to ensure proper setup and operation.

2. Safety Information

Observe the following safety precautions during installation and operation:

• Always disconnect the power cord from the wall outlet before touching any components.
• Wear an anti-static wrist strap or frequently touch a grounded metal object to discharge static electricity before handling components.
• Handle components by their edges to avoid touching sensitive parts.
• Ensure proper ventilation within the computer case to prevent overheating.
• Keep the motherboard away from moisture and extreme temperatures.

3. Package Contents

Verify that all items are present in your motherboard package:

• Reference B550-GM2 Motherboard
• SATA Data Cables
• I/O Shield
• User Manual (this document)
• Driver CD/DVD or USB drive (may vary by region)
• M.2 Screw/Standoff Kit

4. Product Overview

The Reference B550-GM2 motherboard is a Micro-ATX form factor board featuring the AMD B550 chipset. It supports AMD AM4 processors and DDR4 memory, providing a solid foundation for a modern PC build.

Image 1: Reference B550-GM2 Motherboard and its retail packaging.

Key Features:

• AMD AM4 Socket: Compatible with AMD Ryzen 3000/4000/5000 series processors.
• B550 Chipset: Offers support for PCIe 4.0, M.2 NVMe SSDs, and advanced gaming features.
• DDR4 Memory Support: Four DIMM slots supporting up to 128GB of DDR4 RAM.
• M.2 Slots: Integrated M.2 slots for ultra-fast NVMe SSD storage.
• Gigabit LAN: Integrated Gigabit Ethernet for high-speed network connectivity.
• PCI Express 4.0: Supports the latest graphics cards and expansion devices.
• USB Ports: Multiple USB ports for peripheral connectivity.
• High Definition Audio: Integrated audio solution for clear sound.

Image 2: Close-up view of the VRM area and heatsink on the Reference B550-GM2 motherboard, highlighting component quality.

5. Setup and Installation

Follow these steps for proper installation of your motherboard and components.

5.1. CPU Installation

1. Open the CPU socket lever.
2. Align the triangular mark on the CPU with the mark on the socket.
3. Gently place the CPU into the socket without forcing it.
4. Close the socket lever to secure the CPU.

5.2. CPU Cooler Installation

Install your CPU cooler according to its manufacturer's instructions. Ensure thermal paste is applied correctly and the cooler is securely mounted.

5.3. RAM (Memory) Installation

1. Open the clips at both ends of the DIMM slots.
2. Align the notch on the DDR4 memory module with the notch in the DIMM slot.
3. Press down firmly on both ends of the memory module until the clips snap into place.

5.4. M.2 SSD Installation

1. Locate the M.2 slot(s) on the motherboard.
2. Remove the M.2 standoff screw.
3. Insert the M.2 SSD into the slot at a 30-degree angle.
4. Push the SSD down and secure it with the standoff screw.

5.5. Graphics Card (PCIe) Installation

1. Open the retention clip on the PCIe x16 slot.
2. Align the graphics card with the slot and press down firmly until it clicks into place.
3. Secure the card to the case with a screw.

5.6. Power Supply Connections

1. Connect the 24-pin ATX power connector from the power supply to the motherboard.
2. Connect the 8-pin (or 4+4-pin) CPU power connector to the motherboard.
3. Connect any necessary PCIe power cables to your graphics card.

5.7. Front Panel and SATA Connections

1. Connect the front panel headers (Power SW, Reset SW, HDD LED, Power LED) according to the motherboard manual's diagram.
2. Connect USB 2.0 and USB 3.0 front panel cables.
3. Connect SATA data cables from your storage drives to the SATA ports on the motherboard.

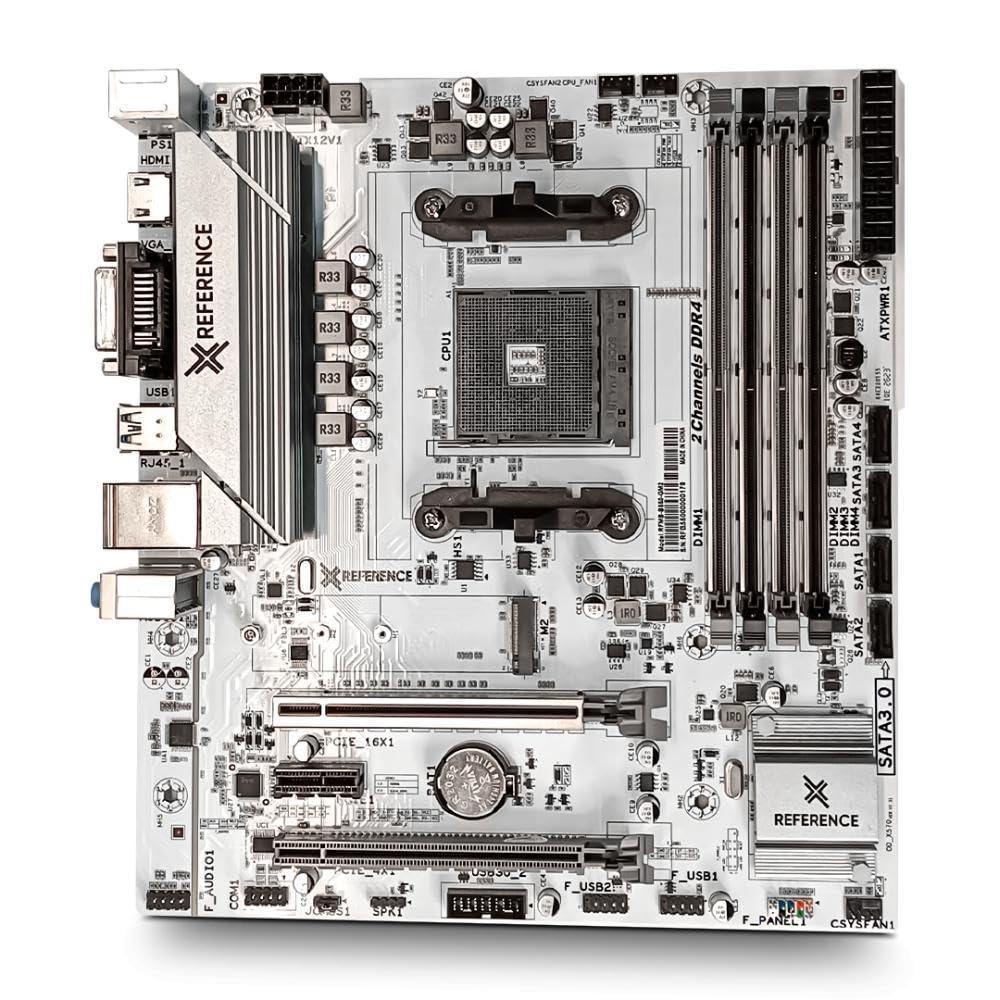

Image 3: Detailed layout of the Reference B550-GM2 motherboard, showing component placement and connectors.

6. Operating Instructions

6.1. First Boot and BIOS/UEFI Setup

1. After assembling your PC, connect a monitor, keyboard, and mouse.
2. Power on the system. During POST (Power-On Self-Test), press the designated key (usually DEL or F2) to enter the BIOS/UEFI setup utility.
3. Configure boot order, set system time, and adjust any desired settings. Save changes and exit.

6.2. Driver Installation

After installing your operating system, install the necessary drivers for the motherboard components. These typically include:

• Chipset Drivers
• LAN (Ethernet) Drivers
• Audio Drivers
• Graphics Card Drivers (if using a dedicated GPU)

Drivers can usually be found on the manufacturer's website or the included driver media.

6.3. Operating System Installation

Insert your operating system installation media (USB drive or DVD) and follow the on-screen prompts to install the OS. Ensure your boot order is set correctly in the BIOS/UEFI to boot from the installation media.

7. Maintenance

7.1. Cleaning

Regularly clean your computer's interior to prevent dust buildup, which can lead to overheating. Use compressed air to remove dust from fans, heatsinks, and other components. Ensure the system is powered off and unplugged before cleaning.

7.2. BIOS/UEFI Updates

Periodically check the Reference website for BIOS/UEFI updates. Updates can improve system stability, add support for new hardware, or fix bugs. Follow the specific instructions provided by Reference for updating the BIOS/UEFI to avoid damaging the motherboard.

8. Troubleshooting

This section addresses common issues you might encounter.

8.1. No Power

• Check if the power supply is connected to the wall outlet and turned on.
• Ensure the 24-pin ATX and 8-pin CPU power connectors are securely seated on the motherboard.
• Verify that the front panel power switch cable is correctly connected to the motherboard header.

8.2. No Display

• Ensure the monitor is connected to the correct video output (either integrated graphics or dedicated graphics card).
• Reseat the graphics card and memory modules.
• Try booting with only one RAM stick installed.

8.3. System Fails to Boot

• Check all power and data cable connections.
• Verify that the CPU and CPU cooler are correctly installed.
• Clear the CMOS by removing the CMOS battery for a few minutes or using the clear CMOS jumper (refer to motherboard diagram).

8.4. Peripherals Not Recognized

• Ensure USB devices are properly connected.
• Install the latest chipset and USB drivers.
• Check BIOS/UEFI settings for USB port enablement.

9. Specifications

10. Warranty and Support

10.1. Warranty Information

The Reference B550-GM2 motherboard comes with a 12-month warranty from the date of purchase. This warranty covers manufacturing defects and faulty components under normal use. It does not cover damage caused by improper installation, misuse, accidents, unauthorized repairs, or modifications.

10.2. Technical Support

For technical assistance, driver downloads, or further information, please visit the official Reference website or contact your retailer. When contacting support, please have your motherboard model (B550-GM2) and proof of purchase readily available.
