Introduction
Thank you for choosing the U-MAX 10' x 12' Outdoor Pergola Gazebo. This wall-mounted lean-to structure is designed to enhance your outdoor living space, providing shade and protection. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new pergola gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

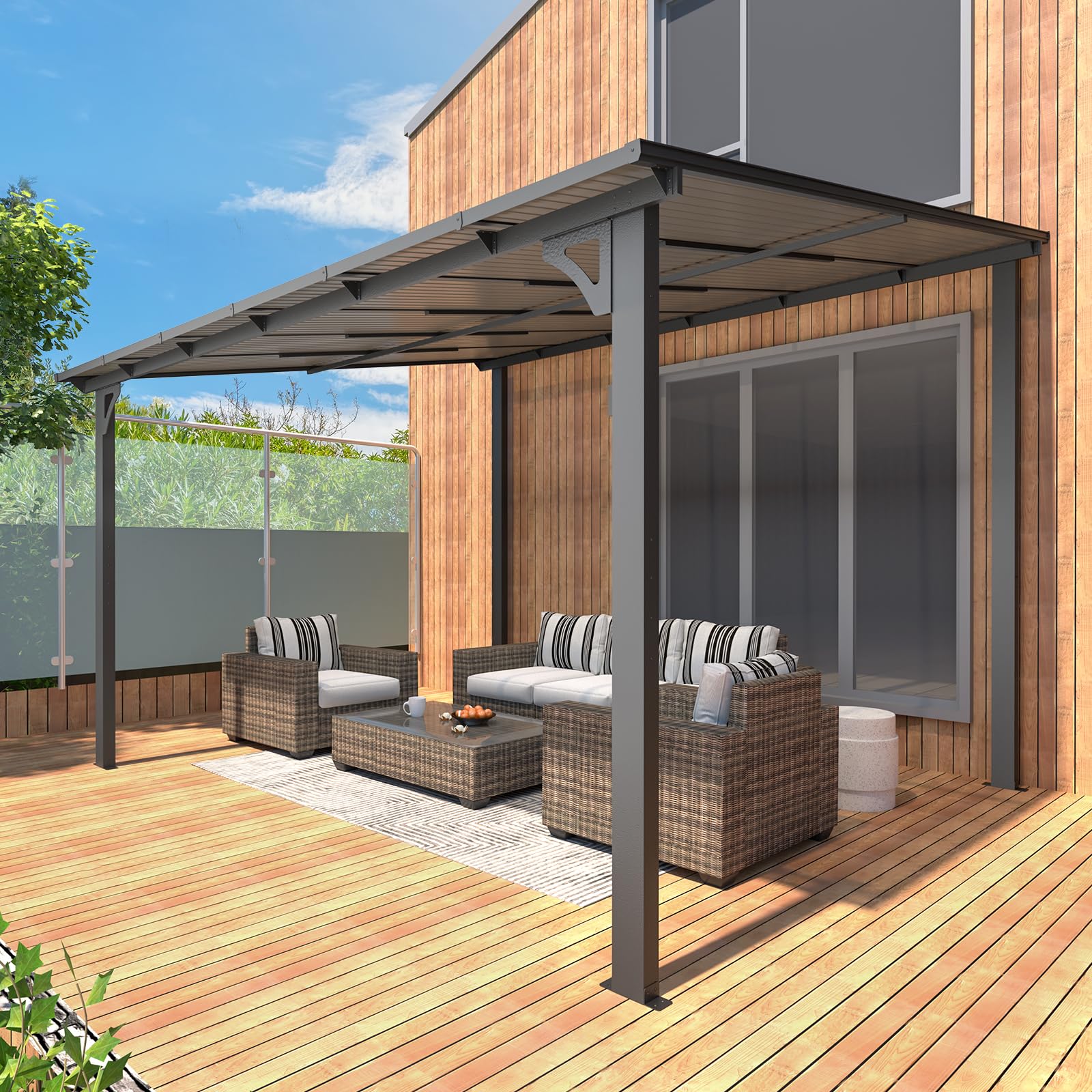

Image: The U-MAX 10' x 12' Outdoor Pergola Gazebo providing shade over a patio seating area.
Safety Information
Caution: Always follow assembly instructions carefully. Ensure proper anchoring to a stable wall and ground for optimal stability. Do not exceed recommended wind and snow load capacities. Keep children and pets supervised and away from the assembly area during installation. Wear appropriate safety gear, such as gloves and eye protection, during assembly.
This product is designed to withstand winds of approximately 70 mph when securely fixed and stabilized as instructed. It has a static pressure capacity of 6 lbs/sq.ft, equivalent to approximately 7 inches of heavy snow. Adhering to these limits is crucial for safety and product longevity.
Package Contents
Your order will arrive in two separate parcels. Please confirm receipt of both packages before commencing installation. A comprehensive list of parts and accompanying accessories is enclosed within the packaging. In case of any missing items or concerns, please contact customer support immediately.
Specifications
| Brand | U-MAX |
| Model Number | 16303um0709 |
| Material | Polycarbonate (Roof), Metal, Aluminum (Frame) |
| Style | 10' x 12' Outdoor Pergola Gazebo |
| Product Dimensions (L x W x H) | 144"L x 120"W x 97.2"H |
| Item Weight | 137.3 Pounds |
| Water Resistance Level | Waterproof |
| Shape | Rectangular |
| UV Protection | Offers UPF50++ UV protection |
| Assembly Required | Yes |
| Floor Area | 120 Square Feet |
| Color | Gray |

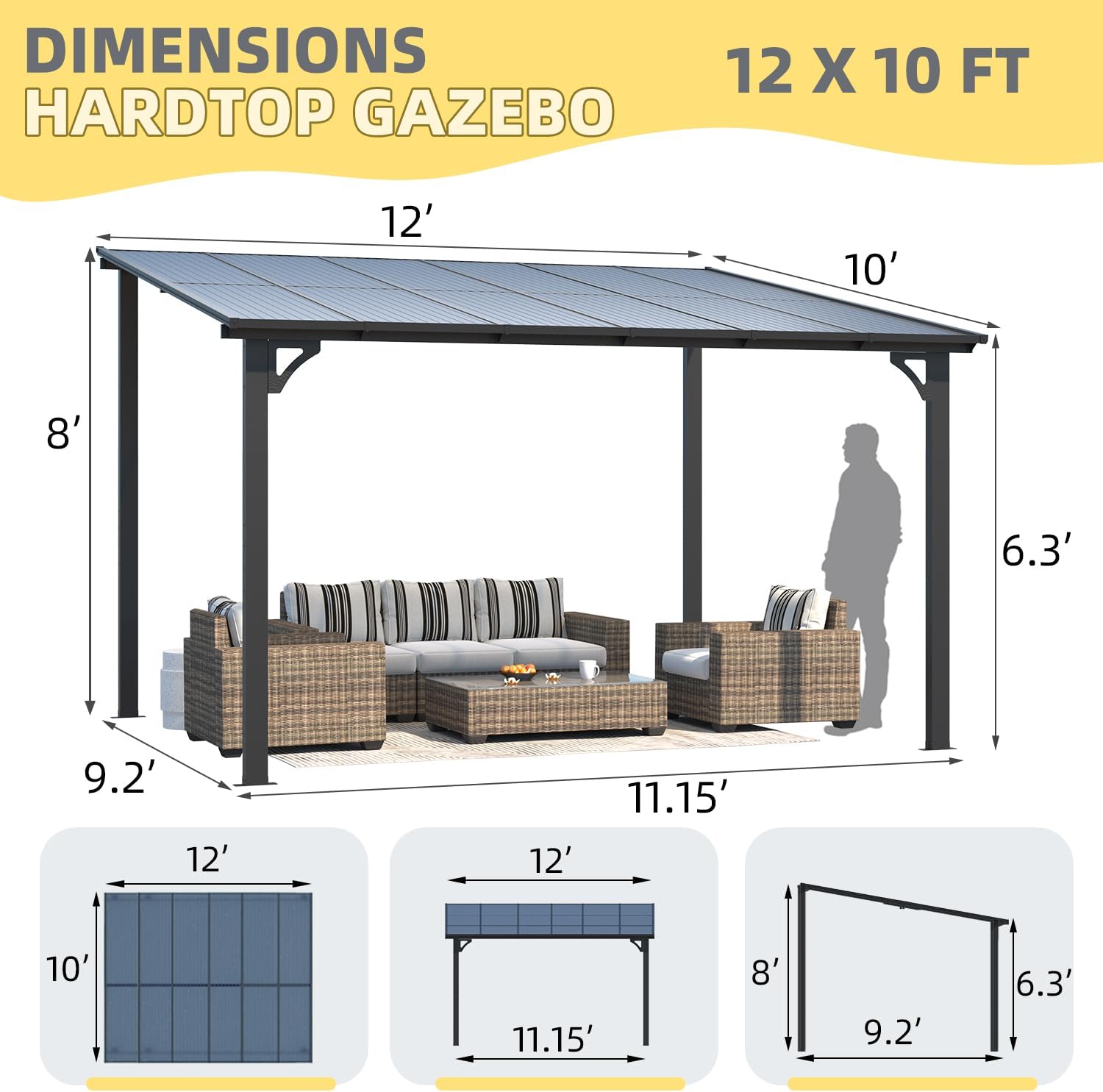

Image: Detailed dimensions of the pergola gazebo, including height, width, and depth.
Setup and Installation
Assembly of the U-MAX pergola gazebo typically requires 4-6 hours. A user-friendly guide and detailed manuals are included to ensure a hassle-free setup. This pergola is designed to be wall-mounted and is not freestanding. All necessary accessories for wall attachment are provided. Ensure secure fixation to a stable wall and ground as instructed.
The item is equipped with pre-installed expansion slots on both sides, allowing for seamless horizontal expansion if you wish to combine multiple products for increased coverage. Additional panels and accessories may be required for such configurations.
Image: Close-up view of the structural connection points, highlighting the pre-installed expansion slots.
Operation
The U-MAX wall-mounted pergola gazebo provides a shaded outdoor living space, combining the benefits of a canopy awning with the stability of a fixed structure. Its tilted design and meticulous detailing ensure complete water resistance, allowing for comfortable use even during light rain. The resilient sun panels offer UPF50++ UV protection, effectively insulating against heat and providing a cooler environment.
Image: Visual representation of the pergola's waterproof design, smooth drainage, and wind resistance capabilities.
Maintenance
To ensure the longevity and optimal performance of your pergola gazebo, regular maintenance is recommended:
- Cleaning: Clean the polycarbonate roof panels and metal frame periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the materials.
- Inspection: Regularly inspect all bolts, screws, and connections to ensure they remain tight. Re-tighten any loose fasteners.
- Snow Load: While the pergola is designed to withstand up to 7 inches of heavy snow, it is advisable to remove excessive snow accumulation from the roof panels to prevent potential damage, especially during prolonged heavy snowfall.
- Drainage: Ensure the sloped design of the roof allows for effortless drainage of snow and rainwater. Clear any debris that might obstruct the drainage paths.

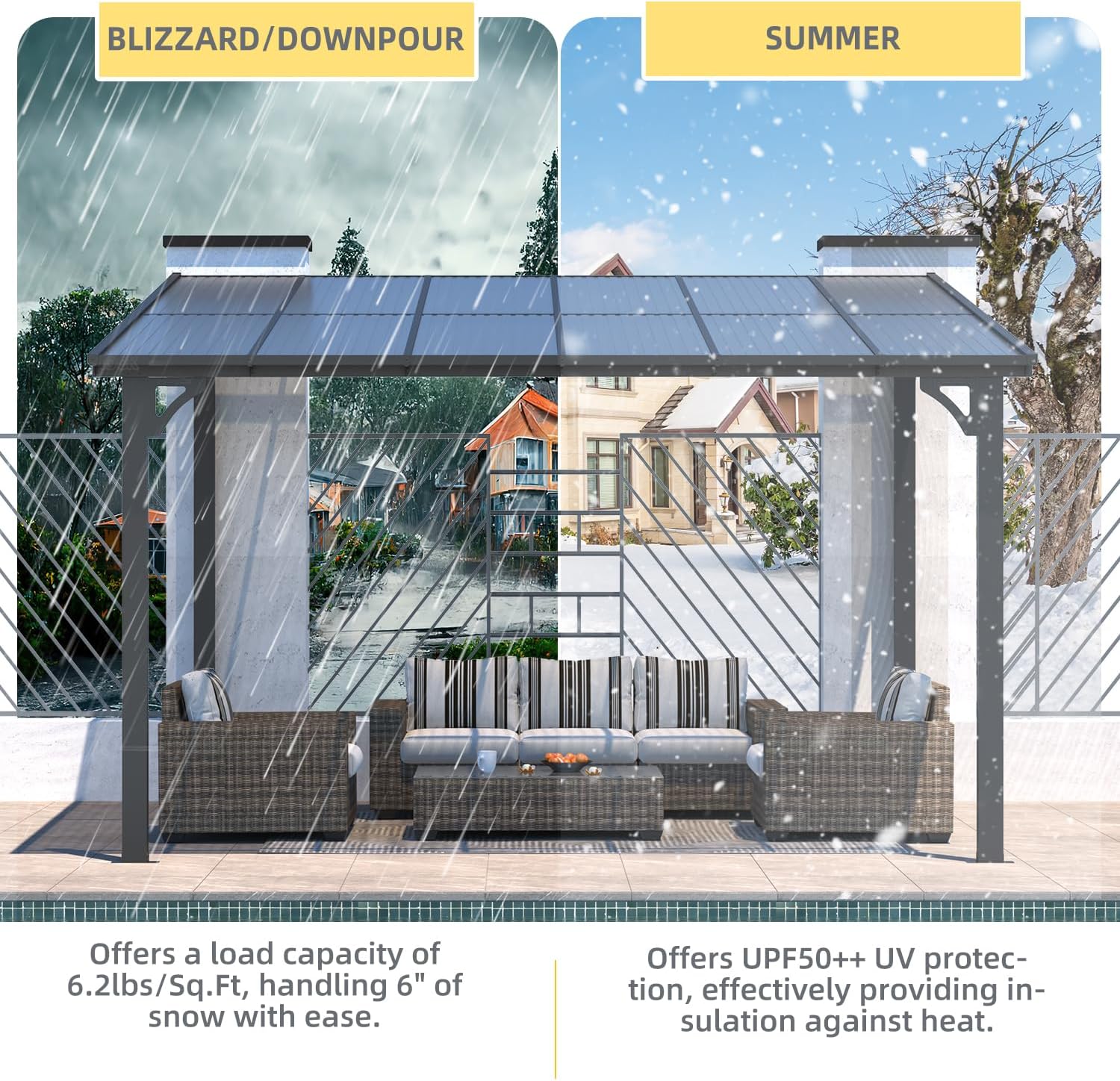

Image: Illustrates the pergola's durability against heavy snow and rain, and its UV protection during summer.
Troubleshooting
- Water Leakage: If water leakage occurs, inspect panel seams for proper alignment and sealing. Ensure all connections are tight and that the sloped design is correctly implemented for drainage.
- Assembly Difficulties: If assembly issues arise, such as misaligned holes or loose connections, re-verify part orientation and ensure all fasteners are correctly installed and tightened according to the manual. Do not force parts.
- Stability Concerns: Ensure the pergola is securely anchored to both the wall and the ground as instructed. Verify that all structural components are properly connected and tightened. This product is not designed to be freestanding.
- Missing or Damaged Parts: If you encounter any missing or defective parts during assembly, please contact U-MAX customer support for assistance.
Warranty and Support
U-MAX provides a one-year warranty on all products, ensuring coverage against manufacturing defects. We also offer lifelong 24/7 customer support for our valued customers. Should you have any inquiries, require assistance with assembly, or need troubleshooting guidance, please do not hesitate to contact our expert technical team. An installation video can be provided upon request.
For support, please refer to the contact information provided with your purchase or visit the official U-MAX website.
