Devoko Indoor Exercise Bike User Manual

Introduction

Thank you for choosing the Devoko Indoor Exercise Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before first use and keep it for future reference.

Figure 1: Devoko Indoor Exercise Bike, showcasing its sleek black design with red accents, integrated LCD display, and phone/tablet holder.

Safety Information

Before using the exercise bike, please observe the following safety precautions:

• Consult a physician before starting any new exercise program.
• Ensure all parts are securely assembled before each use.
• Keep children and pets away from the equipment during operation.
• Place the bike on a flat, stable surface. Use the included protective mat to prevent floor damage.
• Wear appropriate athletic clothing and footwear.
• Do not exceed the maximum weight capacity of 136 kg (300 lbs).
• Stop exercising immediately if you feel faint, dizzy, or experience pain.

Package Contents

Verify that all components are present in the package:

• Devoko Indoor Exercise Bike (main frame and pre-assembled components)
• Multifunction Allen Key
• Protective Mat
• Maintenance Manual
• Warranty Certificate
• User Manual (this document)

Setup and Assembly

The Devoko Indoor Exercise Bike comes 75% pre-assembled, allowing for quick setup, typically within 20 minutes. For detailed, step-by-step assembly instructions, please refer to the dedicated assembly section in the included Maintenance Manual.

Ensure you have sufficient space for assembly and operation. The bike features a solid construction and safe design, as shown below, providing stability during your workout.

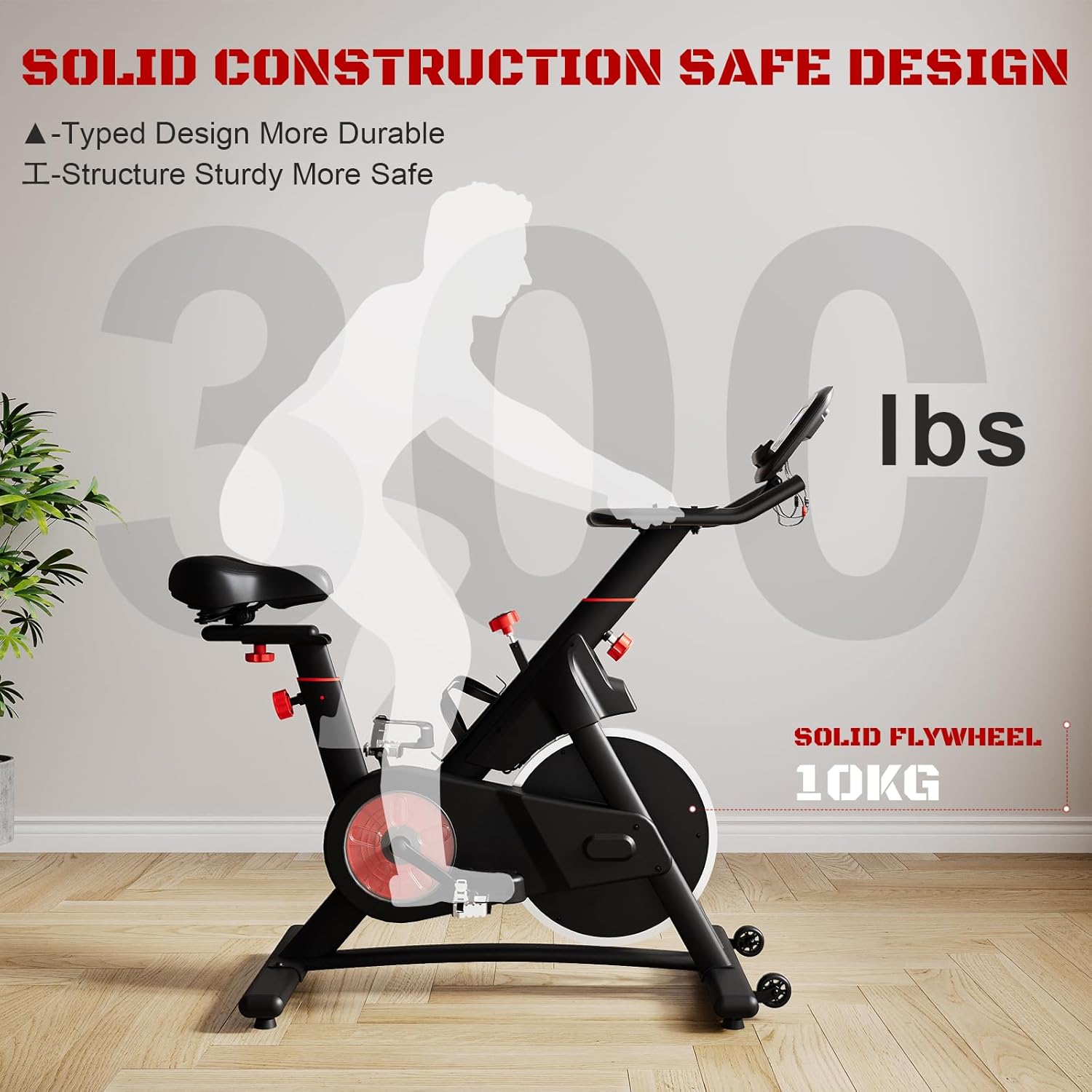

Figure 2: The robust triangular frame and I-structure design of the Devoko Exercise Bike, ensuring stability and safety during use.

Operating Instructions

1. LCD Display and Controls

The integrated LCD display provides real-time workout data. Heart rate sensors are located on the handlebars to monitor your pulse.

• SCAN: Cycles through all metrics.
• TIME: Displays workout duration.
• SPEED: Shows current speed.
• DIST: Tracks distance covered.
• CAL: Estimates calories burned.
• ODO: Displays total accumulated distance.
• PULSE: Shows heart rate when hands are on sensors.

A dual holder is provided for your tablet (up to 12 inches) or smartphone, allowing you to follow fitness apps or enjoy entertainment during your workout. The bike is compatible with apps like Kinomap and Zwift via tablet support.

Figure 3: Close-up of the digital LCD monitor and the integrated tablet/phone holder, showing the various metrics tracked.

2. Resistance Adjustment

The Devoko bike features an 8 kg magnetic resistance system with stepless adjustment. Turn the red knob clockwise to increase resistance and counter-clockwise to decrease it. The magnetic system ensures a smooth and virtually silent operation (less than 20dB), making it ideal for home use without disturbing others.

Figure 4: The resistance adjustment knob, illustrating the continuous adjustment range from 0% to 100% intensity.

Figure 5: An internal view highlighting the smooth belt-drive system and strong magnetic resistance mechanism, ensuring quiet and efficient performance.

3. Seat and Handlebar Adjustments

Customize your riding position for optimal comfort and effectiveness. The bike is designed to accommodate users between 1.50m and 1.95m in height.

• Seat Adjustment: The sport saddle can be adjusted in 4 directions (height, forward, backward, and tilt) using the red adjustment knobs.
• Handlebar Adjustment: The multi-position handlebar can be adjusted in 2 height settings.
• Pedals: Auto-adjusting pedals with safety straps ensure your feet remain secure during intense workouts.

The bike also includes a cup holder for hydration and integrated transport wheels for easy relocation.

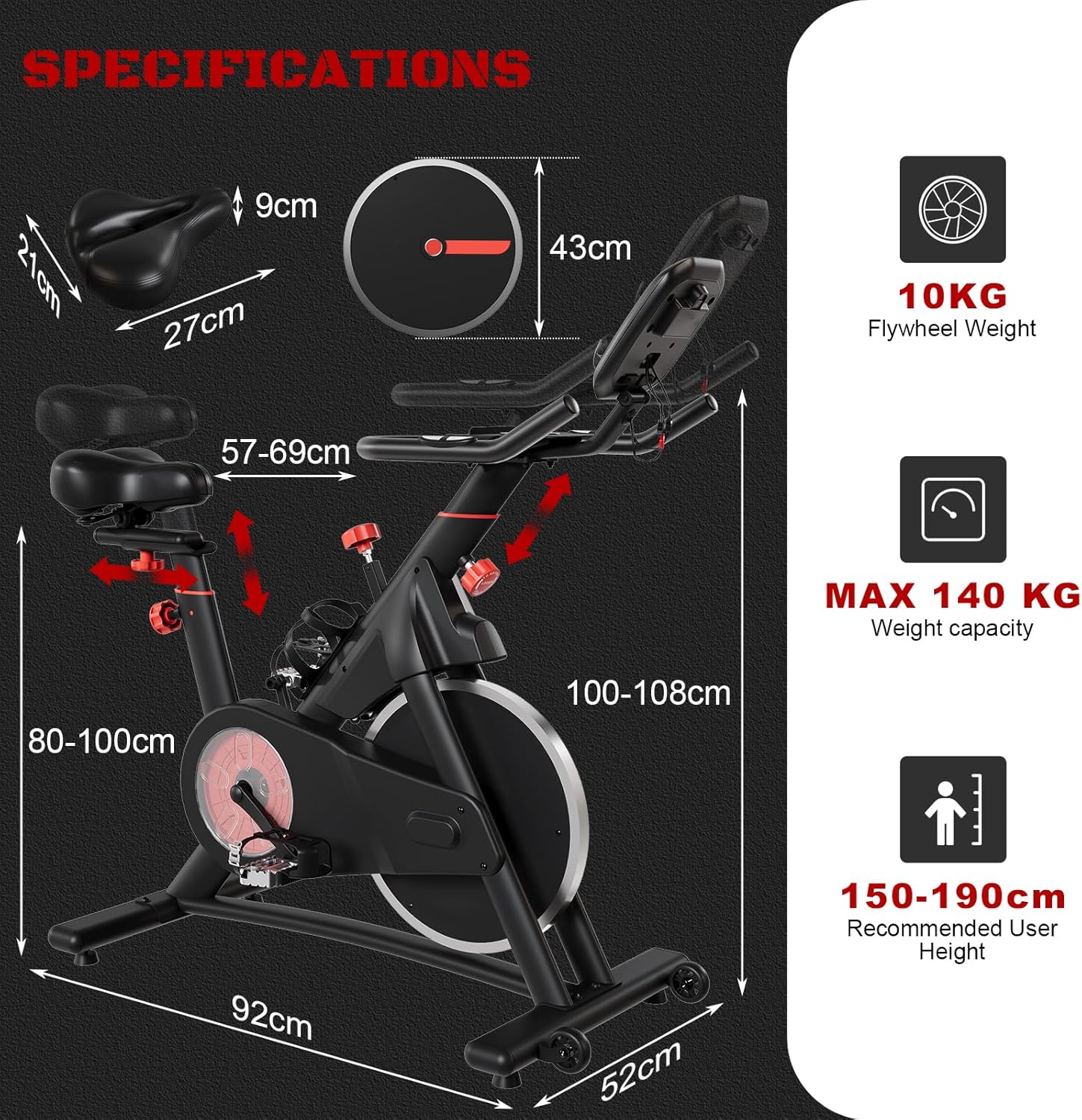

Figure 6: Detailed diagram showing the adjustable dimensions of the seat (80-100cm height, 57-69cm front/back) and handlebar (100-108cm height), along with overall product dimensions and weight capacity.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your Devoko Exercise Bike. For comprehensive maintenance procedures, please refer to the dedicated Maintenance Manual included with your product.

• Cleaning: Wipe down the bike with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
• Inspections: Periodically check all bolts and nuts to ensure they are tight. Tighten if necessary.
• Belt Drive System: The durable synchronous belt drive system requires minimal maintenance. Keep it free from debris.
• Storage: Store the bike in a dry, cool place away from direct sunlight and extreme temperatures.

Troubleshooting

If you encounter any issues with your Devoko Exercise Bike, please refer to the following common troubleshooting tips:

If the problem persists after attempting these solutions, please contact Devoko Customer Support.

Specifications

Warranty and Support

Your Devoko Indoor Exercise Bike is covered by a 2-year warranty on parts, ensuring peace of mind regarding manufacturing defects and component failures.

For any technical assistance, questions, or warranty claims, please contact Devoko Customer Support. Our team is available 7 days a week via email or phone to provide prompt and helpful service.

Contact Information:

• Email: support@devoko.com
• Phone: Please refer to the contact details provided on the warranty certificate or Devoko's official website.

Please have your model number (0491) and purchase date ready when contacting support.
