Introduction
This manual provides essential information for the safe and effective use of your Dripex F203s Magnetic Folding Rowing Machine. Please read all instructions carefully before assembly and operation. Keep this manual for future reference.
The Dripex F203s rowing machine offers a full-body workout with its magnetic resistance system. It features 16 adjustable resistance levels, quiet operation, and app connectivity for tracking your progress. Its foldable design allows for convenient storage in smaller spaces.
Image: Man using the Dripex F203s rowing machine, demonstrating a full body workout.
What's in the Box
Carefully unpack all components and ensure you have received the following items:
- Dripex F203s Rowing Machine (main unit)
- Assembly Hardware Kit
- User Manual
If any parts are missing or damaged, please contact customer support before proceeding with assembly.
Setup Instructions
Follow these steps to assemble your rowing machine. It is recommended to have two people for certain steps.
- Unpack Components: Remove all parts from the packaging and lay them out on a clean, flat surface. Verify all parts against the packing list.
- Attach Stabilizers: Secure the front and rear stabilizers to the main frame using the provided bolts and tools. Ensure they are tightened securely.
- Install Seat Rail: Connect the seat rail to the main body of the rowing machine. Ensure the connection is firm and the seat slides smoothly along the rail.
- Mount Pedals: Attach the foot pedals to the designated positions on the frame. Ensure they are oriented correctly and securely fastened.
- Connect Handlebar: Attach the handlebar to the resistance mechanism. Ensure the strap or chain is properly connected and tensioned.
- Insert Monitor: Install the LCD monitor onto its bracket. Connect any necessary cables from the main unit to the monitor.
- Fill Water Tank (if applicable): If your model uses water resistance, fill the water tank to the desired level using the provided pump and funnel. Refer to the resistance section for guidance on water levels.
- Final Check: Before first use, double-check all bolts and connections to ensure they are tight and secure.
Image: Side view of the Dripex F203s rowing machine, highlighting its solid wood construction.
Operating Instructions
Adjusting Resistance
The Dripex F203s features 16 levels of magnetic resistance. To adjust the resistance, locate the resistance knob, typically found near the front of the machine. Turn the knob clockwise to increase resistance and counter-clockwise to decrease it. Start with a lower resistance level and gradually increase as your fitness improves.
Image: Close-up of the water tank, showing water levels that can influence resistance in water-based models.
Using the LCD Monitor and App Connectivity
The integrated LCD monitor displays key workout metrics such as time, distance, stroke count, total strokes, and calories burned. Use the buttons on the monitor to cycle through display modes or reset your workout data.
Your rowing machine supports connectivity with exclusive fitness applications like Kinomap and FS. To connect:
- Download the compatible app from your device's app store.
- Ensure Bluetooth is enabled on your smartphone or tablet.
- Open the app and follow the on-screen instructions to pair with your Dripex F203s rowing machine.
- Once connected, the app will display real-time workout data and offer interactive training programs.

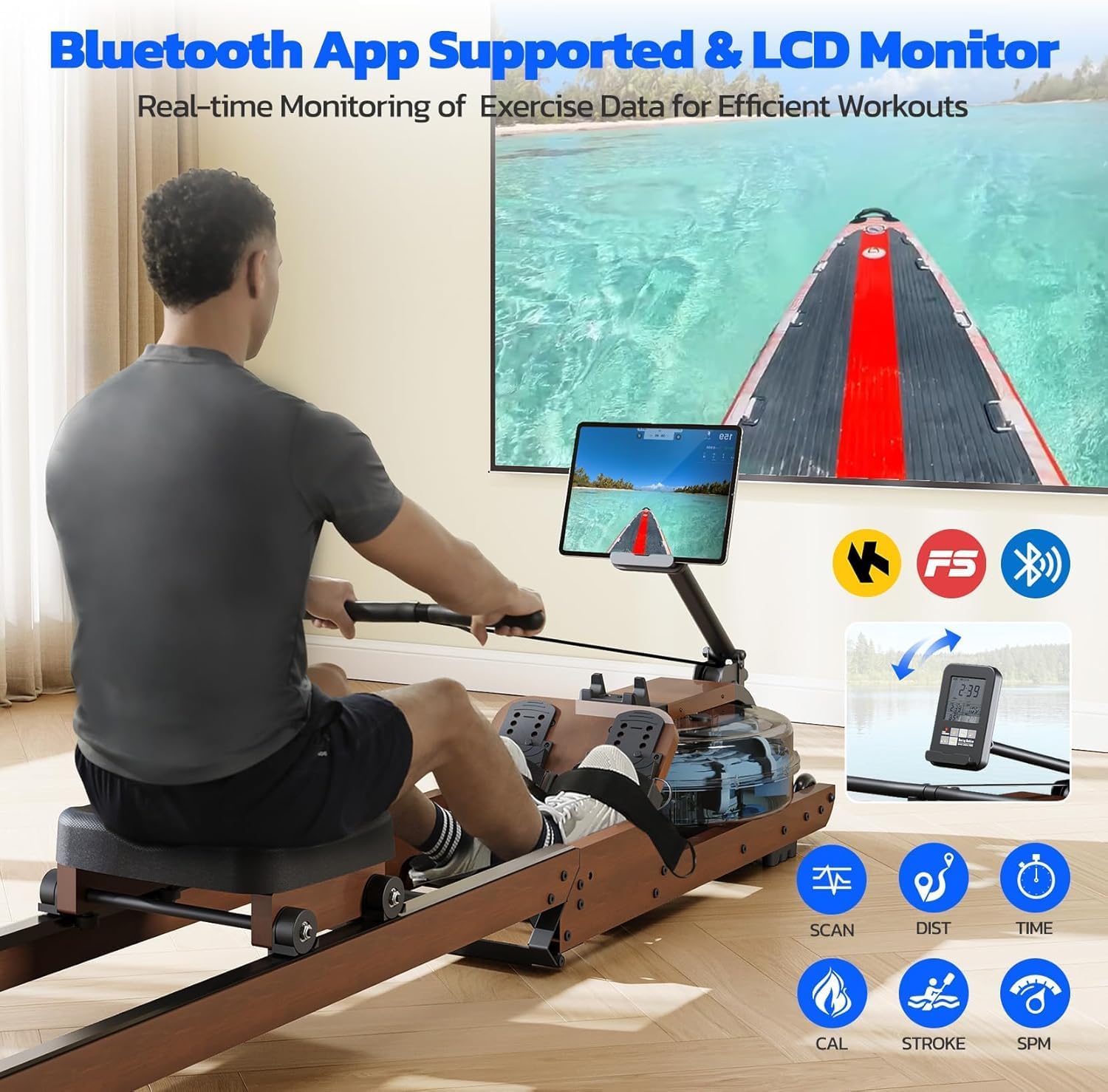

Image: Dripex F203s rowing machine with its LCD monitor and tablet holder, illustrating app connectivity.
Proper Rowing Technique
To maximize your workout and prevent injury, maintain proper rowing form:
- Catch: Sit with knees bent, shins vertical, and arms extended forward.
- Drive: Push off with your legs, then lean back slightly, and finally pull the handle towards your abdomen.
- Finish: Legs are extended, body is leaned back slightly, and the handle is at your abdomen.
- Recovery: Extend arms forward, then lean forward, and finally bend knees to return to the catch position.
Image: A person demonstrating proper rowing technique on the machine.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your rowing machine.
- Cleaning: Wipe down the machine with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
- Rail Cleaning: Keep the seat rail clean and free of debris to ensure smooth seat movement.
- Bolt Check: Periodically check all bolts and connections for tightness. Tighten if necessary.
- Strap/Chain Inspection: Inspect the handlebar strap or chain for any signs of wear or damage. Replace if necessary.
- Water Tank (if applicable): For water resistance models, periodically check the water quality. If the water becomes cloudy, it may need to be replaced or treated with a purification tablet.
Troubleshooting
If you encounter any issues with your Dripex F203s rowing machine, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| LCD Monitor not displaying | Batteries are dead or incorrectly installed. Loose cable connection. | Replace batteries. Check cable connections. |
| Resistance feels inconsistent or too low/high | Resistance knob not adjusted correctly. Magnetic components misaligned. | Adjust the resistance knob. Contact customer support if the issue persists. |
| Squeaking or grinding noise | Loose bolts. Debris on seat rail. Worn moving parts. | Check and tighten all bolts. Clean the seat rail. Lubricate moving parts if necessary. |
| App not connecting via Bluetooth | Bluetooth off on device. App not updated. Machine not in pairing mode. | Ensure Bluetooth is on. Update app. Restart machine and app. |
If the problem persists after attempting these solutions, please contact Dripex customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | Dripex |
| Model Name | F203s |
| Special Feature | Foldable |
| Color | Wood Water |
| Resistance Mechanism | Magnetic |
| Product Dimensions (L x W x H) | 158P x 42l x 62H centimeters (approx. 62.2 x 16.5 x 24.4 inches) |
| Maximum Weight Recommendation | 150 Kilograms (approx. 330 lbs) |
| Meter Type | Calories Burned, Distance, Time, Speed |
| Frame Material | Wood |
| Item Weight | 23 Kilograms (approx. 50.7 lbs) |
| Tension Level | 16 |
| Display | LCD |
| Material Type | Aluminum |
| Country of Origin | China |
Warranty and Support
The Dripex F203s Magnetic Folding Rowing Machine comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and material faults under normal use.
For warranty claims, technical support, or any questions regarding your product, please contact Dripex customer service. Have your purchase receipt and model number (F203s) ready when contacting support.
Dripex is committed to providing high-quality products and customer service. Your satisfaction is important to us.
Storage
The Dripex F203s rowing machine features a foldable design for easy storage. To fold:
- Ensure the machine is on a flat, stable surface.
- Locate the folding pin or mechanism, usually near the connection point of the seat rail and the main body.
- Release the locking mechanism and carefully fold the seat rail upwards until it locks into the vertical storage position.
- The integrated transport wheels allow for easy movement of the folded machine.
Image: Man demonstrating the folding mechanism of the Dripex F203s rowing machine for compact storage.
