Qcwwy Hydroponic Heating Pad Model 3318 Instruction Manual

1. Introduction

The Qcwwy Hydroponic Heating Pad Model 3318 is designed to provide consistent and controlled warmth for plant germination and seedling starting. This manual provides essential information for the safe and effective use of your heating pad, including setup, operation, maintenance, and troubleshooting.

2. Package Contents

Please verify that all items are present in your package:

• 1 x Seedling Heat Mat
• 1 x USB Power Cord
• 1 x User Manual

3. Product Overview

The heating pad features a durable PU material construction and an integrated temperature control switch on the USB power cord, allowing for easy adjustment of heat levels. It is designed to maintain a consistent temperature range suitable for promoting healthy plant growth.

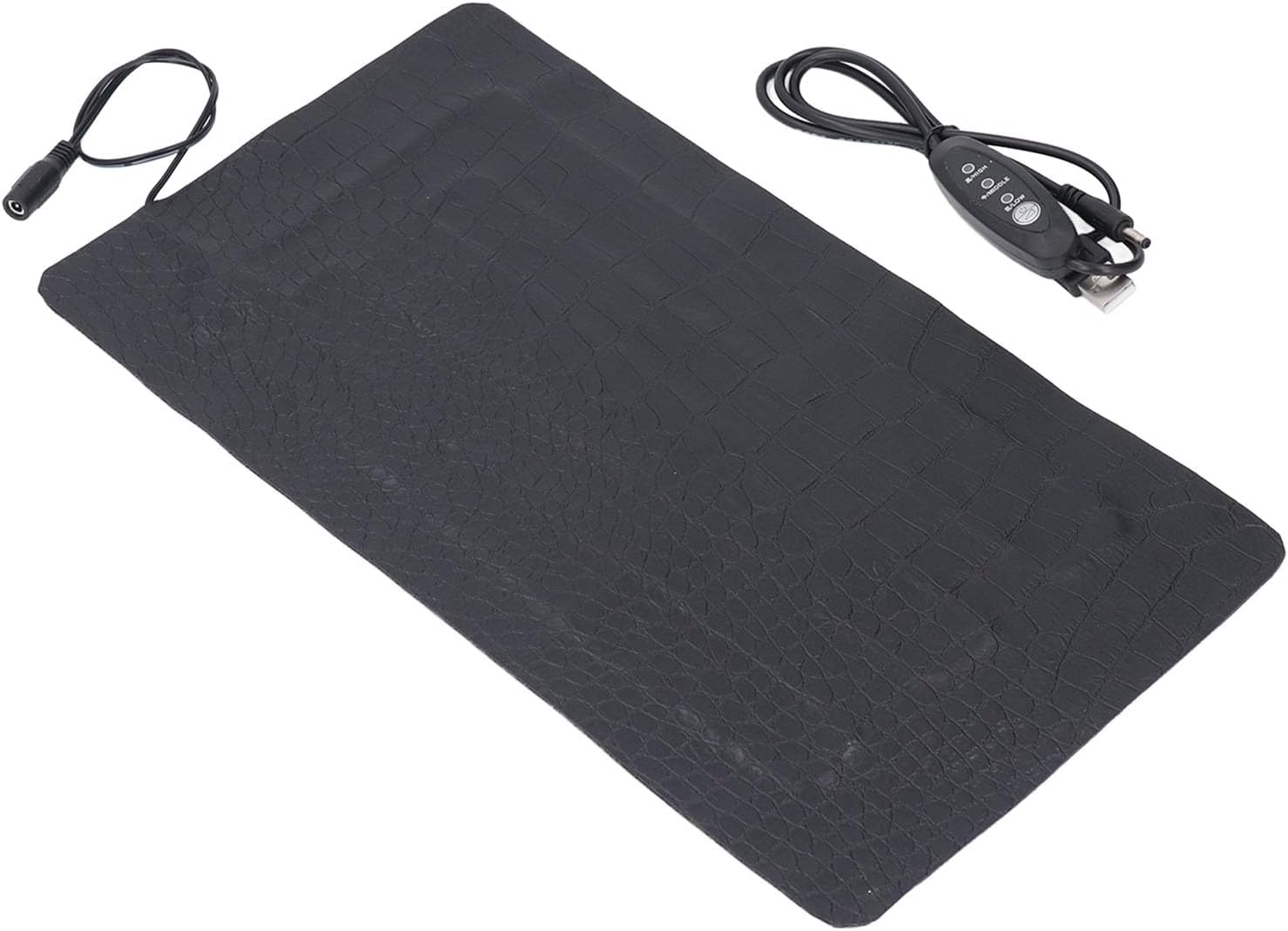

Figure 1: The Qcwwy Hydroponic Heating Pad with its integrated USB power cord and controller.

4. Setup Instructions

1. Unroll the seedling heat mat and place it on a flat, stable surface where your plants will be germinating.
2. Take out the USB plug from the power cord.
3. Connect the USB plug to a 2A power adapter (not included) or a compatible power bank. Ensure the power source is stable and provides sufficient current.

5. Operating Instructions

The heating pad features an online temperature control switch for easy operation.

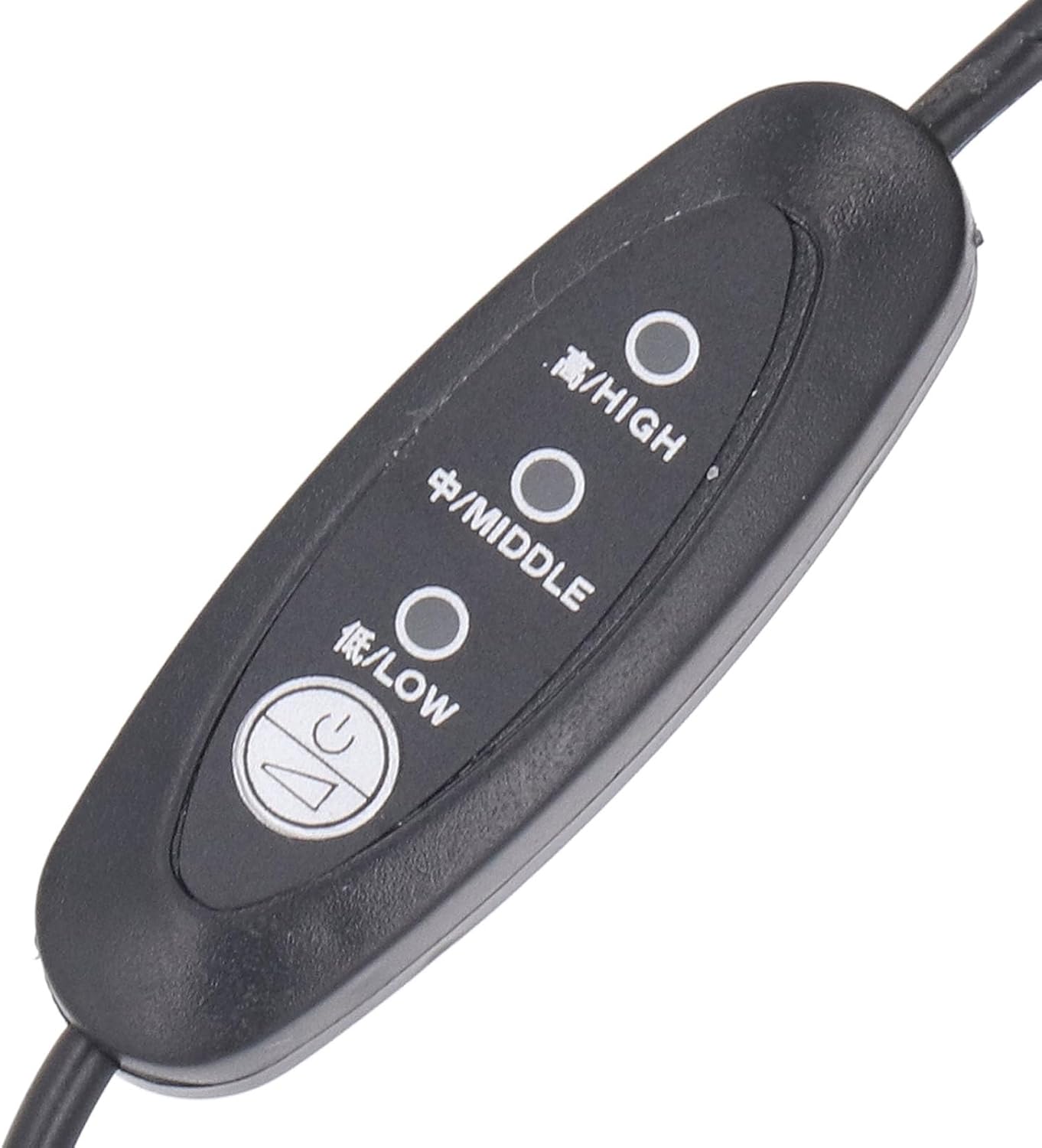

Figure 2: Close-up view of the temperature control switch with High, Middle, and Low settings.

1. To Start Heating: Once connected to a power source, press the online temperature control switch to turn on the heating pad.
2. To Adjust Temperature: Each press of the switch cycles through the temperature settings:
   • Red Light: High temperature setting.
   • Orange Light: Medium temperature setting.
   • Green Light: Low temperature setting.
3. To Stop Heating: Press the temperature control switch again until the indicator light turns off.

Figure 3: The heating pad providing warmth for a tray of seedlings.

6. Maintenance and Care

• Cleaning: When cleaning, wet the heating pad with water, then lightly brush the leather side with a soft brush. Allow it to dry naturally before using or storing.
• Storage: If not in use for an extended period, disconnect the heating pad from the power source and store it in a dry place.

7. Safety Precautions

• Do not use hot water or strong acidic detergents for cleaning.
• Do not wash, pull, or disassemble the temperature control switch or any part of the electrical components.
• Ensure the heating pad is completely dry before connecting it to power after cleaning.
• Always disconnect from power when not in use or during cleaning.

8. Troubleshooting

• Issue: Heating pad only operates on the highest setting, or shuts off when attempting to change temperature.
• Possible Solution: Ensure the USB power source provides a stable 2A output. An insufficient or fluctuating power supply may prevent the controller from functioning correctly across all temperature modes. Try a different 2A USB power adapter or power bank.
• Issue: Heating pad does not turn on.
• Possible Solution: Check if the USB plug is securely connected to both the heating pad cord and the power adapter/power bank. Ensure the power adapter/power bank is functioning correctly and providing power.

9. Specifications

• Item Type: Seedling Heat Mat
• Material: PU (Pad), Plastic (Controller)
• Temperature Range: Approximately 40-45℃ (104-113°F)
• Power: Approximately 8.5W
• Dimensions (L x W x H): 12.99 x 7.09 x 0.79 inches (33 x 18 x 2 cm)
• Model: 3318

10. Warranty and Support

Warranty information for this product was not explicitly provided in the available documentation. For support or warranty inquiries, please refer to the retailer or manufacturer's official website where the product was purchased.
