WELLFOR 3-Tier Heavy Duty Utility Cart Instruction Manual

1. Product Overview

The WELLFOR 3-Tier Heavy Duty Utility Cart is designed for efficient storage and organization of tools and supplies in various environments such as garages, warehouses, and repair shops. This robust rolling cart features three spacious trays, a lockable drawer, and integrated tool slots, providing ample and secure storage. Constructed from heavy-duty steel, it offers exceptional durability and stability.

Image 1.1: The WELLFOR 3-Tier Heavy Duty Utility Cart, showcasing its three tiers, integrated drawer, and sturdy construction.

2. Safety Guidelines

Please read and understand all safety instructions before assembling and operating the utility cart. Failure to follow these guidelines may result in injury or damage to the product.

• Weight Capacity: Do not exceed the maximum load capacity of 330 lbs (150 kg). Distribute weight evenly across the trays to maintain stability.
• Stable Surface: Always operate the cart on a flat, level, and stable surface. Avoid sloped or uneven terrain.
• Brakes: Engage the wheel brakes when the cart is stationary to prevent unintended movement.
• Assembly: Ensure all bolts and fasteners are securely tightened before use. Periodically check for loose connections.
• Children and Pets: Keep children and pets away from the cart during assembly and operation.
• Sharp Edges: Be mindful of potential pinch points or sharp edges during handling and assembly.

3. Package Contents

Verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, please contact customer support.

• 1x Rolling Tool Cart Frame and Trays
• 1x Locking Drawer Assembly
• 4x Universal Wheels (2 with brakes)
• 1x Hardware Kit (bolts, nuts, washers, etc.)
• 1x Instruction Manual
• 4x Pegboard Hooks

4. Assembly Instructions

Assembly of the WELLFOR Utility Cart is designed to be straightforward with pre-drilled mounting holes. It is recommended to have a second person assist during certain steps for ease and safety.

Step-by-Step Assembly:

1. Unpack all components and lay them out on a clean, flat surface. Identify all parts against the package contents list.
2. Attach the four universal wheels to the base frame of the cart. Ensure the two wheels with brakes are positioned on the same side for convenient access. Tighten securely.
3. Assemble the vertical support pillars to the base frame. Use the provided hardware and ensure they are oriented correctly.
4. Slide the bottom and middle trays into their designated slots on the support pillars. Secure them with the appropriate fasteners.
5. Install the top tray, which includes the integrated drawer mechanism. Ensure the drawer slides are properly aligned.
6. Insert the drawer into its slides. Test the drawer's smooth operation.
7. Attach the ergonomic handle to the side of the top tray.
8. Install the side tool slots and pegboard hooks as desired.
9. Double-check all bolts and fasteners to ensure they are tightened securely before first use.

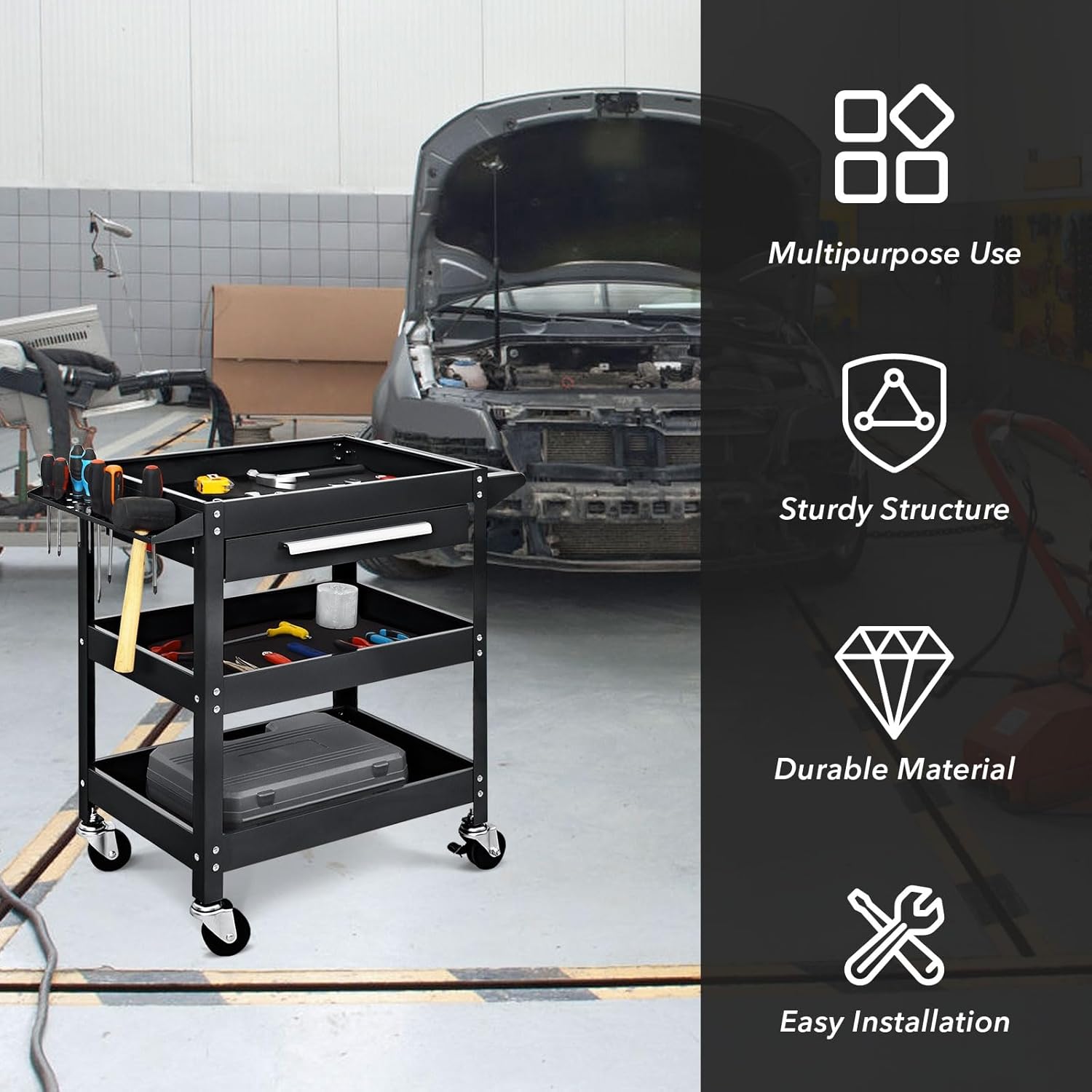

Image 4.1: Visual representation of the cart's features, including its easy installation, sturdy structure, and durable material.

5. Operating Instructions

5.1 Storage Capacity

The cart features three spacious trays and a lockable drawer, providing versatile storage for various items. The top tray includes convenient tool slots for organizing screwdrivers, wrenches, and other small hand tools.

Image 5.1: Illustration of the cart's ample storage space, suitable for tools, office supplies, kitchen items, and even cardboard boxes.

5.2 Mobility

Equipped with four universal wheels, the cart can be easily maneuvered. Two of the wheels feature integrated brakes. To secure the cart in place, simply press down on the brake levers. To release, lift the levers. The ergonomic handle provides a comfortable grip for pushing and pulling the cart.

Image 5.2: Close-up view of one of the universal wheels, highlighting the locking mechanism for secure positioning.

5.3 Versatile Use

The robust design and practical features make this utility cart suitable for a variety of settings, including garages, workshops, warehouses, and even commercial spaces like barber shops.

Image 5.3: Examples of the cart's multifunctional use in various environments such as a warehouse, garage, and barber shop.

5.4 Ergonomics and Features

Each tray is outfitted with non-slip cushions to reduce noise and prevent items from sliding. The drawer features smooth-gliding slides for easy access to contents. The side tool slots provide quick access to frequently used tools.

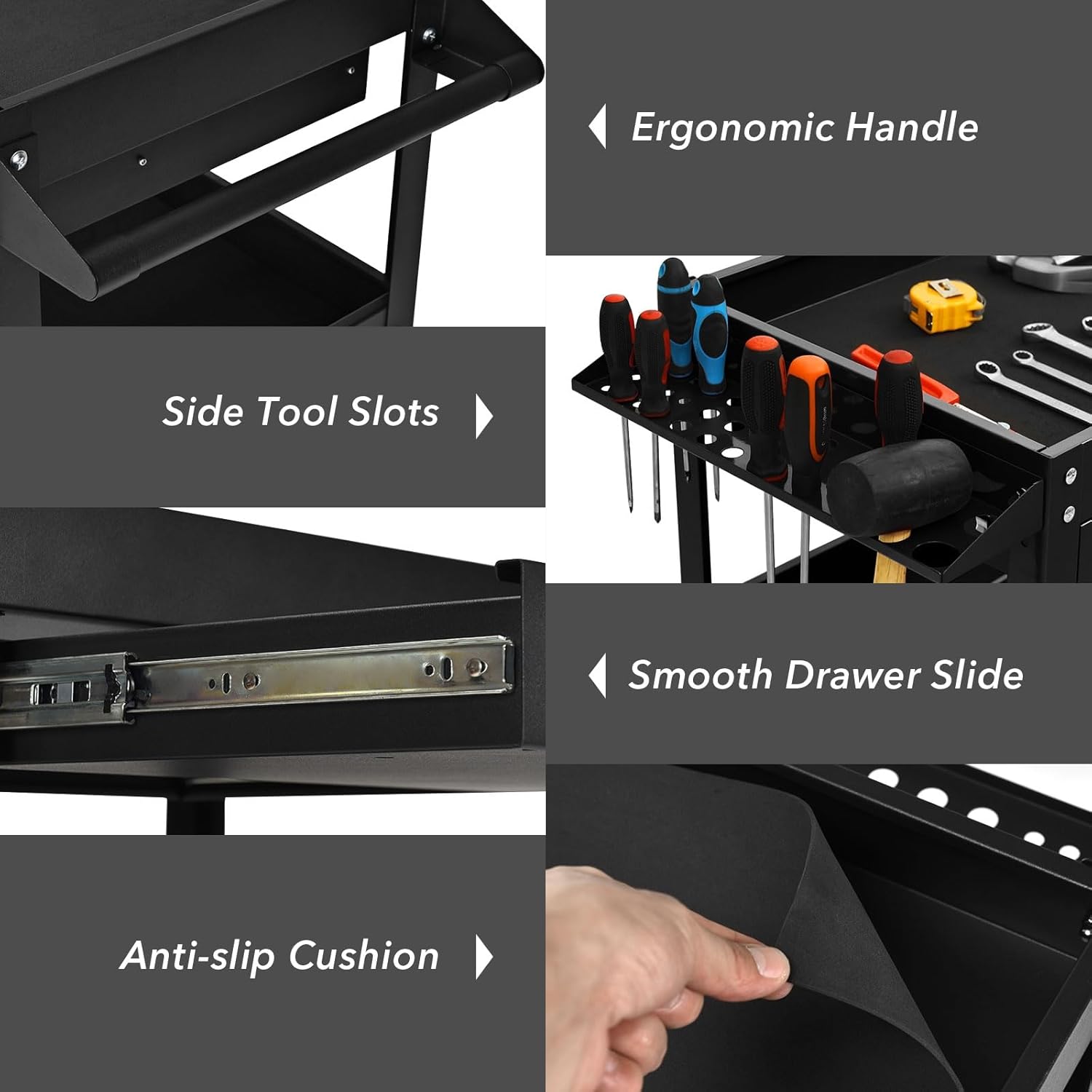

Image 5.4: Detailed views of key features including the ergonomic handle, side tool slots, smooth drawer slide, and anti-slip cushion.

6. Maintenance

To ensure the longevity and optimal performance of your WELLFOR Utility Cart, follow these simple maintenance guidelines:

• Cleaning: Wipe down the cart regularly with a damp cloth and mild detergent. Avoid abrasive cleaners that could damage the powder-coated surface.
• Rust Prevention: The cart's surface is coated with rust-resistant powder. However, avoid prolonged exposure to moisture or harsh chemicals to prevent corrosion.
• Fasteners: Periodically check all bolts, nuts, and screws to ensure they remain tight. Re-tighten as necessary to maintain structural integrity.
• Wheels: Keep the wheels free of debris and ensure they rotate smoothly. Lubricate the wheel axles if necessary.

7. Troubleshooting

If you encounter any issues with your WELLFOR Utility Cart, please refer to the following common solutions:

• Cart is unstable: Ensure all assembly bolts are securely tightened. Verify that the cart is on a flat, level surface. Do not exceed the weight capacity.
• Wheels not rolling smoothly: Check for debris or obstructions around the wheels. Clean the wheels and axles. Ensure brakes are fully disengaged.
• Drawer sticking: Check for obstructions in the drawer slides. Ensure the drawer is properly aligned on its tracks. Clean the slides if necessary.
• Missing parts: If any parts were missing upon delivery, please contact customer support immediately with your purchase details.

8. Specifications

Image 8.1: Diagram illustrating the overall dimensions of the utility cart.

9. Warranty and Support

WELLFOR is committed to providing high-quality products. For any questions, concerns, or assistance with your utility cart, please contact WELLFOR customer support. Please have your model number (TL35286BK) and purchase information ready when contacting support.

Any questions will be answered within 24 hours.
