1. Introduction
This manual provides essential information for the safe and efficient operation of your new SHARP ES-T100N-BK 10 kg Fully-Automatic Top Load Washing Machine. Please read it thoroughly before using the appliance and keep it for future reference.
Your washing machine features a 10 kg capacity, suitable for large families, and boasts a 5-star energy efficiency rating. It is equipped with a 700 RPM motor for swift washing and drying, and offers 10 distinct wash programs tailored for various fabric types.

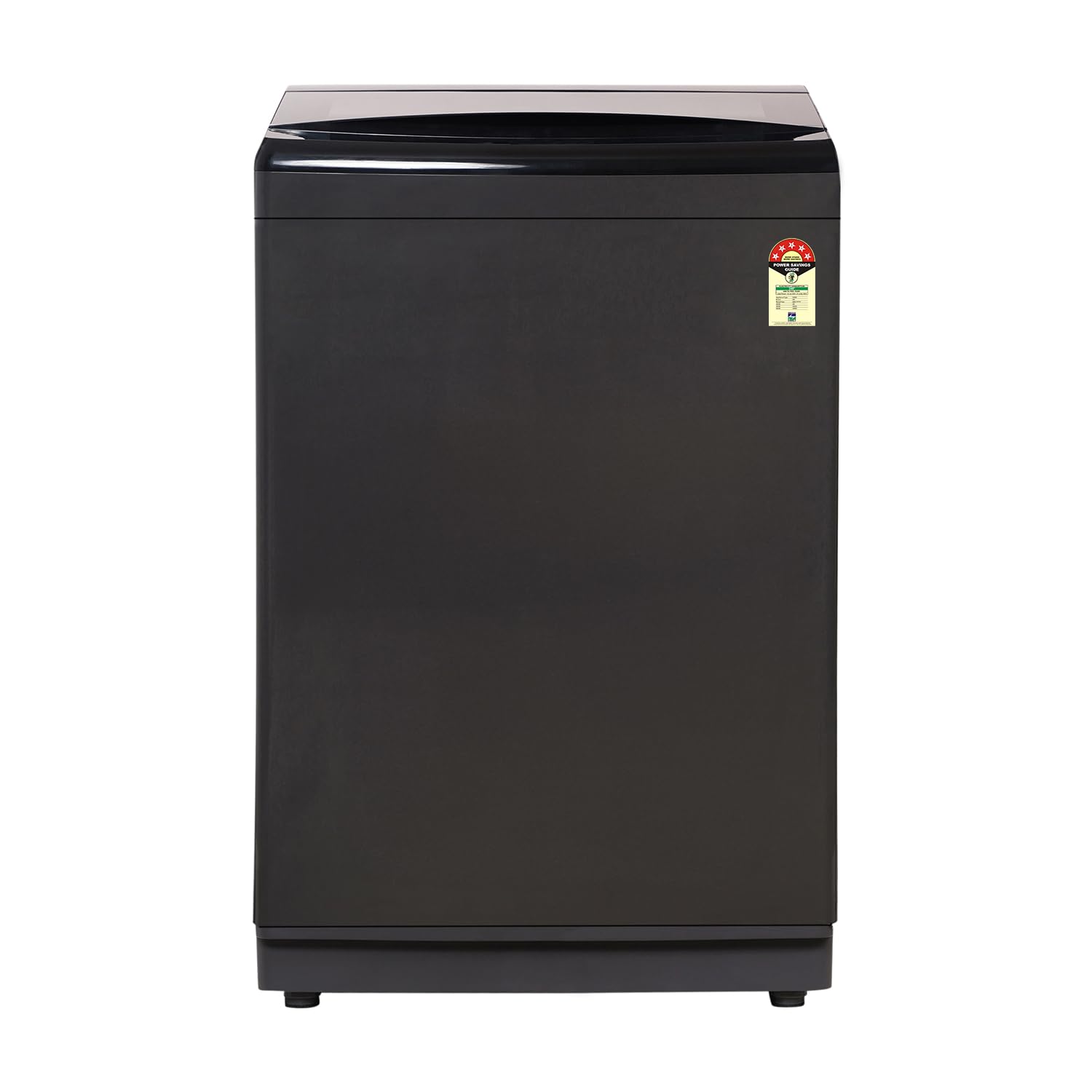

Image 1.1: Overview of the SHARP ES-T100N-BK 10 kg Fully-Automatic Top Load Washing Machine.
2. Safety Information
To prevent injury to yourself and others, or damage to the appliance, observe the following safety precautions:
- Ensure the washing machine is installed on a firm, level surface to prevent vibration and noise.
- Do not allow children to play with or operate the appliance. Keep pets away from the machine.
- Never insert hands into the spinning drum. Wait until the drum has completely stopped.
- Do not wash items that are soiled with flammable substances (e.g., gasoline, oil) as this may cause fire or explosion.
- Unplug the washing machine from the power outlet before cleaning, maintenance, or if it will be unused for an extended period.
- Do not operate the machine if the power cord or plug is damaged. Contact qualified service personnel for repairs.
- Ensure proper grounding to avoid electric shock.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials. Inspect the machine for any damage incurred during transit. Retain packaging for future transport if needed.
3.2 Location Requirements
Place the washing machine on a solid, level floor. Avoid direct sunlight or excessively humid environments. Ensure there is adequate space around the machine for ventilation and maintenance.
3.3 Connecting Water Hoses
Connect the hot and cold water inlet hoses to the corresponding taps and to the machine's inlet valves. Ensure connections are tight to prevent leaks.
Image 3.1: Illustration of the hot and cold water inlet connections.
3.4 Drain Hose Installation
Position the drain hose correctly to ensure proper water discharge. The hose should not be kinked or blocked.
3.5 Power Connection
Plug the power cord into a grounded electrical outlet. Do not use extension cords or adapters.
4. Operating Instructions
4.1 Control Panel Overview
The digital display panel with touch buttons allows for seamless operation and program selection.
Image 4.1: Close-up view of the digital control panel.
4.2 Loading Laundry
Open the lid and load clothes loosely into the drum. Do not overload the machine. Ensure items are evenly distributed.
4.3 Adding Detergent and Softener
Pull out the detergent drawer and add the appropriate amount of detergent and fabric softener to their respective compartments. The detergent drawer is designed to reduce soap residue.
Image 4.2: Detergent drawer for easy and hygienic dispensing.
4.4 Selecting a Wash Program
Choose from 10 available wash programs by pressing the 'Program' button or using the 'Smart Select' option on the control panel. Each program is optimized for specific fabric types and soil levels.
- Cotton: For heavily soiled cotton garments.
- Synthetic: For synthetic fabrics like polyester and nylon.
- Sari: Specialized program for delicate saris.
- Air Dry/Spin: For drying clothes using air or for spin-only cycles.
- Bedsheet: For washing bedsheets and larger items.
- Gentle: For delicate items requiring a soft wash.
- Woolen: Gentle cycle for wool garments.
- Quick Wash: For lightly soiled clothes needing a fast wash.
- Child Care: For thorough cleaning of children's clothes.
- Smart Select: Allows for customized wash settings.
- Tub Clean: For cleaning the washing machine drum.
Image 4.3: Display showing the 10 available wash programs.
4.5 Special Features
- Dual Waterfall Wash: This feature ensures even distribution of detergent and thorough soaking, leading to optimal cleaning results.
- Add Laundry Program: Pause the wash cycle mid-cycle to add forgotten items. The machine automatically adjusts for optimal cleaning.
- Soft Closing Lid: The lid closes smoothly and quietly, enhancing safety and convenience.
- Hot & Cold Wash: Select between hot, warm, or cold water options to suit your fabric's needs and achieve optimal cleaning.
- Stainless Steel Insert Pulsator: The innovative stainless steel pulsator provides a powerful wash, ensuring clothes are thoroughly cleaned.
Image 4.4: Visual representation of the Dual Waterfall Wash feature.
Image 4.5: Demonstrating the 'Add Laundry' function.
Image 4.6: The soft closing lid mechanism.
Image 4.7: View of the stainless steel pulsator.
5. Maintenance
5.1 Tub Clean Program
Regularly use the 'Tub Clean' program to maintain the cleanliness and hygiene of the washing machine drum. This helps prevent odor and detergent residue buildup.
Image 5.1: The washing machine drum, which can be cleaned using the 'Tub Clean' program.
5.2 Cleaning the Detergent Drawer
Periodically remove and clean the detergent and softener compartments to prevent clogs and ensure proper dispensing.
5.3 Cleaning the Magic Filter
Locate and clean the magic filter regularly to remove lint and debris, ensuring efficient operation and preventing drainage issues.
5.4 Exterior Cleaning
Wipe the exterior of the machine with a soft, damp cloth. Avoid abrasive cleaners or solvents.
6. Troubleshooting
If you encounter any issues, refer to the following common problems and solutions before contacting service personnel.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged; Lid not closed properly; Power outage. | Check power connection; Ensure lid is fully closed; Check household circuit breaker. |
| Water not filling | Water taps closed; Water inlet hose kinked; Water supply pressure too low. | Open water taps; Straighten hose; Check water supply. |
| Water not draining | Drain hose kinked or blocked; Drain filter clogged. | Straighten drain hose; Clean drain filter. |
| Excessive vibration/noise | Machine not level; Shipping bolts not removed; Uneven load. | Adjust leveling feet; Remove shipping bolts (if applicable); Redistribute laundry. |
| Detergent residue on clothes | Too much detergent; Water temperature too low; Detergent drawer clogged. | Reduce detergent amount; Use warmer water (if suitable for fabric); Clean detergent drawer. |
7. Specifications
Detailed technical specifications for the SHARP ES-T100N-BK washing machine:
| Feature | Specification |
|---|---|
| Model Number | ES-T100N-BK |
| Capacity | 10 kg |
| Operation Mode | Fully Automatic Top Load |
| Energy Rating | 5 Star |
| Maximum Rotational Speed | 700 RPM |
| Wash Programs | 10 (Cotton, Synthetic, Sari, Air Dry/Spin, Bedsheet, Gentle, Woolen, Quick Wash, Child Care, Smart Select, Tub Clean) |
| Special Features | Dual Waterfall Wash, Add Laundry Program, Soft Closing Lid, Hot & Cold Wash, Magic Filter, Child Lock, Auto Tub Clean, Rat Mesh |
| Drum Material | Stainless Steel Insert Pulsator |
| Controls Type | Touch Digital Display Panel |
| Product Dimensions (D x W x H) | 60.5D x 62W x 98H Centimeters |
| Color | Midnight Black |
Image 7.1: Product dimensions (Depth: 60.5 cm, Width: 62 cm, Height: 98 cm).
8. Warranty and Support
Your SHARP ES-T100N-BK washing machine comes with a comprehensive warranty:
- 2 Years Comprehensive Warranty on the product.
- 10 Years Warranty on the motor.
For warranty claims, technical support, or service inquiries, please contact SHARP customer service. Ensure you have your product model number (ES-T100N-BK) and purchase details available.
Image 8.1: Visual representation of the 2-year product and 10-year motor warranty.
