1. Important Safety Information
Please read this instruction manual carefully before using your Vestel MB4001 Minibar. Keep it in a safe place for future reference. Failure to follow these instructions may result in injury or damage to the appliance.
- Electrical Safety: Ensure the voltage indicated on the rating plate matches your mains supply. Do not use extension cords or multiple socket adapters.
- Placement: Place the minibar on a firm, level surface away from direct sunlight, heat sources, and moisture. Ensure adequate ventilation around the unit.
- Handling: Do not damage the refrigerant circuit. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
- Cleaning: Always unplug the appliance before cleaning. Do not use abrasive cleaners or sharp objects.
- Children: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Product Overview
The Vestel MB4001 is a compact minibar designed for efficient cooling. It features a compressor cooling system, adjustable thermostat, and a solid door.

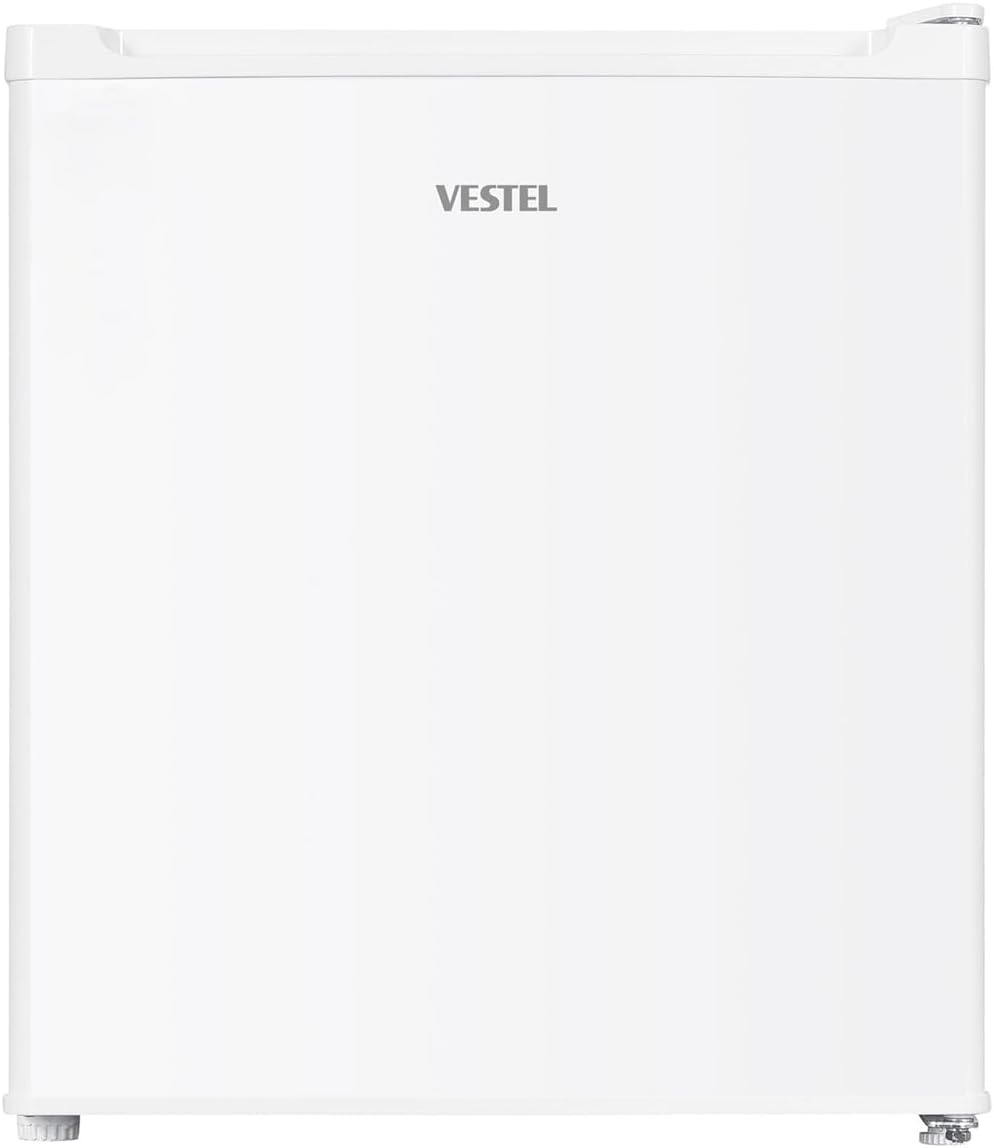

Image 2.1: Front view of the Vestel MB4001 Minibar. This image shows the compact, white exterior of the minibar with the Vestel logo prominently displayed on the door.
Image 2.2: Angled front view of the Vestel MB4001 Minibar. This perspective highlights the side profile and the overall compact design of the appliance.
Image 2.3: Interior view of the Vestel MB4001 Minibar with the door open. The image displays the internal layout, including the small freezer compartment, a wire shelf, and door shelves.
Image 2.4: Interior view of the Vestel MB4001 Minibar with example items. This image demonstrates the storage capacity, showing bottles and fruit on the shelf and in the door compartments.
3. Setup and Installation
- Unpacking: Carefully remove all packaging materials. Inspect the minibar for any damage. Report any damage to your retailer immediately.
- Placement: Choose a location with a stable, level surface. Allow at least 10 cm (4 inches) of space around the back and sides for proper ventilation. Avoid placing near direct sunlight or heat sources.
- Leveling: Adjust the leveling feet at the bottom of the minibar to ensure it is stable and level. This helps reduce vibration and noise.
- Initial Cleaning: Before first use, clean the interior and exterior of the minibar with a damp cloth and mild detergent. Dry thoroughly.
- Power Connection: After placement and cleaning, wait at least 2-4 hours before plugging the minibar into a grounded electrical outlet. This allows the refrigerant to settle.
4. Operating Instructions
4.1. Powering On
Once the minibar has settled for the recommended time, plug it into a suitable electrical outlet. The internal light (if present) should illuminate, and the compressor will begin to operate.
4.2. Temperature Control
The Vestel MB4001 features an adjustable thermostat. The thermostat dial is typically located inside the minibar, often near the top or on the back wall.
- Turn the dial to adjust the cooling intensity. Higher numbers usually indicate colder temperatures.
- Start with a medium setting and adjust as needed based on the ambient temperature and the amount of food stored.
- Allow several hours for the temperature to stabilize after making an adjustment.
4.3. Loading the Minibar
Do not overload the minibar. Ensure there is enough space for air to circulate around items for efficient cooling. Avoid placing hot food directly into the minibar.
4.4. Defrosting
This minibar features manual defrost. Frost will accumulate on the evaporator surface. When the frost layer becomes approximately 5mm (0.2 inches) thick, the minibar should be defrosted.
- Unplug the minibar from the power outlet.
- Remove all food items and place them in a cooler or another refrigerator.
- Leave the door open to allow the frost to melt naturally. Place a towel or shallow tray at the bottom to collect melted water.
- Do not use sharp objects or heating devices to speed up defrosting, as this can damage the appliance.
- Once defrosted, clean and dry the interior thoroughly before plugging it back in and returning food items.
5. Maintenance and Cleaning
- Exterior Cleaning: Wipe the exterior with a soft, damp cloth and mild detergent. Dry with a soft cloth.
- Interior Cleaning: Clean the interior regularly with a solution of baking soda and water (1 tablespoon baking soda to 1 liter of water). Rinse with clean water and dry thoroughly.
- Door Seal: Inspect the door seal regularly for cracks or damage. Clean it with a damp cloth to ensure a tight seal.
- Power Cord: Periodically check the power cord for any signs of damage.
- When Not in Use: If the minibar will not be used for an extended period, unplug it, clean it thoroughly, and leave the door slightly ajar to prevent odors and mold growth.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Minibar does not operate. | No power supply. Power cord not plugged in. Thermostat set to 'OFF' or too warm. | Check power outlet. Ensure power cord is securely plugged in. Adjust thermostat to a colder setting. |
| Minibar is not cold enough. | Door not closed properly. Frequent door opening. Minibar overloaded. Poor ventilation. Thermostat set too warm. | Check door seal and ensure it closes tightly. Avoid opening door unnecessarily. Reduce contents to allow air circulation. Ensure adequate space around the unit. Adjust thermostat to a colder setting. |
| Excessive frost buildup. | Door not sealed properly. High humidity. Frequent door opening. | Check door seal. This is normal in humid conditions. Avoid opening door unnecessarily. Defrost as needed. |
| Unusual noises. | Minibar not level. Items inside rattling. Normal compressor operation. | Adjust leveling feet. Rearrange items to prevent rattling. Gurgling or humming sounds are normal. |
7. Specifications
- Model: MB4001
- Brand: Vestel
- Capacity: 41 Liters
- Cooling System: Compressor
- Defrost Type: Manual
- Energy Class: E (as per provided energy label)
- Annual Energy Consumption: 79 kWh/annum
- Noise Level: 39 dB
- Dimensions (D x W x H): 47 cm x 44 cm x 51 cm
- Item Weight: 14 kg
- Voltage: 220.0 V
- Number of Shelves: 1
- Adjustable Temperature Control: Yes
For detailed product information, you may refer to the official Vestel product page: Vestel Product Information
8. Warranty and Support
Your Vestel MB4001 Minibar comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including warranty duration and coverage.
For technical support, service, or spare parts, please contact Vestel customer service or an authorized service center. Contact information can typically be found on the Vestel official website or in your warranty documentation.
