MCombo 7661 Lay Flat Triple Motor Power Lift Recliner Chair Instruction Manual
Model: 7661
Product Overview
The MCombo 7661 Lay Flat Triple Motor Power Lift Recliner Chair is designed for enhanced comfort and mobility. It features independent control for the headrest, backrest, and footrest, allowing for infinite position adjustments. Additional functions include full-body vibration massage, lumbar heating, and convenient amenities like USB charging ports and cup holders.
Image: The MCombo 7661 Power Lift Recliner Chair shown in a fully reclined, lay-flat position, highlighting its triple motor functionality.
Safety Information
Do not exceed the maximum weight limit of 350 lbs (158 kg).
Ensure the power source connection is secure and avoid operating the chair near water or other electrical hazards.
Use with caution, especially for elderly individuals, and always follow proper usage instructions to prevent injury.
Keep children and pets away from the chair's moving parts.
Before moving the chair, ensure all components are in their upright and closed positions.
Assembly Instructions
The MCombo 7661 recliner chair is designed for simple assembly, typically requiring no tools and taking approximately 20 minutes for a novice. The chair is shipped in three separate boxes.
Package Contents:
Backrest
Base
Left Armrest
Right Armrest
Lumbar Pillow
Accessory Box (containing remote controls, power adapter, and manual)
General Assembly Steps:
Unpack all components from the three boxes.
Connect the backrest to the chair base, ensuring it clicks securely into place.
Attach the left and right armrests to the sides of the chair.
Connect all necessary electrical cables (power, remote controls) as indicated in the detailed diagram within the included manual.
Place the lumbar pillow for added comfort.
Plug the power adapter into a wall outlet.
Refer to the detailed assembly diagrams in the printed manual for specific connection points and instructions.
Operating Instructions
The MCombo 7661 chair features a triple motor system, allowing independent adjustment of the headrest, backrest, and footrest. Use the wired remote control to operate the chair's functions.
Remote Control Functions:
Image: Detailed view of the remote control, illustrating buttons for adjusting the headrest, backrest, footrest, and lift functions.
Adjustable Headrest: Use the dedicated buttons on the remote to tilt the headrest forward or backward for optimal neck support, ideal for reading or watching TV.
Recline Function: Press the "Lean Back" button to recline the backrest. The chair can recline to approximately 165 degrees. Release the button at your desired position.
Extended Footrest: Press the "Down" button to raise the footrest. The 4.7-inch extended footrest provides full leg support, preventing feet from dangling.
Lift Function: To assist with standing, press the "Lift Up" button. The chair will gently tilt forward and lift, helping you to exit the chair with ease. Press the "Down" button to return the chair to the seated position.
Massage and Heating Functions:
The chair includes a separate remote for controlling the massage and heating features.
Image: Illustration of the chair's massage (8 vibrating nodes) and lumbar heating functions.
Vibration Massage: The chair features 8 vibrating points. Use the massage remote to select intensity, mode, and specific areas for vibration.
Lumbar Heating: Activate the lumbar heating function via the massage remote. The heat is gradual and may take 10-15 minutes to become noticeable in the lower back, buttocks, and thighs.
Both massage and heating functions can be set with a timer for 10, 20, or 30 minutes. The heating function operates independently of the vibration.
Convenient Features:
Image: Details of the chair's integrated features: side pockets, anti-falling ropes, USB and Type-C charging ports, and cup holders.
USB Ports & Cup Holders: Two USB ports (including Type-C) are integrated for charging mobile devices. Two cup holders are provided for beverages.
Side Pockets: Convenient side pockets offer storage for remote controls, magazines, or other small items.
Product Demonstration Video:
Video: A demonstration of the MCombo Power Lift Recliner's adjustable headrest, recline, footrest, massage, heating, and lift functions. Note: This video demonstrates a dual motor model, but the operational principles for the triple motor chair's individual adjustments are similar.
Maintenance
Cleaning: Wipe clean with a damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the faux leather material.
General Care: Regularly check all connections and moving parts to ensure they are secure and functioning correctly.
Keep the chair away from direct sunlight and heat sources to prevent material degradation.
Troubleshooting
If you encounter any issues with your MCombo recliner, please refer to the following common troubleshooting steps:
Chair Not Responding:
Ensure the power cord is securely plugged into both the chair and a working wall outlet.
Check all cable connections between the chair components and the remote controls.
Verify that the wall outlet is receiving power by testing it with another appliance.
Motor Noise:
A slight motor hum is normal during operation. If the noise is excessive or unusual, ensure no objects are obstructing the chair's moving mechanisms.
Heating/Massage Not Working:
Confirm the massage/heating remote is properly connected and powered on.
Remember that the heating function is gradual and may take time to feel warm.
If problems persist, please contact MCombo customer support for assistance.
Specifications
Brand
MCombo
Model Name
6160-7661
Color
Beige
Material
Faux Leather, Foam (Fill Material), Wood (Frame)
Product Dimensions (D x W x H)
29.3"D x 35.8"W x 42.5"H
Item Weight
133.2 Pounds
Maximum Weight Recommendation
350 Pounds
Recommended Height
5'1" - 5'9"
Reclining Position Count
Infinite Position
Additional Features
Adjustable Backrest, Adjustable Headrest, Cup Holders (2), Extended Foot Rest, Head Support, Full-body Vibration, Lumbar Heating, USB & Type-C Charging Ports, Side Pockets
Required Assembly
Yes (Easy, approx. 20 minutes)
Product Care Instructions
Wipe Clean

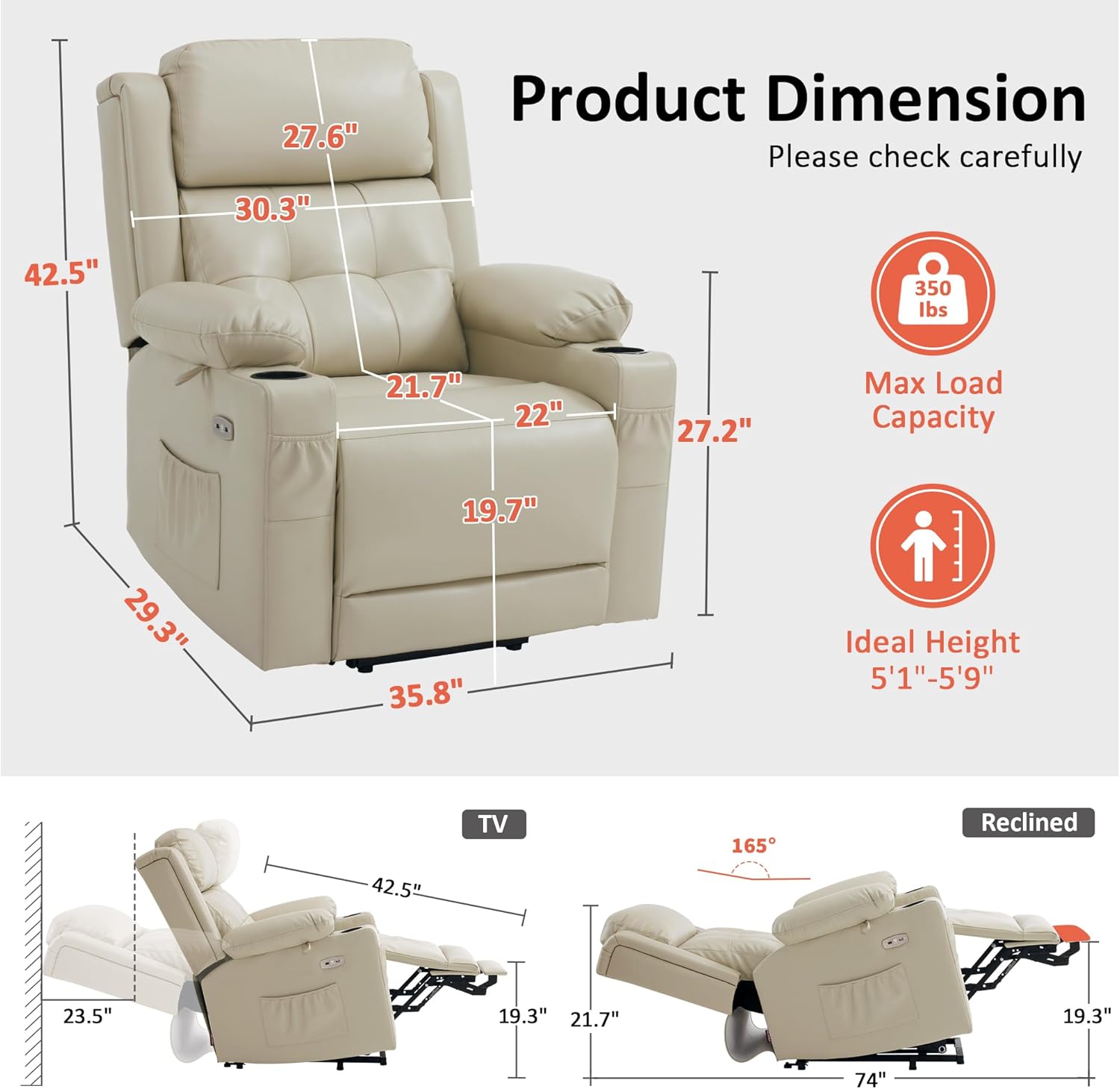

Image: Product dimension diagram with measurements and recommended user height/weight.
Warranty and Support
Your MCombo 7661 Power Lift Recliner Chair comes with a 2-Year limited manufacturer warranty. This warranty covers the reclining and lift mechanism, electrical parts, upholstery material, cushions, and the wood and metal frame.
For warranty claims, technical assistance, or any product-related inquiries, please contact MCombo Customer Support. You can typically find contact information on the MCombo official website or through your purchase platform.
MCombo is committed to providing quick responses and support for their products.
