1. Product Overview
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your KATOOL KT-T830 Tire Changer Machine. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent damage or injury.
Figure 1.1: KATOOL KT-T830 Tire Changer Machine. This image displays the complete tire changer unit, highlighting its robust red frame, the central turntable, bead breaker arm, and the dual assist arms.
2. Safety Information
Always prioritize safety when operating heavy machinery. Failure to follow safety instructions can result in serious injury or death.
- Read and understand all instructions before operation.
- Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and steel-toed boots.
- Ensure the machine is properly grounded and connected to the correct power supply (110V 1PH).
- Maintain a clear and well-lit work area.
- Do not operate the machine if any parts are damaged or missing.
- Keep hands, feet, and clothing clear of moving parts.
- Disconnect power before performing any maintenance or adjustments.
- Ensure proper air pressure (0.8-1.0Mpa / 116-145psi) is supplied to the machine.
3. Package Contents and Setup
3.1. Package Contents
Upon unpacking, verify that all components are present and undamaged.
- KATOOL KT-T830 Tire Changer Machine (Main Unit)
- Mounting Head with plastic cover
- Bead Breaker Shovel
- Air Hose and Fittings
- Instruction Manual (this document)
- Additional accessories as specified by the manufacturer.
3.2. Initial Setup
- Placement: Position the tire changer on a flat, stable, and level surface capable of supporting its weight (Net weight: 240KG). Ensure adequate space around the machine for safe operation and maintenance.
- Power Connection: Connect the machine to a dedicated 110V 1PH power outlet. Ensure the power supply meets the machine's requirements (Motor Power: 2.0HP/1.5KW).
- Air Supply Connection: Connect a compressed air line to the machine's air inlet. Ensure the air pressure is within the specified range of 0.8-1.0Mpa (116-145psi).
- Assembly: Assemble any remaining components such as the assist arms or specific tools as per the included assembly diagrams (if applicable).
- Pre-Operation Check: Before first use, inspect all connections, moving parts, and safety features to ensure they are secure and functioning correctly.
4. Operating Instructions
The KATOOL KT-T830 is designed for efficient tire changing. Familiarize yourself with the controls and functions before beginning any operation.
Figure 4.0: Overview of key features including a larger disk for easier operation and stronger materials for enhanced durability.
4.1. Key Components and Controls
- Turntable Jaws: The alloy steel jaws provide secure clamping of the wheel. They feature an interface carburization treatment for durability and come with jaw covers to protect the rim.
Figure 4.1: Comparison of the KATOOL KT-T830's alloy steel jaws (left) against older designs (right), illustrating the improved design for better grip and durability.
- Mounting Head: Made from stainless steel with solution treatment and interface polishing, designed to conform to engineering principles. Includes a plastic cover for rim protection.
- Bead Breaker: Features a φ186mm stainless bead breaker cylinder and a larger universal shovel for efficient bead breaking.
Figure 4.2: Highlights of newly upgraded features including a bigger disk, larger and thicker cylinder, improved assist arm and fixture, and a larger universal shovel.
- Pedal Controls: The machine is operated via foot pedals, providing hands-free control for various functions including turntable rotation, jaw clamping, and bead breaking. An inflation gauge with pedal control is integrated.
Figure 4.3: Close-up view of the foot pedals, which control various functions of the tire changer, including turntable rotation and jaw operation.
- Motor: Equipped with a top-level motor and pure copper winding for fast heat dissipation, low defect rate, and extended service life.
4.2. Basic Operation Steps (General Guide)
- Prepare the Wheel: Remove any weights or valves from the wheel.
- Bead Breaking: Position the wheel on the bead breaker arm. Use the bead breaker pedal to push the tire bead away from the rim on both sides.
- Mount the Wheel: Place the wheel onto the turntable. Use the clamping pedals to secure the wheel firmly with the jaws (Outside Clamp: 12"-22", Inside Clamp: 14"-24").
- Demounting the Tire: Position the mounting head correctly. Use the turntable rotation pedal to rotate the wheel while guiding the tire bead over the mounting head. Repeat for the second bead.
- Mounting a New Tire: Lubricate the tire beads. Position the new tire on the rim. Use the turntable rotation pedal and mounting head to guide the tire onto the rim.
- Inflation: Use the inflation gauge and pedal control to inflate the tire to the recommended pressure.
- Remove Wheel: Release the jaws using the pedal control and remove the wheel from the turntable.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your KATOOL KT-T830 Tire Changer.
- Daily: Clean the machine surfaces, especially around the turntable and bead breaker. Check air and power connections for leaks or damage.
- Weekly: Lubricate all moving parts, including the turntable jaws, bead breaker pivot points, and assist arm mechanisms. Inspect the mounting head and plastic covers for wear and replace if necessary.
- Monthly: Check the tightness of all bolts and fasteners. Inspect the air cylinders and hoses for signs of wear or damage.
Figure 5.1: A caliper measuring the diameter of a cylinder, illustrating the precision and quality of components.
Figure 5.2: A caliper measuring the thickness of a component, likely part of the jaw mechanism, demonstrating the robust construction.
Figure 5.3: A detailed view of a bushing being inserted into a component, indicating ease of maintenance and replacement of wear parts.
- Annual: Have the machine inspected by a qualified technician.
6. Troubleshooting
This section provides solutions to common issues you might encounter. For problems not listed here, contact KATOOL support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not power on. | No power supply; tripped circuit breaker; faulty wiring. | Check power cord connection; reset circuit breaker; inspect wiring (by qualified personnel). |
| Turntable not rotating. | Insufficient air pressure; motor issue; pedal malfunction. | Verify air pressure (0.8-1.0Mpa); check motor connections; inspect pedal mechanism. |
| Bead breaker not functioning. | Low air pressure; cylinder seal issue; pedal issue. | Ensure adequate air pressure; check for air leaks in cylinder; inspect bead breaker pedal. |
| Jaws not clamping securely. | Worn jaws; insufficient air pressure; debris in jaw mechanism. | Inspect and replace worn jaws; verify air pressure; clean jaw mechanism. |
7. Specifications
Technical specifications for the KATOOL KT-T830 Tire Changer Machine.

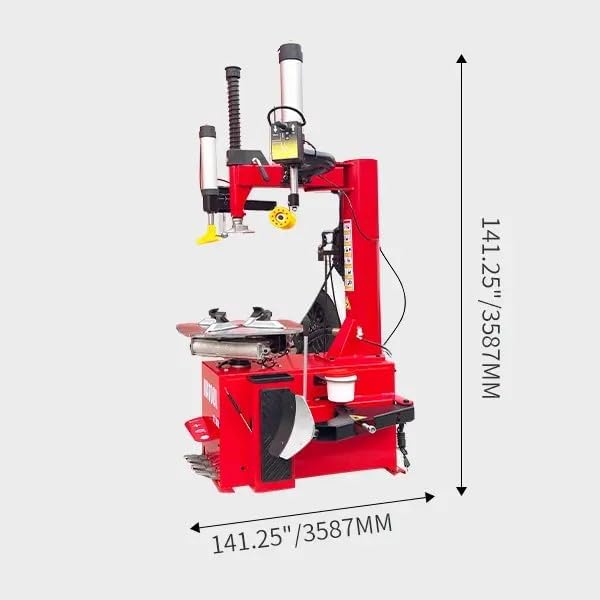

Figure 7.1: Dimensional drawing of the KATOOL KT-T830 Tire Changer, showing its height and width measurements (141.25 inches / 3587mm).
| Parameter | Value |
|---|---|
| Max Wheel Diameter | 41" / 1040mm |
| Max Wheel Width | 15" / 380mm |
| Outside Clamp Range | 12" - 22" |
| Inside Clamp Range | 14" - 24" |
| Power Supply | 110V 1PH |
| Motor Power | 2.0HP / 1.5KW |
| Rotation Speed | 6.8 r/min |
| Air Pressure | 0.8-1.0Mpa (116-145psi) |
| Net Weight | 240KG |
| Manufacturer | KATOOL |
| Model Number | KT-T830 |
8. Warranty and Support
8.1. Warranty Information
The KATOOL KT-T830 Tire Changer Machine comes with a 1 Year Warranty from the date of purchase. This warranty covers manufacturing defects and material faults under normal use and service. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, neglect, unauthorized modifications, or normal wear and tear.
8.2. Customer Support
For technical assistance, parts inquiries, or warranty claims, please contact KATOOL customer support.
- Website: Visit the official KATOOL website for support resources and contact information.
- Email: Refer to your purchase documentation for direct support email.
- Phone: Refer to your purchase documentation for direct support phone number.
When contacting support, please have your product model number (KT-T830) and purchase date ready.
