INGCO 20V Cordless Reciprocating Saw

1. Introduction

The INGCO 20V Cordless Reciprocating Saw (CRSLI6508) is a versatile and powerful tool designed for cutting a wide range of materials with ease. Ideal for professionals and DIY enthusiasts, this saw is perfect for cutting wood, metal, and even plastic. Its cordless design provides freedom of movement, making it suitable for on-site projects or confined spaces. The saw's robust structure and durable components ensure long-lasting performance, while its ergonomic design offers a comfortable grip and reduces fatigue during extended use. Whether you are renovating your home, working on a construction site, or tackling a DIY project, the INGCO 20V Cordless Reciprocating Saw is a reliable and efficient tool that will help you get the job done quickly and effectively. Please note that this product does not include a battery or charger, which must be purchased separately.

Always read and understand all safety warnings and instructions before operating this tool.

2. Safety Instructions

General power tool safety warnings:

• Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
• Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Personal Safety: Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Power Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Battery Tool Use and Care: Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

3. Package Contents

Your INGCO 20V Cordless Reciprocating Saw package should contain the following:

• 1 x INGCO 20V Cordless Reciprocating Saw (CRSLI6508)
• 1 x Saw Blade (for initial use)
• User Manual

Note: The 20V battery pack and charger are NOT included and must be purchased separately. Ensure compatibility with INGCO 20V Lithium-Ion batteries.

Image: The INGCO 20V Cordless Reciprocating Saw shown with its retail packaging. The saw is orange and black, and the box highlights its 20V Lithium-Ion compatibility.

4. Product Overview

The INGCO CRSLI6508 reciprocating saw features a robust design for various cutting tasks. Key components include:

• Blade Clamp: Tool-free mechanism for quick and easy blade changes.
• Variable Speed Trigger: Allows precise control over cutting speed.
• Ergonomic Handle: Designed for comfortable grip and reduced fatigue.
• Integrated LED Light: Illuminates the work area for better visibility.
• Battery Port: For inserting the compatible 20V Lithium-Ion battery (sold separately).

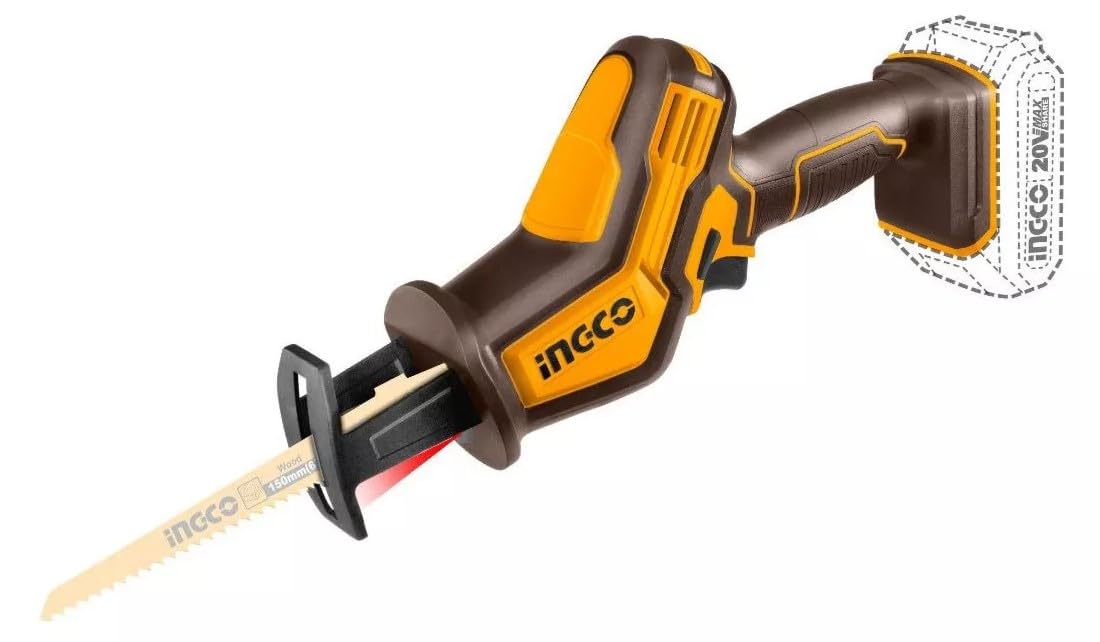

Image: A detailed view of the INGCO 20V Cordless Reciprocating Saw. The image highlights the main body, blade, and an outline indicating where the 20V battery would attach.

5. Setup

5.1. Battery Installation

1. Ensure the saw is turned off and the trigger is locked.
2. Align the 20V INGCO Lithium-Ion battery pack (sold separately) with the battery port on the tool.
3. Slide the battery pack into the port until it clicks securely into place.
4. To remove, press the battery release button and slide the battery out.

5.2. Blade Installation and Removal

This saw features a tool-free blade change system.

1. Ensure the saw is turned off and the battery is removed for safety.
2. Rotate the blade clamp lever (usually located near the blade holder) counter-clockwise to open the clamp.
3. Insert the shank of the reciprocating saw blade fully into the blade holder.
4. Rotate the blade clamp lever clockwise to secure the blade. Tug on the blade to ensure it is firmly seated.
5. To remove a blade, reverse the process: rotate the lever counter-clockwise and pull the blade out.

Image: A close-up view of the INGCO reciprocating saw being held, demonstrating the ergonomic grip and the area where the blade is inserted.

6. Operating Instructions

6.1. Powering On and Off

1. To start the saw, press the safety lock button (if present) and then squeeze the variable speed trigger. The integrated LED light will illuminate the work area.
2. To stop the saw, release the variable speed trigger.

6.2. Variable Speed Control

The saw features a variable speed trigger. The further you depress the trigger, the faster the blade will move. This allows for precise control over cutting speed, which is crucial for different materials and applications.

• Use lower speeds for cutting metal or delicate materials to prevent overheating and improve control.
• Use higher speeds for cutting wood or plastic for faster material removal.

6.3. Cutting Techniques

• General Cutting: Hold the saw firmly with both hands. Place the shoe of the saw against the workpiece. Start the saw before contacting the material. Apply steady, even pressure.
• Plunge Cutting: For cutting into the middle of a workpiece, ensure the blade is sharp. Tilt the saw so the shoe is resting on the workpiece and the blade is angled away. Start the saw and slowly pivot it down until the blade plunges through the material.
• Cutting Metal: Use a metal-specific blade. Apply cutting oil to the blade and workpiece to reduce friction and heat. Use a slower speed.
• Cutting Plastic: Use a fine-tooth blade. Use a moderate speed to avoid melting the plastic.

7. Maintenance

7.1. Cleaning

After each use, disconnect the battery and clean the saw. Use a soft cloth to wipe down the exterior. Remove any sawdust or debris from the ventilation openings and blade clamp area. Do not use harsh chemicals or abrasive cleaners.

7.2. Blade Care

Regularly inspect blades for sharpness and damage. Dull or damaged blades can cause kickback and reduce cutting efficiency. Replace blades as needed using the tool-free blade change mechanism.

7.3. Storage

Store the saw in a clean, dry place, out of reach of children. Remove the battery pack before storing for extended periods. Avoid storing in direct sunlight or extreme temperatures.

8. Troubleshooting

9. Specifications

10. Warranty and Support

For warranty information, technical support, or service inquiries, please contact INGCO customer service or visit the official INGCO website. Keep your purchase receipt as proof of purchase for any warranty claims.

For further assistance, you may refer to the official INGCO website: www.ingcotools.com
