A-Premium HVAC Blower Motor Resistor with Wire Harness Kit

1. Product Overview

This A-Premium HVAC Blower Motor Resistor with Wire Harness Kit is designed to regulate the speed of your vehicle's blower motor, controlling the airflow for the heating, ventilation, and air conditioning system. It ensures precise fan speed control and a smooth setting switch for optimal cabin comfort.

Image 1.1: The A-Premium HVAC Blower Motor Resistor with Wire Harness Kit, highlighting its features for precise speed control and smooth operation.

The resistor is engineered for a long lifespan and undergoes rigorous testing, including high/low temperature, moisture resistance, and vibration tests, to ensure reliable performance and durability.

Image 1.2: Visual representation of the performance guarantee tests, including high/low temperature, moisture resistance, and vibration testing, ensuring product quality.

2. Vehicle Fitment

This HVAC Blower Motor Resistor with Wire Harness Kit is compatible with the following Jeep vehicles:

• Jeep WK Series Grand Cherokee: 2005, 2006, 2007
• Jeep XK Series Commander: 2006, 2007

This part is designed for models without climate control and includes the necessary connector. It is specifically compatible with models manufactured up to June 5, 2006.

Reference Part Numbers: 973-428, 5143127AA, 973428.

3. Package Contents

Upon opening the package, please verify that all components are present and undamaged:

• 1x Heater Blower Motor Resistor
• 1x Wire Harness

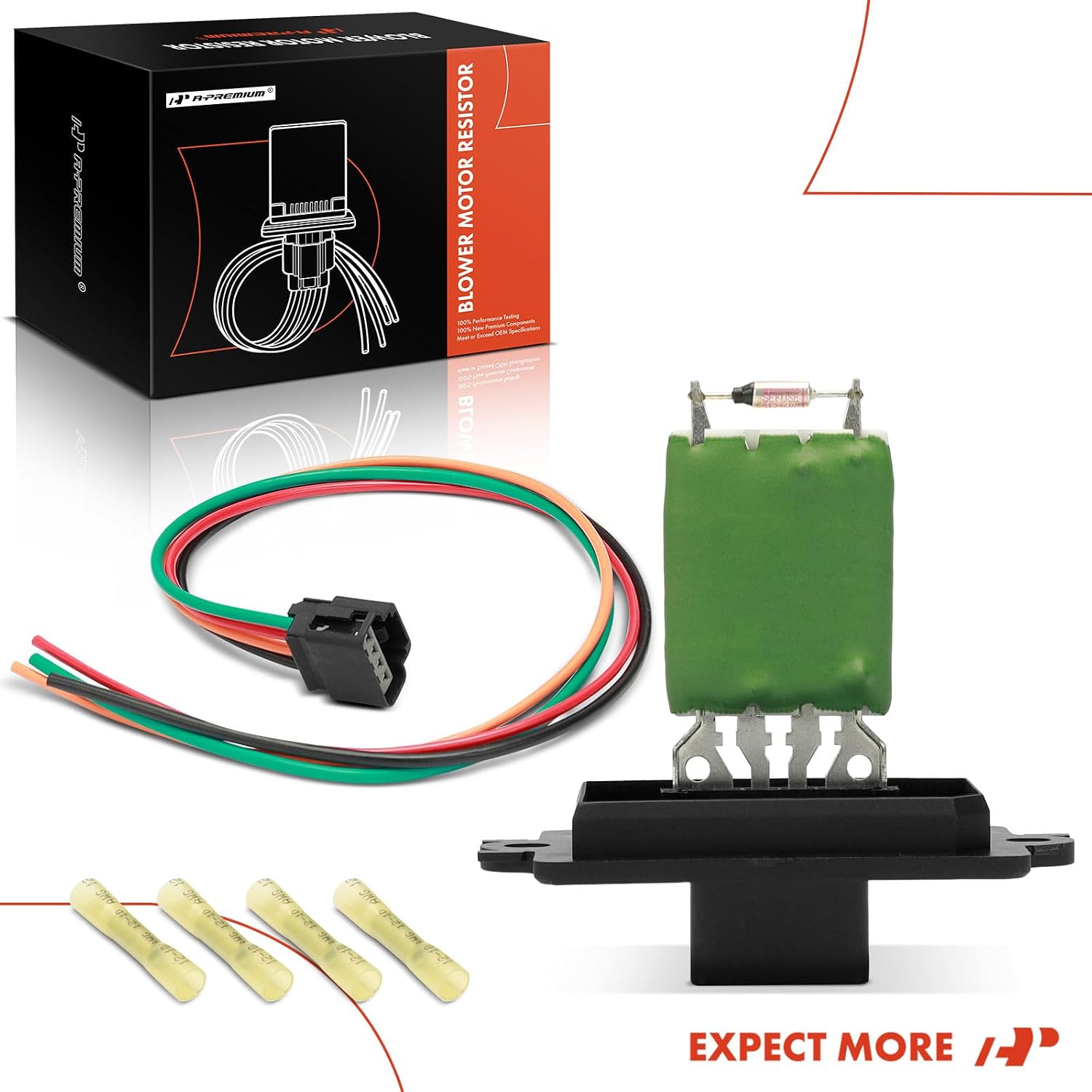

Image 3.1: The complete package contents, including the blower motor resistor, wire harness, and additional connectors.

Image 3.2: Close-up details of the blower motor resistor, showing the connector pins and the thermal fuse.

4. Installation Instructions

This blower motor resistor is designed as a direct replacement, offering a plug-and-play installation. However, proper installation is crucial for safety and optimal performance.

Attention: Please use the appropriate shop manual for your specific vehicle to obtain detailed instructions. If you do not have an installation manual or possess sufficient skills to install this part, it is strongly recommended that you seek assistance from a qualified mechanic.

General Installation Steps:

1. Safety First: Disconnect the vehicle's battery before beginning any electrical work.
2. Locate the Old Resistor: The blower motor resistor is typically located near the blower motor, often under the dashboard on the passenger side. Consult your vehicle's service manual for the exact location.
3. Remove the Old Resistor: Disconnect the electrical connector(s) and remove any mounting screws or clips holding the old resistor in place. Carefully pull out the old resistor.
4. Install the New Resistor: Insert the new A-Premium blower motor resistor into its housing. Ensure it is seated correctly.
5. Connect the Wire Harness: Attach the new wire harness to the resistor and connect it to the vehicle's wiring. Ensure all connections are secure.
6. Secure the Resistor: Fasten the new resistor with the mounting screws or clips.
7. Reconnect Battery: Reconnect the vehicle's battery.
8. Test Functionality: Turn on the vehicle and test all blower fan speeds to ensure proper operation.

Image 4.1: A qualified mechanic performing a replacement, illustrating the ease of installation for this component.

5. Operating the HVAC System

The blower motor resistor is an integral part of your vehicle's HVAC system, allowing you to control the fan speed. Once installed, operate your vehicle's climate control system as usual.

• Fan Speed Control: Adjust the fan speed dial or buttons on your vehicle's dashboard to select the desired airflow. The new resistor will ensure smooth transitions between fan speeds.
• Comfort Maintenance: Use the fan speed control to regulate the air volume and maintain a comfortable temperature within the vehicle cabin.

Image 5.1: A driver adjusting the fan speed control in a vehicle, demonstrating the function of the blower motor resistor.

Image 5.2: A simplified diagram illustrating the components of an air conditioning system, including the blower motor and resistor.

6. Maintenance

The A-Premium HVAC Blower Motor Resistor is designed for durability and requires minimal specific maintenance. However, regular vehicle maintenance practices contribute to the longevity of all HVAC components:

• Cabin Air Filter: Regularly check and replace your vehicle's cabin air filter as recommended by the manufacturer. A clogged filter can restrict airflow, causing the blower motor and resistor to work harder.
• HVAC System Inspection: Include your HVAC system in routine vehicle inspections to identify any potential issues early.

7. Troubleshooting

If you experience issues with your vehicle's blower fan after installation, consider the following troubleshooting steps:

• Fan Not Working at All: Check the vehicle's fuse box for a blown fuse related to the blower motor or HVAC system. Ensure all electrical connections to the resistor and blower motor are secure.
• Fan Only Works on High Speed: This is a common symptom of a faulty blower motor resistor. If this occurs with the new resistor, re-check the installation and connections.
• Inconsistent Fan Speeds: Verify that the wire harness is correctly installed and that there are no loose connections.

If troubleshooting steps do not resolve the issue, it is advisable to consult a qualified automotive technician for diagnosis and repair.

8. Specifications

9. Warranty and Support

A-Premium stands behind the quality of its products. This HVAC Blower Motor Resistor comes with a one-year unlimited-mileage guarantee.

For warranty claims, technical assistance, or any questions regarding this product, please contact A-Premium customer support through their official channels or the retailer from whom the product was purchased. Please have your purchase details and product model number (APBMR360) available when contacting support.
