Introduction
Thank you for choosing the Tornado 24-Inch High Velocity Heavy Duty Tilt Metal Drum Fan. This fan is engineered to provide powerful and efficient airflow for industrial, commercial, and warehouse environments. Its robust construction ensures durability and reliable performance. This manual provides essential information for safe operation, assembly, maintenance, and troubleshooting to ensure optimal use of your fan.
Image: The Tornado 24-inch High Velocity Heavy Duty Tilt Metal Drum Fan, showcasing its red metal drum, black protective grilles, and sturdy black stand with wheels.
Safety Information
Please read all safety instructions carefully before operating the fan. Failure to follow these instructions may result in electric shock, fire, or serious personal injury.
- Electrical Safety: Ensure the fan is connected to a grounded outlet with the correct voltage (120V). Do not use with extension cords unless absolutely necessary and ensure the cord is rated for the fan's wattage (230 watts).
- Placement: Place the fan on a stable, level surface to prevent tipping. Keep the fan away from water or damp environments. While suitable for covered patios, it is not rated for outdoor use where it may be exposed to direct rain.
- Clearance: Maintain adequate clearance around the fan for proper airflow and to prevent obstruction of the grilles.
- Moving Parts: Do not insert fingers or any objects into the grilles while the fan is operating. Keep loose clothing, hair, and jewelry away from moving parts.
- Overheating Protection: The fan is equipped with an automatic shut-off feature if the temperature exceeds safe limits. If the fan shuts off, unplug it, allow it to cool, and check for any obstructions before restarting.
- Cord Care: Do not run the power cord under carpeting or other floor coverings. Position the cord to avoid tripping hazards. Do not pull the cord to unplug the fan; always grasp the plug.
- Children and Pets: Keep the fan out of reach of children and pets.
- UL Safety Listed: This fan meets OSHA and UL507 standards and is UL listed for safety.
Product Overview and Components
The Tornado Drum Fan is designed for heavy-duty performance, featuring durable construction and a powerful motor. Understanding its components will aid in assembly and maintenance.
Image: An exploded view illustrating the main components of the Tornado Drum Fan, including the fan drum, sturdy handle, aluminum blades, power-coated grilles, fan cradle U-type tube, castors, knobs, roller, support tube, and washers/nuts.
Key Components:
- Fan Drum: The main housing containing the motor and blades, made of powder-coated steel.
- Aluminum Blades: Three durable aluminum blades designed for high velocity airflow.
- Premium Ball Bearing Motor: An open-air ball-bearing motor designed for extended product life and efficient operation.
- Power-Coated Grilles: Front and rear grilles for protection, rust-resistant.
- Fan Cradle (U-Type Tube): The sturdy metal frame that supports the fan drum and allows for tilt adjustment.
- Castors (Wheels): Two rubber casters for easy mobility.
- Non-Skid Legs: Provides stability when the fan is stationary.
- Control Panel: Located on the rear of the fan, includes the speed selector switch.
- Power Cord: An 8-foot SJT-R power cord for connection to an electrical outlet.
Image: Close-up view of the fan's premium ball bearing motor and stainless steel blade, highlighting the low noise level (72 dB) and direct drive 1/3 HP motor.
Image: A comparison graphic showing the benefits of a copper wire motor (higher heat resistance, longer lifespan, more stable and efficient, long-term use) versus a plastic motor (lower heat resistance, shorter lifespan, unstable & inefficient, short-term use).
Setup
The Tornado Drum Fan requires minimal assembly. Follow these steps to prepare your fan for use:
- Unpack: Carefully remove all components from the packaging. Ensure all parts listed in the Product Overview section are present.
- Attach the Fan Cradle: Align the fan drum with the pre-drilled holes on the U-type fan cradle. Secure the drum to the cradle using the provided bolts, nuts, and washers. Refer to the component image for proper orientation.
- Install Wheels: Attach the two rubber casters to the designated points on the fan cradle using the provided hardware. Ensure they are securely fastened for easy mobility.
- Positioning: Place the fan on a firm, level surface in the desired location. Ensure there is sufficient space around the fan for optimal airflow and safety.
Operating Instructions
Operating your Tornado Drum Fan is straightforward. Follow these steps for effective use:
Powering On/Off:
- Plug the 8-foot power cord into a standard 120V grounded electrical outlet.
- Locate the speed control switch on the rear of the fan.
- Turn the switch to the desired speed setting (1, 2, or 3) to turn the fan on.
- To turn the fan off, turn the switch to the 'OFF' position. Unplug the fan from the outlet when not in use.
Speed Settings:
The fan features three speed settings to adjust airflow intensity:
- Speed 1 (Low): Approximately 5500 CFM. Ideal for general air circulation.
- Speed 2 (Medium): Approximately 6500 CFM. Provides increased airflow for larger areas.
- Speed 3 (High): Approximately 8800 CFM. Delivers maximum velocity for rapid air movement.

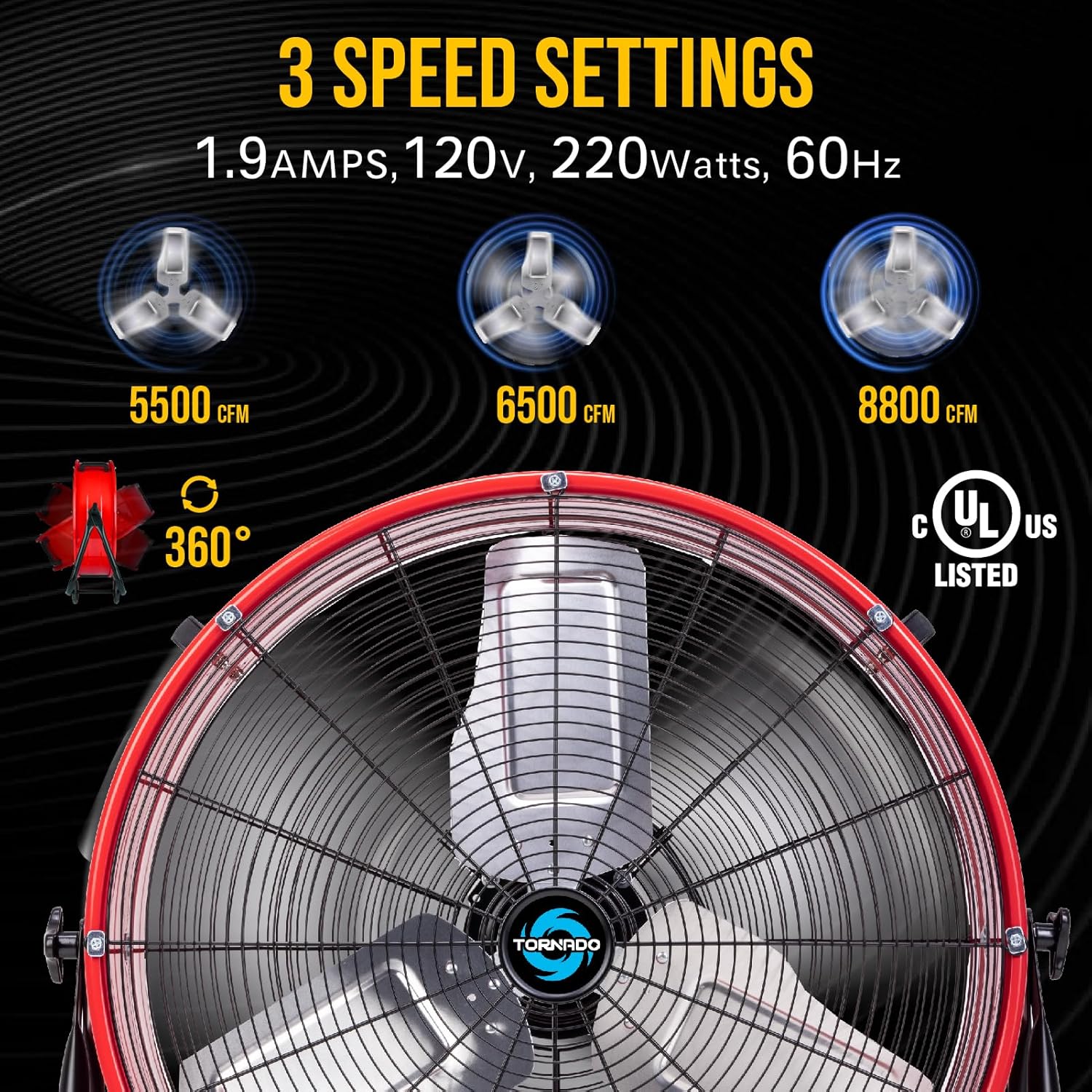

Image: A visual representation of the fan's three speed settings (5500 CFM, 6500 CFM, 8800 CFM) and its 360-degree tilt capability, along with the UL Listed certification.
Tilt Adjustment:
The fan drum can be tilted 360 degrees to direct airflow precisely where needed. Simply grasp the fan drum firmly and adjust it to the desired angle. The sturdy stand will hold the fan in position.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your Tornado Drum Fan. Always unplug the fan before performing any maintenance.
- Cleaning the Grilles and Blades: Periodically wipe down the exterior surfaces, grilles, and blades with a soft, damp cloth. Do not use abrasive cleaners or solvents. For stubborn dust, a vacuum cleaner with a brush attachment can be used on the grilles.
- Motor Maintenance: The fan features a sealed ball-bearing motor that does not require lubrication. Do not attempt to open or lubricate the motor.
- Storage: When not in use for extended periods, store the fan in a cool, dry place, protected from dust and moisture. It is recommended to cover the fan to prevent dust buildup.
- Cord Inspection: Regularly inspect the power cord for any signs of damage, fraying, or cuts. If the cord is damaged, do not use the fan and contact customer support for assistance.
Troubleshooting
If you encounter issues with your Tornado Drum Fan, refer to the following table for common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on | No power to the outlet Power cord not securely plugged in Speed switch is OFF Overheat protection activated | Check circuit breaker/fuse Ensure plug is fully inserted Turn speed switch to 1, 2, or 3 Unplug fan, let cool for 30 minutes, then restart |
| Reduced airflow | Grilles or blades are dirty Obstruction near fan intake/output | Clean grilles and blades Remove any obstructions around the fan |
| Fan is excessively noisy | Loose parts Fan not on a level surface Debris in fan blades | Check for and tighten any loose screws Ensure fan is on a stable, level surface Unplug fan and carefully remove any debris from blades |
| Fan vibrates excessively | Fan not on a level surface Loose components Damaged blades | Ensure fan is on a stable, level surface Check and tighten all assembly screws Inspect blades for damage; contact support if damaged |
If the problem persists after attempting these solutions, please contact Tornado customer support for further assistance.
Specifications
Detailed technical specifications for the Tornado 24-Inch High Velocity Heavy Duty Tilt Metal Drum Fan:
| Specification | Value |
|---|---|
| Model Name | HI-FAN-DRUM24W-1P-HEX2 |
| Size | 24 Inch |
| Product Dimensions (D x W x H) | 29.38"D x 29.5"W x 11"H |
| Item Weight | 28.5 pounds |
| Color | RED |
| Electric Fan Design | Floor Fan |
| Power Source | AC |
| Style | Industrial |
| Special Feature | High Velocity |
| Recommended Uses | Air Circulation |
| Noise Level | 73 dB (at max speed) |
| Wattage | 230 watts |
| Finish Type | Powder Coated |
| Number of Blades | 3 |
| Air Flow Capacity | 8800 Cubic Feet Per Minute (CFM) |
| Blade Length | 24 Inches |
| Speed | 1100 RPM |
| Voltage | 120.0V |
| Switch Type | Push Button |
| Included Components | Cord |
| Indoor/Outdoor Usage | Outdoor (Note: Not rated for direct outdoor exposure to rain, suitable for covered patios) |
| Specification Met | UL |
| Control Method | Touch (referring to push button control) |
| Number of Power Levels | 3 |
| UPC | 810058284112 |
Warranty and Support
Tornado products are manufactured to high-quality standards. For information regarding warranty coverage, product registration, or technical support, please refer to the warranty card included with your purchase or visit the official Tornado website. Keep your purchase receipt as proof of purchase for any warranty claims.
For direct assistance, you may contact Tornado customer service through their official channels. Please have your model number (HI-FAN-DRUM24W-1P-HEX2) and purchase date ready when contacting support.
