Lovefindahome Solar Powered Indoor/Outdoor Pendant Lights

Introduction

The Lovefindahome Solar Powered Indoor/Outdoor Pendant Lights system offers a versatile and eco-friendly lighting solution. This system includes a solar panel, a control unit with a 6000mAh LiFePO4 battery, and four LED bulbs, each with a 5-meter (16.5ft) cord and individual switches. Designed for both indoor and outdoor use, it provides illumination for various settings such as patios, gardens, sheds, camping, and RVs. Additionally, the control unit features DC and USB outlets, allowing it to function as a portable backup power source for small electronic devices.

Product Components

Carefully unpack the box and ensure all the following components are present:

• 1 x 6000mAh Portable Solar System Control Unit
• 1 x Solar Charging Panel (13.4 inches by 9.4 inches)
• 1 x AC Charging Adapter
• 4 x LED Bulbs, each with a 16.4-foot (5m) long wire and individual switch
• 2 x 9.8-foot (3m) long spare extension cables for the bulbs
• 1 x Pack of Screws for installation
• 1 x Comprehensive Guide (this manual)

Image: All components included in the Lovefindahome Solar Powered Lighting System.

Setup Instructions

1. Charge the Control Unit: Before first use, fully charge the 6000mAh control unit. This can be done via the solar panel or the included AC charging adapter. For solar charging, place the solar panel in direct sunlight. For AC charging, connect the adapter to a standard wall socket. The charging indicator light on the control unit will show progress.
2. Position the Solar Panel: Mount or place the solar panel in a location that receives maximum direct sunlight throughout the day. Ensure it is securely fastened using the provided screws or a suitable mounting method. The panel is waterproof and designed for outdoor exposure.
3. Connect the Solar Panel to the Control Unit: Plug the cable from the solar panel into the designated input port on the control unit.
4. Connect the LED Bulbs: Plug the individual LED bulb cords into the USB light sockets on the control unit. Each bulb has its own switch for independent operation. Use the spare extension cables if additional length is required for bulb placement.
5. Placement of Bulbs: Hang the LED bulbs in desired locations using their integrated hooks or by securing the cords. Ensure the bulbs are positioned to provide optimal lighting for your area.

Image: Connecting the solar panel to the control unit.

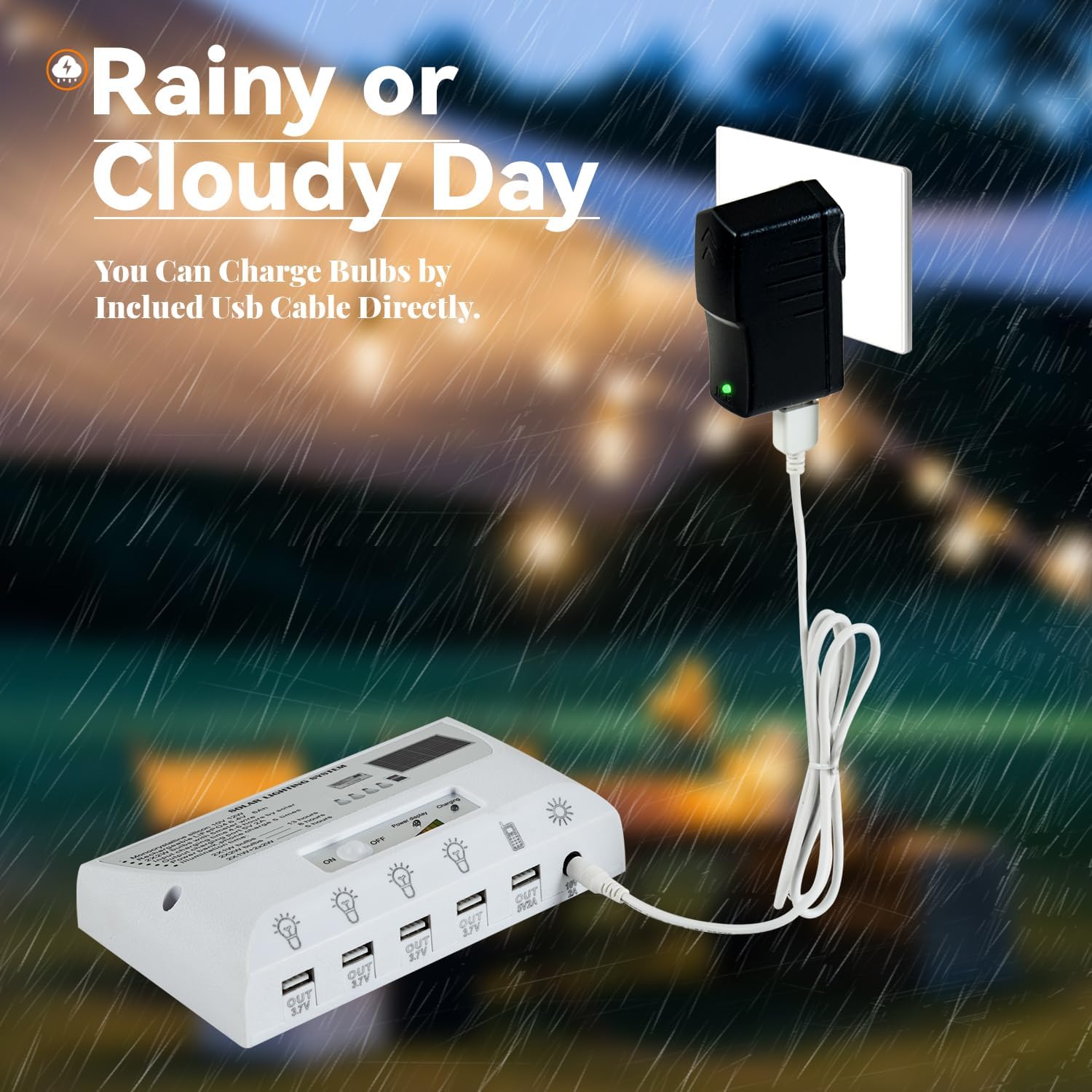

Image: Charging the control unit via AC adapter.

Operating Instructions

1. Powering On/Off: Use the main ON/OFF switch on the control unit to activate or deactivate the system.
2. Individual Bulb Control: Each LED bulb is equipped with an individual switch on its cord. Use these switches to turn specific bulbs on or off as needed, conserving battery life.
3. Automatic Dusk-to-Dawn Feature: The system includes an intelligent sensor that automatically turns the lights on at dusk and off at dawn when the main switch is in the ON position and the solar panel is connected and exposed to light. If you wish to operate the lights during daylight hours, you may need to temporarily disconnect the solar panel or cover it to simulate darkness.
4. Charging External Devices: The control unit features multiple USB output ports (5V/2A) and DC output ports. Connect your compatible electronic devices (e.g., phones, e-readers, cameras) to these ports for charging.
5. Battery Level Indicator: The control unit has a power display and charging indicator lights. Monitor these indicators to check the current battery level and charging status. A green light typically indicates 75%-100% charge, red for 25%-75%, and no light for 0%-25%.

Image: Charging a smartphone using the control unit's USB port.

Image: Control unit features and ports diagram.

Maintenance

The Lovefindahome Solar Powered Lighting System is designed for minimal maintenance. To ensure optimal performance and longevity:

• Clean the Solar Panel: Periodically wipe the surface of the solar panel with a soft, damp cloth to remove dust, dirt, leaves, or snow. A clean panel ensures maximum sunlight absorption and efficient charging.
• Inspect Cables and Connections: Regularly check all cables and connections for any signs of wear, damage, or loose fittings. Ensure they are securely plugged in.
• Battery Care: While the built-in LiFePO4 battery has a long lifespan (over 3000 charge cycles), avoid prolonged storage in extreme temperatures. If storing for an extended period, ensure the battery is partially charged (around 50%) and recharge it every few months.
• Waterproof Design: The system is waterproof, but avoid submerging the control unit or bulbs in water. Ensure all port covers are properly sealed if present.

Troubleshooting

If you encounter issues with your Lovefindahome Solar Powered Lighting System, refer to the following common solutions:

• Lights Not Turning On:
  • Ensure the main ON/OFF switch on the control unit is in the 'ON' position.
  • Check the individual switches on each bulb.
  • Verify the battery charge level using the indicator lights. If low, allow the solar panel to charge in direct sunlight or use the AC adapter.
  • Ensure the solar panel is clean and receiving direct sunlight.
  • If the solar panel is connected and exposed to light, the automatic dusk-to-dawn sensor will prevent the lights from turning on during the day. To operate during daylight, temporarily disconnect the solar panel or cover it.
• Lights Dim or Short Illumination Time:
  • The battery may not be fully charged. Ensure the solar panel receives adequate direct sunlight for at least 6-8 hours. Cloudy weather will reduce charging efficiency.
  • Clean the solar panel surface.
  • Reduce the number of active bulbs or the duration of use to extend battery life.
• Devices Not Charging via USB/DC Ports:
  • Check the battery level of the control unit. External device charging requires sufficient battery power.
  • Ensure the device's charging cable is properly connected to both the control unit and the device.
  • Verify that the device is compatible with 5V/2A USB or the DC output.
• Water Leakage:
  • While the system is waterproof, ensure all connections are tight and any rubber seals or port covers are properly seated to prevent water ingress.
  • Avoid prolonged exposure to heavy downpours or extreme weather conditions if possible, especially for the control unit.

If these steps do not resolve the issue, please contact customer support.

Specifications

Warranty and Support

Lovefindahome stands behind the quality of its products. This solar pendant light system is built for reliability, boasting a lifespan of 10 years and over 3000 battery cycles.

• Refund Policy: A 60-day refund policy is offered from the date of purchase.
• Warranty: The product comes with a 12-month warranty covering manufacturing defects and malfunctions under normal use.
• Customer Support: If you encounter any issues, have questions, or require assistance with your product, please feel free to contact Lovefindahome customer support at any time. Refer to your purchase documentation for contact details.
