1. Product Overview
Thank you for choosing the PINDOWS PDS-645 Chronograph Watch. This manual provides essential information for the proper setup, operation, and maintenance of your timepiece. The PDS-645 is an analog quartz watch featuring a chronograph function, durable construction, and 30-meter water resistance.
Key Features:
- Precise Quartz Movement: Ensures accurate timekeeping.
- Chronograph Function: For measuring elapsed time.
- 30M Water Resistance: Suitable for daily use, splashes, rain, and cold showers. Not suitable for swimming, diving, or pressing buttons underwater.
- High Hardness Mirror: Scratch-resistant and wear-resistant dial window.
- HD Lighting Technology: Luminous hands and markers for visibility in low light conditions.
- Durable Construction: Alloy steel case and genuine leather strap.
2. Initial Setup
Before using your watch, you may need to set the time and date.
2.1 Setting the Time and Date

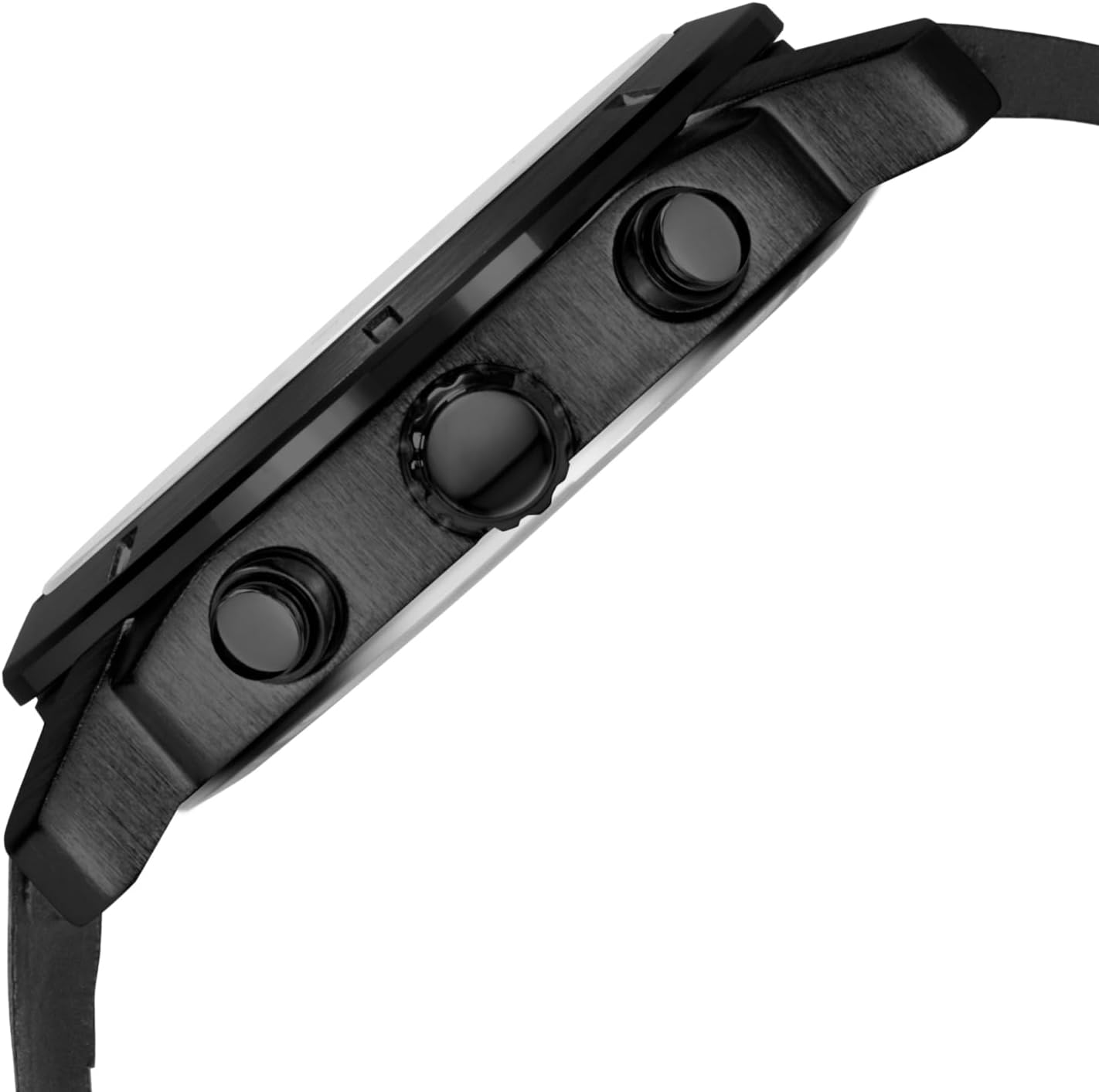

- Pull out the crown: Gently pull the crown (middle button on the right side of the watch) to position 2 (first click) to set the date, or position 3 (second click) to set the time.
- Set the Date (Position 2): Rotate the crown clockwise or counter-clockwise to adjust the date. Once the correct date is displayed, push the crown back to position 1 (normal operating position).
- Set the Time (Position 3): Rotate the crown to move the hour and minute hands. Set the time to be a few minutes ahead, then push the crown back to position 1 when the time signal (e.g., from a radio or phone) reaches the exact time.
- Push the crown back: After setting, always push the crown fully back into position 1 to ensure water resistance.
2.2 Adjusting the Strap

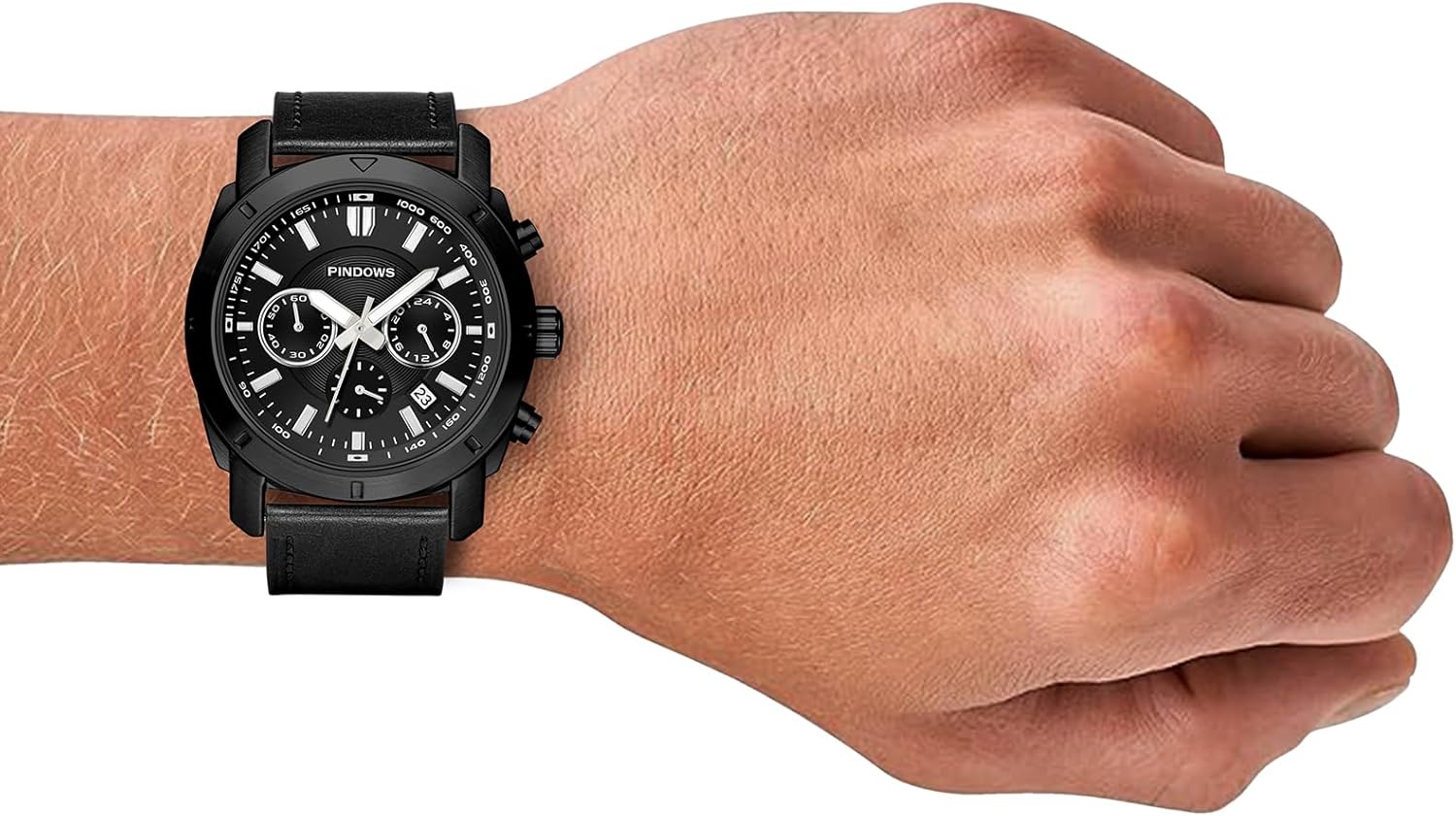

The watch comes with a genuine leather strap with a buckle clasp. Adjust the strap by inserting the pin into the desired hole for a comfortable and secure fit on your wrist.
3. Operating Instructions
3.1 Using the Chronograph Function
The chronograph allows you to measure elapsed time independently of the main time display.
- Start: Press the top pusher (A) to start the chronograph. The chronograph second hand will begin to move.
- Stop: Press the top pusher (A) again to stop the chronograph. The elapsed time will be indicated by the chronograph hands.
- Reset: After stopping, press the bottom pusher (B) to reset the chronograph hands to their zero positions.
- Split Time (if applicable): Some chronographs allow for split time measurement. If your model supports this, press the bottom pusher (B) during measurement to temporarily stop the hands to read an intermediate time, while the internal timer continues. Press (B) again to catch up the hands to the current elapsed time. Press (A) to stop, then (B) to reset.
Note: Refer to the specific sub-dial functions on your watch for detailed readings (e.g., seconds, minutes, 24-hour display).
4. Care and Maintenance
4.1 Water Resistance
Your PINDOWS PDS-645 watch is rated for 30 meters (3 ATM) of water resistance. This means it is suitable for:
- Daily use
- Splashes and rain
- Cold showers
Important Precautions:
- DO NOT press any buttons or pull the crown while the watch is submerged in water.
- DO NOT expose the watch to hot water, steam, or extreme temperature changes (e.g., hot baths, saunas), as this can compromise the seals.
- NOT suitable for swimming, diving, or snorkeling.
- Ensure the crown is always fully pushed in to maintain water resistance.
4.2 Cleaning Your Watch
- Case and Crystal: Wipe with a soft, dry, lint-free cloth. For stubborn dirt, a slightly damp cloth can be used, followed by immediate drying.
- Leather Strap: Avoid prolonged exposure to water, direct sunlight, and harsh chemicals. Clean with a soft, dry cloth. Specialized leather cleaners can be used sparingly if needed.
4.3 Battery Replacement
The watch is powered by a quartz battery. When the watch stops or the second hand starts skipping, it indicates a low battery. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and function.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Watch is not running. | Battery is depleted. | Replace the battery (recommended by a professional). |
| Watch hands are not moving or are erratic. | Crown is not fully pushed in. | Push the crown fully back into position 1. |
| Chronograph hands do not reset to zero. | Requires calibration or internal issue. | Consult a professional watch repair service. |
| Water condensation inside the watch. | Water resistance compromised (e.g., crown not pushed in, exposure to steam). | Immediately take the watch to a professional for inspection and repair to prevent further damage. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact PINDOWS customer service or a certified watch repair specialist.
6. Product Specifications
| Feature | Detail |
|---|---|
| Brand | PINDOWS |
| Model Number | PDS-645 |
| Movement Type | Japanese Quartz |
| Display Type | Analog |
| Case Material | Alloy Steel |
| Case Diameter | 41 Millimeters |
| Case Thickness | 10.7 Millimeters |
| Dial Window Material Type | Mineral Glass |
| Band Material Type | Genuine Leather |
| Band Width | 22 Millimeters |
| Band Length | 216 Millimeters |
| Clasp Type | Buckle |
| Water Resistance Depth | 30 Meters (3 ATM) |
| Special Features | Chronograph |
| Item Weight | 230 Grams |
7. Warranty and Customer Support
PINDOWS is committed to providing a satisfactory shopping experience. If you have any problems or are not satisfied with your watch, please do not hesitate to contact PINDOWS customer service.
For warranty information, please refer to the documentation included with your purchase or contact PINDOWS directly. Keep your purchase receipt as proof of purchase.
Contact Information: Please refer to the official PINDOWS website or your purchase platform for the most up-to-date customer service contact details.
