BANEBONE WVC-1200W Solar Micro Inverter User Manual

Introduction

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of the BANEBONE WVC-1200W Solar Micro Inverter. Please read this manual thoroughly before installation and operation to ensure safe and efficient use of the product.

Image: The BANEBONE WVC-1200W Solar Micro Inverter, a compact blue unit designed for grid-tie solar applications.

The BANEBONE WVC-1200W Micro Inverter is a key component in a grid-tie solar power system, designed to convert direct current (DC) electricity generated by solar panels into alternating current (AC) electricity that can be used by household appliances or fed back into the utility grid. Its intelligent design and robust features make it suitable for various applications, from residential homes to off-grid setups.

Image: Diagram illustrating various applications and the general architecture of a solar power system utilizing micro inverters, showing integration with household energy storage and appliances.

Safety Precautions

WARNING:

• Ensure all electrical connections are made by a qualified electrician.
• Do not attempt to open or repair the inverter. Refer to qualified service personnel.
• Disconnect all power sources before performing any maintenance or installation.
• The inverter is waterproof (IP67), but avoid submerging it in water.
• Ensure proper grounding to prevent electrical shock.

Product Features

• High-Quality Construction: Durable, rust-resistant aluminum alloy with LCD display for monitoring.
• Efficient Power Conversion: High-precision MPPT technology maximizes power collection (over 25% increase in generation).
• Intelligent Control System: Features intelligent soft switching, high-frequency switching power supply, and 32-bit DSP full digital SPWM control.
• Comprehensive Safety: Six protection functions including over-temperature, over/under-voltage, short circuit, and overload protection. IP67 waterproof design.
• Space-Saving Design: Compact size (8.27 x 14.72 x 1.57 inches) and lightweight due to high-frequency technology. Supports multi-unit stacking for single-phase parallel or three-phase systems.

Image: Close-up of the micro inverter highlighting MPPT technology, laser engraving process, pure imported MOS tube, and independent chip for enhanced performance.

What's in the Box

• Micro Inverter (WVC-1200W)
• Power Cord
• English Manual
• Warranty Card

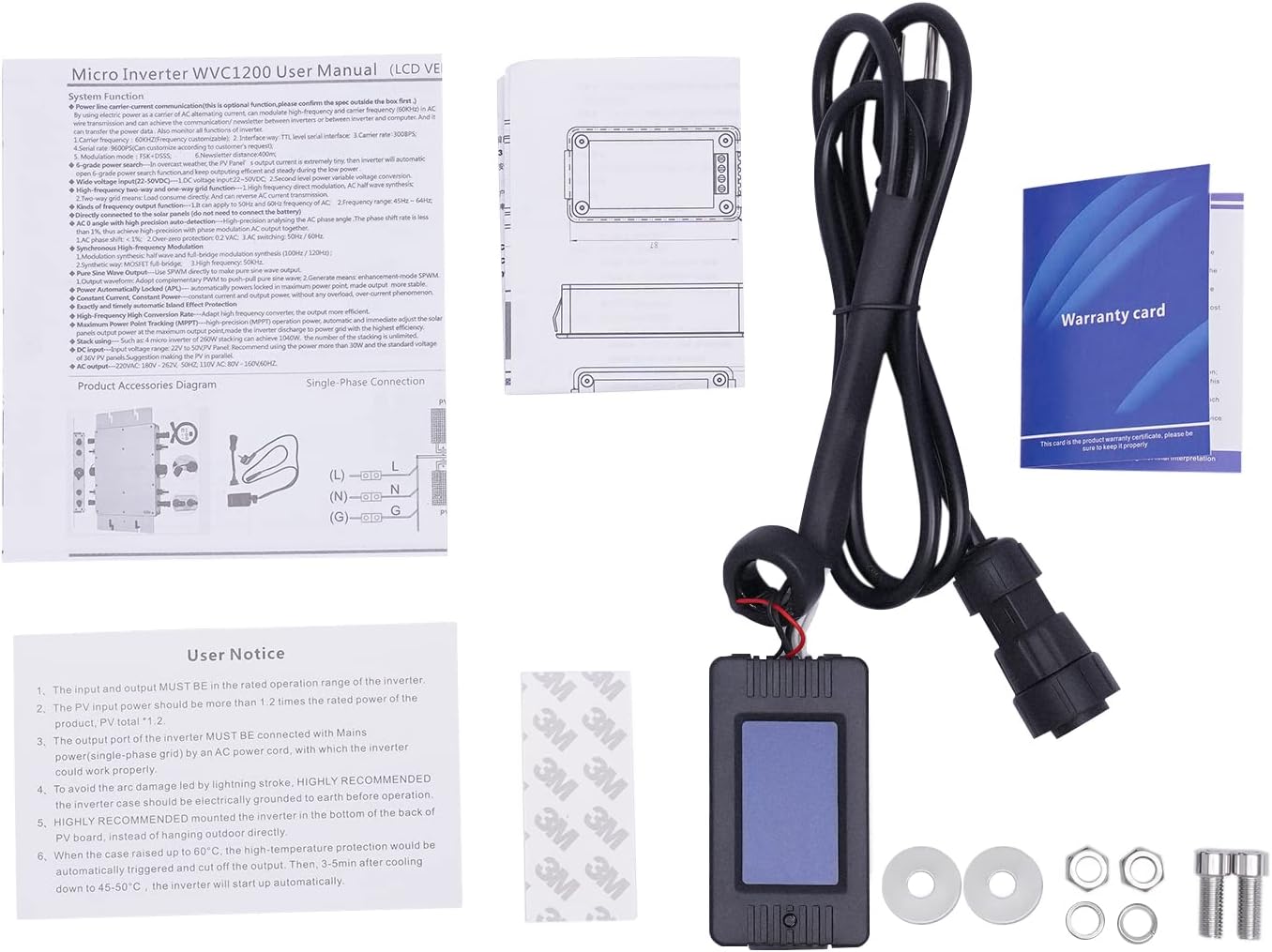

Image: Display of the package contents, including the micro inverter, power cord, English manual, and warranty card.

Setup and Installation

Follow these steps for proper installation of your WVC-1200W Micro Inverter:

1. Mounting the Inverter:

   Mount the inverter in a well-ventilated area, preferably outdoors, away from direct sunlight and heat sources. The IP67 rating allows for outdoor installation. Ensure the mounting surface is stable and can support the inverter's weight (6.35 pounds).



   Image: Rear view of the micro inverter, showing the integrated mounting brackets for secure installation.

2. Connecting Solar Panels:

   Connect the DC output cables from your solar panels to the DC input terminals on the micro inverter. Ensure correct polarity (+ to + and - to -). The inverter supports multiple panels for a single unit.

3. AC Grid Connection:

   Connect the AC output cable from the micro inverter to your home's electrical grid. This connection should be done by a qualified electrician to ensure compliance with local electrical codes and safety standards. The inverter produces a pure sine wave output.



   Image: Diagram illustrating the connection of solar panels to the micro inverter, and the inverter's connection to the household electrical grid via a power meter.

4. Power Meter Connection:

   Connect the provided power meter to monitor the inverter's performance. This meter displays voltage, current, power, energy, frequency, and power factor.



   Image: Detailed view of the external LCD power meter, showing various electrical readings such as voltage, current, power, and frequency.
5. Initial Power-Up:

   Once all connections are secure, turn on the AC power supply to the inverter. The inverter will automatically begin operation and synchronize with the grid.

Operating Instructions

The WVC-1200W Micro Inverter is designed for automatic operation once properly installed and connected to the grid. It features MPPT (Maximum Power Point Tracking) to optimize power output from your solar panels.

• Automatic Operation: The inverter will automatically detect solar input and grid connection, then begin converting DC power from solar panels into AC power for your home.
• Monitoring: Use the external LCD power meter to monitor real-time performance data such as voltage, current, power generated, and frequency.
• Grid Synchronization: The inverter automatically synchronizes its output frequency and phase with the utility grid.
• Protection Features: The inverter is equipped with built-in protection against over-temperature, over/under-voltage, short circuit, and overload. In case of an anomaly, the inverter will automatically shut down to prevent damage.

Maintenance

The BANEBONE WVC-1200W Micro Inverter requires minimal maintenance due to its robust design and IP67 waterproof rating. However, regular checks can ensure optimal performance and longevity.

• Regular Cleaning: Periodically clean the exterior of the inverter to remove dust, dirt, or debris that may accumulate. Use a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Inspect Connections: Annually, inspect all electrical connections (DC input from solar panels and AC output to grid) to ensure they are secure and free from corrosion.
• Ventilation: Ensure that the area around the inverter remains clear to allow for proper airflow and heat dissipation.
• Performance Monitoring: Regularly check the readings on the LCD power meter to ensure the inverter is operating within expected parameters. Significant drops in power output may indicate an issue.

Troubleshooting

If you encounter issues with your WVC-1200W Micro Inverter, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact BANEBONE customer support.

Specifications

Image: The micro inverter with its dimensions clearly marked: 37.4cm/14.72" in length, 21cm/8.27" in width, and 4cm/1.57" in thickness.

Warranty and Support

Your BANEBONE WVC-1200W Solar Micro Inverter comes with a warranty. Please refer to the included "Warranty Card" for specific terms and conditions, including warranty period and coverage details.

For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact BANEBONE customer service through the contact information provided on your warranty card or the official product website.

Please retain your purchase receipt and warranty card for future reference.
