1. Introduction
Thank you for choosing the Homtronics 10 oz Electric Milk Frother and Steamer. This appliance is designed to create rich, creamy foam for your favorite coffee beverages and to heat milk efficiently. Please read this manual thoroughly before use to ensure safe and optimal operation. Keep this manual for future reference.
The Homtronics electric milk frother in grey, shown with its base, handle, control panel, and two interchangeable whisks. A cup of latte is visible in the foreground.
2. Safety Precautions
To prevent personal injury or damage to the appliance, always follow basic safety precautions:
- Do not immerse the frother base or power cord in water or other liquids.
- Ensure the power supply matches the voltage specified on the appliance.
- Do not operate the appliance with a damaged cord or plug.
- Keep the appliance out of reach of children.
- Do not touch hot surfaces. Use handles or knobs.
- Always unplug the frother when not in use and before cleaning.
- Use only attachments recommended by the manufacturer.
- Do not use the appliance outdoors.
- Do not fill above the maximum fill lines to prevent overflow.
3. Product Components
The Homtronics Milk Frother consists of the following parts:
- Frother Jug (with non-stick interior)
- Power Base (with non-slip silicone pad)
- Transparent Lid
- Frothing Whisk (for dense/airy foam)
- Heating Whisk (for heating milk/hot chocolate)
- Control Panel (LED touch buttons)

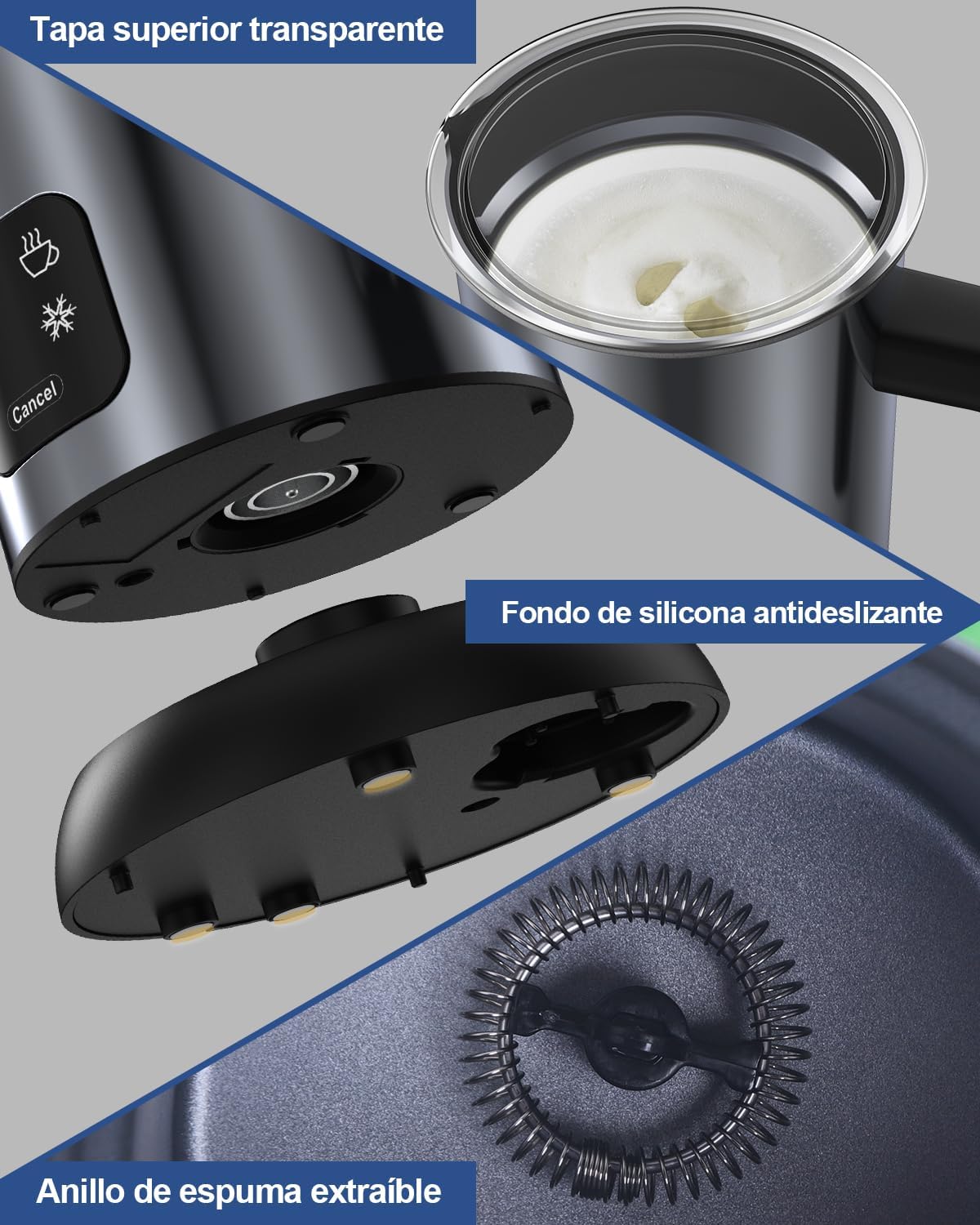

Close-up views of key components: the transparent lid for monitoring, the non-slip silicone base for stability, and the removable frothing whisk for easy cleaning and function changes.
4. Specifications
| Feature | Specification |
|---|---|
| Brand | Homtronics |
| Model Name | Milk Frother |
| Capacity (Frothing) | Up to 4.7 oz (150 mL) |
| Capacity (Heating) | Up to 10.1 oz (300 mL) |
| Power/Wattage | 400 watts |
| Material | Food-Grade 304 Stainless Steel |
| Special Features | Auto Shut-Off, Non-Stick, Quiet Function (<60 dB), See-Through Lid, Variable Froth Setting, Non-slip Base |
| Item Weight | 950 g |
5. Setup
- Unpack: Carefully remove all components from the packaging.
- Clean: Before first use, clean the frother jug and whisks according to the 'Cleaning and Maintenance' section. Wipe the exterior of the frother jug and the power base with a damp cloth.
- Place: Place the power base on a stable, flat, heat-resistant surface.
- Insert Whisk: Select the appropriate whisk for your desired function (frothing or heating) and securely place it onto the shaft at the bottom of the frother jug.
- Connect Power: Plug the power cord into a grounded electrical outlet.
6. Operating Instructions
6.1 Frothing Modes
The Homtronics Milk Frother offers four distinct modes:
- Hot Dense Foam: Ideal for cappuccinos.
- Hot Airy Foam: Perfect for lattes.
- Cold Foam: For iced coffees and cold beverages.
- Heating Milk: For hot chocolate or warm milk without foam.

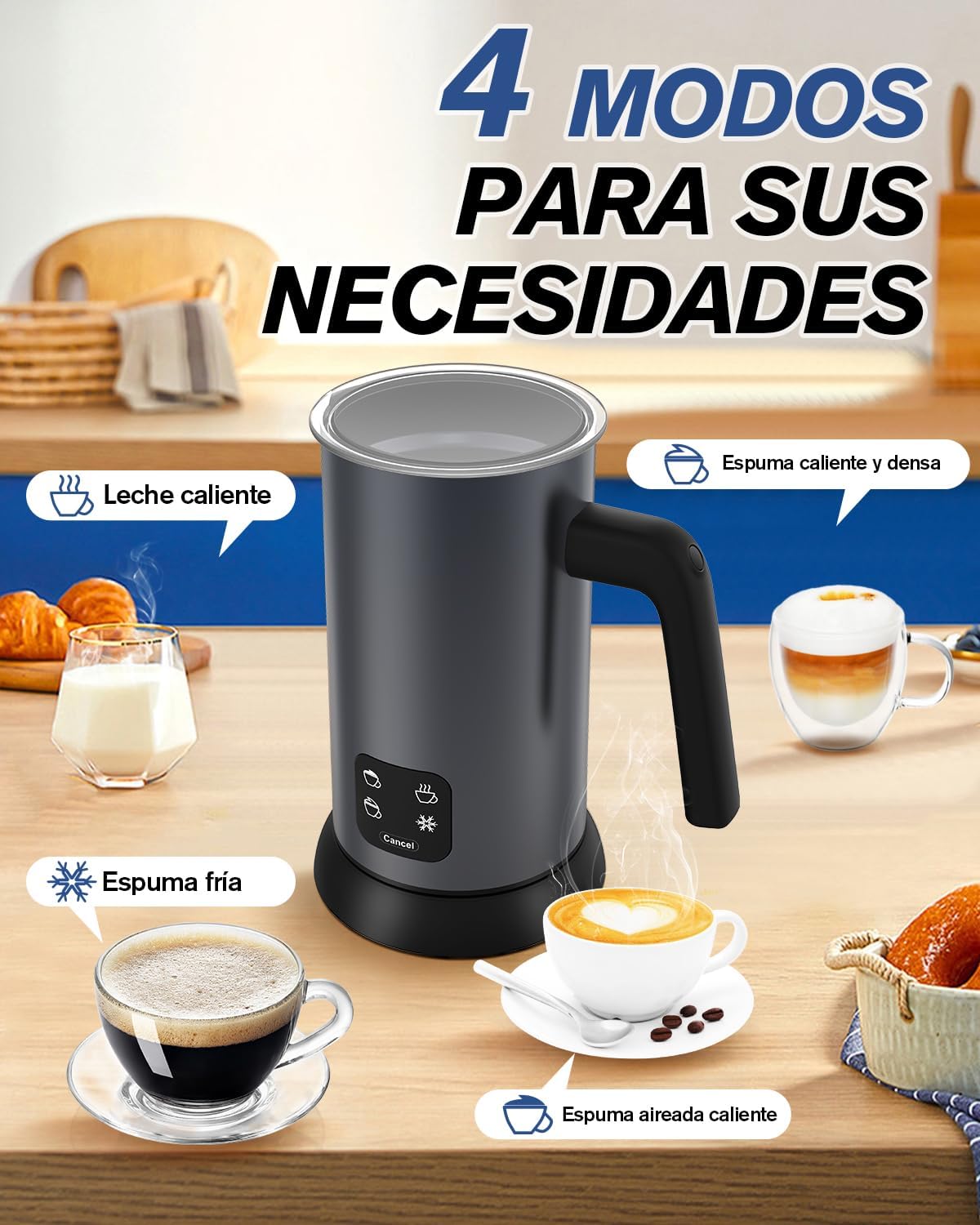

An illustration of the frother's four functions: heating milk, creating hot dense foam, producing cold foam, and making hot airy foam, each with an example beverage.
6.2 Using the Frother
- Choose Whisk: For frothing (hot or cold foam), use the frothing whisk (spring coil). For heating milk or hot chocolate, use the heating whisk (flat paddle).
- Add Milk: Pour fresh, cold milk into the frother jug. Observe the internal MAX fill lines. Do not exceed the lower MAX line (5 oz/150mL) for frothing, and do not exceed the upper MAX line (10.1 oz/300mL) for heating milk. Always ensure milk is above the MIN line (2.4 oz/70mL).

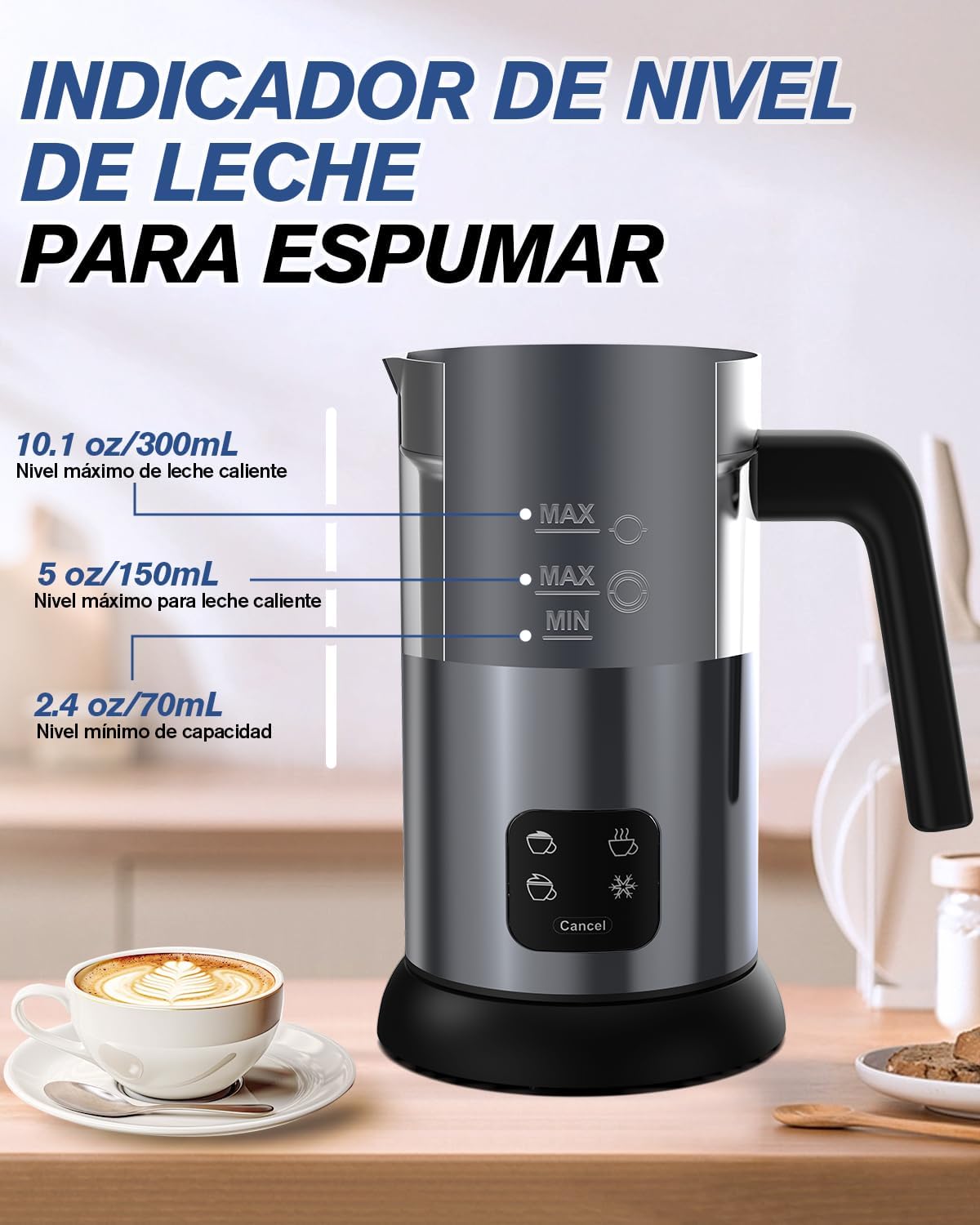

A diagram of the frother's interior with clear markings for maximum milk levels: 10.1 oz/300mL for heating milk, 5 oz/150mL for hot frothing, and a minimum level of 2.4 oz/70mL.
- Secure Lid: Place the transparent lid firmly on the frother jug.
- Select Function: Place the frother jug onto the power base. Press the desired button on the LED touch control panel. The indicator light will illuminate.
A detailed image of the frother's LED touch panel, indicating its intuitive control interface.
- Start Operation: The frother will begin operation. It typically takes about 2 minutes for frothing. The appliance operates quietly, generally below 60 dB.
An illustration emphasizing the frother's ability to produce foam quickly, typically within 2 minutes.
- Automatic Shut-off: The frother will automatically shut off once the cycle is complete.
- Serve: Carefully remove the frother jug from the base and pour the frothed or heated milk into your beverage.
Tips for Optimal Froth:
- Use fresh, cold milk with a fat content greater than 3% for best results.
- The ideal temperature for hot froth is between 135-149°F (57-65°C).
Helpful tips for achieving optimal dense froth, including using milk with over 3% fat content and maintaining a temperature between 135-149°F.
7. Cleaning and Maintenance
Regular cleaning ensures the longevity and hygiene of your frother.
- Unplug: Always unplug the appliance from the power outlet before cleaning.
- Cool Down: Allow the frother jug to cool down completely after use.
- Remove Whisk: Carefully remove the whisk from the bottom of the jug.
- Clean Jug Interior: Rinse the interior of the frother jug with warm water immediately after use. Use a soft, non-abrasive sponge and mild dish soap to clean the non-stick coating. Avoid abrasive materials that could scratch the surface.
A hand rinsing the frother's interior under a faucet, highlighting its food-grade stainless steel construction and non-stick coating for easy cleaning. Icons indicate BPA-free, non-stick interior, and easy cleaning.
- Clean Whisk: Wash the whisk under running water with mild soap.
- Clean Lid: The transparent lid can be washed with warm, soapy water.
- Clean Exterior: Wipe the exterior of the frother jug and the power base with a damp cloth. Do not immerse the power base in water.
- Dry: Ensure all parts are thoroughly dry before reassembling or storing.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Frother does not turn on. | Not plugged in; power outage; frother not correctly placed on base. | Ensure plug is securely in outlet; check power supply; ensure frother jug is properly seated on the power base. |
| Milk does not froth or froths poorly. | Incorrect whisk used; milk level too high/low; milk type unsuitable; whisk not properly installed. | Ensure frothing whisk is used; check milk levels are between MIN and MAX frothing lines; use fresh, cold milk with >3% fat content; ensure whisk is securely attached. |
| Milk overflows. | Milk level exceeds MAX frothing line. | Do not fill milk above the MAX frothing line (5 oz/150mL). |
| Milk is not hot enough. | Incorrect mode selected; milk level too high for heating. | Ensure heating mode is selected; do not exceed MAX heating line (10.1 oz/300mL). |
9. Warranty Information
The Homtronics 10 oz Electric Milk Frother and Steamer comes with a 1-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, alteration, neglect, or unauthorized repair.
10. Customer Support
If you have any questions, concerns, or require assistance with your Homtronics Milk Frother, please contact Homtronics customer support through the retailer where the product was purchased or visit the official Homtronics website for contact information.
