1. Product Overview

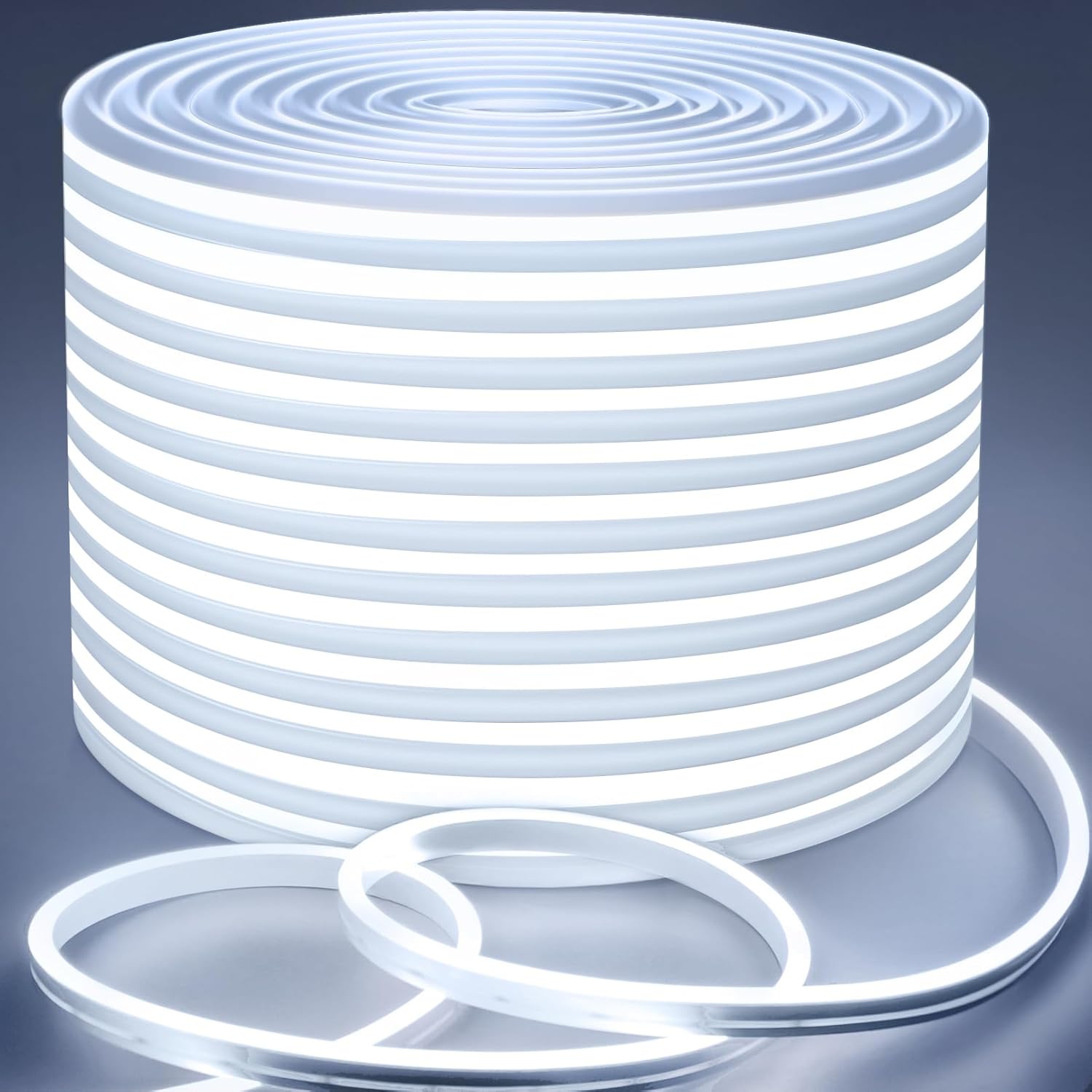

The Lamomo LED Strip Lights (Model CW-30M-US) are designed to provide versatile and customizable lighting for various indoor and outdoor applications. This 100-foot white dimmable neon LED rope light operates at 24V and features a 6000K color temperature, offering bright and even illumination.
Key features include:
- 6000K Color Temperature: Equipped with 3600 super bright white LEDs for a daylight white glow.
- Touchable Dimmable Controller: Allows for brightness adjustment from 10% to 100% and on/off control via a long-press/short-press mechanism.
- Cuttable & Extendable Design: Can be cut every 1.96 inches along marked lines for custom lengths and shapes.
- IP65 Waterproof Rating: Durable and weather-resistant silicone construction suitable for various environments, including heavy rain. Note: The power adapter is not waterproof.
- Flexible Silicone Material: Allows for easy bending and shaping to create unique lighting designs.
- Low Heat Operation: Works with 24V Direct Current, ensuring low heat output and safe touch for all ages.
2. Safety Information
Please read and follow all safety instructions to prevent injury or damage to the product.
- Ensure the power adapter and connections are kept indoors or in waterproof enclosures when using the strip lights outdoors. The power adapter is not waterproof.
- Only cut the neon light strip along the designated black marking lines (every 1.96 inches). Cutting elsewhere may damage the product.
- To prevent poor heat dissipation and potential damage, do not light up the neon strip while it is still rolled up. Unroll completely before use.
- Test the light's function before permanent installation or cutting.
- This product does not include an APP or remote control (for this specific model, control is via the touch dimmer).
3. Package Contents
Verify that all components are present in your package:
- 1 x Lamomo 100ft White Dimmable Neon LED Rope Light
- 1 x Touchable Dimmable Controller (integrated with power cable)
- Mounting clips (quantity sufficient for installation)
- Screws for mounting clips
4. Setup and Installation
The Lamomo LED Strip Lights are designed for easy installation and customization. Follow these steps for proper setup:
4.1 Planning Your Design
Before installation, plan the desired layout for your LED strip. The flexible nature of the strip allows for various shapes and patterns. Consider the length needed and where cuts will be made.
4.2 Cutting the Strip (Optional)
If a shorter length is required, the strip can be cut. Locate the black marking lines on the strip, which indicate safe cutting points (approximately every 1.96 inches). Use sharp scissors to make a clean cut at these designated marks.

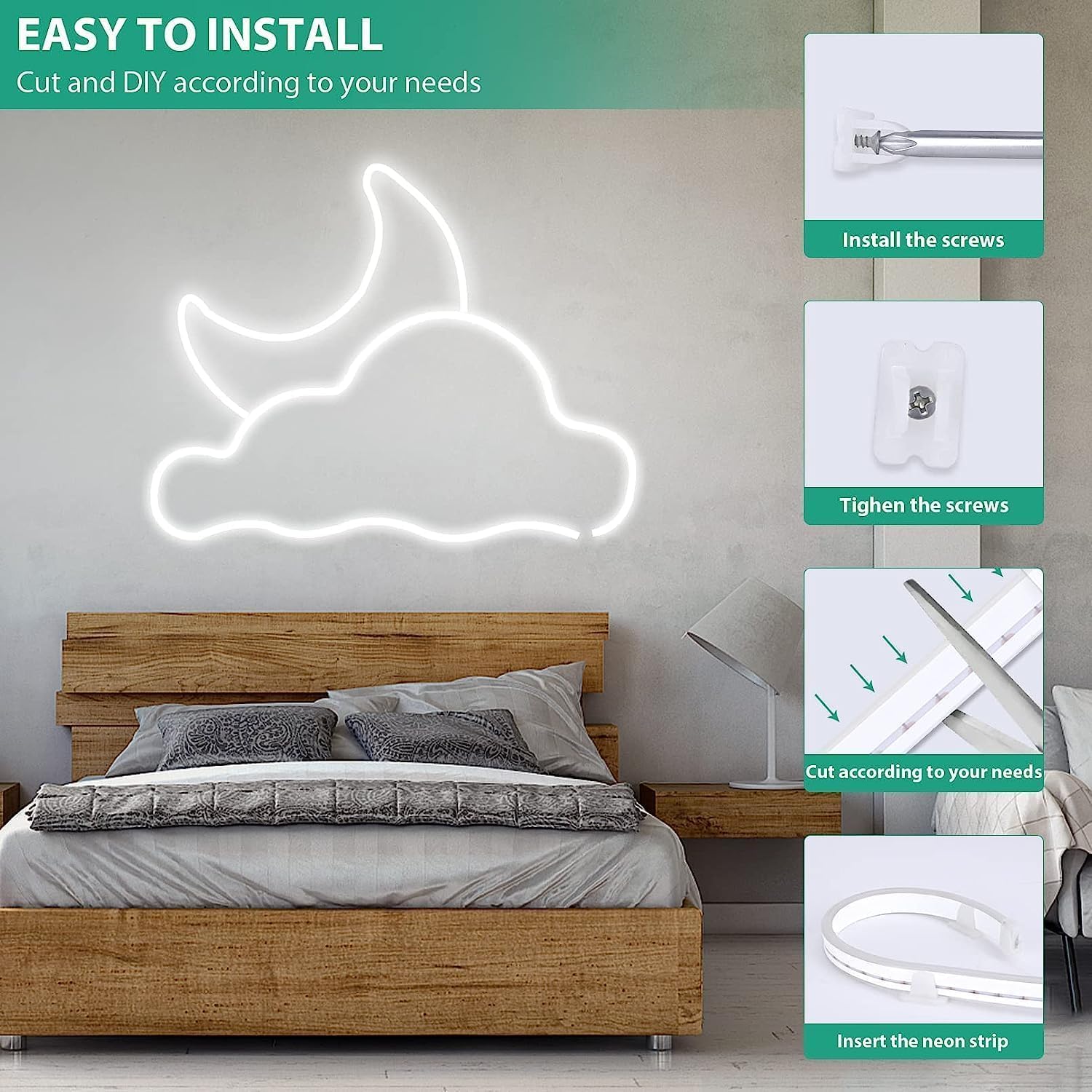

4.3 Mounting the Strip
The neon strip light does not have a self-adhesive backing. It is installed using the provided clips and screws.
- Position the strip in your desired location.
- Mark the points where clips will be installed to secure the strip.
- Install the screws into the marked positions.
- Secure the clips with the screws.
- Insert the neon strip into the installed clips.
4.4 Power Connection
Connect the integrated touchable dimmable controller to a standard power outlet. Ensure all connections are secure.
5. Operating Instructions
The Lamomo LED Strip Lights are controlled via the integrated touchable dimmable controller.
- Turn On/Off: Short press the power button on the controller.
- Adjust Brightness: Long press the power button to cycle through brightness levels (10% to 100%). Release the button when the desired brightness is reached.
6. Maintenance
To ensure the longevity and optimal performance of your Lamomo LED Strip Lights, follow these maintenance guidelines:
- Cleaning: Gently wipe the silicone surface of the strip with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners.
- Inspection: Periodically check the strip and connections for any signs of wear, damage, or loose fittings.
- Storage: If storing the lights for an extended period, ensure they are clean, dry, and coiled loosely to prevent damage.
7. Troubleshooting
If you encounter any issues with your Lamomo LED Strip Lights, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on. | No power supply; loose connection; faulty power adapter. | Check power outlet; ensure all connections are secure; try a different power adapter if available. |
| Lights flicker or dim unexpectedly. | Unstable power supply; damaged section of the strip. | Ensure stable power source; inspect the strip for visible damage. |
| Cannot adjust brightness. | Controller malfunction. | Ensure proper operation of the touch dimmer; if issues persist, contact customer support. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | Lamomo |
| Model Number | CW-30M-US |
| Color | White |
| Length | 100 Feet |
| Color Temperature | 6000 Kelvin |
| Voltage | 24 Volts (DC) |
| Wattage | 72 watts |
| Light Source Type | LED |
| Number of Light Sources | 3600 |
| Waterproof Rating | IP65 (strip only) |
| Control Method | Touch |
| Material | Silicone |
| Cut Distance | 1.96 inches (along black marks) |
| Beam Angle | 120 Degrees |
9. Warranty and Support
The Lamomo LED Strip Lights (Model CW-30M-US) come with a 3-year warranty. For warranty claims, technical support, or any product-related inquiries, please contact Lamomo customer service through the retailer where the product was purchased or visit the official Lamomo website.
