Product Overview
The Motocaddy New M5 GPS DHC Electric Cart is an advanced electric caddy designed to enhance your golf experience. It features a super-responsive crystal-clear 3.5" touchscreen display providing fast and accurate GPS data for over 40,000 courses. This model includes automatic Downhill Control (DHC), all-terrain tires, and an electronic parking brake for superior control on varied terrain. It also boasts a revolutionary CLICK ‘N’ CONNECT cable-free battery system and offers Bluetooth smartphone alerts and super-fast Wi-Fi updates.
Image: The Motocaddy M5 GPS DHC Electric Caddy Cart shown with a golf bag and the included ball markers.
Setup and Assembly
Before first use, ensure the battery is fully charged. The M5 GPS DHC features a compact folding design for easy transport and storage.
Unfolding the Caddy
- Place the folded caddy on a flat, stable surface.
- Release the main frame latch (refer to diagram in manual for exact location).
- Extend the handle upwards until it locks into place.
- Unfold the rear wheels and ensure they are securely locked.
- Extend the front wheel assembly.
Battery Installation and Charging
The M5 GPS DHC utilizes a CLICK ‘N’ CONNECT cable-free battery system.
- Locate the battery compartment on the caddy frame.
- Insert the battery firmly into the compartment until it clicks into place. The cable-free design ensures automatic connection.
- To charge, locate the pop-up charging port on the battery compartment. Connect the provided charger to the port and a power outlet.
- The battery automatically disconnects when the caddy is folded, preserving battery life.

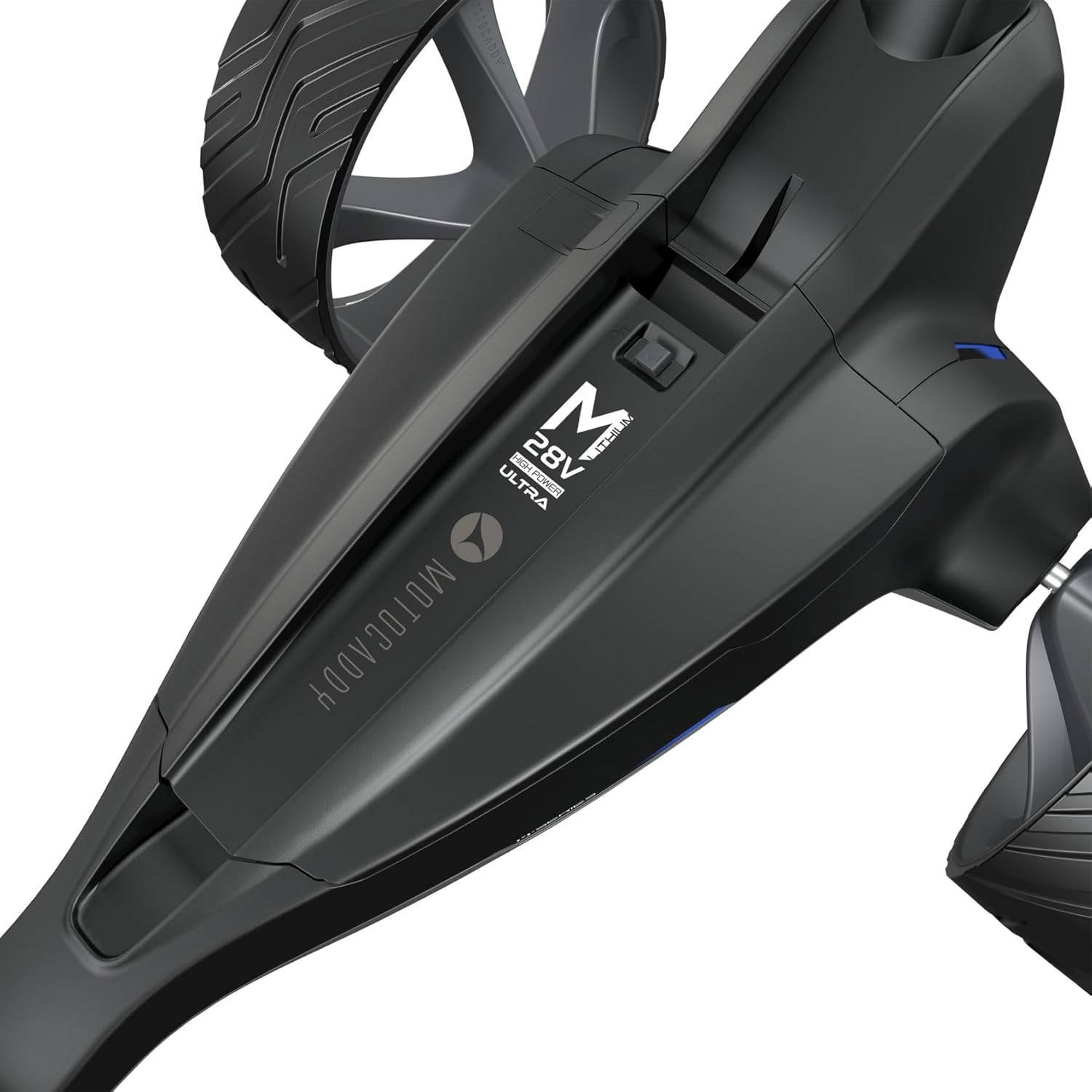

Image: A close-up view of the battery compartment on the Motocaddy M5 GPS DHC, highlighting the cable-free battery slot.
Operating the Motocaddy M5 GPS DHC
Touchscreen Display and GPS Functions
The 3.5-inch LCD touchscreen provides intuitive control and access to various features.
- GPS Navigation: Access accurate distances to the front, middle, and back of the green for over 40,000 pre-loaded courses.
- Hazard Information: View details on course hazards to plan your shots effectively.
- Dynamic Green View: Utilize the drag-and-drop pin feature for precise yardage to the flag.
- Shot Measurement: Track the distance of your shots.
- Round Timer: Monitor your pace of play.
- Smartphone Alerts: Receive Bluetooth-powered notifications directly on the caddy's screen.
- Wi-Fi Updates: Ensure your caddy's software and course data are always up-to-date with super-fast Wi-Fi updates.
Image: A detailed view of the Motocaddy M5 GPS DHC's 3.5-inch touchscreen, showing GPS information and controls.

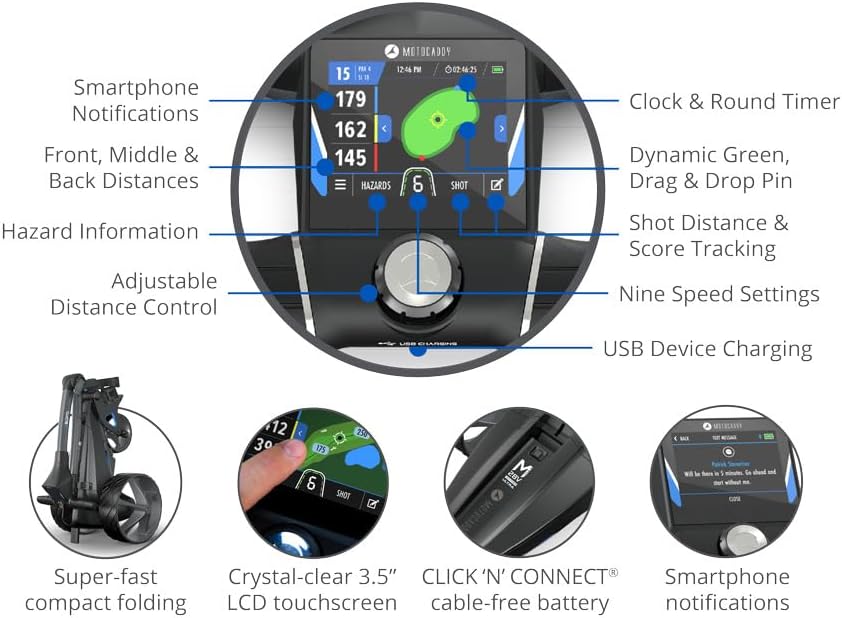

Image: An illustrative diagram highlighting various features accessible via the touchscreen, including smartphone notifications, distances, hazard info, adjustable distance control, nine speed settings, shot distance & score tracking, dynamic green, drag & drop pin, and USB device charging.
Downhill Control (DHC) and Electronic Parking Brake
The DHC feature automatically regulates the caddy's speed when moving downhill, providing hands-free control and preventing it from running away. The electronic parking brake ensures the caddy remains stationary on slopes, both uphill and downhill.
Video: A demonstration of the Motocaddy M5 GPS DHC, showcasing its features including the automatic Downhill Control and touchscreen interface. This video is provided by the seller, AMBA7.
Key Features
- Integrated GPS: Fast, accurate, high-performance GPS with pre-loaded data for over 40,000 golf courses worldwide.
- 3.5" Touchscreen Display: Crystal-clear, super-responsive display for easy navigation and control, usable in all weather conditions.
- Downhill Control (DHC): Automatically regulates speed on inclines for effortless control.
- Electronic Parking Brake: Holds the caddy securely on any slope.
- CLICK ‘N’ CONNECT Battery: Revolutionary cable-free battery with auto-disconnect and pop-up charging port for convenience.
- Smartphone Alerts: Receive notifications from your phone directly on the caddy's screen via Bluetooth.
- Wi-Fi Connectivity: Enables super-fast over-the-air updates for software and course data.
- Performance Plan Compatibility: Upgrade for full-hole mapping, detailed green views, and performance tracking (6-month free trial included).
- Adjustable Handle Height: Ergonomic handle grips with adjustable height for comfortable use.
- USB Charging Port: Convenient port for charging your devices on the go.
- All-Terrain Tires: Low-profile tires designed for various course conditions.
- Compact Folding: Super-fast compact folding mechanism for easy storage and transport.
Image: A comprehensive diagram illustrating key features such as adjustable bag supports, Easilock compatibility, cable-free Lithium battery, battery auto-disconnect, auto-open stand, whisper-quiet 230W motor, High Power 28V system, super-fast compact folding, adjustable handle height, USB port, nine speed settings, and 3.5" touchscreen.
Included Accessories
This bundle includes a range of useful accessories to complement your Motocaddy M5 GPS DHC Electric Caddy:
- Umbrella Holder
- Scorecard Holder
- Drink Holder
- Device Cradle
- 5 Ball Markers
- 1 Magnetic Hat Clip
Image: A visual representation of the included accessories: Cell Phone Cradle, Scorecard Holder, Umbrella Holder, and Drink Holder, attached to the caddy's accessory station.
Maintenance and Care
To ensure the longevity and optimal performance of your Motocaddy M5 GPS DHC, follow these maintenance guidelines:
- Cleaning: After each use, wipe down the caddy with a damp cloth to remove dirt and debris. Avoid using abrasive cleaners or solvents.
- Battery Care: Always fully charge the battery after each round. Store the battery in a cool, dry place when not in use. Do not leave the battery fully discharged for extended periods.
- Storage: Store the caddy in a dry environment, away from extreme temperatures. Ensure it is folded correctly to prevent damage.
- Wheel Maintenance: Regularly check the wheels for any debris or wear. Clean the wheel axles if necessary.
Troubleshooting
If you encounter any issues with your Motocaddy M5 GPS DHC, please refer to the following common troubleshooting steps:
- Caddy Not Powering On:
- Ensure the battery is fully charged and correctly inserted into the CLICK ‘N’ CONNECT port.
- Check for any visible damage to the battery or charging port.
- GPS Not Acquiring Signal:
- Ensure you are in an open area with a clear view of the sky.
- Verify that the GPS feature is enabled in the caddy's settings.
- Perform a Wi-Fi update to ensure the latest course data is installed.
- Downhill Control Not Engaging:
- Confirm that the DHC feature is active.
- Check for any obstructions around the wheels or motor.
- Touchscreen Unresponsive:
- Ensure the screen is clean and dry.
- Restart the caddy by powering it off and on again.
For persistent issues, please contact customer support.
Technical Specifications
| Feature | Specification |
|---|---|
| Model Name | Motocaddy New M5 GPS DHC |
| Display Size | 3.5 Inches |
| Screen Type | LCD Touchscreen |
| Voice Command | Touchscreen Interface |
| Connectivity Technology | Bluetooth, Wi-Fi |
| Map Type | Topographical (Full-hole mapping with Performance Plan) |
| Motor Power | Whisper-quiet 230W motor |
| Battery Type | Cable-free Lithium (CLICK ‘N’ CONNECT) |
| Mounting Type | Panel Mount |
| Sport | Golf |
Warranty Information
The Motocaddy New M5 GPS DHC Electric Caddy Cart comes with a 2-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full terms and conditions, refer to the official Motocaddy website or contact customer support.
Customer Support
For further assistance, technical support, or warranty inquiries, please contact AMBA7 customer service. You can typically find contact information on the manufacturer's official website or through your point of purchase.
Please have your product model number (Motocaddy New M5 GPS DHC) and serial number ready when contacting support.
