1. Introduction
Thank you for choosing the CAMIY KSW11 Cordless Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before first use and retain it for future reference.
The CAMIY KSW11 is designed for versatile cleaning across various surfaces, featuring powerful suction, an anti-tangle brush, and an advanced filtration system to ensure a clean and healthy living environment.
2. Important Safety Instructions
To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using an electrical appliance. Read all instructions before using this vacuum cleaner.
- Do not use outdoors or on wet surfaces.
- Do not allow to be used as a toy. Close attention is necessary when used by or near children.
- Use only as described in this manual. Use only manufacturer's recommended attachments.
- Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- Do not handle plug or appliance with wet hands.
- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not pick up toxic material, such as chlorine bleach, ammonia, or drain cleaner.
- Do not use without dust cup and/or filters in place.
- Turn off all controls before unplugging.
- Use extra care when cleaning on stairs.
- Do not charge the unit outdoors.
- Store the vacuum cleaner indoors in a cool, dry area.
3. Package Contents
Verify that all components are present and in good condition upon opening the package. If any items are missing or damaged, please contact customer support.
- CAMIY KSW11 Cordless Vacuum (Main Unit)
- Replaceable HEPA Filter
- 2-in-1 Brush and Long Crevice Nozzle
- Goose Head Cleaning Brush
- User Manual (this document)
- Power Adapter
- Wall Mount Plate and Hardware Bag
Image: All components of the CAMIY KSW11 Cordless Vacuum Cleaner, including the main unit, various attachments, wall mount, and filters.
4. Assembly
Follow these steps to assemble your CAMIY KSW11 Cordless Vacuum Cleaner:
- Attach the Extension Wand: Insert the metal extension wand into the main vacuum body until it clicks securely into place.
- Connect the Floor Brush: Attach the V-shaped anti-tangle floor brush to the other end of the extension wand, ensuring it locks firmly.
- Install Wall Mount (Optional): Choose a suitable location near a power outlet. Use the provided hardware to securely mount the wall plate. The vacuum can be stored and charged on this mount.
Image: The CAMIY KSW11 vacuum cleaner shown in different assembled forms, including stick vacuum and handheld configurations with various attachments.
5. Charging the Battery
Before first use, fully charge the vacuum cleaner for approximately 4-5 hours. The OLED screen will indicate the battery level.
- Direct Charging: Connect the power adapter directly to the charging port on the main vacuum body.
- Wall Mount Charging: If the wall mount is installed, simply place the vacuum cleaner onto the wall mount. Ensure the charging contacts align. The vacuum will automatically begin charging.
A full charge provides up to 70 minutes of runtime, depending on the selected power mode.
Image: The CAMIY KSW11 vacuum cleaner mounted on its wall charging station, with the power adapter connected.
6. Operating Instructions
6.1 Power On/Off and Suction Modes
- Power On: Press the power button located on the handle to turn on the vacuum cleaner.
- Adjust Suction: Use the mode selection button on the OLED screen to cycle through different suction power levels (e.g., Eco, Standard, Max). The OLED screen will display the current mode and battery percentage.
- Power Off: Press the power button again to turn off the vacuum cleaner.

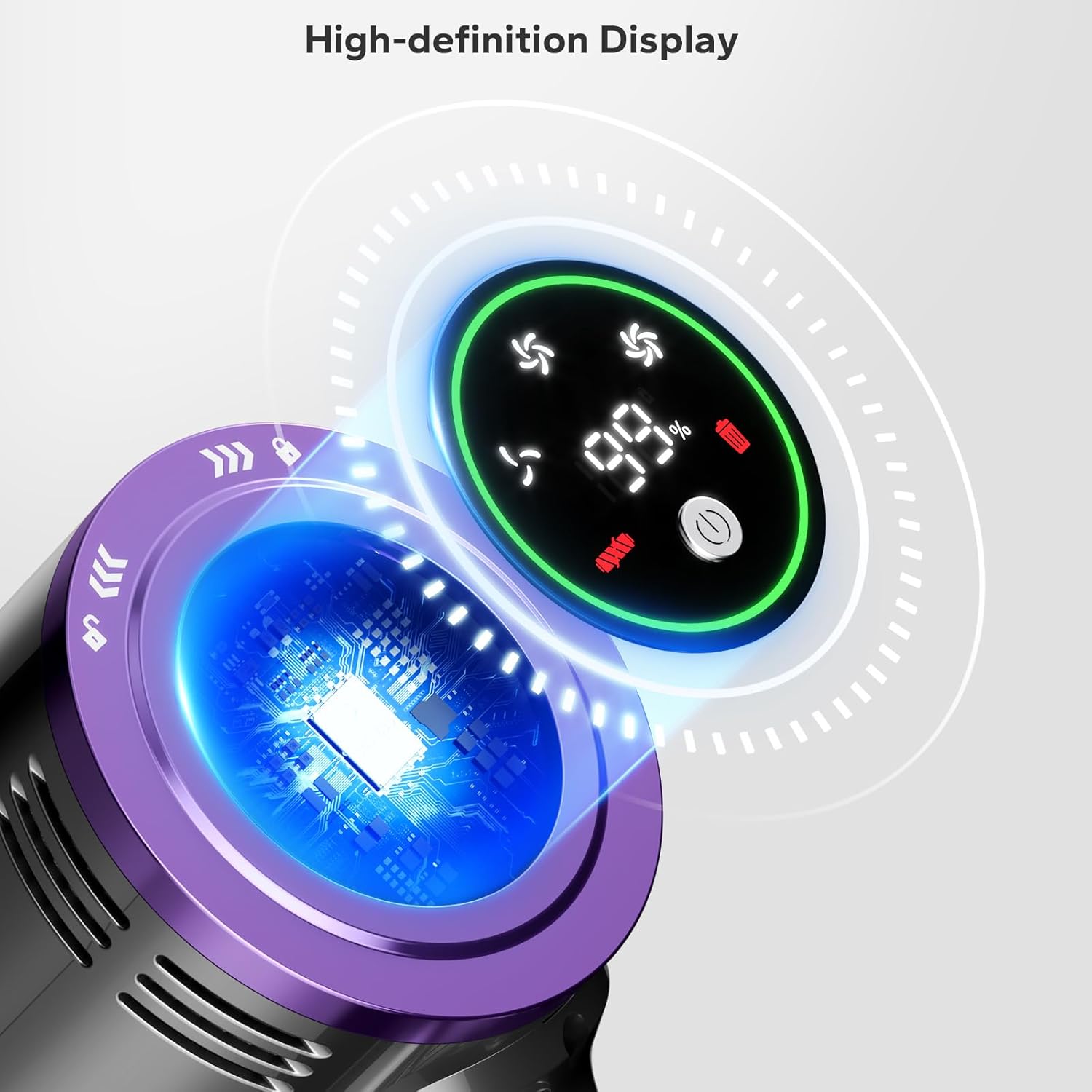

Image: A detailed view of the vacuum's OLED screen, showing battery percentage and suction mode indicators.
6.2 Using Attachments
The CAMIY KSW11 comes with multiple cleaning heads for various tasks:
- V-shaped Anti-tangle Floor Brush: Ideal for carpets, hard floors, and pet hair. The integrated LED lights illuminate dust in dark areas.
- 2-in-1 Brush and Long Crevice Nozzle: Use the crevice tool for tight spaces, corners, and edges. Extend the brush for upholstery, curtains, or delicate surfaces.
- Goose Head Cleaning Brush: Suitable for cleaning irregular surfaces or reaching awkward angles.
Image: The vacuum cleaner demonstrating the use of the crevice tool for tight spaces, the brush attachment for upholstery, and the main floor brush for general floor cleaning.
6.3 Cleaning Performance
The 550W motor provides up to 45Kpa of suction power, effectively removing dust, pet hair, and debris from various surfaces. The V-shaped anti-tangle brush is designed to prevent hair from wrapping around the roller, maintaining consistent performance.
Image: A woman operating the CAMIY KSW11 vacuum cleaner on a carpeted floor, demonstrating its use in a home environment.
Image: A close-up view of the anti-tangle floor brush in action, cleaning debris from both hard floor and carpet surfaces.
7. Maintenance
7.1 Emptying the Dust Cup
The 1.6L dust cup should be emptied regularly to maintain optimal suction performance. The OLED screen may display a "Dust-filled Tips" reminder.
- Hold the main unit over a trash bin.
- Press the one-touch release button on the dust cup to open the bottom flap and empty the contents.
- Close the dust cup flap securely until it clicks.

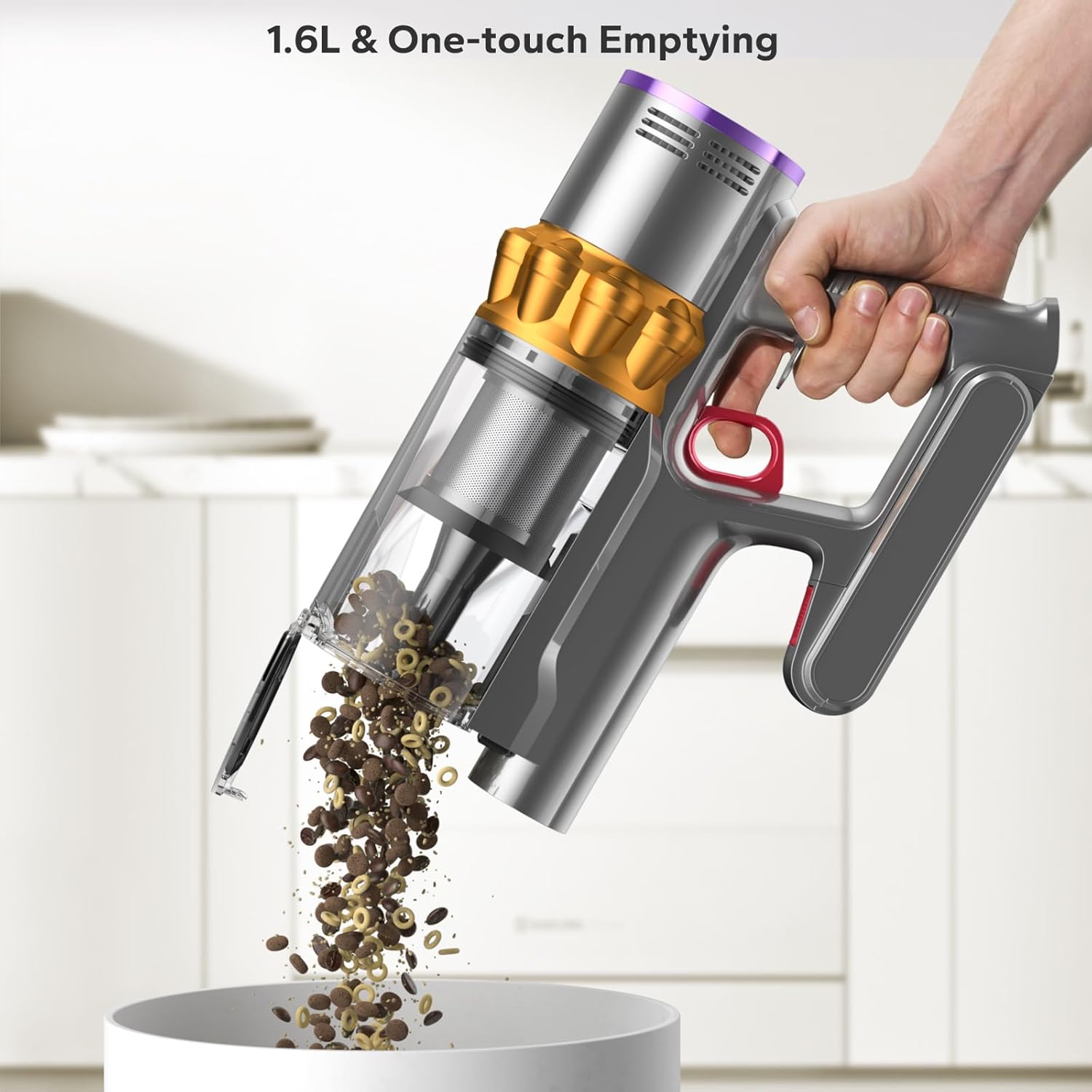

Image: A hand demonstrating the one-touch emptying mechanism of the 1.6L dust cup, releasing collected debris into a waste bin.
7.2 Cleaning the Filtration System
The 8-layer double vortex filtration system, including a HEPA filter, captures 99.99% of fine dust particles. Regular cleaning is essential for maintaining air quality and vacuum performance.
- Twist and remove the dust cup from the main unit.
- Carefully remove the internal filter components, including the HEPA filter.
- Tap the filters to dislodge dust. For thorough cleaning, rinse washable components under cold running water. Ensure all parts are completely dry before reassembling.
- Reassemble the filters and dust cup, ensuring all parts are securely in place.
Image: An illustration highlighting the internal 8-layer filtration system, designed to capture fine dust and release clean air.
7.3 Cleaning the Anti-tangle Brush
While designed to be anti-tangle, occasional inspection and cleaning of the brush roll may be necessary, especially if a "Tangle Reminder" appears on the OLED screen.
- Turn off the vacuum and detach the floor brush from the extension wand.
- Locate the brush roll release mechanism (usually a latch or screw) and remove the brush roll.
- Carefully remove any tangled hair or debris from the brush roll using scissors or a cleaning tool.
- Reinsert the brush roll and secure it in place.
8. Troubleshooting
If you encounter issues with your CAMIY KSW11, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on. | Battery is depleted. Power button not pressed correctly. | Charge the battery fully. Ensure the power button is pressed firmly. |
| Reduced suction power. | Dust cup is full. Filters are clogged. Brush roll is tangled. Obstruction in nozzle/wand. | Empty the dust cup. Clean or replace filters. Clean the brush roll. Check for and remove any blockages. |
| Brush roll not spinning. | Brush roll is tangled. Obstruction. | Clean the brush roll of tangled hair or debris. Check for and remove any blockages in the brush head. |
| Battery runtime is short. | Vacuum used on Max power mode. Battery not fully charged. Battery degradation over time. | Use lower power modes for longer runtime. Ensure battery is fully charged before use. Contact customer support if battery life significantly decreases. |
If the problem persists after attempting these solutions, please contact CAMIY customer support for further assistance.
9. Specifications
- Model: KSW11
- Brand: CAMIY
- Power/Wattage: 550W
- Suction Power: Up to 45Kpa
- Voltage: 29.6 Volts
- Dust Cup Capacity: 1.6 Liters
- Runtime: Up to 70 minutes (depending on mode)
- Noise Level: <60 Decibels
- Filter Type: HEPA Filter
- Special Features: OLED Smart Sensor Panel, V-shaped Anti-tangle Brush, Wall-mounted Charging, 8-Layer Filtration System, LED Headlights
- Item Weight: 4 kg
- Parcel Dimensions: 44.2 x 30.5 x 19.4 cm
10. Warranty and Customer Support
CAMIY provides a 2-year protection plan for the KSW11 Cordless Vacuum Cleaner. We are committed to providing excellent customer service.
- Service Support: 2 Years
- After-sales Service: 7*24 hours support
- Return Policy: 30 Days Unsatisfied Return/Refund
If you have any questions, concerns, or require assistance with your product, please do not hesitate to contact our efficient after-sales team. We are dedicated to resolving any issues you may encounter.
Image: Visual representation of CAMIY's customer support commitments, including 2 years of service support, 24-hour after-sales service, and a 30-day return/refund policy.
