Makute Gasoline Chainsaw GC2301 User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Makute GC2301 Gasoline Chainsaw. Please read and understand all instructions before using the chainsaw. Proper use and maintenance will ensure optimal performance and extend the life of the tool.

2. Safety Information

WARNING: Failure to follow these safety instructions can result in serious injury or death.

• Always wear appropriate personal protective equipment (PPE), including a helmet, eye protection, hearing protection, gloves, and safety boots.
• Ensure the work area is clear of bystanders, children, and pets.
• Inspect the chainsaw before each use for loose parts, damaged components, or fuel leaks.
• Never operate the chainsaw when fatigued, under the influence of alcohol, drugs, or medication.
• Maintain a firm grip with both hands on the chainsaw handles.
• Be aware of kickback potential and take precautions to avoid it.
• Refuel the chainsaw in a well-ventilated area with the engine off and cool.
• Store fuel in approved containers away from ignition sources.

3. Product Overview

The Makute GC2301 is a powerful gasoline chainsaw designed for heavy-duty wood cutting tasks. Familiarize yourself with its main components.

Figure 3.1: Overall view of the Makute GC2301 Gasoline Chainsaw, showcasing its robust design and key components like the guide bar, chain, and handles.

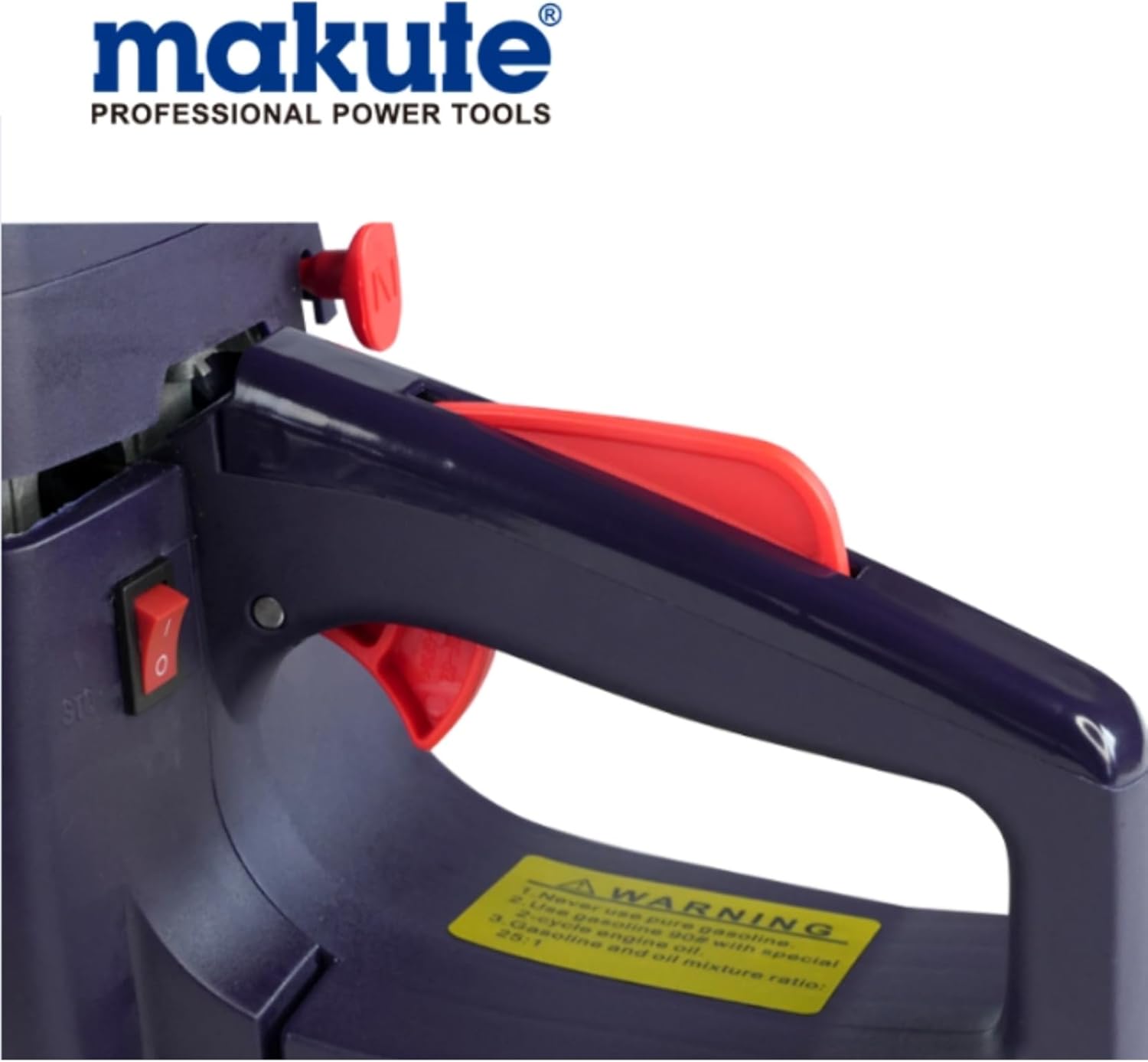

Figure 3.2: Close-up of the chainsaw's rear handle, throttle trigger, and safety switch, indicating user control points.

Key Components:

• Guide Bar: Supports and guides the saw chain.
• Saw Chain: The cutting element with sharp teeth.
• Front Handle: For stable two-hand operation.
• Rear Handle: Contains the throttle trigger and controls.
• Chain Brake: Safety feature to stop the chain quickly.
• Starter Rope: Used to manually start the engine.
• Fuel Tank Cap: For filling the fuel mixture.
• Oil Tank Cap: For filling chain lubricant oil.

4. Setup

4.1 Assembly

1. Unpacking: Carefully remove all components from the packaging.
2. Guide Bar and Chain Installation:
   • Remove the chain cover nuts and the chain cover.
   • Place the chain onto the sprocket and around the guide bar. Ensure the cutting edges of the chain teeth face forward in the direction of rotation.
   • Mount the guide bar onto the studs, ensuring the chain tensioner pin engages with the hole in the guide bar.
   • Replace the chain cover and hand-tighten the nuts. Do not fully tighten yet.
3. Chain Tension Adjustment:
   • Using the chain tensioning screw, adjust the chain tension. The chain should be snug against the guide bar but still able to be pulled freely by hand.
   • Once tension is correct, fully tighten the chain cover nuts.

Figure 4.1: Detail of the 20-inch guide bar and saw chain, illustrating the components involved in the cutting mechanism.

4.2 Fuel and Oil Mixture

The Makute GC2301 uses a 2-stroke engine and requires a specific fuel mixture.

• Fuel Mixture Ratio: Mix unleaded gasoline with high-quality 2-stroke engine oil at a ratio of 25:1 (25 parts gasoline to 1 part oil).
• Chain Lubricant: Fill the separate oil tank with dedicated chain and bar oil. Do not use engine oil for chain lubrication.

WARNING: Never use pure gasoline or automotive engine oil in the fuel tank. This will damage the engine and void the warranty.

5. Operating Instructions

5.1 Starting the Engine

1. Place the chainsaw on a firm, flat surface.
2. Engage the chain brake by pushing the front hand guard forward.
3. Set the choke lever to the 'Closed' position (if cold start).
4. Press the primer bulb several times until fuel is visible.
5. Pull the starter rope firmly and steadily until the engine fires briefly.
6. Move the choke lever to the 'Open' position.
7. Pull the starter rope again until the engine starts and runs.
8. Disengage the chain brake by pulling the front hand guard back.

5.2 Cutting Techniques

• Always maintain a balanced stance and firm grip.
• Allow the chain to reach full speed before beginning a cut.
• Avoid cutting with the tip of the guide bar to prevent kickback.
• Be aware of falling timber and rolling logs. Plan your escape route before cutting.
• For felling trees, make a notch cut first, then a felling cut from the opposite side.

5.3 Stopping the Engine

To stop the engine, simply move the ignition switch to the 'OFF' position.

6. Maintenance

Regular maintenance is crucial for the longevity and safe operation of your chainsaw.

6.1 After Each Use

• Clean the guide bar groove and oil holes.
• Clean the air filter.
• Check chain tension and sharpen if necessary.
• Inspect the chain brake for proper function.

6.2 Periodically

• Clean the spark plug and adjust the gap, or replace if worn.
• Clean the cooling fins to prevent overheating.
• Check all nuts and bolts for tightness.

6.3 Storage

• Drain the fuel tank or run the engine until it runs out of fuel.
• Clean the entire chainsaw thoroughly.
• Store in a dry, secure location away from children and ignition sources.

7. Troubleshooting

8. Specifications

9. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Makute customer service directly. Keep your purchase receipt as proof of purchase.
