RYOBI ONE+ 18V Cordless Multi Size Ratchet PCL280B User Manual

Introduction

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your RYOBI ONE+ 18V Cordless Multi Size Ratchet, model PCL280B. Please read this manual thoroughly before using the tool and retain it for future reference.

The RYOBI ONE+ 18V Multi-Size Ratchet is designed for versatility, offering compatibility with 1/4 inch, 3/8 inch, and 1/2 inch drive sockets. Its 1/2 inch anvil also accommodates 1/4 inch hex driver bits. This tool delivers up to 35 ft./lbs. of torque and 260 RPM, making it suitable for various automotive, installation, and assembly tasks. It features a 4-position rotating head, a variable speed metal paddle trigger, and dual LED worklights for enhanced visibility.

Included Components:

• PCL280 18V ONE+ Multi-Size Ratchet
• Reversible 1/4 in. and 3/8 in. Anvil
• 1/2 in. Anvil with 1/4 in. Hex Drive
• Operator’s Manual

Note: Battery and charger are sold separately.

Figure 1: RYOBI ONE+ 18V Cordless Multi Size Ratchet with included anvils.

Important Safety Instructions

Always follow basic safety precautions when using power tools to reduce the risk of fire, electric shock, and personal injury. Read all instructions before operating this tool.

General Power Tool Safety Warnings:

• Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators.
• Personal Safety: Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. Always wear eye protection. Use safety equipment such as dust masks, non-skid safety shoes, hard hats, or hearing protection when appropriate.
• Power Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Do not use the power tool if the switch does not turn it on and off. Disconnect the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
• Battery Tool Use and Care: Recharge only with the charger specified by the manufacturer. Use power tools only with specifically designated battery packs. When battery pack is not in use, keep it away from other metal objects.
• Service: Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Product Features

The RYOBI ONE+ 18V Cordless Multi Size Ratchet PCL280B incorporates several features designed for efficiency and user convenience:

• Multi-Size Anvils: Compatible with 1/4 in., 3/8 in., and 1/2 in. drive sockets. The 1/2 in. anvil also accepts 1/4 in. hex driver bits.
• High Performance: Delivers up to 35 ft./lbs. of torque and 260 RPM for efficient fastening and loosening.
• Variable Speed Metal Paddle Trigger: Provides precise control over the tool's speed.
• 4-Position Rotating Head: Allows access to fasteners in various angles and tight spaces.
• Dual On-Board LED Worklights: Illuminates the work area for improved visibility in dimly lit conditions.
• RYOBI 18V ONE+ System Compatibility: Works with all RYOBI 18V ONE+ batteries.

Figure 2: Key features of the PCL280B Multi-Size Ratchet.

Assembly and Setup

Battery Installation:

1. Ensure the tool is off.
2. Align the ribs on the battery pack with the grooves in the tool's battery port.
3. Slide the battery pack into the tool until it clicks securely into place.
4. To remove, press the battery release latch and pull the battery pack out.

Anvil Installation and Changing:

The ratchet comes with a reversible 1/4 in. and 3/8 in. anvil, and a 1/2 in. anvil with a 1/4 in. hex drive. Switching between anvils is a straightforward process:

1. Ensure the tool is off and the battery is removed.
2. Locate the release latch on the ratchet head.
3. Slide the release latch to unlock the currently installed anvil.
4. Carefully remove the anvil.
5. Select the desired anvil (1/4 in./3/8 in. reversible or 1/2 in. with 1/4 in. hex).
6. Insert the new anvil into the ratchet head, ensuring it is fully seated.
7. Release the latch to secure the anvil in place. Gently pull on the anvil to confirm it is locked.

Figure 3: Ratchet head indicating anvil sizes and rotation mechanism.

Figure 4: Ratchet head with anvil rotated for different drive sizes.

Operation

Using the Ratchet:

1. Select Anvil and Socket/Bit: Install the appropriate anvil for your task. Attach the correct size socket or 1/4 inch hex bit to the anvil.
2. Adjust Rotating Head: The ratchet head can be rotated to four different positions. Pull the collar back (labeled "PULL TO ROTATE") and rotate the head to the desired angle for optimal access in tight spaces. Release the collar to lock the head in position.
3. Engage Fastener: Place the socket or bit onto the fastener.
4. Activate Tool: Press the variable speed metal paddle trigger to start the tool. The speed can be controlled by the amount of pressure applied to the trigger.
5. LED Worklights: The dual LED worklights will activate when the trigger is pressed, illuminating your work area.
6. Direction of Rotation: The direction of rotation (forward/reverse) is typically controlled by a switch or lever on the ratchet head. Ensure it is set correctly for tightening or loosening.

Figure 5: Using the reversible 1/4 inch and 3/8 inch anvil for automotive tasks.

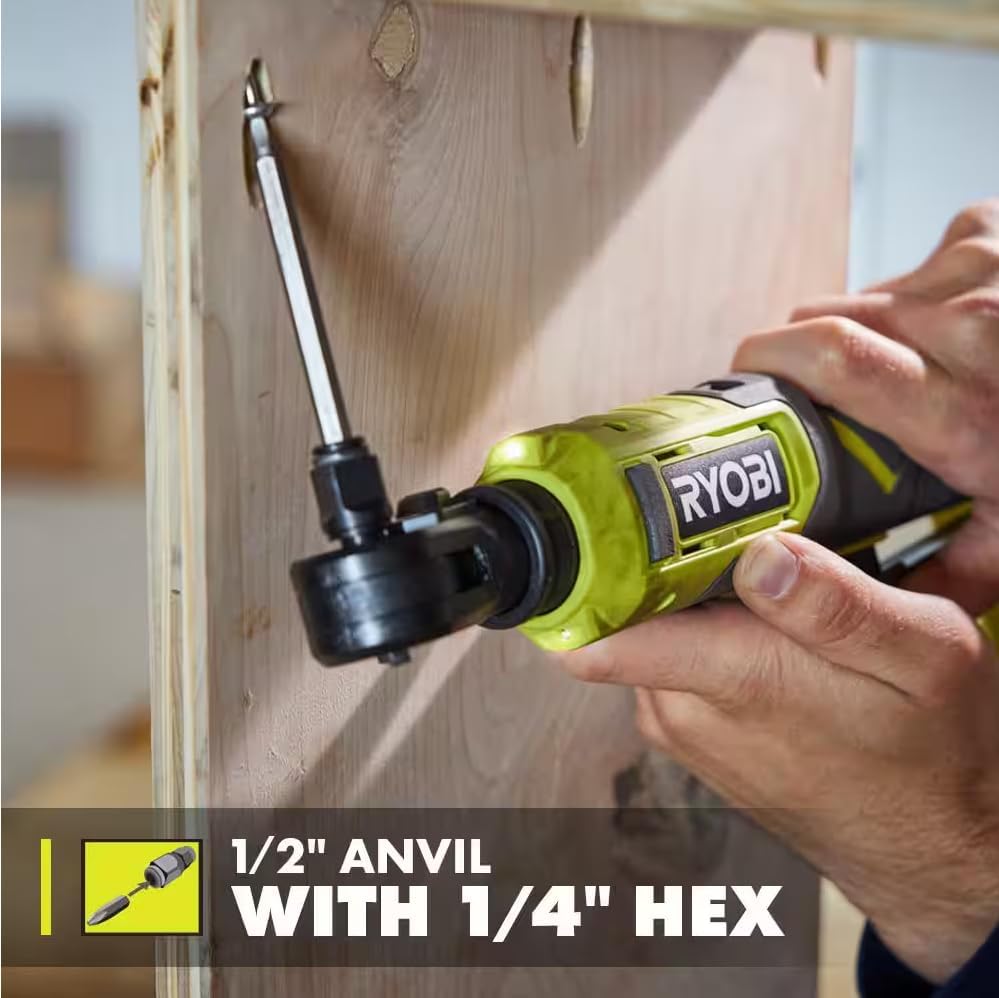

Figure 6: Driving screws with the 1/2 inch anvil and 1/4 inch hex bit.

Figure 7: Demonstrating the ratchet's torque capability on a wooden structure.

Figure 8: Utilizing the 4-position rotating head for access in confined areas.

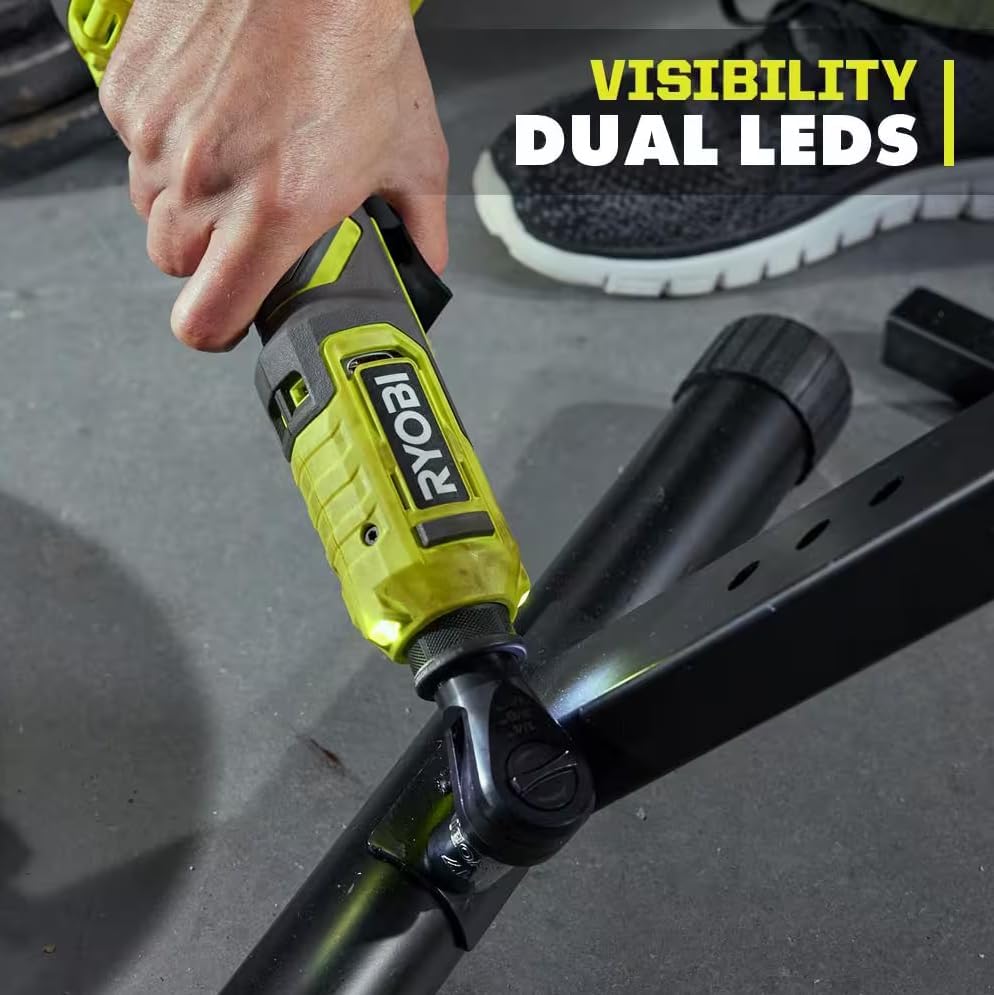

Figure 9: Dual LED worklights illuminating the task.

Maintenance

Regular maintenance ensures optimal performance and extends the life of your tool.

Cleaning:

• Always disconnect the battery pack before cleaning.
• Use a clean, dry cloth to wipe dirt, dust, oil, grease, and other debris from the tool.
• Do not use solvents or harsh chemicals, as these can damage plastic parts.
• Keep the ventilation openings free of obstructions to prevent overheating.

Storage:

• Store the tool in a cool, dry place, away from direct sunlight and moisture.
• Ensure the battery pack is removed before storing for extended periods.
• Store the tool and accessories out of reach of children.

Troubleshooting

If you encounter issues with your RYOBI ONE+ 18V Cordless Multi Size Ratchet, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact RYOBI customer support.

Specifications

Warranty and Support

Manufacturer's Warranty:

The RYOBI ONE+ 18V Cordless Multi Size Ratchet (PCL280B) is backed by the RYOBI 3-Year Manufacturer's Warranty. This warranty covers defects in material and workmanship from the date of purchase. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, refer to the official RYOBI warranty documentation or website.

Customer Support:

For technical assistance, service, or to inquire about replacement parts, please contact RYOBI customer support. You can typically find contact information on the official RYOBI website or through the contact details provided with your product packaging.

Online Support: Visit the official RYOBI Tools Support website for FAQs, product registration, and service center locations.
