1. Introduction
Thank you for choosing a Beko appliance. This user manual provides important information regarding the installation, operation, and maintenance of your Beko B5XRCNA366 combined refrigerator. Please read this manual thoroughly before using your appliance to ensure safe and efficient operation. Keep this manual for future reference.
The Beko B5XRCNA366 is a 366-liter combined refrigerator featuring No Frost technology, a ProSmart™ Inverter Compressor, AeroFlow cooling, and HarvestFresh technology to keep your food fresh longer.
2. Safety Information
Before installation and use, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages resulting from incorrect installation or usage.
- This appliance is intended for household use only.
- Ensure the appliance is unplugged before performing any maintenance or cleaning.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
- Keep ventilation openings clear of obstruction.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- The appliance must be earthed.
3. Product Overview
The Beko B5XRCNA366 combined refrigerator offers advanced features for optimal food preservation.
Key Features:
- HarvestFresh™ Technology: A 3-light system in the crisper drawer mimics the sun's 24-hour cycle, preserving vitamins in fruits and vegetables longer.
- AeroFlow™ Cooling System: Minimizes temperature fluctuations and ensures homogeneous air distribution for lasting freshness across all shelves.
- ProSmart™ Inverter Compressor: Provides faster cooling, lower energy consumption, and quieter operation compared to conventional compressors.
- Total No Frost: Prevents ice build-up in both the refrigerator and freezer compartments, eliminating the need for manual defrosting.
- Metallic Finish: Durable and stylish exterior.
4. Setup and Installation
4.1. Unpacking
- Remove all packaging materials, including protective films and tapes.
- Check the appliance for any transport damage. If damaged, do not connect it to the power supply and contact your retailer.
4.2. Placement
- Place the appliance on a firm, level surface.
- Ensure adequate ventilation around the appliance. Leave at least 10 cm of space at the back and sides for proper air circulation.
- Avoid placing the appliance near heat sources (e.g., ovens, radiators, direct sunlight) or in excessively cold environments.
- The climate class is SN-T, meaning it is suitable for ambient temperatures between 10°C and 43°C.
4.3. Leveling
Adjust the front leveling feet to ensure the appliance is stable and level. This helps to reduce vibration and noise.
4.4. Electrical Connection
- Ensure the voltage and frequency indicated on the rating plate match your household power supply.
- The appliance must be properly earthed.
- Do not use extension cords or multiple sockets.
- Wait at least 4 hours after moving the appliance before plugging it in to allow the refrigerant to settle.
5. Operating Instructions
5.1. Initial Startup
After plugging in the appliance, allow it to run for several hours (e.g., 6-12 hours) before placing food inside. This ensures the compartments reach the correct operating temperatures.
5.2. Temperature Settings
The refrigerator and freezer temperatures can be adjusted via the electronic control panel, typically located inside the refrigerator compartment or on the door. Refer to the specific controls on your model for precise adjustment.
5.3. HarvestFresh™ Drawer
The HarvestFresh™ drawer is designed to preserve the vitamin content of fruits and vegetables. It uses a 3-color light system (green, blue, red) that simulates the natural daylight cycle. Simply place your produce in this drawer for extended freshness.

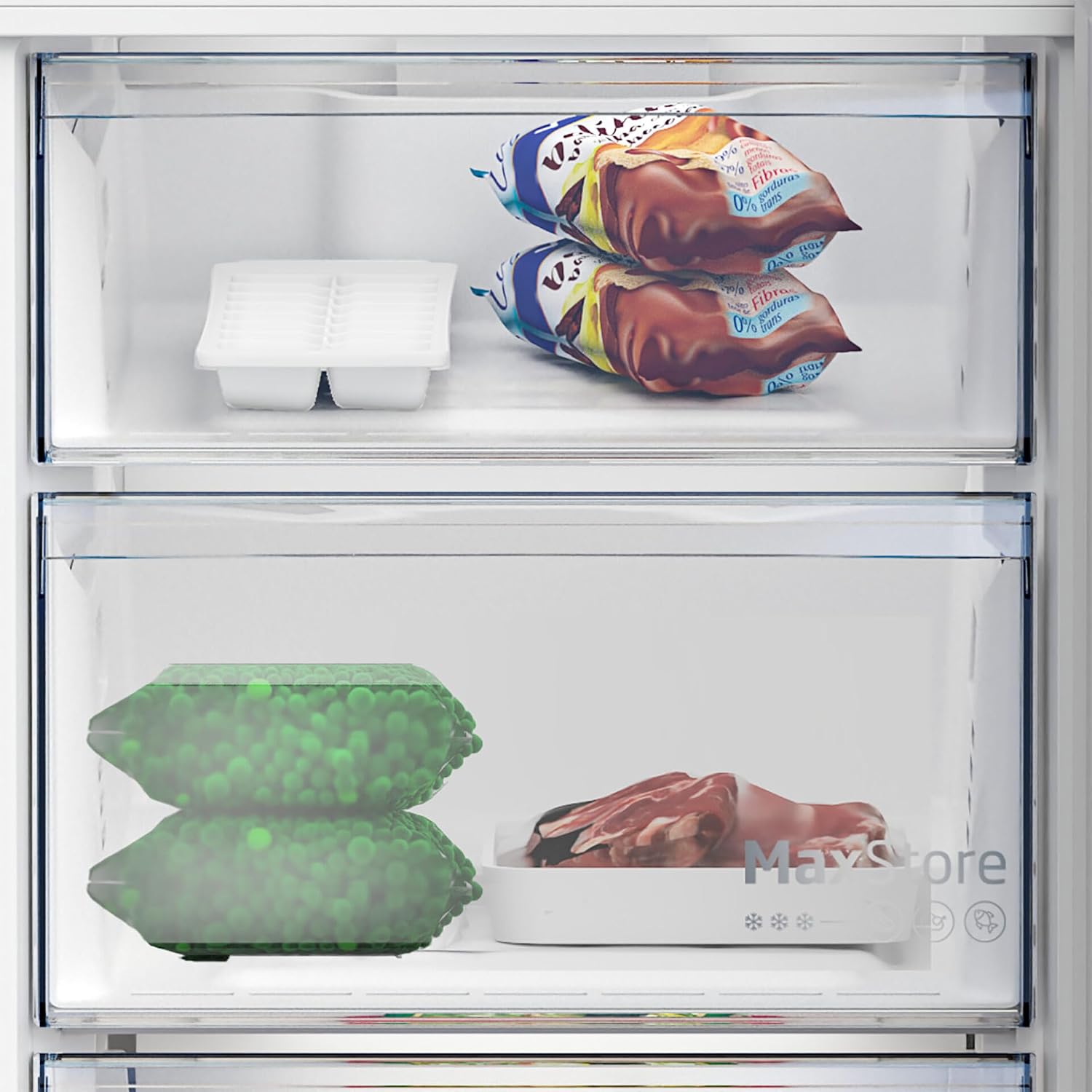

5.4. MaxStore Freezer Drawers
The freezer compartment includes MaxStore drawers, providing ample space for larger frozen items. These drawers are designed for efficient storage and easy access.
6. Maintenance and Cleaning
6.1. Cleaning the Interior
- Always unplug the appliance before cleaning.
- Clean the interior regularly with a solution of lukewarm water and a mild, non-abrasive detergent.
- Wipe dry thoroughly after cleaning.
- Do not use abrasive cleaners, scouring pads, or solvents.
6.2. Cleaning the Exterior
- Wipe the exterior surfaces with a soft cloth dampened with water and a mild detergent.
- For metallic surfaces, use a specialized stainless steel cleaner if necessary, following the product instructions.
6.3. Defrosting
This appliance features Total No Frost technology, meaning manual defrosting is not required for either the refrigerator or freezer compartments.
6.4. Door Seals
Regularly check and clean the door seals to ensure they are free from food particles and remain flexible. A tight seal is crucial for energy efficiency.
7. Troubleshooting
Before contacting customer service, check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not operate | No power supply; plug not inserted correctly; fuse blown. | Check power connection; check household fuse. |
| Temperature is not cold enough | Door opened too frequently; large amount of warm food added; temperature setting too high; poor ventilation. | Avoid frequent door openings; allow food to cool before placing inside; adjust temperature setting; ensure proper ventilation. |
| Excessive noise | Appliance not level; objects touching the back wall; compressor noise (normal). | Adjust leveling feet; ensure nothing touches the back; compressor noise is normal for inverter models. |
| Water on the bottom of the refrigerator compartment | Drain hole blocked. | Clean the drain hole with a small, soft tool. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | B5XRCNA366HXB |
| Total Net Capacity | 316 Liters |
| Net Refrigerator Capacity | 210 Liters |
| Net Freezer Capacity | 106 Liters |
| Dimensions (H x W x D) | 187 cm x 60 cm x 67 cm |
| Weight | 70 kg |
| Energy Efficiency Class | C |
| Annual Energy Consumption | 165 kWh |
| Noise Emission | 35 dB |
| Climate Class | SN-T |
| Defrost System | No Frost |
| Door Hinge | Right |
| Material | Stainless Steel (Door) |
9. Warranty and Customer Support
For warranty information, please refer to the warranty card provided with your appliance or contact your retailer. Beko appliances typically come with a manufacturer's warranty covering defects in materials and workmanship.
If you encounter any issues that cannot be resolved using the troubleshooting guide, please contact Beko customer support or your authorized service center. Have your appliance model number (B5XRCNA366HXB) and serial number ready when contacting support.
For general inquiries or to find a service center, visit the official Beko website or consult the documentation included with your purchase.
