Introduction
Thank you for choosing the STAALGUARD ST30-Pro Dog Training Collar. This manual provides comprehensive instructions for the safe and effective use of your new training device. This collar is designed to assist in positive reinforcement training through sound, vibration, and boost modes, without the use of electric shock, in compliance with animal welfare regulations. Please read this manual thoroughly before use to ensure optimal performance and the well-being of your dog.
Image: The STAALGUARD ST30-Pro Dog Training Collar and its remote control, showcasing the product design.
Safety Information
- No Electric Shock: This training collar operates exclusively with sound, vibration, and boost modes. It does not use electric shock.
- Proper Fit: Ensure the collar is fitted correctly to prevent skin irritation. It should be snug enough for the contact points to touch the skin, but loose enough to allow two fingers to fit comfortably under the strap.
- Water Resistance: The collar is IP67 waterproof, suitable for swimming and outdoor activities. The remote control is IP42 rated and is not waterproof; avoid exposing it to water.
- Supervised Use: Always supervise your dog during training sessions. Do not leave the collar on your dog for extended periods (more than 12 hours per day).
- Age and Health: This collar is suitable for dogs of all life stages and sizes. Consult a veterinarian if your dog has any skin conditions or health concerns before use.
Package Contents
Upon opening your STAALGUARD ST30-Pro package, you should find the following items:
- 1x Dog Training Collar
- 1x Remote Control
- 1x USB Type-C Charging Cable
- 1x Lanyard for Remote Control
- 1x User Manual (this document)

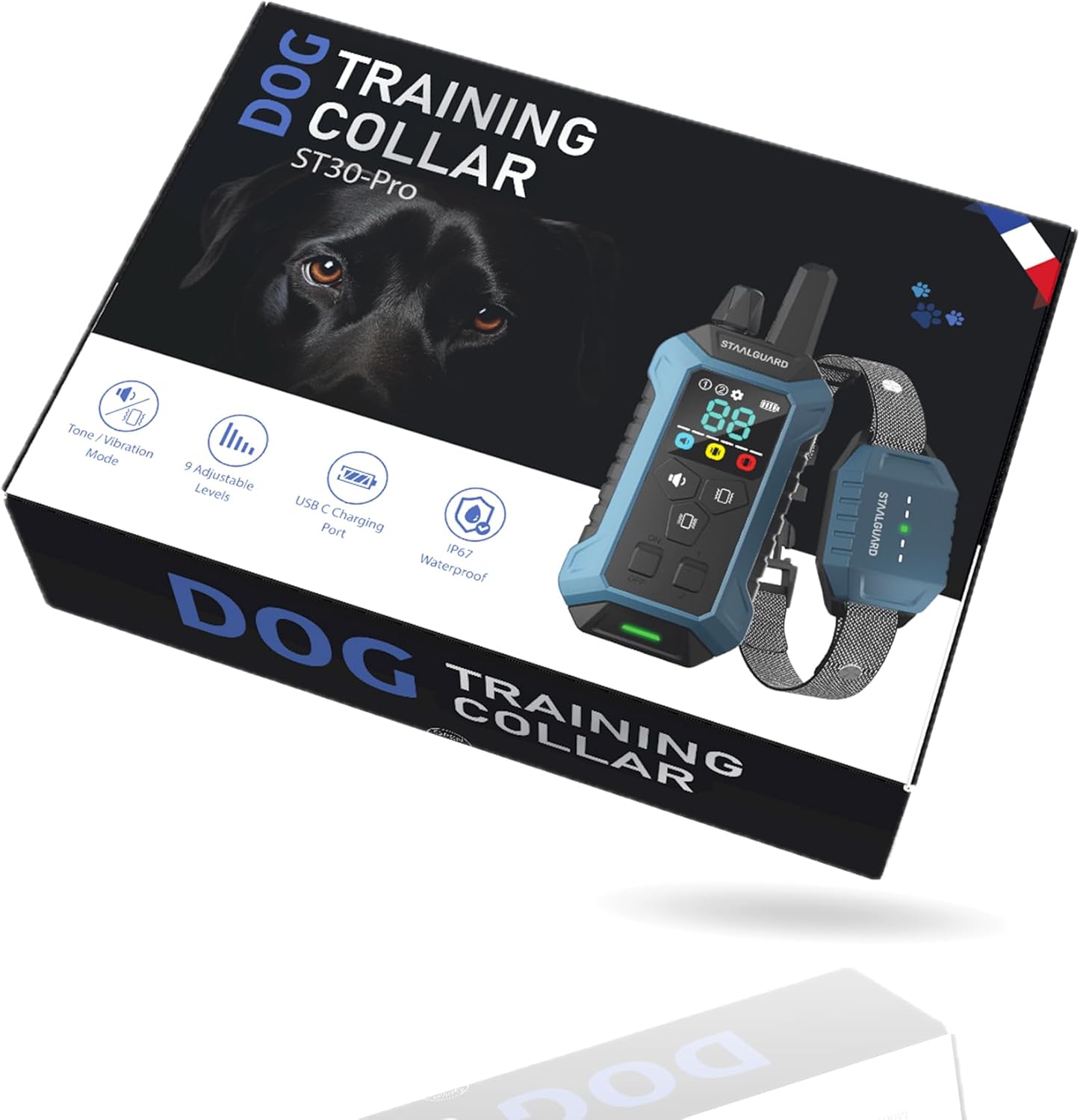

Image: The STAALGUARD ST30-Pro Dog Training Collar, remote, and accessories as they appear in the product packaging.
Product Overview
Collar Unit
- Compact and Lightweight: Weighing only 42g, designed for comfort and discretion.
- Waterproof: IP67 rated, making it suitable for all weather conditions and water activities.
- Adjustable Strap: Fits neck sizes from 10 cm to 65 cm, accommodating dogs of all sizes.
- Redesigned Contact Points: Engineered to minimize irritation while ensuring effective signal transmission.
Image: A close-up view of the STAALGUARD ST30-Pro training collar, highlighting its adjustable strap and compact design.
Remote Control
- Extended Range: Operates effectively up to 3000 meters (3 km), ideal for outdoor training.
- Intuitive LCD Screen: Color display for clear visibility of settings and battery status.
- Multi-Collar Control: Capable of controlling up to two collars simultaneously (additional collars sold separately).
Image: The remote control for the STAALGUARD ST30-Pro, showing its LCD screen and control buttons.
Setup
1. Charging the Devices
Before initial use, fully charge both the training collar and the remote control.
- Connect the USB Type-C charging cable to the charging port on both devices.
- Plug the other end into a standard USB power adapter (not included).
- A full charge typically takes approximately 2 hours.
- The collar offers up to 30 days of autonomy on a single charge, depending on usage.
Image: Close-up of the collar unit showing the USB-C charging port and contact points.
2. Pairing the Collar and Remote
The collar and remote are typically pre-paired from the factory. If re-pairing is needed:
- Ensure both devices are fully charged and turned off.
- Turn on the remote control.
- Press and hold the power button on the collar until the indicator light flashes rapidly.
- Within 10 seconds, press any mode button (Sound, Vibration, or Boost) on the remote.
- A successful pairing will be indicated by a solid light on the collar and a confirmation on the remote's LCD screen.
3. Fitting the Collar
Proper fit is crucial for comfort and effectiveness:
- Place the collar around your dog's neck, ensuring the contact points are positioned on the underside of the neck.
- Adjust the strap so it is snug but not too tight. You should be able to fit two fingers comfortably between the collar and your dog's neck.
- Trim any excess strap length if necessary, ensuring the buckle remains secure.
Image: Illustration demonstrating the correct fitting of the STAALGUARD ST30-Pro collar on dogs of different sizes, highlighting the adjustable range.
Operating Instructions
The STAALGUARD ST30-Pro offers three distinct training modes, each with 9 adjustable intensity levels.
Image: A dog wearing the STAALGUARD ST30-Pro collar, illustrating the three training modes: Sound, Vibration, and Boost Vibration.
Training Modes
- Sound (BIP) Mode: Emits an audible tone. This is often used as an initial warning or for basic commands.
- Vibration Mode: Delivers a gentle vibration. This mode provides a tactile cue to your dog.
- Boost Vibration Mode: Provides a stronger vibration (20% more intense than standard vibration). Use this for more persistent behaviors or in distracting environments.
Adjusting Levels
Each mode has 9 adjustable levels. To change the intensity:
- Use the dedicated buttons on the remote control to select the desired mode.
- Rotate the dial on the remote or use the up/down buttons (if applicable) to adjust the intensity level from 1 to 9.
- Start with the lowest effective level and gradually increase if necessary.
Image: The remote control in hand, demonstrating the ease of adjusting training levels and controlling multiple collars.
Long Range Operation
The remote control offers an impressive range of up to 3000 meters, allowing for effective training even at a distance. This is particularly useful for recall training in open spaces.
Image: Two dogs running in an open field, illustrating the 3000-meter range capability of the STAALGUARD ST30-Pro training system.
Maintenance
Cleaning
- Collar: The collar strap can be hand-washed with mild soap and water. Ensure the electronic module is securely sealed before cleaning.
- Electronic Module: Wipe the module and contact points with a damp cloth. Ensure they are completely dry before recharging or re-attaching to the strap.
- Remote Control: Clean the remote with a dry, soft cloth. Do not use harsh chemicals or immerse in water.
Battery Care
- To prolong battery life, avoid fully discharging the devices frequently.
- Charge the devices regularly, especially if they will be stored for an extended period.
- Store in a cool, dry place away from direct sunlight.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Collar not responding to remote | Low battery on either device; Devices not paired; Out of range. | Charge both devices; Re-pair the collar and remote; Ensure devices are within the 3000m range. |
| Collar causes skin irritation | Collar too tight; Worn for too long; Improper contact point placement. | Adjust collar fit; Limit wear time to 12 hours; Reposition contact points; Consult a vet if irritation persists. |
| Short operating range | Environmental interference (e.g., thick walls, large metal objects); Low battery. | Move to an open area; Ensure both devices are fully charged. |
| Collar not waterproof | Charging port cover not securely closed; Damage to the collar unit. | Ensure the USB-C port cover is tightly sealed; Inspect for damage. If damaged, discontinue use. |
Specifications
- Model: ST30-Pro
- Collar Weight: 42g
- Product Dimensions (L x W x H): 16.9 x 12 x 4.5 cm (package dimensions); Collar unit is smaller.
- Battery Type: 2 Lithium-ion (included)
- Battery Autonomy: Up to 30 days
- Charging Time: Approximately 2 hours (USB Type-C)
- Waterproof Rating (Collar): IP67
- Waterproof Rating (Remote): IP42 (Splash-proof, not submersible)
- Operating Range: Up to 3000 meters (3 km)
- Training Modes: Sound (BIP), Vibration, Boost Vibration
- Intensity Levels: 9 levels for each mode
- Material: Nylon (collar strap)
- Manufacturer: Staalguard
- Country of Origin: China
Warranty and Support
STAALGUARD products are designed for durability and performance. For any questions, technical assistance, or warranty claims, please contact our customer support team. Details for contacting support can typically be found on the product packaging or the retailer's website where the product was purchased.
Please retain your proof of purchase for warranty purposes.
