Introduction
Thank you for choosing the Bomann KSE 7810 Integrated Refrigerator with Freezer. This manual provides essential information for the safe installation, efficient operation, and proper maintenance of your appliance. Please read these instructions carefully before using the refrigerator and keep them for future reference.
This appliance offers a total capacity of 118 liters, with 104 liters dedicated to the refrigerator compartment and 14 liters to the freezer compartment, designed to meet your food storage needs.
Safety Information
To ensure safe operation, always adhere to the following safety guidelines:
- Ensure the appliance is properly grounded.
- Do not damage the refrigerant circuit.
- Keep ventilation openings clear of obstructions.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- This appliance is intended for household use only.
- Supervise children to ensure they do not play with the appliance.
- Disconnect the appliance from the power supply before cleaning or maintenance.
For detailed safety instructions, refer to the complete manual provided with your appliance.
Setup and Installation
Unpacking
Carefully remove all packaging materials, including protective films and tapes. Inspect the appliance for any damage during transit. Keep packaging materials out of reach of children.
Placement
Install the refrigerator on a firm, level surface. Ensure adequate ventilation around the appliance. Avoid placing it near direct sunlight, heat sources (e.g., stoves, radiators), or in excessively humid environments. Allow sufficient space for the door to open fully.
The appliance is designed for integrated installation. Refer to the diagram below for precise dimensions and clearances required for proper integration into your cabinetry.
Image: Installation dimensions for the Bomann KSE 7810 integrated refrigerator with freezer. The diagram shows the required cabinet dimensions (height 876-886mm, width 550mm, depth >=38mm) and appliance dimensions (height 893mm, width 540mm, depth 540mm) for proper built-in installation.
Electrical Connection
Connect the appliance to a 240V power supply using the Type F (German) two-pin plug. Ensure the socket is easily accessible and properly grounded. Do not use extension cords or multiple socket adapters.
Door Reversibility
The door hinge is reversible, allowing you to change the door opening direction to suit your kitchen layout. This process requires specific tools and should be performed by a qualified technician or by carefully following the detailed instructions in the full manual.
Image: The interior of the Bomann KSE 7810 refrigerator, highlighting the reversible door hinge feature, which allows the door to open from either the left or right side.
Operating Instructions
First Use
Before plugging in, clean the interior of the appliance with a damp cloth. After connecting to power, allow the refrigerator to run for at least 2-3 hours before placing food inside, to ensure it reaches the optimal temperature.
Temperature Control
The refrigerator features stepless temperature regulation. Use the adjustable thermostat to set the desired cooling level. The recommended temperature range for the refrigerator compartment is 0°C to +8°C. The freezer compartment maintains a temperature of -18°C or lower for long-term storage.

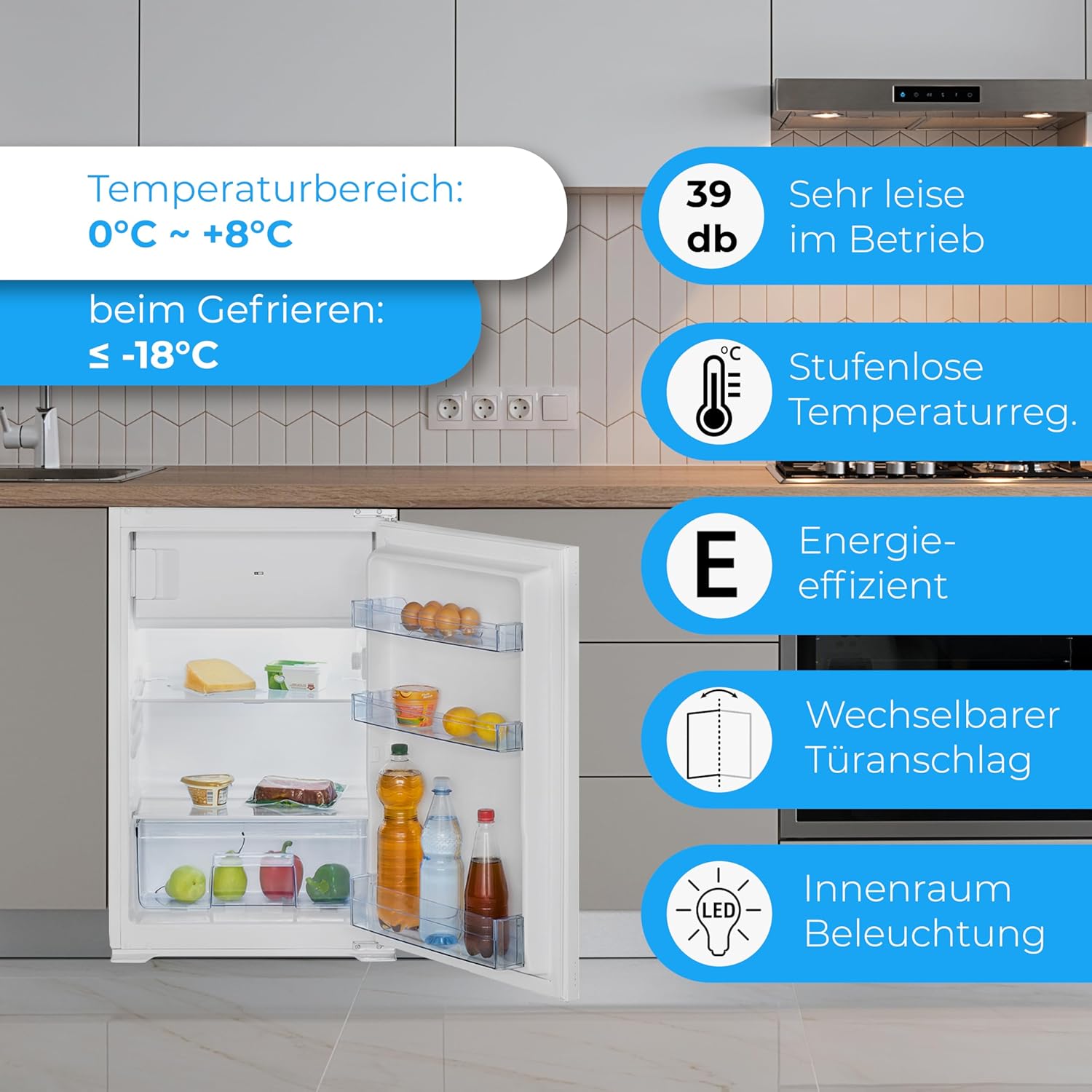

Image: The interior of the Bomann KSE 7810 refrigerator, illustrating the temperature range of 0°C to +8°C for the fridge and <= -18°C for the freezer. Also highlights features like quiet operation (39 dB), stepless temperature regulation, energy efficiency (Class E), reversible door hinge, and interior LED lighting.
Food Storage
The appliance provides a total of 118 liters capacity, with 104 liters for fresh food and 14 liters for frozen items.
- Refrigerator Compartment (104 Liters): Ideal for fresh produce, dairy, and beverages.
- Freezer Compartment (14 Liters): Suitable for storing frozen foods.
Image: The interior of the Bomann KSE 7810 refrigerator, with a blue circle indicating the total 118-liter capacity.
Internal Features
- Adjustable Glass Shelves: The refrigerator includes 2 adjustable glass shelves, allowing flexible storage arrangements.
- Door Shelves: Three door shelves provide convenient storage for bottles and smaller items, including space for large bottles. An egg tray is also included.
- Vegetable Crisper: A transparent vegetable crisper helps keep fruits and vegetables fresh.
Image: The interior of the Bomann KSE 7810 refrigerator, showcasing two adjustable glass shelves and a transparent vegetable crisper at the bottom.
Image: The door of the Bomann KSE 7810 refrigerator, featuring three door shelves, including space for large bottles, and an integrated egg tray. The image also mentions a visual alarm function for an open door.
Image: The interior of the Bomann KSE 7810 refrigerator, displaying various food items stored on glass shelves and door shelves, demonstrating the appliance's storage versatility.
Freezer Storage Guidelines
The 14-liter freezer compartment is rated with 4 stars, suitable for long-term storage of frozen foods. Refer to the table below for recommended storage durations based on temperature ratings.
Image: A table detailing freezer star ratings, corresponding temperatures, and recommended storage durations for the Bomann KSE 7810 freezer compartment.
Maintenance
Cleaning
Regularly clean the interior and exterior of your refrigerator. Before cleaning, always unplug the appliance. Use a soft cloth and a mild detergent solution. Avoid abrasive cleaners or sharp objects that could damage surfaces. Dry thoroughly after cleaning.
Defrosting
The Bomann KSE 7810 features an automatic defrost system, minimizing the need for manual defrosting in both the refrigerator and freezer compartments. If any ice buildup occurs, refer to the full manual for detailed defrosting procedures.
Power Failure
In the event of a power failure, the appliance can maintain the temperature for up to 10 hours, provided the door remains closed. Avoid opening the door unnecessarily during a power outage to preserve internal temperatures.
Troubleshooting
If you experience issues with your refrigerator, consult the following common troubleshooting tips before contacting service:
- Appliance not cooling: Check if the power plug is securely inserted and if there is power to the outlet. Ensure the temperature control is set correctly.
- Unusual noises: Verify the appliance is level and not touching any walls or cabinets.
- Door not closing properly: Check for obstructions, ensure shelves are correctly placed, and inspect the door seal for damage.
- Visual Alarm Function: The appliance is equipped with a visual alarm (flashing interior light) that activates if the door is left open for an extended period. Close the door to deactivate the alarm.
For more complex issues, refer to the detailed troubleshooting section in your full user manual or contact customer support.
Specifications
| Feature | Specification |
|---|---|
| Brand | Bomann |
| Model Number | KSE 7810 (Part No.), 778101 (Model No.) |
| Configuration | Integrated Top-Freezer Refrigerator |
| Total Capacity | 118 Liters |
| Refrigerator Net Capacity | 104 Liters |
| Freezer Net Capacity | 14 Liters |
| Dimensions (D x W x H) | 54 cm x 54 cm x 89 cm |
| Defrost System Type | Automatic |
| Energy Consumption (Annual) | 142 kWh/year |
| Voltage | 240 Volts |
| Power Plug | Type F (German) Two-Pin Plug |
| Noise Level | 39 dB |
| Refrigerant | R-600A |
| Door Hinge | Reversible |
| Number of Shelves | 2 (Glass) |
| Number of Door Shelves | 3 |
| Storage Time in Case of Failure | Max. 10 hours |
| Included Components | 2 glass shelves, 3 door shelves, egg tray, mounting material, manual, transparent vegetable crisper |
For more detailed product information, including the official product data sheet and energy label, please refer to the following resources:
Image: The Bomann KSE 7810 Product Data Sheet, providing comprehensive technical specifications and compliance information.
Image: The Bomann KSE 7810 Energy Label, displaying energy efficiency class E, annual energy consumption (142 kWh/annum), refrigerator capacity (104 L), freezer capacity (14 L), and noise level (39 dB).
You can also find the official EPREL registration for this product at: https://eprel.ec.europa.eu/qr/1871712
Warranty and Support
Warranty Information
This Bomann KSE 7810 refrigerator comes with a 3-year limited manufacturer's warranty. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use conditions.
Customer Support
For technical assistance, spare parts, or warranty service, please contact Bomann customer support. Contact details can typically be found on the manufacturer's official website or in the full product manual.
Manufacturer: C. Bomann GmbH
Website: www.bomann-germany.de
Email: info@bomann.de
Phone: +49 2152 8998-0
Address: Heinrich-Horten-Straße 17, 47906 Kempen, Germany
