Product Overview
The daylight Electra™ Table Lamp is designed to provide versatile and high-quality illumination for various tasks, including art, crafts, and office work. It features adjustable color temperatures, a dimmer switch, and a flexible arm for precise light placement.
Figure 1: The Electra Table Lamp, showcasing its sleek black design and flexible arm.
1. Setup Instructions
1.1 Unpacking
Carefully remove all components from the packaging. Ensure all parts listed below are present:
- Electra Table Lamp unit (flexible arm with light head and base)
- Power Adapter
- Instruction Manual (this document)
1.2 Assembly
The Electra Table Lamp comes largely pre-assembled. Follow these steps to prepare it for use:
- Place the weighted base on a stable, flat surface such as a desk or table.
- Insert the flexible arm's bottom end firmly into the designated slot on the weighted base. Ensure it is securely seated to prevent tipping.
- Connect the power adapter cable to the lamp's power input port, typically located at the base of the flexible arm.
- Plug the power adapter into a standard electrical outlet (120V AC).
Figure 2: The lamp assembled and placed on a surface, highlighting its flexible design.
2. Operating Instructions
2.1 Power On/Off
The lamp is controlled by a tactile dimmer switch located on the lamp head. Press the switch once to turn the lamp on or off.
2.2 Adjusting Brightness (Dimmer)
While the lamp is on, press and hold the tactile dimmer switch. The brightness will gradually increase or decrease. Release the switch when the desired brightness level is reached. The lamp offers a brightness range up to 2500 Lux at 12 inches.
2.3 Changing Color Temperature
The Electra Table Lamp features three distinct color temperature modes. To cycle through these modes, quickly press the tactile dimmer switch multiple times (do not hold). The available color temperatures are:
- Daylight (6000K): Ideal for tasks requiring high focus and true color rendering, such as detailed artwork or technical drawing.
- Cool White (4000K): Provides a balanced, neutral light suitable for general office work, reading, or crafting.
- Warm Light (2700K): Creates a relaxing and comfortable ambiance, perfect for unwinding or casual reading.

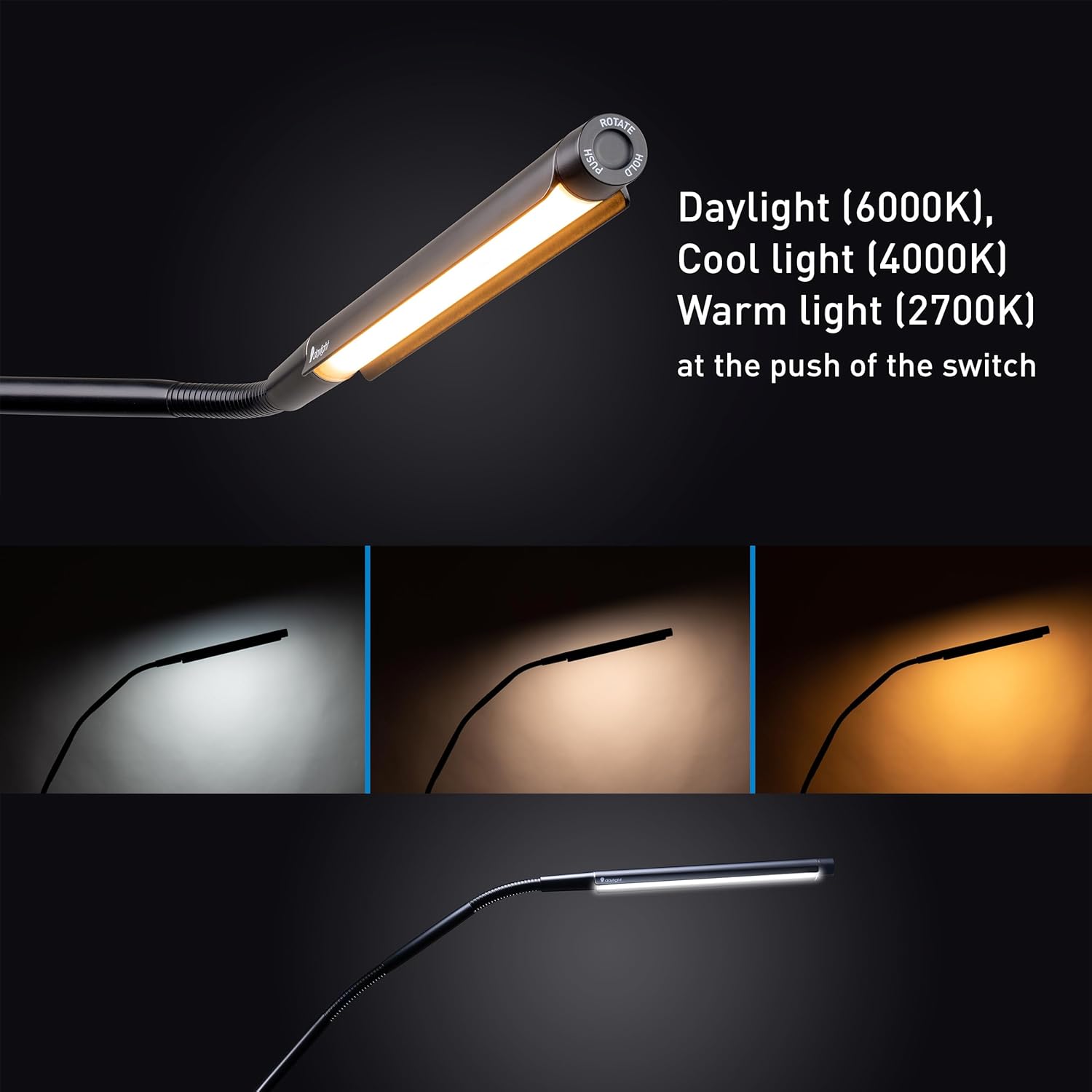

Figure 3: Visual representation of the three adjustable color temperatures.
2.4 Positioning the Flexible Arm
The lamp is equipped with a 3-joint flexible arm, allowing for precise light placement. Gently bend and adjust the arm to direct the light exactly where needed. The 12-inch shade provides wide and even illumination over your workspace.
Figure 4: Demonstrating the flexibility of the lamp's arm for optimal positioning.
2.5 Rotating Anti-Glare Shade
The lamp head features a rotating anti-glare shade. This allows you to adjust the direction of the light and minimize glare, enhancing visual comfort during extended use.
Figure 5: Detail of the rotating anti-glare shade for glare reduction.
3. Maintenance
3.1 Cleaning
To clean the lamp, ensure it is unplugged from the power outlet. Use a soft, dry cloth to wipe down the surfaces. For stubborn marks, a slightly damp cloth can be used, followed by a dry cloth. Avoid abrasive cleaners, solvents, or excessive moisture, as these can damage the finish or electrical components.
3.2 LED Light Source
The Electra Table Lamp utilizes integrated LED technology, which has a long lifespan (rated for 25,000 hours). The LEDs are not user-replaceable. If the light source fails, please refer to the warranty information.
3.3 General Care
- Do not attempt to disassemble the lamp.
- Avoid placing the lamp in areas with high humidity or extreme temperatures.
- Ensure the power cable is not pinched or placed under heavy objects.
4. Troubleshooting
If you encounter issues with your Electra Table Lamp, please consult the table below before contacting customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. |
|
|
| Light flickers or is unstable. |
|
|
| Dimmer or color temperature adjustment not working. |
|
|
For issues not listed above or if solutions do not resolve the problem, please contact daylight customer support.
5. Technical Specifications
| Feature | Detail |
|---|---|
| Model Name | Electra Table Lamp |
| Item Model Number | U35221 |
| Light Source Type | LED |
| Wattage | 13 watts |
| Brightness | Up to 2500 Lux (at 12") |
| Color Temperatures | 6000K (Daylight), 4000K (Cool White), 2700K (Warm Light) |
| CRI (Color Rendering Index) | 95+ |
| Product Dimensions | 2.83"D x 17.2"W x 12.91"H |
| Item Weight | 2.4 Pounds |
| Base Material | Metal |
| Shade Material | Metal |
| Finish Type | Satin (Black) |
| Switch Type | Toggle (Tactile Dimmer) |
| Power Source | Corded Electric |
| Cable Length | 87 inches |
| LED Rated Life | 25,000 hours |
| UPC | 809802352214 |
6. Warranty & Support
6.1 Manufacturer's Warranty
The daylight Electra™ Table Lamp is covered by a 2-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
Figure 6: The 2-year guarantee ensures product longevity and reliability.
6.2 How to Claim Warranty or Seek Support
If you experience an issue with your lamp that you believe is covered under warranty, or if you require further assistance, please contact The Daylight Company customer support. You may be required to provide proof of purchase.
For more information, visit the official daylight website or refer to the contact details provided with your purchase documentation.
Online Resources: daylight Official Store on Amazon
