1. Introduction
Thank you for choosing the Bomann KSE7812 Integrated Refrigerator and Freezer. This manual provides essential information for the safe installation, operation, and maintenance of your appliance. Please read these instructions carefully before use and keep them for future reference.
2. Safety Information
To ensure safe operation, please observe the following safety guidelines:
- Ensure the appliance is properly grounded before connecting to power.
- Do not damage the refrigerant circuit. If damaged, avoid open flames and ventilate the room.
- Keep ventilation openings clear of obstruction.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- Before cleaning or maintenance, always unplug the appliance from the power supply.
3. Setup and Installation

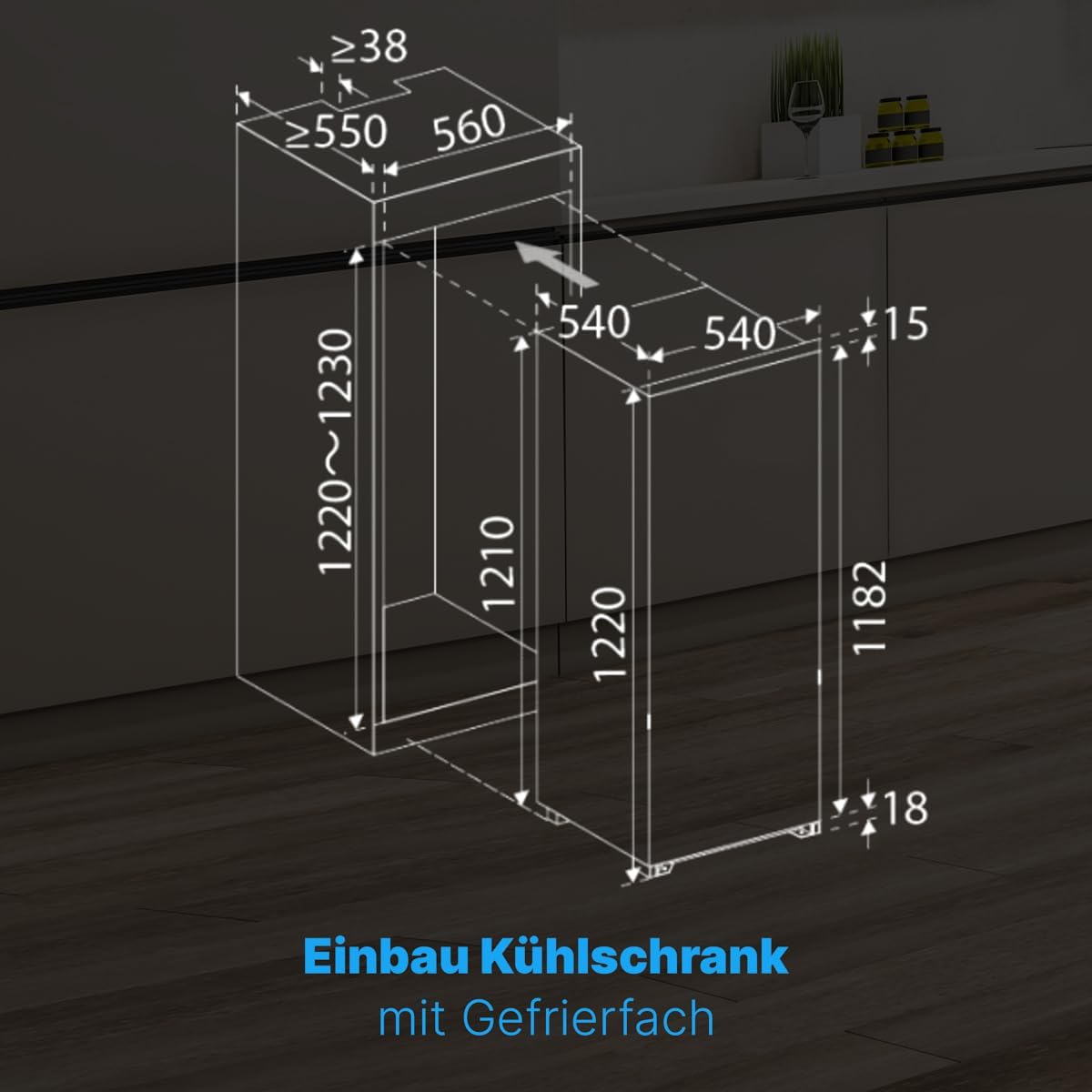

3.1 Installation Dimensions
Refer to the diagram below for the required installation dimensions for your built-in refrigerator with freezer compartment.
3.2 Placement
Install the appliance in a dry, well-ventilated room. Avoid direct sunlight and proximity to heat sources such as stoves or radiators, as this can increase energy consumption. Ensure adequate air circulation around the appliance.
3.3 Door Reversibility
The appliance features a reversible door hinge, allowing you to adapt the door opening direction to your kitchen layout. Consult a qualified technician or the detailed installation instructions for reversing the door.
3.4 First Use
Before first use, clean the interior of the appliance with lukewarm water and a mild detergent. After cleaning, allow the appliance to stand for at least 2-4 hours before plugging it into the power outlet. This allows the refrigerant to settle.
4. Operating the Appliance
4.1 Electronic Temperature Control
The appliance is equipped with electronic temperature control for precise and continuous adjustment. LED control lights provide clear indication of the current settings, allowing you to easily monitor internal conditions.
4.2 Refrigerator Compartment

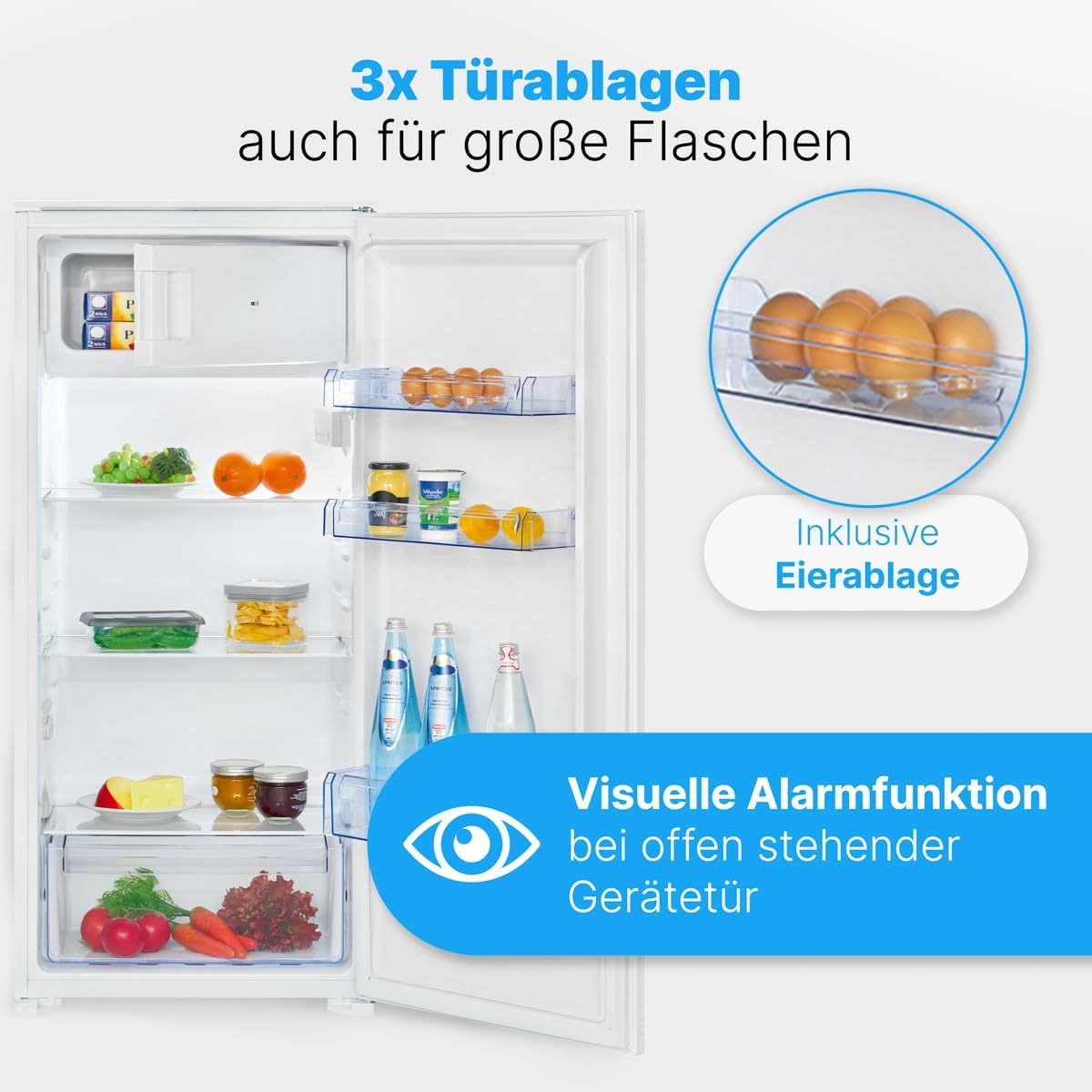

The refrigerator compartment offers a net capacity of 167 liters, ideal for daily and weekly groceries. It includes adjustable glass shelves and a dedicated vegetable drawer for optimal storage of fresh produce.
4.3 Freezer Compartment
The 14-liter freezer compartment is a 4-star rated freezer, ensuring optimal preservation of your frozen food at temperatures of -18°C or less. It features a super freezing function to quickly freeze fresh food, preserving its taste and texture.
4.4 Interior Lighting
The refrigerator is equipped with energy-efficient LED interior lighting, providing optimal visibility to easily find your food, even in low light conditions.

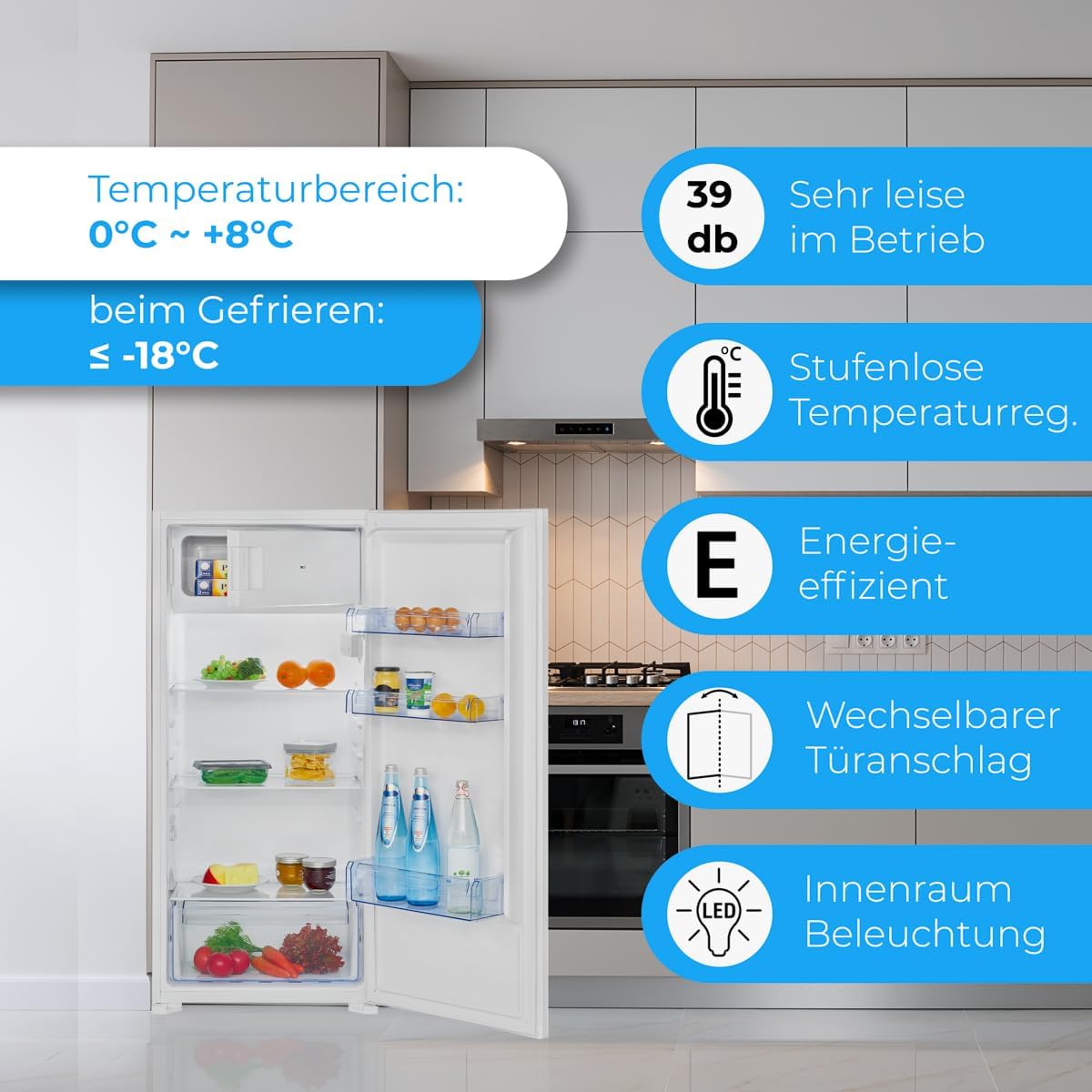

4.5 Key Features Overview
5. Maintenance and Cleaning
5.1 Cleaning the Interior
Regularly clean the interior of the appliance with a soft cloth, lukewarm water, and a mild, non-abrasive detergent. Avoid using harsh chemicals or abrasive cleaners that could damage surfaces. Dry thoroughly after cleaning.
5.2 Defrosting the Freezer
The freezer compartment requires manual defrosting. When the ice layer reaches a thickness of about 3-5 mm, defrost the freezer. Turn off the appliance, remove all food, and allow the ice to melt naturally. Collect the water and dry the interior thoroughly before restarting.
6. Troubleshooting
Before contacting customer service, please check the following common issues:
- Appliance not cooling: Check if the power plug is securely inserted, the fuse is intact, and the temperature setting is correct.
- Excessive noise: Ensure the appliance is level and not touching any walls or furniture. Check for loose parts.
- Water on the bottom of the refrigerator: The drain hole for defrost water might be blocked. Clean it carefully.
- Door alarm sounding: Ensure the door is fully closed and not obstructed.
If the problem persists after checking these points, please contact customer service.
7. Specifications
Here are the key specifications for the Bomann KSE7812 Integrated Refrigerator and Freezer:
- Brand: Bomann
- Model Number: KSE 7812 (778120)
- Total Net Capacity: 181 Liters
- Refrigerator Net Capacity: 167 Liters
- Freezer Net Capacity: 14 Liters
- Freezer Star Rating: 4 Star
- Energy Efficiency Class: E
- Annual Energy Consumption: 146 kWh/annum
- Airborne Acoustical Noise Emissions: 39 dB(A) re 1 pW
- Voltage: 240 Volts
- Item Weight: 36 Kilograms
- Cooling Method: Compressor
- Adjustable Temperature Control: Yes
- Power Plug Type: CEE 7/16 Europlug
7.1 Energy Label and Product Data Sheet
For detailed energy information and product data, please refer to the energy label and product data sheet below. You can also find more information on the EPREL database.
8. Warranty and Support
Bomann products are manufactured with high-quality standards and come with a manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and conditions.
8.1 Customer Service
For technical support, spare parts, or warranty claims, please contact Bomann customer service:
- Manufacturer: C. Bomann GmbH
- Address: Heinrich-Horten-Straße 17, 47906 Kempen, Germany
- Email: info@bomann.de
- Website: www.bomann.de
- Phone: +49 2152 8998-0
