SUPERLEX 9L Dual-Zone Air Fryer Instruction Manual

1. Introduction

Thank you for choosing the SUPERLEX 9L Dual-Zone Air Fryer. This appliance is designed to prepare crispy and delicious food using 360° high-speed hot air circulation technology, significantly reducing the need for oil. With its dual 4.5L cooking zones, viewing window, and versatile cooking functions, it offers a convenient and efficient way to prepare a variety of meals. This manual provides essential information for safe operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your air fryer.

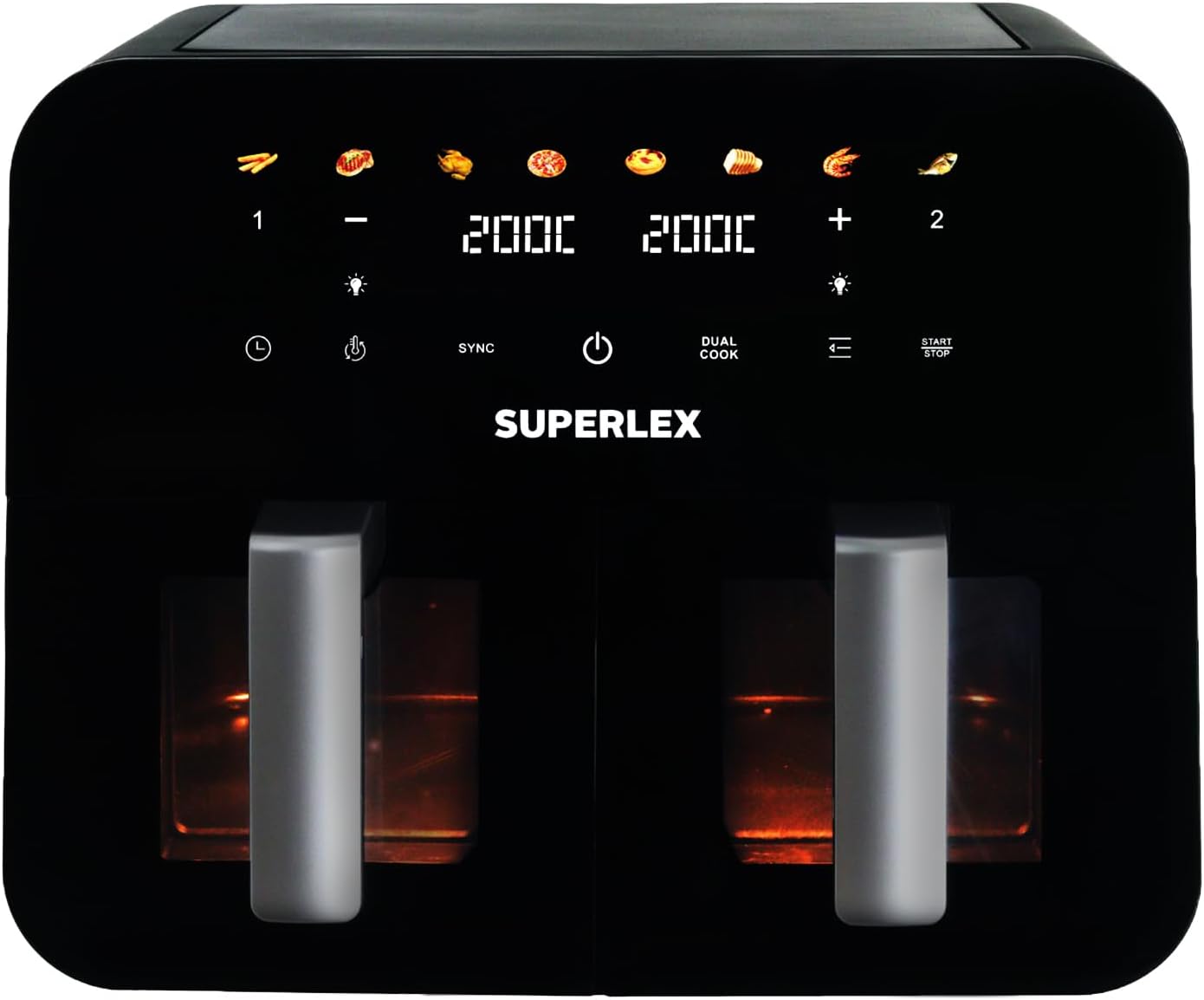

Image 1.1: The SUPERLEX 9L Dual-Zone Air Fryer, showcasing its sleek black design and digital control panel.

2. Important Safety Instructions

Please read all instructions carefully before using the appliance and retain them for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always place the air fryer on a stable, heat-resistant surface, away from walls and other appliances to ensure proper ventilation.
• Do not immerse the main unit, cord, or plug in water or any other liquid.
• Ensure the voltage indicated on the appliance matches your local power supply before connecting.
• Close supervision is necessary when any appliance is used by or near children.
• Do not block any air vents. Hot air is released through the air outlet openings. Keep your hands and face at a safe distance from the openings.
• Do not touch hot surfaces. Use handles or oven mitts.
• Unplug the appliance from the outlet when not in use and before cleaning. Allow it to cool completely before handling.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use accessories not recommended by the appliance manufacturer, as this may cause injuries.
• Do not place the appliance against a wall or against other appliances. Leave at least 10 cm of free space on the back and sides and 10 cm of free space above the appliance.

3. Product Overview and Components

The SUPERLEX 9L Dual-Zone Air Fryer consists of the following main components:

• Main Unit: Houses the heating element, fan, and control panel.
• Digital Control Panel: Touch-sensitive interface for setting time, temperature, and selecting programs.
• Cooking Baskets (x2): Removable 4.5L capacity baskets with non-stick coating.
• Viewing Window: Integrated into each basket to monitor cooking progress without opening.
• Handles: Ergonomic handles for safe removal of cooking baskets.
• Crisper Trays: Removable trays for optimal air circulation within the baskets.

4. Initial Setup

Before first use, follow these steps:

1. Unpack: Carefully remove all packaging materials from the air fryer and its accessories.
2. Clean: Wash the cooking baskets and crisper trays with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
3. Placement: Place the air fryer on a stable, level, and heat-resistant surface. Ensure there is adequate space (at least 10 cm) around the appliance for proper air circulation.
4. First Use Odor: It is normal for a slight odor to be present during the first few uses as manufacturing residues burn off. This is harmless. Run the air fryer empty for about 10-15 minutes at 200°C to dissipate any initial odors.

5. Operating Instructions

5.1. Control Panel Overview

The digital control panel allows for easy operation. Familiarize yourself with the buttons and indicators:

Image 5.1: Detailed view of the air fryer's control panel, highlighting the various buttons and their functions, including time/temperature mode, menu functions, and dual basket controls.

• Power Button (⏻): Turns the appliance on/off.
• Time/Temperature Mode Button (◷): Toggles between time and temperature adjustment for the selected basket.
• Temperature/Time Adjustment Buttons (+ / -): Increases or decreases the cooking time or temperature.
• Preset Program Icons: 8 dedicated icons for common food types (e.g., Fries, Steak, Chicken, Pizza).
• Basket Indicators (1 / 2): Shows which basket is currently selected or active.
• Light Button (💡): Activates the internal light for the viewing window.
• SYNC Function: Synchronizes the finish time of both baskets.
• DUAL COOK Function: Applies the same settings to both baskets.
• Start/Stop Button: Initiates or pauses the cooking process.

5.2. Using Preset Programs

The air fryer comes with 8 convenient preset programs for various dishes:

Image 5.2: Visual representation of the 8 preset cooking programs available on the control panel, including options for fries, steak, chicken, pizza, bake, bread, shrimp, and fish.

1. Place food in the desired cooking basket(s).
2. Press the Power button to turn on the appliance.
3. Select the basket (1 or 2) you wish to program.
4. Press the icon corresponding to your desired preset program (e.g., Fries, Steak). The default time and temperature for that program will display.
5. You can adjust the time and temperature using the ◷ button and + / - buttons if needed.
6. Press the Start/Stop button to begin cooking.

5.3. Manual Temperature and Timer Adjustment

For custom cooking, you can manually set the temperature and time:

1. Place food in the desired cooking basket(s).
2. Press the Power button.
3. Select the basket (1 or 2).
4. Press the ◷ button to select either temperature or time.
5. Use the + / - buttons to adjust the temperature (60°C to 200°C) or time (1 to 60 minutes).
6. Repeat for the other basket if cooking different items.
7. Press the Start/Stop button to begin cooking.

Image 5.3: Illustration of the 60-minute timer function, indicating its role in controlling cooking duration for various dishes.

5.4. Dual Zone Cooking Functions

The SUPERLEX air fryer offers advanced features for cooking multiple items simultaneously:

• DUAL COOK: Use this function to apply the exact same time and temperature settings to both baskets. This is ideal when cooking a large quantity of the same food. Select the settings for one basket, then press DUAL COOK to mirror them to the other.
• SYNC: This feature allows you to cook two different foods with different settings, ensuring they both finish at the same time. Set the desired time and temperature for each basket independently. Then, press the SYNC button. The air fryer will automatically adjust the start times to synchronize the completion.

Image 5.4: Depiction of the air fryer's 9-liter total capacity, divided into two 4.5-liter cooking zones, illustrating its ability to cook different items simultaneously.

5.5. General Cooking Tips

• Preheating: For best results, preheat the air fryer for 3-5 minutes before adding food.
• Shaking: For even cooking and crispiness, shake the baskets halfway through the cooking time, especially for smaller items like fries or nuggets. The appliance will pause when a basket is removed and resume when reinserted.
• Overfilling: Do not overfill the baskets. Overfilling can prevent food from cooking evenly and becoming crispy. Cook in smaller batches if necessary.
• Oil: While the air fryer uses significantly less oil, a light spray of oil on some foods can enhance crispiness and flavor.
• Monitoring: Use the viewing window and internal light (💡 button) to monitor cooking progress without interrupting the cycle.

Image 5.5: Visual representation of the 360° hot air circulation technology within the air fryer, illustrating how heat is distributed for even cooking.

Image 5.6: An image illustrating the health benefits of air frying, showing various dishes prepared with significantly less fat compared to traditional frying methods.

6. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your air fryer.

1. Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool completely before cleaning.
2. Cleaning Baskets and Trays: The removable cooking baskets and crisper trays are dishwasher safe. For hand washing, use warm, soapy water and a non-abrasive sponge or cloth. The non-stick coating is designed for easy cleaning.
3. Cleaning the Interior: Wipe the interior of the appliance with a damp cloth. If necessary, use a mild detergent. Avoid abrasive cleaners or metal scouring pads.
4. Cleaning the Exterior: Wipe the exterior of the air fryer with a soft, damp cloth. Do not use harsh chemicals or abrasive materials.
5. Heating Element: If food residue is stuck to the heating element, gently remove it with a soft brush after the appliance has cooled.
6. Storage: Ensure all parts are clean and dry before storing the air fryer in a cool, dry place.

7. Troubleshooting

If you encounter any issues with your air fryer, please refer to the following common problems and solutions:

8. Specifications

• Brand: SUPERLEX
• Model: B0D812459W
• Capacity: 9 Liters (2 x 4.5 Liters)
• Voltage: 230V
• Material: Metal
• Product Dimensions: 44.2 x 41.4 x 37.4 cm
• Special Features: Temperature Control, Dual Zone Functionality, Stain Resistant, Automatic Shut-off, Timer, Viewing Window.
• Adjustable Temperature: 60°C - 200°C
• Adjustable Timer: 1 - 60 minutes

9. Warranty and Support

For detailed warranty information, product registration, or customer support, please refer to the warranty card included with your purchase or contact SUPERLEX customer service through their official website or the retailer where the product was purchased. Please have your model number (B0D812459W) and purchase date ready when contacting support.
