Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your FLEXISPOT 180x80cm motorized standing desk. Please read all instructions carefully before use to ensure proper function and safety. The desk is designed to offer a healthy work environment by allowing seamless transitions between sitting and standing positions, reducing fatigue and improving concentration.
Key features include a high-quality desktop, a digital control panel with memory presets, and robust, stable legs made from industrial carbon steel.
Safety Information
Always observe the following safety precautions:
- Ensure all connections are secure before operating the desk.
- Do not overload the desk. The maximum recommended weight capacity is 70 kg.
- Keep children and pets away from the desk during operation to prevent accidents.
- The control panel includes a child lock function to prevent accidental adjustments. Activate this function when the desk is not in use.
- Avoid placing liquids directly on the control panel or near electrical components.
- Do not attempt to disassemble or repair the motor or control system yourself. Contact qualified service personnel for assistance.
- Ensure there are no obstructions in the desk's path when adjusting its height.
Components List
Before assembly, verify that all components are present and undamaged. The package should include:
- Desktop (180 x 80 cm)
- Desk Frame (legs and crossbar)
- Digital Control Panel with Memory Function
- Power Adapter and Cable
- Headphone Hook
- Cup Holder
- Assembly Hardware (screws, tools)
- Instruction Manual

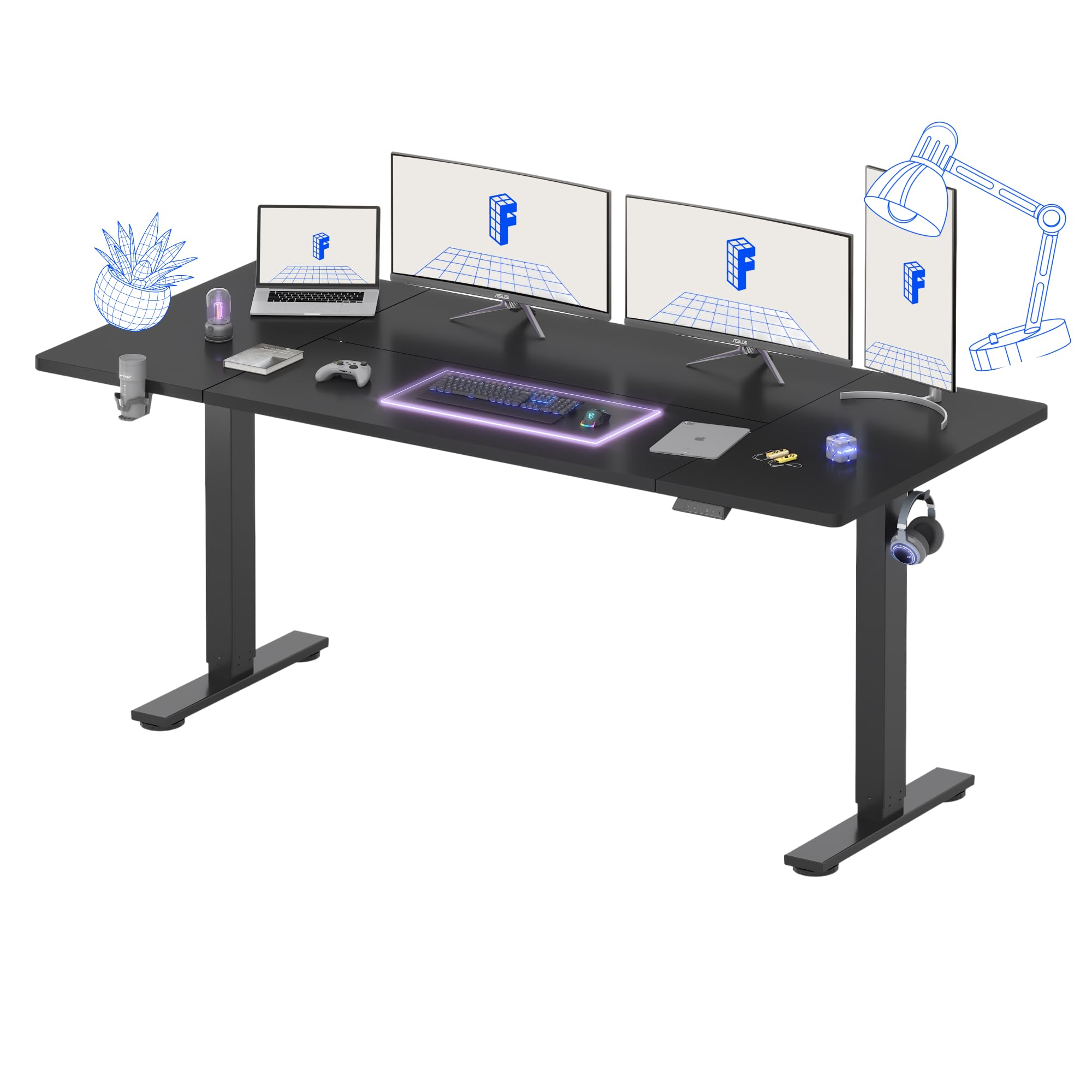

Figure 1: Overview of the FLEXISPOT Standing Desk.
Setup Instructions
Assembly is recommended for one person. Follow the included assembly instructions carefully. Ensure you have adequate space and a clean work area.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a soft, clean surface to prevent scratches.
- Assemble Desk Frame: Attach the desk legs to the crossbar according to the diagrams in the separate assembly guide. Ensure all screws are tightened securely.
- Attach Desktop: Place the desktop upside down on a soft surface. Carefully align the assembled frame with the pre-drilled holes on the desktop and secure it with the provided screws.
- Install Control Panel and Accessories: Mount the digital control panel, headphone hook, and cup holder in your desired positions using the provided hardware.
- Connect Power: Connect the power cable to the control box and then to a power outlet.
- Cable Management: Organize cables using the integrated cable management features to maintain a tidy workspace.
Figure 2: Effective cable management for a tidy workspace.
Figure 3: Close-up of integrated cable organization features.
Operating Instructions
Your FLEXISPOT standing desk features an intuitive digital control panel for easy height adjustments and memory functions.
Figure 4: Digital control panel with LED display and memory buttons.
Height Adjustment
- Up/Down Buttons: Use the ▲ (Up) and ▼ (Down) buttons on the control panel to manually adjust the desk height. The current height will be displayed on the LED screen.
- The desk can be adjusted from a minimum height of 75 cm to a maximum height of 120 cm.
Figure 5: Desk height adjustment range, illustrating minimum and maximum positions.
Memory Presets
The control panel allows you to save preferred sitting and standing heights for quick adjustments.
- Adjust the desk to your desired height using the Up/Down buttons.
- Press the 'M' button (Memory) followed by a number button (1 or 2) to save the current height. The LED display will confirm the save.
- To recall a saved height, simply press the corresponding number button (1 or 2). The desk will automatically move to the preset position.
Child Lock Function
To activate the child lock, press and hold the 'M' button for 3 seconds until 'LOC' appears on the display. To deactivate, press and hold 'M' again for 3 seconds.
Low Noise Operation
The desk operates with a low noise level of approximately 50dB, ensuring a quiet environment suitable for focused work or shared spaces.
Figure 6: Illustration of the desk's low noise operation, ideal for quiet environments.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your desk.
- Cleaning: Wipe the desktop and frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Cable Check: Periodically inspect all cables for wear or damage. Ensure they are properly routed and not pinched.
- Fastener Check: Occasionally check all screws and fasteners to ensure they remain tight. Retighten if necessary.
- Weight Distribution: Distribute weight evenly across the desktop to prevent strain on the motor and frame.
Troubleshooting
If you encounter issues with your FLEXISPOT standing desk, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Desk does not move | Power cable disconnected; Child lock activated; Overload protection triggered. | Check power connection; Deactivate child lock; Reduce weight on desk. |
| Uneven height adjustment | Obstruction; Loose connection in frame. | Remove obstructions; Check and tighten frame connections. |
| Error code on display | Specific system fault. | Refer to the detailed troubleshooting section in the full assembly manual or contact customer support. |
Specifications
Detailed technical specifications for your FLEXISPOT standing desk:
- Brand: FLEXISPOT
- Model: 180 x 80 cm
- Desk Design: Standing Desk
- Product Dimensions (D x W x H): 80P x 180l x 73H cm
- Color: Black
- Desktop Material: Wood
- Base Material: Industrial Carbon Steel
- Special Feature: Adjustable Height
- Lifting Mechanism: Electric
- Minimum Height: 75 Centimeters
- Maximum Height: 120 Centimeters
- Desktop Thickness: 25 Millimeters
- Maximum Recommended Weight: 70 Kilograms
- Assembly Required: Yes (1 person recommended)
- Included Components: Headphone hook, cup holder, control panel with memory function
- GTIN: 810072888365
Figure 7: The robust frame is designed to support up to 70 kg.
Warranty Information
This FLEXISPOT standing desk comes with a Limited Warranty. For specific terms and conditions, please refer to the warranty card included in your product packaging or visit the official FLEXISPOT website. Keep your proof of purchase for warranty claims.
Support
For further assistance, technical support, or to order replacement parts, please contact FLEXISPOT customer service. Contact details can typically be found on the official FLEXISPOT website or in the product packaging.
Online Resources: Visit the FLEXISPOT Store on Amazon for additional product information and support.
